OSPF (Open Shortest Path First)calculates the best path based on thecostof the route, which is derived from the bandwidth of the interfaces along the path.

Step-by-Step Breakdown:

OSPF Path Selection:

OSPF assigns a cost to each link, typically based on the link's bandwidth (higher bandwidth equals lower cost).

The OSPF algorithm computes the shortest path to a destination by adding the costs of all links in the path. The path with thenumerically lowest total costis chosen as the best path.

Cost Calculation:The OSPF cost can be manually adjusted or automatically calculated using the default formula:

Cost=Reference BandwidthLink Bandwidth\text{Cost} = \frac{\text{Reference Bandwidth}}{\text{Link Bandwidth}}Cost=Link BandwidthReference Bandwidth​

Juniper Reference:

OSPF Best Path Selection: OSPF selects the path with the lowest cumulative cost, ensuring efficient use of higher-bandwidth links in Junos networks.

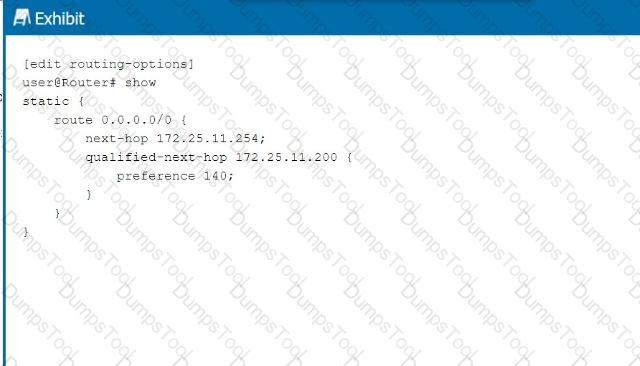

In the exhibit, we see two next-hop addresses for the default static route (0.0.0.0/0):

The first next hop is172.25.11.254, with no specified preference.

The second next hop is172.25.11.200, with a specified preference of140.

Step-by-Step Breakdown:

Default Static Route Preference:If no preference is explicitly set for a next hop in Junos, it defaults to5for static routes.

Determining Preference:In this case, the next hop172.25.11.254does not have an explicit preference defined, so it will use the default value of5. The second next hop has a preference of140, which is higher,meaning it will only be used if the primary next hop is unavailable.

Juniper Reference:

Static Route Preference: In Junos, the default preference for static routes is5, and this value is applied unless overridden by the preference parameter.

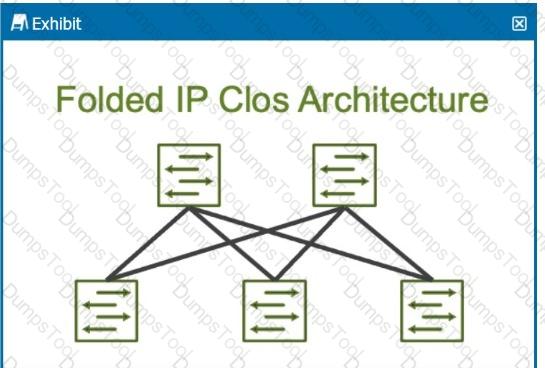

The exhibit shows aFolded IP Clos Architecture, which is also referred to as a3-stage Closnetwork design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

TheFolded Closarchitecture shown here effectively "folds" the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.

InBGP (Border Gateway Protocol), when evaluating multiple routes to the same destination, the first attribute that is considered is thelocal preferencevalue. Thelocal preferenceis a BGP attribute used to influence outbound routing decisions within an Autonomous System (AS).

Step-by-Step Breakdown:

Local Preference:Thelocal preferenceattribute is used to determine which path is preferred for traffic leaving the AS. The higher the local preference value, the more preferred the route.

BGP Path Selection:The BGP path selection process evaluates the following attributes in this order:

Local Preference(higher is preferred)

AS Path(shorter is preferred)

Origin(IGP > EGP > incomplete)

MED (Multi-Exit Discriminator)(lower is preferred)

Juniper Reference:

BGP Path Selection: In Junos, thelocal preferenceattribute is the first to be evaluated when determining the best path for outbound traffic.

In OSPF, routers exchange link-state information in different stages to establish full adjacency. TheMTU sizeis checked during theExchangestate.

Step-by-Step Breakdown:

OSPF Adjacency Process:

OSPF routers go through multiple stages when forming an adjacency:Down,Init,2-Way,ExStart,Exchange,Loading, andFull.

Exchange State:

During theExchangestate, OSPF routers exchangeDatabase Description (DBD)packets to describe their link-state databases. TheMTU sizeis checked at this stage to ensure both routers can successfully exchange these packets without fragmentation.

If there is anMTU mismatch, the routers may fail to proceed past the Exchange state.

Juniper Reference:

MTU Checking in OSPF: Junos uses the Exchange state to check for MTU mismatches, ensuring that routers can properly exchange database information without packet fragmentation issues.
