JN0-280 Questions and Answers

The exhibit shows aFolded IP Clos Architecture, which is also referred to as a3-stage Closnetwork design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

TheFolded Closarchitecture shown here effectively "folds" the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.

In the exhibit, we see two next-hop addresses for the default static route (0.0.0.0/0):

The first next hop is172.25.11.254, with no specified preference.

The second next hop is172.25.11.200, with a specified preference of140.

Step-by-Step Breakdown:

Default Static Route Preference:If no preference is explicitly set for a next hop in Junos, it defaults to5for static routes.

Determining Preference:In this case, the next hop172.25.11.254does not have an explicit preference defined, so it will use the default value of5. The second next hop has a preference of140, which is higher,meaning it will only be used if the primary next hop is unavailable.

Juniper Reference:

Static Route Preference: In Junos, the default preference for static routes is5, and this value is applied unless overridden by the preference parameter.

OSPF (Open Shortest Path First)calculates the best path based on thecostof the route, which is derived from the bandwidth of the interfaces along the path.

Step-by-Step Breakdown:

OSPF Path Selection:

OSPF assigns a cost to each link, typically based on the link's bandwidth (higher bandwidth equals lower cost).

The OSPF algorithm computes the shortest path to a destination by adding the costs of all links in the path. The path with thenumerically lowest total costis chosen as the best path.

Cost Calculation:The OSPF cost can be manually adjusted or automatically calculated using the default formula:

Cost=Reference BandwidthLink Bandwidth\text{Cost} = \frac{\text{Reference Bandwidth}}{\text{Link Bandwidth}}Cost=Link BandwidthReference Bandwidth​

Juniper Reference:

OSPF Best Path Selection: OSPF selects the path with the lowest cumulative cost, ensuring efficient use of higher-bandwidth links in Junos networks.

IBGP (Internal Border Gateway Protocol)is used to exchange routing information betweenrouters within the same AS (Autonomous System).

Step-by-Step Breakdown:

TTL of 255:

By default, IBGP sessions are established with aTTL (Time to Live)value of255. This allows IBGP neighbors to communicate over multiple hops within the AS without requiring any additional configuration.

Full Mesh Requirement:

IBGP requires alogical full meshbetween all IBGP routers to ensure that routing information is fully distributed within the AS. Since IBGP does not propagate routes learned from one IBGP peer to another by default, a full mesh topology is needed unlessroute reflectorsorBGP confederationsare used.

Juniper Reference:

IBGP Full Mesh: Juniper recommends using route reflectors in large networks to simplify IBGP full-mesh requirements.

AnIP fabricis a network topology designed to provide a scalable, low-latency architecture that is typically implemented in modern data centers. It usesspine and leafswitches and enables efficienttraffic load sharingacross the network.

Step-by-Step Breakdown:

Spine-Leaf Architecture:

Leaf Devices: These switches connect to servers and edge devices within the data center. Each leaf switch connects to every spine switch.

Spine Devices: These high-performance switches interconnect all the leaf switches. There are no direct connections between leaf switches or spine switches. This architecture ensures that any two endpoints within the fabric are only one hop away from each other, minimizing latency.

Traffic Load Sharing:

An IP fabric leveragesEqual-Cost Multipath (ECMP)to distribute traffic evenly across all available paths between leaf and spine switches, providing effective load balancing. This ensures that no single link becomes a bottleneck and that traffic is distributed efficiently across the network.

Juniper Reference:

Juniper providesQFX Seriesswitches optimized for IP fabric topologies, allowing for scalable deployments in modern data centers.

EVPN-VXLAN: Often used in IP fabrics to extend Layer 2 services across the fabric with Layer 3 underlay, enabling both efficient routing and bridging.

AnIP fabricis a network architecture commonly used in data centers to provide scalable, high-throughput connectivity using aspine-leaf topology.

Step-by-Step Breakdown:

Layer 3 Routing Protocol:An IP fabric relies on aLayer 3 routing protocol, typically BGP or OSPF, to provide routing between the leaf and spine switches. This ensures efficient traffic forwarding across the network.

Single Connection Between Spine and Leaf:In an IP fabric, each leaf switch connects toevery spine switchwith a single connection. This ensures that traffic between any two leaf switches can travel through the spine layer in just two hops.

Juniper Reference:

Spine-Leaf Design: Juniper’s IP fabric implementations are designed for scalability and low-latency routing, often using protocols like BGP for Layer 3 control.

In Junos, thedefault export policyforOSPFis toreject all routesfrom being exported.

Step-by-Step Breakdown:

Default Export Policy:By default,OSPFin Junos does not export any routes to other routing protocols or neighbors. This is a safety mechanism to prevent unintended route advertisements.

Custom Export Policies:

If you need to export routes, you must create a customexport policythat explicitly defines which routes to advertise.

Example: You can create an export policy to redistribute static or connected routes into OSPF.

Juniper Reference:

OSPF Export Behavior: In Juniper devices, the default policy for OSPF is to reject route advertisements unless explicitly configured otherwise through custom policies.

Acollision domainis a network segment where data packets can "collide" with one another when being sent on the same network medium.

Step-by-Step Breakdown:

Increased Collision Probability:If all devices are in asingle collision domain, the likelihood of packet collisions increases as more devices attempt to send packets simultaneously, leading to network inefficiencies.

Increased Resource Consumption:More collisions result inincreased network resource consumptionas devices need to retransmit packets, causing higher utilization of bandwidth and slowing down network performance.

Juniper Reference:

Collision Domains: Proper network segmentation using switches reduces collision domains, thereby improving network performance and reducing packet collisions.

In aVirtual Chassis(VC) configuration, multiple Juniper switches are interconnected to form a single logical device. Each member switch in the Virtual Chassis plays a specific role.

Step-by-Step Breakdown:

Line Card Role:

Member switches acting asline cardsprovide additional ports for traffic forwarding but do not perform control or routing functions. These switches depend on the routing engine to handle control-plane tasks.

Routing Engine Role:

A switch in therouting-enginerole is responsible for control-plane operations such as routing protocol management and control of the Virtual Chassis.

Virtual Chassis Roles:

Master Routing Engine: Handles control-plane functions and manages the entire Virtual Chassis.

Backup Routing Engine: Takes over if the master fails.

Line Card: Provides additional ports and handles data-plane operations.

Juniper Reference:

Virtual Chassis: In a five-member Virtual Chassis, multiple switches act asline cards, while one or more switches are designated as therouting engines(master and backup).

InOSPF (Open Shortest Path First), areas are used to segment a network into smaller, more manageable pieces to improve scalability. By dividing a network into areas, OSPF can reduce the size of thelink-state database (LSDB), which helps routers process updates more efficiently.

Step-by-Step Breakdown:

Purpose of OSPF Areas:OSPF areas allow for hierarchical routing within the OSPF domain. Routers in the same area have identical LSDBs, but routers in different areas do not exchange full link-state information. Instead, they exchange summarized routes, which reduces the LSDB size and CPU/memory usage.

Benefits:Reducing the LSDB size improves scalability and ensures faster convergence in larger networks. Area 0 is the backbone area, and all other areas must connect to it, forming a hierarchical structure.

Juniper Reference:

OSPF Configuration: Areas in OSPF are configured to optimize network performance by limiting the scope of link-state advertisements (LSAs) to within an area.

To display themapping between VLAN IDs and portson a Juniper switch, the show vlans command is used.

Step-by-Step Breakdown:

VLAN Information:The show vlans command displays detailed information about VLAN configurations, including the VLAN ID, associated interfaces (ports), and VLAN membership.

Command Example:

show vlans

This command will provide an output listing each VLAN, its ID, and the interfacesassociated with the VLAN, enabling network engineers to quickly verify VLAN to port mappings.

Juniper Reference:

VLAN Verification: Use the show vlans command to verify which VLANs are configured on the switch and the ports that are members of those VLANs.

In the exhibit, BGP is configured withlocal AS 65101and a neighbor at172.16.1.1inpeer AS 65201. This setup involves two different Autonomous Systems (AS), indicating anExternal BGP (EBGP)configuration.

Step-by-Step Breakdown:

EBGP vs. IBGP:

EBGPis used between routers in different ASes. In this case, the local AS is65101and the peer AS is65201, meaning the BGP session isEBGP.

IBGPis used between routers within the same AS, which is not applicable here as the AS numbers are different.

BGP Group Configuration:

The configuration does not require a type external parameter because Junos OSautomatically recognizes the session asEBGPwhen the local and peer AS numbers are different.

The BGP session will operate as EBGP, and the configuration will commit successfully.

Juniper Reference:

BGP Configuration: In Juniper, EBGP is automatically recognized when the local and peer AS numbers differ, without needing to specify type external.

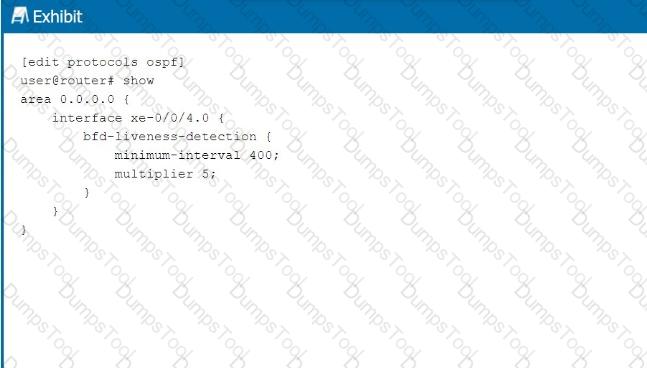

The exhibit shows the configuration ofBidirectional Forwarding Detection (BFD)for OSPF on interface xe-0/0/4.0, with the following parameters:

minimum-interval: 400 milliseconds

multiplier: 5

Step-by-Step Breakdown:

BFD Liveness Detection:BFD is used to detect link failures at sub-second intervals, providing faster convergence times for routing protocols like OSPF. Theminimum-intervalis the time between BFD control packets (in milliseconds), and themultiplierindicates how many missed BFD packets trigger a failure.

Calculating Failure Detection Time:The failure detection interval is calculated as:

Failure Interval=minimum-interval×multiplier\text{Failure Interval} = \text{minimum-interval} \times \text{multiplier}Failure Interval=minimum-interval×multiplier

In this case:

400 milliseconds×5=2000 milliseconds(2seconds)400 \, \text{milliseconds} \times 5 = 2000 \, \text{milliseconds} (2 seconds)400milliseconds×5=2000milliseconds(2seconds)

Conclusion:If no BFD control packets are received within2000 milliseconds (2 seconds), the interface will be considered down, triggering OSPF to recalculate routes.

Juniper Reference:

BFD Configuration: BFD parameters such as minimum-interval and multiplier are used to fine-tune the failure detection time for faster convergence.

VLAN tagsare used in Ethernet frames to identify and differentiate traffic between multiple VLANs. They are especially important for devices like switches that handle multiple VLANs on the same physical link.

Step-by-Step Breakdown:

VLAN Tag Contents:

VLAN ID: The tag contains a 12-bit VLAN ID field that identifies the VLAN to which the frame belongs.

Priority: The tag also includes a 3-bit priority field (also known as 802.1p priority) used for QoS (Quality of Service) to prioritize traffic.

Trunk Ports and VLAN Tagging:

Trunk Portsare used to carry traffic for multiple VLANs across a single link. These interfaces insert (tag) VLAN identifiers into frames when they leave the switch and remove (untag) them when frames enter the switch.

Access Ports:VLAN tags are typically not used onaccess ports(ports that connect to end devices) since those ports are configured to be part of a single VLAN, and the traffic doesn't need VLAN tags.

Juniper Reference:

VLAN Tagging: Juniper switches support VLAN tagging and ensure that frames are tagged or untagged as they traverse trunk or access ports, respectively.
