C is false because HTTPS redirection is not required for Portal authentication to work properly.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/troubleshooting-portal-authentication-failures

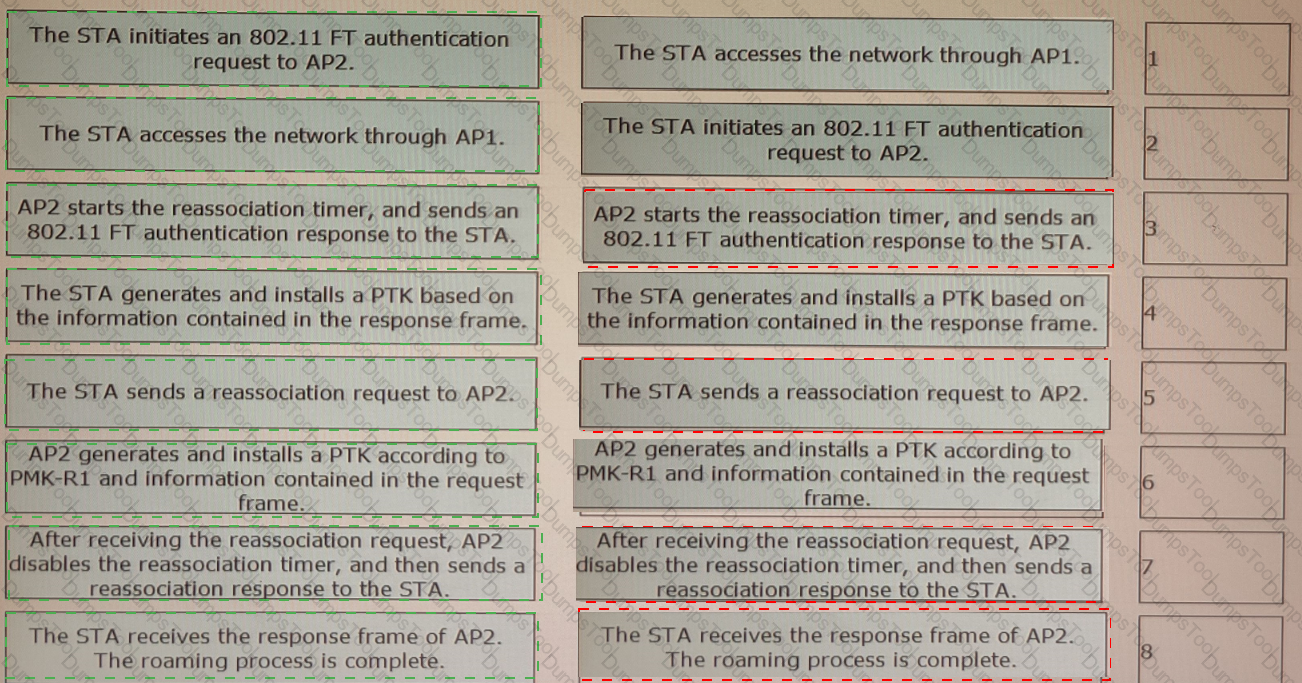

According to the Huawei documents and resources, the chronological order during the 802.11r fast roaming process between WACs is as follows:

2.The STA accesses the network through API. This is the initial association process before roaming.

1.The STA initiates an 802.11 FT authentication request to AP2. This is the first step of the roaming process when the STA moves to a new AP.

3.AP2 starts the reassociation timer, and sends an 802.11 FT authentication response to the STA. This is the second step of the roaming process when AP2 responds to the STA’s request and sets a timer for reassociation.

4.The STA generates and installs a P TK based on the information contained in the response frame. This is the third step of the roaming process when the STA derives a new pairwise key for encryption.

5.The STA sends a reassociation request to AP2. This is the fourth step of the roaming process when the STA requests to reassociate with AP2.

6.AP2 generates and installs a PTK according to PMK-RI and information contained in the request frame. This is the fifth step of the roaming process when AP2 derives the same pairwise key as the STA.

7.After receiving the reassociation request, AP2 disables the reassociation timer, and then sends a reassociation reg onse to the STA. This is the sixth step of the roaming process when AP2 confirms the reassociation with the STA and stops the timer.

8.The STA receives the response frame of AP2. The roaming process is complete. This is the final step of the roaming process when the STA completes the handover to AP2.

Therefore, 2, 1, 3, 4, 5, 6, 7, 8 is the correct answer. References: https://support.huawei.com/enterprise/en/doc/EDOC1100169459/8d79210e/configuring-wireless-mesh-networking

According to the Huawei documents and resources, the HLD phase is the high-level design phase of a WLAN project. It involves the following items:

• Capacity planning: Determines the number and types of devices required for the WLAN network based on the customer’s requirements and network scale.
• Network design: Designs the network topology, IP addressing scheme, VLAN division, security policies, and other network parameters for the WLAN network.
• Deployment planning: Plans the deployment sequence, schedule, resources, and risks for the WLAN project.

AP position planning is not involved in the HLD phase. It is part of the LLD phase, which is the low-level design phase of a WLAN project. It involves the detailed design of AP positions, antenna types, channel allocation, power adjustment, and other wireless parameters for the WLAN network. Therefore, C is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/wlan-project-design

B and E are not parameters recorded by iMaster NCE-CampusInsight for interference analysis. The other options are parameters recorded by iMaster NCE-CampusInsight to comprehensively record and analyze interference.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/interference-analysis
