JN0-636 Dumps with Practice Exam Questions Answers

https://www.juniper.net/documentation/en_US/release-independent/jatp/topics/topic-map/jatp-custom-log-ingestion.html

• The SRX Series device is performing both source and destination NAT on this session because the traceoptions output shows that both source and destination IP addresses and ports are translated. The source IP address 192.168.5.2 is translated to 192.168.100.1 and the destination IP address 1.1.1.1 is translated to 192.168.5.1. The source port 0 is translated to 14777 and the destination port 80 is translated to 80. The traceoptions output also shows the rule and pool IDs for both source and destination NAT: 2/32770 and 1/1 respectively.
• This is the first packet in the session because the traceoptions output shows the flag flow_first_packet, which indicates that this is the first packet of a new session. The traceoptions output also shows the flag flow_first_src_xlate and flow_first_rule_dst_xlate, which indicate that this is the first time that source and destination NAT are applied to this session.

References:

• traceoptions (Security NAT) | Junos OS | Juniper Networks
• [SRX] How to interpret Flow TraceOptions output for NAT troubleshooting

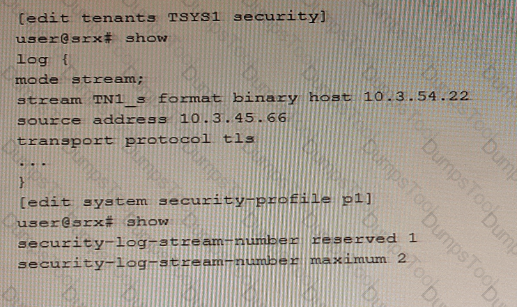

According to the Juniper documentation, a tenant system is a logical system that supports routing, services, and security features. A tenant system can be configured to log binary security events to a remote server using the pi security profile. The pi security profile specifies the tenant name, the server address, the server port, and the protocol for logging binary security events. In the exhibit, the pi security profile is configured with the server address 10.0.0.1, the server port 514, and the protocol UDP. However, the tenant name is missing from the configuration. To complete the configuration, the tenant name must be configured as local for the pi security profile. This is because the local tenant name is used to identify the tenant system that is sending the binary security events to the remote server. Therefore, the correct statement to complete the configuration is D. Configure the tenant as local for the pi security profile. References: [Tenant Systems Overview] 1, [Configuring Binary Security Event Logging for Tenant Systems] 2

1: https://www.juniper.net/documentation/us/en/software/junos/logical-system-security/topics/topic-map/tenant-systems-overview.html  2: https://www.juniper.net/documentation/us/en/software/junos/logical-system-security/topics/task/security-tenant-systems-binary-logging-configuring.html

You want traffic to avoid the flow daemon for administrative tasks. In this scenario, the two stateless services that are available with selective stateless packet-based services are:

• A. Layer 2 switching. Layer 2 switching is a stateless service that forwards packets based on the MAC addresses of the source and destination hosts. Layer 2 switching does not require any routing or flow processing, and can be performed by the Packet Forwarding Engine (PFE) of the SRX Series device. You can use selective stateless packet-based services to enable Layer 2 switching for traffic that matches a stateless firewall filter. The firewall filter must have the packet-mode action modifier to bypass the flow daemon1.
• B. IPv4 routing. IPv4 routing is a stateless service that forwards packets based on the IP addresses of the source and destination hosts. IPv4 routing does not require any flow processing, and can be performed by the PFE of the SRX Series device. You can use selective stateless packet-based services to enable IPv4 routing for traffic that matches a stateless firewall filter. The firewall filter must have the packet-mode action modifier to bypass the flow daemon1.

The other options are incorrect because:

• C. IPsec. IPsec is a stateful service that provides security and encryption for IP packets. IPsec requires flow processing, and cannot be performed by the PFE of the SRX Series device. You cannot use selective stateless packet-based services to enable IPsec for traffic that matches a stateless firewall filter. The firewall filter cannot have the packet-mode action modifier to bypass the flow daemon2.
• D. IPv6 routing. IPv6 routing is a stateful service that forwards packets based on the IP addresses of the source and destination hosts. IPv6 routing requires flow processing, and cannot be performed by the PFE of the SRX Series device. You cannot use selective stateless packet-based services to enable IPv6 routing for traffic that matches a stateless firewall filter. The firewall filter cannot have the packet-mode action modifier to bypass the flow daemon3.

References:

• Selective Stateless Packet-Based Services Overview
• IPsec VPN Overview
• IPv6 Overview

https://www.juniper.net/documentation/en_US/junos/topics/topic-map/security-user-auth-configure-jims.html
