JN0-636 Questions and Answers

https://www.juniper.net/documentation/en_US/release-independent/jatp/topics/topic-map/jatp-custom-log-ingestion.html

According to the Juniper documentation, the steps to detect domain generation algorithms (DGA) on an SRX Series firewall are as follows:

• Define a security-metadata-streaming policy under [edit services]. A security-metadata-streaming policy is a configuration that enables the SRX Series firewall to collect and stream security metadata, such as DNS queries and responses, to Juniper ATP Cloud for analysis. Juniper ATP Cloud uses machine learning models and known pre-computed DGA domain names to provide domain verdicts, which helps in-line blocking and sinkholing of DNS queries on SRX Series firewalls1. You can define a security-metadata-streaming policy by using the following command:

set services security-metadata-streaming policy

• Attach the security-metadata-streaming policy to a security zone. A security zone is a logical grouping of interfaces that have similar security requirements. You can attach the security-metadata-streaming policy to a security zone by using the following command:

set security zones security-zone services security-metadata-streaming policy

The following steps are not required or incorrect:

• Define an advanced-anti-malware policy under [edit services]. An advanced-anti-malware policy is a configuration that enables the SRX Series firewall to scan files for malware using Juniper ATP Cloud. It is not related to DGA detection2.
• Attach the advanced-anti-malware policy to a security policy. A security policy is a configuration that defines the rules for permitting or denying traffic between security zones. It is not related to DGA detection3.

References: 1: Configuring Security Metadata Streaming 2: Configuring Advanced Anti-Malware Policies 3: Configuring Security Policies

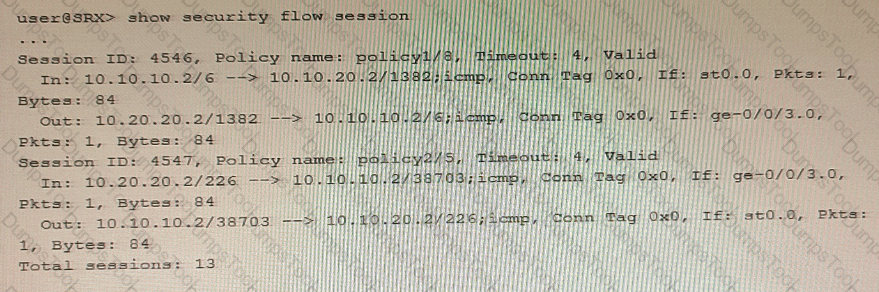

According to the output shown in the exhibit, which is a security flow session on an SRX Series device, the correct statement is that the local gateway address for the IPsec tunnel is 10.20.20.2. This is indicated by the line In: 10.20.20.2/2060 -> 10.20.20.1/3382, which shows that the source IP address of the incoming packet is 10.20.20.2, which is the local gateway address of the IPsec tunnel. The destination IP address of the incoming packet is 10.20.20.1, which is the remote gateway address of the IPsec tunnel.

The following statements are incorrect or not supported by the output:

• The remote gateway address for the IPsec tunnel is 10.20.20.2. This is false, as explained above. The remote gateway address for the IPsec tunnel is 10.20.20.1, not 10.20.20.2.
• The session information indicates that the IPsec tunnel has not been established. This is false, as the output shows that there are two active sessions with the communication tag IPSec VPN: vpn1, which indicates that the IPsec tunnel has been established and is named vpn11.
• NAT is being used to change the source address of outgoing packets. This is not supported by the output, as there is no indication of NAT being applied to the outgoing packets. The source IP address of the outgoing packet is 192.168.1.1, which is the same as the source IP address of the original packet. If NAT was being used, the source IP address of the outgoing packet would be different from the source IP address of the original packet.

References: 1: show security flow session - Technical Documentation - Support - Juniper Networks

To create a secure fabric in your company’s network, you need to know the following facts:

• A secure fabric is a collection of sites that contain network devices (switches, routers, firewalls, and other security devices) that are used in policy enforcement groups. A site is a grouping of network devices that contribute to threat prevention. When threat prevention policies are applied to policy enforcement groups, the system automatically discovers to which sites those groups belong. This is how threat prevention is aggregated across your secure fabric1.
• MX Series devices associated with tenants can belong to multiple sites. Tenants are logical partitions of the network that can have their own security policies and enforcement points. Sites that are associated with tenants do not need switches as enforcement points, because MX Series devices can perform tenant-based policy enforcement1.
• SRX Series devices can belong to only one site. SRX Series devices are firewalls that can act as perimeter enforcement points for the secure fabric. They can send potentially malicious objects and files to the Juniper ATP Cloud for analysis and receive threat intelligence from the Juniper ATP Cloud to block malicious traffic. SRX Series devices cannot belong to multiple sites, because they do not support tenant-based policy enforcement1.
• A switch must be assigned to the site to enforce an infected host policy within the network. An infected host policy is a policy that blocks or quarantines hosts that are identified as infected by the Juniper ATP Cloud. A switch can act as an internal enforcement point for the secure fabric by applying the infected host policy to the hosts that are connected to it. A switch must be assigned to the site where the infected hosts are located, because SRX Series devices cannot enforce infected host policies1.
• Switches and connectors cannot be added to the same site. Connectors are software agents that can be installed on Windows or Linux servers to enable them to act as enforcement points for the secure fabric. Connectors can apply infected host policies to the hosts that are connected to them. However, connectors cannot coexist with switches in the same site, because they use different methods of policy enforcement. Switches use VLANs and ACLs, while connectors use IPtables and WFP1.

Therefore, the correct answer is B, D, and E. The other options are incorrect because:

• A. MX Series devices associated with tenants can belong to multiple sites, not only one site1.
• C. SRX Series devices can belong to only one site, not multiple sites1.

References:

• Secure Fabric Overview

• When enrolling your devices, you only need to enroll one node: The Juniper ATP Cloud automatically recognizes the HA configuration and applies the same license and configuration to both nodes of the cluster.
• You must use the same license key on both cluster nodes: The HA cluster needs to share the same license key in order to be recognized as a single device by the Juniper ATP Cloud.

You must set up your HA cluster before enrolling your devices with Juniper ATP Cloud. And it is not necessary to use different license keys on both cluster nodes because the HA cluster shares the same license key.

The two statements that are correct in this scenario are:

• When enrolling your devices, you only need to enroll one node. This is because the Juniper ATP Cloud service supports chassis cluster mode for SRX Series devices. When you enroll a chassis cluster, you only need to enroll the primary node of the cluster. The secondary node will be automatically enrolled and synchronized with the primary node. You do not need to enroll the secondary node separately or perform any additional configuration on it.
• You must use the same license key on both cluster nodes. This is because the Juniper ATP Cloud service requires a license key to activate the service on the SRX Series devices. The license key is tied to the serial number of the device. When you enroll a chassis cluster, you must use the same license key on both nodes of the cluster. The license key must match the serial number of the primary node of the cluster. You cannot use different license keys on the cluster nodes.

References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/security-atp-cloud-enrolling-srx-series.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-atp-cloud-licensing-overview.html

The solution to this problem is to enable address persistence. This will ensure that the same external IP address is used for multiple sessions between an internal host and an external host. This will result in only one authentication being required, as the same external IP address will be used for all sessions.

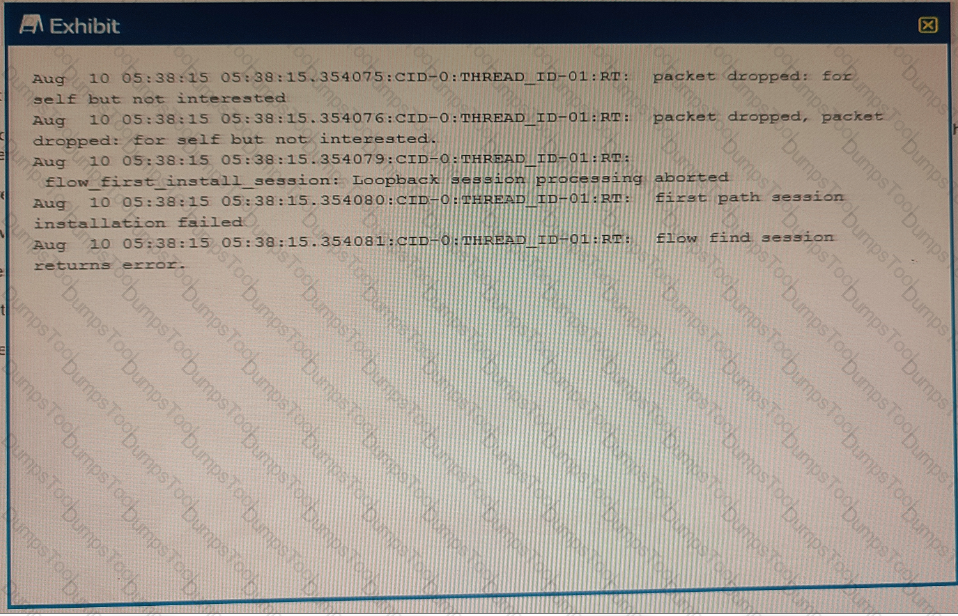

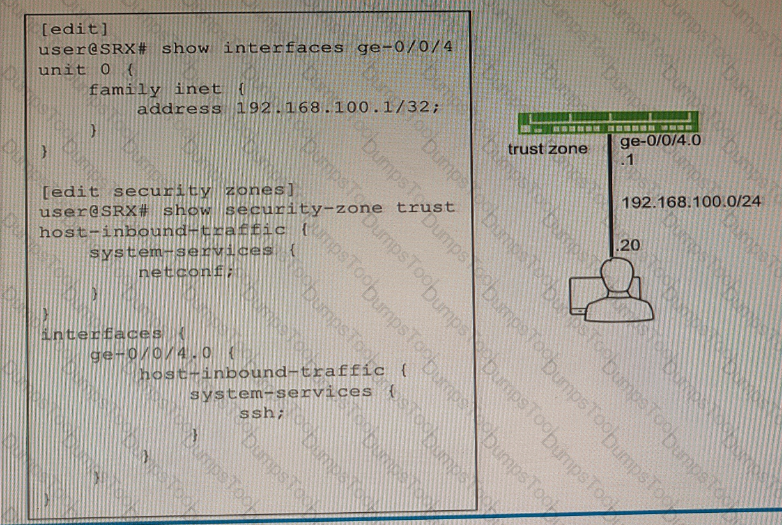

According to the security flow trace in the exhibit, the packets are dropped for self but not interested. This means that the SRX device is receiving packets destined to itself, but it does not have the corresponding service configured in the host-inbound-traffic stanza for the interface1. In this case, the service is BGP, which uses TCP port 179. Therefore, the correct action to solve the problem on the SRX device is to add BGP to the allowed host-inbound-traffic for the interface. This can be done by using the following command:

set security zones security-zone interfaces host-inbound-traffic system-services bgp

This command will allow the SRX device to accept BGP packets on the specified interface and zone. Alternatively, the command can be applied to all interfaces in a zone by using the all-interfaces option2.

References: 1: SRX Getting Started - Troubleshoot Security Policy 2: Configuring System Services Allowed for Host Inbound Traffic

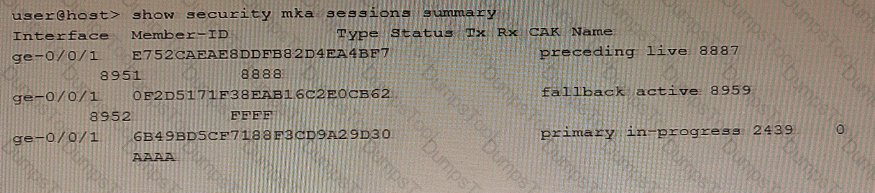

The exhibit shows the output of the show security mka sessions summary command on an SRX Series device. This command displays the status of the MACsec Key Agreement (MKA) sessions on the device. In the output, we can see that there are two CAKs configured for the interface ge-0/0/1 - FFFF and EEEE. The CAK named FFFF has the type preceding and the status live. The CAK named EEEE has the type fallback and the status active.

The two statements that are true about the CAK status for the CAK named FFFF are:

• CAK is not used for encryption and decryption of the MACsec session. This is because the CAK is only used for authentication and key exchange between the MACsec peers. The CAK is not used for encrypting or decrypting the MACsec traffic. The encryption and decryption of the MACsec session is done by the Secure Association Key (SAK), which is derived from the CAK using the MKA protocol.
• SAK is not generated using this key. This is because the CAK named FFFF has the type preceding, which means that it is a legacy key that is used for backward compatibility with older MACsec devices. The preceding key is not used for generating the SAK, but only for authenticating the MACsec peers. The SAK is generated using the active key, which is the CAK named EEEE in this case.

References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/reference/command-summary/show-security-mka-sessions-summary.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-macsec-overview.html

In Juniper ATP Cloud, a threat prevention policy allows you to define how the system should handle an infected host. Two of the available actions are:

• Close the connection: This action will close the connection between the infected host and the destination to which it is trying to connect. This will prevent the host from communicating with the destination and will stop any malicious activity.
• Quarantine the host: This action will isolate the infected host from the network by placing it in a quarantine VLAN. This will prevent the host from communicating with other devices on the network, which will prevent it from spreading malware or exfiltrating data.

Sending a custom message is used to notify the user and administrator of the action taken. Drop the connection silently is not an action available in Juniper ATP Cloud.

According to the Juniper documentation, the threat prevention policy in Juniper ATP Cloud is a configuration that defines the actions and notifications for different threat levels of the traffic. The threat levels are based on the verdicts returned by Juniper ATP Cloud after analyzing the files, URLs, and domains. The threat levels range from 1 to 10, where 1 is the lowest and 10 is the highest1.

The threat prevention policy allows the user to specify different actions for different threat levels. The actions can be applied to the traffic or to the infected host. The actions available for the traffic are:

• Permit: Allows the traffic to pass through the SRX Series device without any interruption.
• Block: Blocks the traffic and sends a reset packet to the client and the server.
• Drop: Drops the traffic silently without sending any reset packet.
• Redirect: Redirects the traffic to a specified URL, such as a warning page or a sinkhole server.

The actions available for the infected host are:

• None: Does not take any action on the infected host.
• Quarantine: Quarantines the infected host by applying a firewall filter that blocks all outbound traffic from the host, except for the traffic to Juniper ATP Cloud or the specified redirect URL.
• Custom: Executes a custom script on the SRX Series device to perform a user-defined action on the infected host, such as sending an email notification or triggering an external system.

Therefore, the two different actions available in a threat prevention policy to deal with an infected host are:

• Block: This action will block the traffic from or to the infected host and send a reset packet to the client and the server. This will prevent the infected host from communicating with the malicious server or spreading the malware to other hosts.
• Quarantine: This action will quarantine the infected host by blocking all outbound traffic from the host, except for the traffic to Juniper ATP Cloud or the redirect URL. This will isolate the infected host from the network and allow the user to remediate the infection.

The following actions are not available or incorrect:

• Send a custom message: This is not an action available in the threat prevention policy. However, the user can use the custom action to execute a script that can send a custom message to the infected host or the administrator.
• Drop the connection silently: This is an action available for the traffic, not for the infected host. It will drop the traffic without sending any reset packet, which may not be effective in stopping the infection or notifying the user.

References: 1: Configuring Threat Prevention Policies

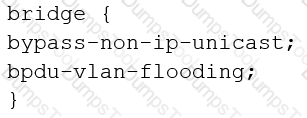

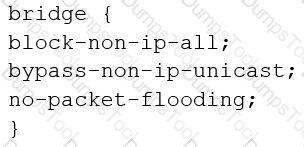

The SRX Series device in transparent mode uses packet flooding to learn about unknown devices in a network. Packet flooding is a process wherein the device sends out packets to every device it knows about or suspects in the network. When the packets are returned, the device can identify and classify the unknown devices in the network.

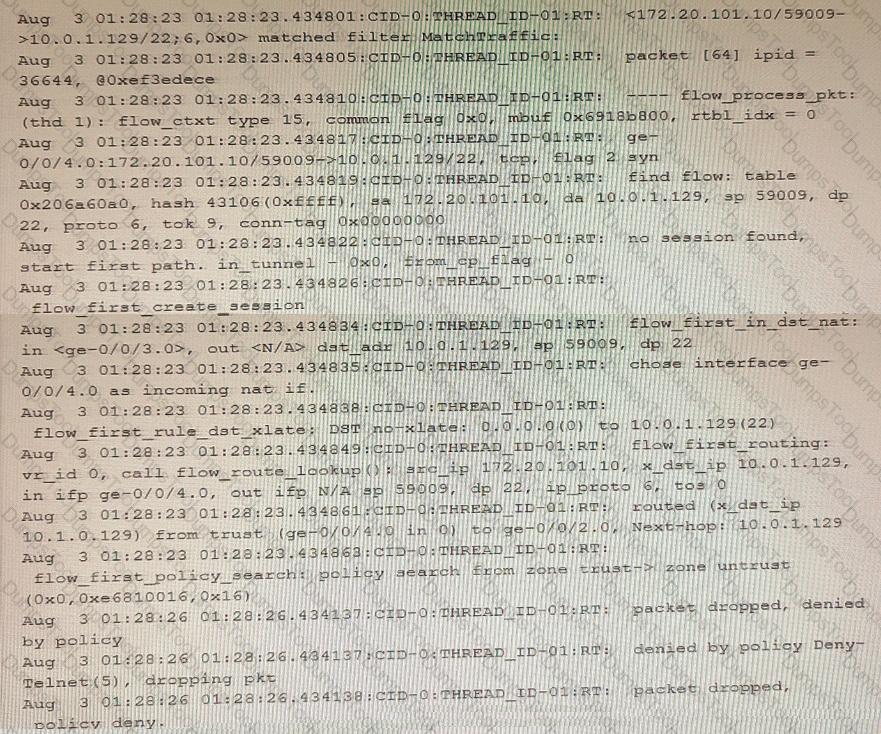

• The packet is silently discarded because the traceoptions output shows that the packet is dropped with the flag flow_spu_drop, which indicates that the packet is dropped by the SPU without sending any response to the sender. The traceoptions output also shows the reason for the drop as “no session found, start first path. in_tunnel - 0, from_cp_flag - 0” which means that the packet does not match any existing session and is not part of a tunnel or a control plane traffic1.
• The packet is part of a new session because the traceoptions output shows that the packet is the first packet of a TCP connection with the flag flow_tcp_syn, which indicates that the packet has the SYN flag set. The traceoptions output also shows that the packet is processed in the first path packet flow with the message “no session found, start first path” which means that the packet is initiating a new session1.

References:

• traceoptions (Security Flow) | Junos OS | Juniper Networks
• [SRX] How to interpret Flow TraceOptions output for NAT troubleshooting

https://kb.juniper.net/InfoCenter/index?page=content &id=TN326&cat=&actp=LIST&showDraft=false

The three profiles that are configurable in a threat prevention policy are infected host profile, C&C profile, and malware profile. A threat prevention policy is a feature of Juniper ATP Cloud that provides protection and monitoring for selected threat profiles, including command and control servers, infected hosts, and malware. Using feeds from Juniper ATP Cloud and optional custom feeds that you configure, ingress and egress traffic is monitored for suspicious content and behavior. Based on a threat score, detected threats are evaluated and action may be taken once a verdict is reached. You can create a threat prevention policy by selecting one or more of the following profiles:

• Infected host profile: This profile detects and blocks traffic from hosts that are infected with malware or compromised by attackers. You can configure the threat score thresholds and the actions for different levels of severity. You can also enable Geo IP filtering to block traffic from or to specific countries or regions.
• C&C profile: This profile detects and blocks traffic to or from command and control servers that are used by attackers to control malware or botnets. You can configure the threat score thresholds and the actions for different levels of severity. You can also enable Geo IP filtering to block traffic from or to specific countries or regions.
• Malware profile: This profile detects and blocks traffic that contains malware or malicious content. You can configure the threat score thresholds and the actions for different levels of severity. You can also enable protocol-specific settings for HTTP and SMTP traffic, such as file type filtering, file size filtering, and file name filtering.

The other two profiles, device profile and SSL proxy profile, are not configurable in a threat prevention policy. A device profile is a feature of Policy Enforcer that defines the device type, the device group, and the device settings for the SRX Series devices that are enrolled with Juniper ATP Cloud. An SSL proxy profile is a feature of SRX Series devices that enables SSL proxy to decrypt and inspect SSL/TLS traffic for threats and policy violations.

References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos-space23.1/policy-enforcer/topics/concept/threat-management-policy-overview.html https://www.juniper.net/documentation/en_US/junos-space23.1/policy-enforcer/topics/task/configuration/junos-space-policy-enforcer-threat-management-policy-configure.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-policy-enforcer-device-profile-overview.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-ssl-proxy-overview.html

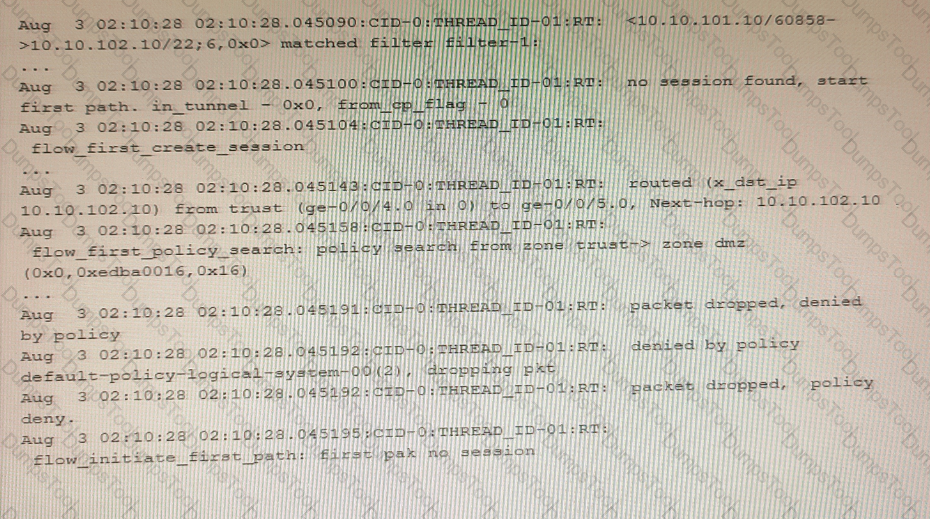

• The packet is processed as host inbound traffic because the traceoptions output shows that the destination IP address 10.10.10.1 belongs to the SRX device itself, which is configured with the ge-0/0/1.0 interface. The traceoptions output also shows the flag flow_host_inbound, which indicates that the packet is destined to the device.
• The packet matches the default security policy because the traceoptions output shows that the policy name is default-deny, which is the implicit system-default security policy that denies all packets. The traceoptions output also shows the flag flow_policy_deny, which indicates that the packet is denied by the policy.

References:

• traceoptions (Security NAT) | Junos OS | Juniper Networks
• [SRX] How to interpret Flow TraceOptions output for NAT troubleshooting
• Default Security Policies | Junos OS | Juniper Networks

https://www.juniper.net/documentation/en_US/junos/topics/topic-map/security-pr ofile-logical-system.html

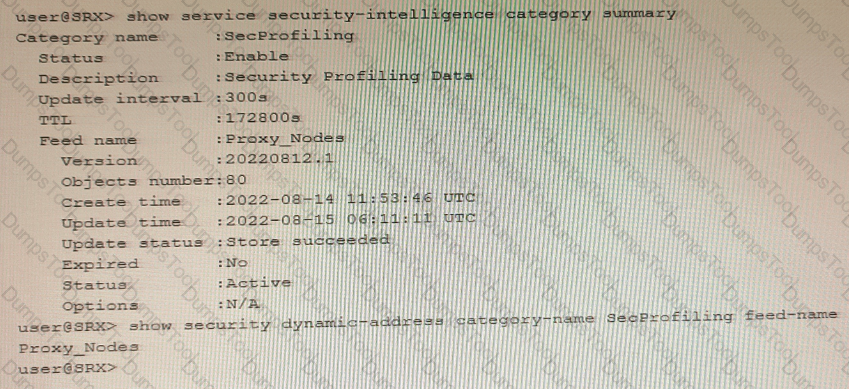

The correct action to solve this problem on the SRX device is to refresh the feed in ATP Cloud. This is because the number of IP address entries in the monitoring section of the Juniper ATP Cloud portal does not match the number of entries locally on the SRX Series device. This discrepancy can be caused by a number of factors, such as the SRX device not being properly configured for Adaptive Threat Profiling, or the feed not being properly downloaded from the Juniper ATP Cloud portal. By refreshing the feed in ATP Cloud, the SRX device can synchronize its local feed with the latest feed from the cloud service and ensure that the entries are consistent and accurate. References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/security-adaptive-threat-profiling-configuring.html

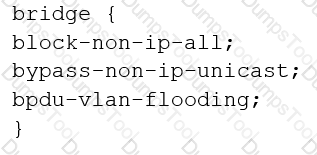

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/ref/statement/family-ethernet-switching-edit-interfaces-qfx-series.html#statement-name-statement__d26608e73

https://www.juniper.net/documentation/en_US/release-independent/nce/topics/example/policy-based-vpn-using-j-series-srxseries-device-configuring.html

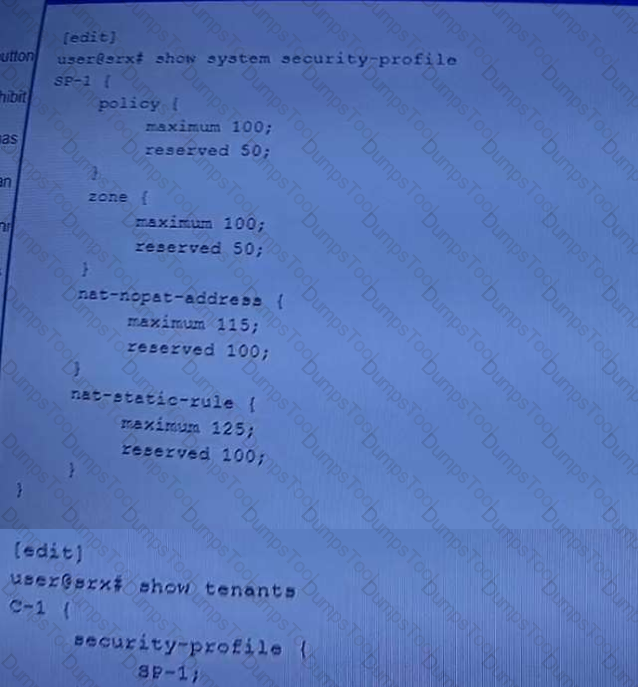

A company wants to partition their physical SRX series firewall into multiple logical units and assign each unit (tenant) to a department within the organization. You are the primary administrator of the firewall and a colleague is the administrator for one of the departments. The two statements that are correct about your colleague are:

• B. The colleague can access and view the resources of the tenant system. A tenant system is a type of logical system that is created and managed by the primary administrator of the firewall. A tenant system has its own discrete administrative domain, logical interfaces, routing instances, security policies, and other features. The primary administrator can assign a tenant system to a department within the organization and delegate the administration of the tenant system to a colleague. The colleague can access and view the resources of the tenant system, such as the allocated CPU, memory, and bandwidth, and the configured interfaces, zones, and policies1.
• C. The colleague can create and assign logical interfaces to the tenant system. A logical interface is a software interface that represents a subset of the physical interface. A logical interface can have its own address, encapsulation, and routing parameters. The primary administrator can allocate a number of logical interfaces to a tenant system and allow the colleague to create and assign logical interfaces to the tenant system. The colleague can configure the logical interfaces with the appropriate address, encapsulation, and routing parameters for the tenant system2.

The other statements are incorrect because:

• A. The colleague cannot configure the resources allocated and routing protocols. The resources allocated and routing protocols are configured by the primary administrator of the firewall. The primary administrator can allocate a fixed amount of resources, such as CPU, memory, and bandwidth, to a tenant system and specify the routing protocols that are allowed for the tenant system. The colleague cannot modify the resources allocated or routing protocols for the tenant system1.
• D. The colleague cannot modify the number of allocated resources for the tenant system. The number of allocated resources for the tenant system is configured by the primary administrator of the firewall. The primary administrator can allocate a fixed amount of resources, such as CPU, memory, and bandwidth, to a tenant system and monitor the resource usage of the tenant system. The colleague cannot modify the number of allocated resources for the tenant system1.

References:

• Understanding Tenant Systems
• Understanding Logical Interfaces

You must set up a DDoS solution for your ISP. The solution must be agile and not block legitimate traffic. The two products that will accomplish this task are:

• B. MX Series device. MX Series devices are high-performance routers that can provide DDoS protection at the network edge by integrating with Corero SmartWall Threat Defense Director (TDD) software. MX Series devices can leverage the packet processing capabilities of the MX-SPC3 Services Card to perform real-time DDoS detection and mitigation at line rate, scaling from 50 Gbps to 40 Tbps. MX Series devices can also use Juniper Networks Security Intelligence (SecIntel) to receive threat intelligence feeds from Juniper ATP Cloud or Juniper Threat Labs and apply them to the security policies. MX Series devices can provide an agile and effective DDoS solution for your ISP without blocking legitimate traffic12.
• C. Corero SmartWall TDD. Corero SmartWall TDD is a software solution that runs on MX Series devices and PTX Series devices to provide DDoS protection at the network edge. Corero SmartWall TDD uses behavioral analytics and detailed network visibility to detect and block DDoS attacks in seconds, without affecting the normal traffic. Corero SmartWall TDD can also provide advanced protection from “carpet bombing” attacks, 5G DDoS visibility, and multi-tenant portal for as-a-service offerings or views by department within an enterprise. Corero SmartWall TDD can provide an agile and effective DDoS solution for your ISP without blocking legitimate traffic34.

The other options are incorrect because:

• A. Contrail Insights. Contrail Insights is a software solution that provides network analytics and visibility for cloud and data center environments. Contrail Insights can help you monitor, troubleshoot, and optimize the performance and security of your network, but it does not provide DDoS protection by itself. Contrail Insights can integrate with other Juniper products, such as Contrail Enterprise Multicloud, Contrail Service Orchestration, and AppFormix, to provide a comprehensive network management solution, but it is not a DDoS solution for your ISP5.
• D. SRX Series device. SRX Series devices are high-performance firewalls that can provide DDoS protection at the network perimeter by integrating with Juniper ATP Cloud and Juniper Threat Labs. SRX Series devices can use SecIntel to receive threat intelligence feeds from Juniper ATP Cloud or Juniper Threat Labs and apply them to the security policies. SRX Series devices can also use IDP to detect and prevent application-level attacks, such as SQL injection, cross-site scripting, and buffer overflow. SRX Series devices can provide a robust and effective DDoS solution for your network, but they are not designed to handle high-volume DDoS attacks at the network edge, as MX Series devices and Corero SmartWall TDD are .

References:

• Juniper and Corero Joint DDoS Protection Solution
• MX-SPC3 Services Card Overview
• Corero SmartWall Threat Defense Director (TDD)
• Juniper Networks and Corero: A Modern Approach to DDoS Protection at Scale
• Contrail Insights Overview
• [SRX Series Services Gateways]
• [Juniper Networks Security Intelligence (SecIntel)]

The purpose of the Switch Microservice of Policy Enforcer is to isolate infected hosts. The Switch Microservice is a component of Policy Enforcer that runs on EX Series and QFX Series switches. It communicates with Policy Enforcer and Juniper ATP Cloud to receive threat intelligence and quarantine commands. When an infected host is detected by Juniper ATP Cloud, Policy Enforcer sends a command to the Switch Microservice to isolate the host by applying an access control list (ACL) on the switch port where the host is connected. The ACL blocks all traffic from or to the host except for the traffic that is required for remediation. The Switch Microservice also tracks the MAC address of the infected host and updates Policy Enforcer if the host moves to a different switch port or a different switch. This way, the Switch Microservice ensures that the infected host is isolated until it is remediated and no longer poses a threat to the network. References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/concept/security-policy-enforcer-switch-microservice-overview.html

This is the port used for encrypted communication between the SRX series device and the Juniper ATP Appliance

In order to enroll an SRX Series device with Juniper ATP Appliance, the firewall device must have port 443 open. Port 443 is the default port used for HTTPS traffic, the communication between the SRX Series device and the ATP Appliance needs to be encrypted, that's why this port should be opened.

To enable inter-tenant communication with tenant system, you need to use an external router or a logical tunnel interface. The other options are incorrect because:

• A. Interconnecting EVPN switch is not a valid solution for inter-tenant communication with tenant system. EVPN (Ethernet VPN) is a technology that provides layer 2 connectivity over an IP network. It can be used to connect different logical systems on the same device, but not tenant systems. Tenant systems are isolated from each other and do not share the same layer 2 domain1.
• B. Interconnecting VPLS switch is also not a valid solution for inter-tenant communication with tenant system. VPLS (Virtual Private LAN Service) is another technology that provides layer 2 connectivity over an IP network. It can also be used to connect different logical systems on the same device, but not tenant systems. Tenant systems are isolated from each other and do not share the same layer 2 domain1.

Therefore, the correct answer is C and D. You need to use an external router or a logical tunnel interface to enable inter-tenant communication with tenant system. To do so, you need to perform the following steps:

• For external router, you need to connect the external router to the interfaces of the tenant systems that you want to communicate with. You also need to configure the routing protocols and policies on the external router and the tenant systems to exchange routes and traffic. The external router acts as a gateway between the tenant systems and provides layer 3 connectivity2.
• For logical tunnel interface, you need to create a logical tunnel interface on the device and assign it to a tenant system. You also need to configure the IP address and routing protocols on the logical tunnel interface and the tenant systems that you want to communicate with. The logical tunnel interface acts as a virtual link between the tenant systems and provides layer 3 connectivity3.

References:

• Tenant Systems Overview
• Example: Configuring Inter-Tenant Communication Using External Router
• Example: Configuring Inter-Tenant Communication Using Logical Tunnel Interface

https://kb.juniper.net/InfoCenter/index?page=content &id=KB30443&cat=SRX_SERIES&actp=LIST

https://www.juniper.net/documentation/en_US/release-independent/jatp/topics/task/configuration/jatp-traffic-collectorsetting-ssh-honeypot-detection.html
