VXLAN VNIs are virtual network identifiers that are used to identify and isolate Layer 2 segments in the overlay network. VXLAN VNIs have the following characteristics:

• VNIs can have over 16 million unique values. This is because VXLAN VNIs are 24-bit fields that can range from 4096 to 16777214, according to the VXLAN standard1. This allows VXLAN to support a large number of Layer 2 segments and tenants in the network.
• VNIs identify a broadcast domain. This is because VXLAN VNIs are used to group the end hosts that belong to the same Layer 2 segment and can communicate with each other using VXLAN tunnels. The VXLAN tunnels are established using the VTEP information that is distributed by EVPN. The VTEPs are VXLAN tunnel endpoints that perform the VXLAN encapsulation and decapsulation. The VXLAN tunnels preserve the Layer 2 semantics and support the broadcast, unknown unicast, and multicast traffic within the same VNI2.

The following two statements are incorrect in this scenario:

• VNIs identify a collision domain. This is not true, because VXLAN VNIs do not identify a collision domain, which is a network segment where data packets can collide with each other. VXLAN VNIs identify a broadcast domain, which is a network segment where broadcast traffic can reach all the devices. Collision domains are not relevant in VXLAN networks, because VXLAN uses MAC-in-UDP encapsulation and IP routing to transport the Layer 2 frames over the Layer 3 network1.
• VNIs are alphanumeric values. This is not true, because VXLAN VNIs are numeric values, not alphanumeric values. VXLAN VNIs are 24-bit fields that can range from 4096 to 16777214, according to the VXLAN standard1. Alphanumeric values are values that contain both letters and numbers, such as ABC123 or 1A2B3C.

References:

• Virtual Extensible LAN (VXLAN) Overview
• EVPN LAGs in EVPN-VXLAN Reference Architectures

According to the Juniper documentation1, a routing zone is an L3 domain, the unit of tenancy in multi-tenant networks. You create routing zones for tenants to isolate their IP traffic from one another, thus enabling tenants to re-use IP subnets. In addition to being in its own VRF, each routing zone can be assigned its own DHCP relay server and external system connections. You can create one or more virtual networks within a routing zone, which means a tenant can stretch its L2 applications across multiple racks within its routing zone. For virtual networks with Layer 3 SVI, the SVI is associated with a Virtual Routing and Forwarding (VRF) instance for each routing zone isolating the virtual network SVI from other virtual network SVIs in other routing zones. If you’re using multiple routing zones, external system connections must be from leaf switches in the fabric. Routing between routing zones must be accomplished with external systems. Therefore, the correct answer is D. Use interconnection through an external gateway. References: Routing Zones

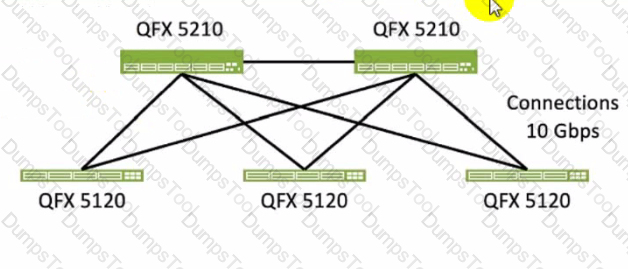

To make the IP fabric a valid IP fabric, the connection between the two spine nodes must be removed. This is because an IP fabric is a network topology that uses a spine-leaf architecture, where the spine devices are only connected to the leaf devices, and the leaf devices are only connected to the spine devices. This creates a non-blocking, high-performance, and scalable network that supports Layer 3 routing protocols such as BGP or OSPF. The connection between the two spine nodes in the exhibit violates the spine-leaf design principle and introduces unnecessary complexity and potential loops in the network. The other options are incorrect because:

• A. The IP fabric must consist of only one device model throughout the fabric is wrong because an IP fabric can support different device models as long as they are compatible and interoperable. The exhibit shows two different models of QFX switches, which are both supported by Juniper Networks for IP fabric deployments.
• B. The connection between the two spine nodes must be increased to 40 Gbps is wrong because increasing the speed of the connection does not make the IP fabric valid. The connection between the two spine nodes should be removed, as explained above.
• C. The IP fabric connections must be increased to a speed greater than 10 Gbps is wrong because the speed of the connections does not affect the validity of theIP fabric. The IP fabric can use any speed that meets the bandwidth and performance requirements of the network. 10 Gbps is a common speed for IP fabric connections, but higher or lower speeds can also be used depending on the network design and devices. References:
• IP Fabric Underlay Network Design and Implementation
• IP Fabric Overview
• IP Fabric: Automated Network Assurance Platform

In the Juniper Apstra UI, you can create VNI pools for virtual networks that use VXLAN encapsulation in the overlay network. A VNI pool is a resource pool that contains a range of VNIs that can be assigned to the virtual networks. The valid VNI range for a VNI pool is 4096 through 16777214, according to the VXLAN standard1. Therefore, the statement B is correct in this scenario.

The following three statements are incorrect in this scenario:

• Any range is acceptable for the VNI pool. This is not true, because the VNI range has a lower and upper limit defined by the VXLAN standard1. The lower limit is 4096, and the upper limit is 16777214. Any VNI outside this range is invalid and cannot be used for VXLAN encapsulation.
• The valid VNI range is 2 through 4096. This is not true, because the VNI range does not start from 2, but from 4096. The VNIs from 2 to 4095 are reserved and cannot be used for VXLAN encapsulation1.
• The valid VNI range is 1 through 10000. This is not true, because the VNI range does not include 1, which is also reserved and cannot be used for VXLAN encapsulation1. The VNI range also does not end at 10000, but at 16777214, which is the maximum possible value for a 24-bit VNI field1.

References:

• VNI Pools (Resources)

Interface maps are objects that map interfaces between logical devices and physical hardware devices in the Juniper Apstra design phase. They dictate port count, port speed, and how the ports would be used for achieving the intended network configuration rendering. Interface maps also allow you to select device ports, transformations, and interfaces, provision breakout ports, and disable unused ports. For more information, see Interface Maps (Datacenter Design). References:

• Interface Maps (Datacenter Design)
• Design
• Interface Maps Introduction
