PCNSE Questions and Answers

When troubleshooting Palo Alto Networks services, such as dynamic updates, verifying the status of service routes is critical. Service routes determine how the firewall communicates with external services (e.g., Palo Alto Networks update servers, WildFire, DNS, etc.) from the Management Plane or data plane interfaces.

Why "debug dataplane internal vif route 250" is Correct

Purpose of the Command:

This command allows administrators to view the service routes configured on the firewall and verify if they are installed correctly and actively working.

The number 250 specifically refers to service routes in the Management Plane.

Output:

The command displays detailed information about service routes, including routing decisions, source interfaces, and next-hop IPs.

Helps identify issues such as:

Incorrect interface configuration.

Invalid next-hop IPs.

Missing routes for specific services.

Analysis of Other Options

debug dataplane internal vif route 255

Incorrect:

The number 255 does not correspond to service routes but is used for internal route debugging unrelated to management plane service routes.

show routing route type management

Incorrect:

This command does not exist in PAN-OS CLI. It might be a misrepresentation of another command.

debug dataplane internal vif route 250

Correct:

As explained above, this is the correct command for verifying service routes in the Management Plane.

show routing route type service-route

Incorrect:

This is not a valid PAN-OS CLI command.

PAN-OS Documentation Reference

Service Routes in PAN-OS 11.0:

The configuration and verification of service routes are covered under the Device > Setup > Services section of the GUI.

For CLI, the debug dataplane internal vif route 250 command is specifically used for troubleshooting service routes in the Management Plane.

For more details, refer to:

PAN-OS 11.0 CLI Guide: Covers debugging tools and service route verification.

PCNSA Study Guide: Domain 1 includes service route configurations and their importance in maintaining connectivity for management services.

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/firewall-administration/manage-firewall-administrators/administrative-authentication#:~:text=The%20administrative%20accounts%20are%20defined,attributes%20on%20the%20SAML%20server .

For explicit Web Proxy deployment on PAN-OS, Palo Alto Networks currently supports Kerberos and SAML as authentication methods. RADIUS is not supported for explicit or transparent Web Proxy authentication on Palo Alto Networks appliances, which means that if the client is currently using RADIUS, they will need to configure an alternate supported authentication method. LDAP or TACACS+ authentication is not directly supported for Web Proxy authentication in PAN-OS.For more information on supported Web Proxy authentication methods, please refer to the latest Palo Alto Networks "PAN-OS® Web Interface Reference Guide".

A syslog listener is the best choice for deploying User-ID to ensure maximum coverage in an environment with multiple forms of authentication. A syslog listener is a feature that enables the firewall or Panorama to receive syslog messages from other systems and parse them for IP address-to-username mappings. A syslog listener can collect user mapping information from a variety of sources, such as network access control systems, domain controllers, MDM solutions, VPN gateways, wireless controllers, proxies, and more2. A syslog listener can also support multiple platforms and operating systems, such as Windows, Linux, macOS, iOS, Android, etc3. Therefore, a syslog listener can provide a comprehensive and flexible solution for User-ID deployment in a large-scale network. References: Configure a Syslog Listener for User Mapping, User-ID Agent Deployment Guide, PCNSE Study Guide (page 48)

Cisco TrustSec technology uses Security Group Tags (SGTs) to enforce access controls on Layer 2 traffic. When implementing Zone Protection on a Palo Alto Networks firewall in an environment with Cisco TrustSec, you should configure Ethernet SGT Protection. This setting ensures that the firewall can recognize SGTs in Ethernet frames and apply the appropriate actions based on the configured policies.The use of Ethernet SGT Protection in conjunction with TrustSec is covered in advanced firewall configuration documentation and in interoperability guides between Palo Alto Networks and Cisco systems.

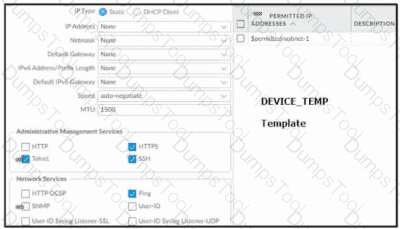

To enable XML API access to a firewall for automation from a network segment routed through a Layer 3 sub-interface, the most straightforward approach is to use an Interface Management profile.

C. This can be achieved by:

Configuring an Interface Management profile and enabling HTTPS access on it. This profile defines management services that are permitted on the interface, including HTTPS, which is required for XML API access.

Applying this Interface Management profile to the desired Layer 3 sub-interface. This action enables HTTPS access (and thus XML API access) on the sub-interface, allowing devices on the connected network segment to communicate with the firewall for automation purposes.

This solution allows for the secure extension of management capabilities to network segments without direct access to the dedicated management interface, facilitating automation and operational efficiency without necessitating changes to existing access configurations.

SSL/TLS profile is only the TLS versions, not ciphers. Decryption Profile is for SSL Inbound and Forward Proxy applications, not mgmt of the PANW Firewall. There's also KB articles to strengthen SSH, but I couldn't find any for HTTPS, on the mgmt interface: https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA14u0000004OOQCA2 &lang=en_US%E2%80%A9

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/policy/use-address-object-to-represent-ip-addresses/address-objects

● Ping Interval—Specify the interval between pings that are sent to the destination IP address (range is 200 to 60,000ms; default is 200ms).● Ping Count—Specify the number of failed pings before declaring a failure (range is 3 to 10; default is 10).

For an application that is currently identified as unknown-tcp and has sessions that often remain idle for long periods, creating a custom application and using an application override rule is the most time-efficient solution.

C. The process involves:

Creating a custom application in the Palo Alto Networks firewall and configuring it with specific timeouts to accommodate the application's idle session behavior. This step ensures that the firewall does not prematurely close the application's sessions due to inactivity.

Next, creating an application override rule that references the custom application. This rule directs the firewall to identify traffic matching the rule criteria (such as source, destination, and port information) as the custom application, bypassing the App-ID engine's regular identification process.

This approach allows for the quick implementation of a solution that ensures the application is properly identified in traffic logs without undergoing threat scanning, meeting the requirements for both identification and reporting.

When a Threat ID isn’t visible in the Vulnerability Protection profile’s Exceptions tab, selecting "Show all signatures" (Option B) reveals all available threat signatures, including those not recently triggered, allowing the administrator to add an exception efficiently. This is the fastest way to resolve false positives without external assistance.

The best decryption best practice that the administrator should consider is A: Consider the local, legal, and regulatory implications and how they affect which traffic can be decrypted. This is because decryption involves intercepting and inspecting encrypted traffic, which may raise privacy and compliance issues depending on the jurisdiction and the type of traffic1. Therefore, the administrator should be aware of the local, legal, and regulatory implications and how they affect which traffic can be decrypted, and follow the appropriate guidelines and policies to ensure that decryption is done in a lawful and ethical manner1.

To create Security rules in Panorama that reference specific users and groups from Active Directory (AD), the Panorama-managed firewalls need access to user-to-group mapping information. This is achieved through Group Mapping, which relies on User-ID functionality. In a Panorama-managed environment, a "master device" must be designated within the device group to provide this Group Mapping data. The master device is a firewall that retrieves user and group information from AD (via LDAP or User-ID agent) and shares it with other firewalls in the device group. This ensures consistent user-based policies across all devices in the group.

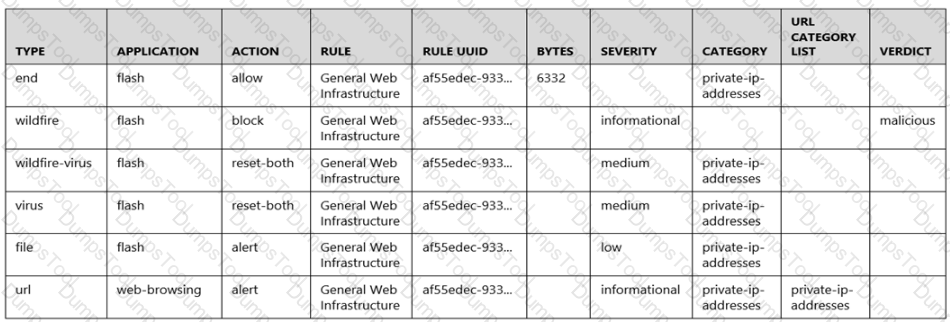

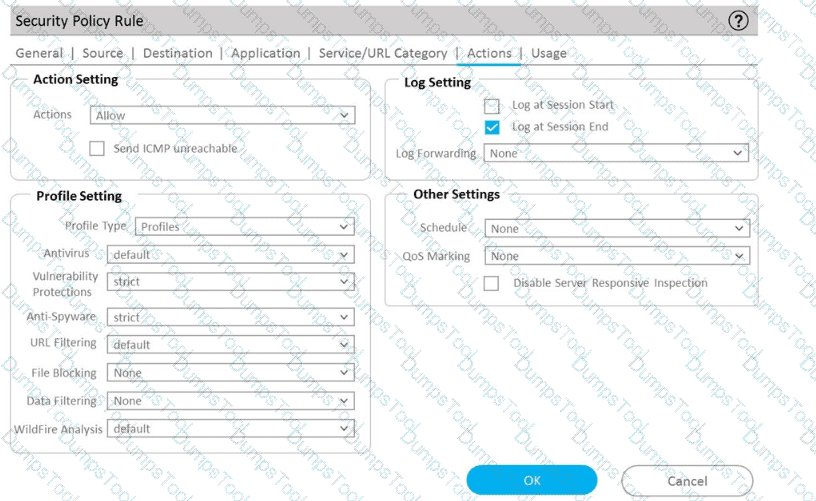

URL profile action alert.

File Profile action alert.

AV and Wildfire action Reset-both

Policy Action Allow.

The firewall inspects the content as per all the security profiles attached to the original matching rule. If it results in threat detection, then the corresponding security profile action is taken.

When a local configuration override occurs on a firewall managed by Panorama, the administrator can enforce Panorama’s centralized management by pushing the template configuration with the "Force Template Values" option. This option overwrites any local changes on the firewall, ensuring that the Panorama-defined configuration (e.g., interface settings) takes precedence and prevents further overrides unless explicitly allowed.

Decryption can be resource-intensive, and in scenarios where the firewall is nearing its resource limits, optimizing decryption practices is crucial. One way to do this is by choosing more efficient encryption algorithms that require less computational power.

C. Use ECDSA instead of RSA for traffic that isn't sensitive or high-priority:

Elliptic Curve Digital Signature Algorithm (ECDSA) is known for requiring smaller key sizes compared to RSA for a comparable level of security. This translates to less computational overhead during the encryption and decryption processes.

By using ECDSA for traffic that isn't sensitive or high-priority, the administrator can reduce the processing load associated with decryption on the firewall. This is particularly beneficial in scenarios where resource optimization is necessary.

It's important to note that this approach does not compromise the security of encrypted traffic. Instead, it offers a more resource-efficient way to manage decryption, thus helping to maintain firewall performance even when system resources are under significant demand.

By judiciously applying this strategy, administrators can manage the decryption workload on the firewall, ensuring continued protection and inspection of encrypted traffic without overburdening the firewall's resources.

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000PP3ICAW

The Test Policy Match tool in Palo Alto Networks' management systems (such as Panorama or the firewall interface) allows administrators to simulate traffic against configured security policies. This tool is critical for ensuring that the correct policies are applied to specific traffic patterns and that no unintended access is granted.

Test Policy Match enables you to input parameters like source IP, destination IP, application, user, and more, and the system will determine which policy would apply.

It is especially useful for verifying the device-group hierarchy in multi-tenant or Panorama-managed environments, ensuring that inherited or overridden rules are correctly applied.

The tool also helps to proactively check that traffic will be blocked or allowed as intended, reducing misconfigurations and preventing unwanted traffic.

A. Preview Changes: This feature is used to review configuration changes before committing them but does not simulate or validate policy matches.

B. Managed Devices Health: This option is related to checking the health and connectivity status of managed devices, not policies.

D. Policy Optimizer: This tool is used to refine existing security policies by identifying overly permissive rules or unused objects, not for testing specific traffic matches.

Key Points:Why not the other options?The Test Policy Match tool is the most appropriate choice for the scenario described.

https://docs.paloaltonetworks.com/compatibility-matrix/supported-os-releases-by-model/palo-alto-networks-next-gen-firewalls

The GlobalProtect VPN solution by Palo Alto Networks is designed to provide secure remote access to users. It primarily attempts to establish a VPN tunnel using the IPSec protocol for optimal security and performance. However, in cases where IPSec cannot be used due to network restrictions or other issues, GlobalProtect has a fallback mechanism.

C. It tries to establish a tunnel to the GlobalProtect gateway using SSL/TLS:

If the GlobalProtect app fails to establish an IPSec tunnel with the GlobalProtect gateway, the default behavior is to fallback to SSL/TLS for tunnel establishment. This ensures that the VPN connection can still be established, maintaining secure remote access for the user even in environments where IPSec is not feasible. SSL/TLS provides a secure tunnel, albeit generally with slightly less efficiency than IPSec.

This fallback mechanism is part of the GlobalProtect app's design to ensure reliability and continuous secure access for remote users under various network conditions.

For SSL Forward Proxy, the firewall generates certificates signed by its CA (here, Untrusted-CA), causing warnings if not trusted by clients. Importing Well-Known-Intermediate-CA and Well-Known-Root-CA into the Default Trusted Certificate Authorities (Option C) and marking them as trusted allows the firewall to issue certificates within this chain, eliminating warnings for sites like important-website.com (Requirement 1). Other untrusted CAs remain untrusted, triggering warnings (Requirement 2).

To prevent the import from affecting ongoing traffic when you import the configuration of an HA pair into Panorama, you should disable config sync on both firewalls. Config sync is a feature that enables the firewalls in an HA pair to synchronize their configurations and maintain consistency. However, when you import the configuration of an HA pair into Panorama, you want to avoid any changes to the firewall configuration until you verify and commit the imported configuration on Panorama. Therefore, you should disable config sync before importing the configuration, and re-enable it after committing the changes on Panorama12. References: Migrate a Firewall HA Pair to Panorama Management, PCNSE Study Guide (page 50)

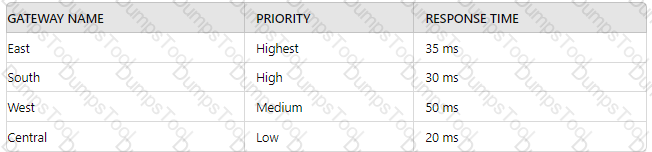

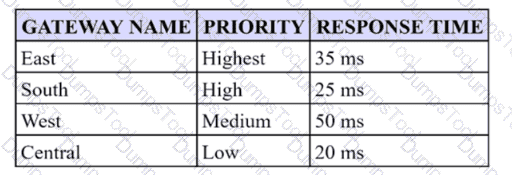

Based on the provided table, the GlobalProtect portal agent configuration includes four gateways with varying priorities and response times. Users will connect to the gateway with the highest priority and, if multiple gateways share the same priority, the one with the lowest response time.

Answer Determination

Prioritize by Priority Level:

East: Highest

South: High

West: Medium

Central: Low

Evaluate Response Times Within Each Priority:

East (Highest): 35 ms

South (High): 30 ms

West (Medium): 50 ms

Central (Low): 20 ms

Given the highest priority is "East" with a response time of 35 ms, users will connect to the East gateway based on the highest priority.

The Cluster Synchronization Timeout in a high availability (HA) cluster defines how long a firewall waits for synchronization with its peer before transitioning to the Active state if the peer is unresponsive or synchronization fails. Option B accurately describes this as the maximum wait time before assuming control, ensuring HA stability.

When deploying a large number of firewalls, such as 15 GlobalProtect gateways around the world, it's crucial to have a scalable configuration approach. Panorama offers several features to help scale configurations efficiently:

B. Template stacks:

Template stacks in Panorama allow administrators to create a collection of configuration templates that can be applied to multiple firewalls or device groups. This enables the consistent deployment of shared settings (such as network configurations, security profiles, etc.) across all managed firewalls, ensuring uniformity and reducing the effort required to manage individual firewall configurations.

D. Variables:

Variables in Panorama provide a way to customize template configurations for individual firewalls or device groups without altering the overall template. For example, a variable can be used to define a unique IP address, hostname, or other specific settings within a shared template. When the template is applied, Panorama replaces the variables with the actual values specified for each device or device group, allowing for customization within a standardized framework.

By using template stacks and variables, an administrator can rapidly deploy and manage configurations across multiple GlobalProtect gateways, ensuring consistency while still accommodating site-specific requirements. This approach streamlines the deployment process and enhances the manageability of a widespread GlobalProtect infrastructure.

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClGJCA0

https://docs.paloaltonetworks.com/pan-os/10-0/pan-os-admin/app-id/disable-the-sip-application-level-gateway-alg

The New App-ID characteristic enables the firewall to monitor new applications on the network, so that the engineer can better assess the security policy updates they might want to make. The New App-ID characteristic always matches to only the new App-IDs in the most recently installed content releases. When a new content release is installed, the New App-ID characteristic automatically begins to match only to the new App-IDs in that content release version. This way, the engineer can see how the newly-categorized applications might impact security policy enforcement and make any necessary adjustments. References: Monitor New App-IDs

For active/passive HA upgrades, best practices minimize downtime by upgrading the passive peer first (Option D), rebooting it to confirm stability, restoring HA sync, and then upgrading the active peer. This keeps services running on the active firewall during the passive upgrade, ensuring a smooth transition with failover capability intact.

Custom Panorama Admin: Custom Panorama Admin roles allow you to customize the elements of Panorama that an administrator can access. You can hide tabs in the web interface, you can set specific items in Panorama to read-only, or you can limit an administrator’s access to Panorama plugins. Custom Panorama Admin roles require planning and configuration, but they provide extensive flexibility because you can control what administrators can access through the web interface or the CLI. Device Group and Template Admin: Device Group and Template Admin roles also require configuration because there are no built-in examples. These Admin Roles allow you to define which Panorama templates or Panorama device groups an administrator can access and configure. You can hide tabs in the web interface or set specific items to read only to control what administrators can configure.

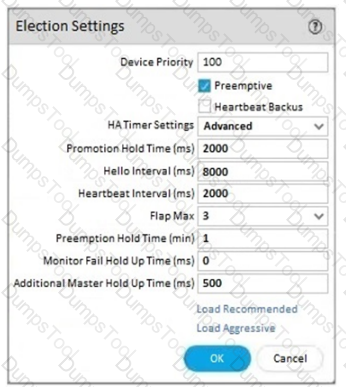

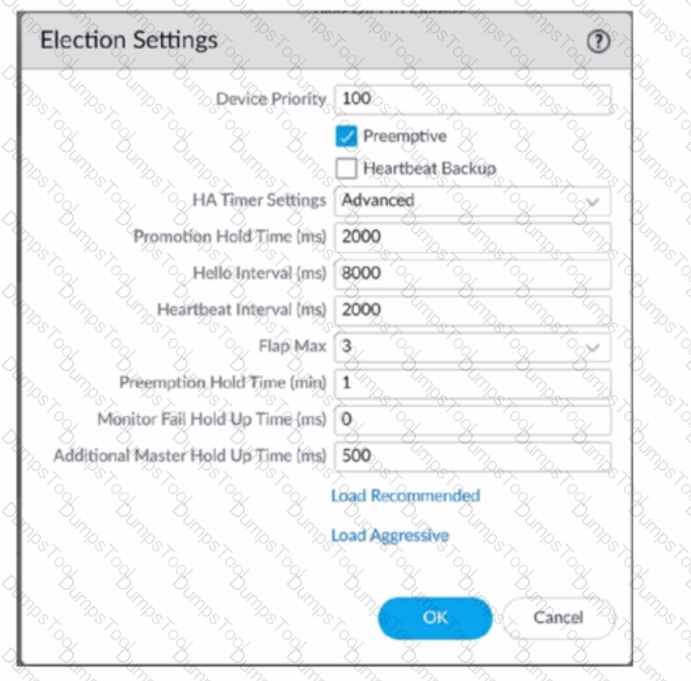

The timer that determines the frequency between packets sent to verify that the HA functionality on the other HA firewall is operational is the Hello Interval. The Hello Interval is the interval in milliseconds between hello packets that are sent to check the HA status of the peer firewall. The default value for the Hello Interval is 8000 ms for all platforms, and the range is 8000-60000 ms. If the firewall does not receive a hello packet from its peer within the specified interval, it will declare the peer as failed and initiate a failover12. References: HA Timers, Layer 3 High Availability with Optimal Failover Times Best Practices

The image shows an IKE Gateway configuration where Site B is set to IKEv1 only mode, and passive mode is not enabled. For dynamic peering to work when Site A is using a DHCP assigned address:

Passive mode on Site A needs to be disabled. In passive mode, the firewall will not initiate the IKE negotiation and will only respond to negotiation requests from the peer. Since Site A has a dynamic IP, it must be able to initiate the connection to Site B, which has a static IP.

Matching the IKE version between Site A and Site B is also necessary for successful IPSec tunnel establishment. Since Site B is set to IKEv1 only mode, Site A also needs to be configured to use IKEv1 to ensure that both sites are using the same version for the IKE negotiation process.

NAT Traversal is used when there are NAT devices between the two endpoints, but there's no indication that this is the case here. Additionally, local identification on Site A is not necessarily related to the issue with dynamic peering not working.

Virtual Desktop Infrastructure (VDI) and Virtual Machine (VM) environments, such as Citrix XenApp and XenDesktop or VMWare Horizon and Vcenter, support access natively through HTML5. You can RDP, VNC, or SSH to these machines through Clientless VPN without requiring additional third-party middleware. In environments that do not include native support for HTML5 or other web application technologies supported by Clientless VPN, you can use third-party vendors, such as Thinfinity, to RDP through Clientless VPN. Reference: https://docs.paloaltonetworks.com/globalprotect/10-1/globalprotect-admin/globalprotect-clientless-vpn/supported-technologies

https://networkwiki.blogspot.com/2017/03/palo-alto-networks-clientless-vpn-and.html

If you have clients running multi-user systems in a Windows environment, such as Microsoft Terminal Server or Citrix Metaframe Presentation Server or XenApp, Configure the Palo Alto Networks Terminal Server (TS) Agent for User Mapping

 The correct packet-flow sequence is C. PBF > Static route > Security policy enforcement. This sequence describes the order of operations that the firewall performs when processing a packet. PBF stands for Policy-Based Forwarding, which is a feature that allows the firewall to override the routing table and forward traffic based on the source and destination addresses, application, user, or service. PBF is evaluated before the static route lookup, which is the default method of forwarding traffic based on the destination address and the longest prefix match. Security policy enforcement is the stage where the firewall applies the security policy rules to allow or block traffic based on various criteria, such as zone, address, port, user, application, etc12. References: Policy-Based Forwarding, Packet Flow Sequence in PAN-OS

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/quality-of-service/qos-concepts/qos-classes

One of the potential causes of a failed install when upgrading Panorama to PAN-OS is having outdated plugins. Plugins are software extensions that enable Panorama to interact with Palo Alto Networks cloud services and third-party services. Plugins have dependencies on specific PAN-OS versions, so they must be updated before or after upgrading Panorama, depending on the plugin compatibility matrix2. If the plugins are not updated accordingly, the upgrade process may fail or cause issues with Panorama functionality3. References: Panorama Plugins Upgrade/Downgrade Considerations, Troubleshoot Your Panorama Upgrade, PCNSE Study Guide (page 54)

When deploying User-ID in environments with diverse directory services, Palo Alto Networks firewalls have the capability to monitor several types of servers to gather user mapping information. Among the options provided:

C. Red Hat Linux, Microsoft Active Directory, and Microsoft Exchange:

Red Hat Linux: Palo Alto Networks User-ID can monitor Linux systems to gather user information, typically by integrating with services like syslog or by using an agent that reads user login events.

Microsoft Active Directory: This is one of the most common sources for User-ID, as Active Directory is widely used for user management and authentication. User-ID can directly integrate with Active Directory to read security event logs, capturing user login and logout events.

Microsoft Exchange: While not directly monitored for user login events, Microsoft Exchange can be a source of IP-to-user mapping information, especially for users accessing email services. This can be achieved by parsing Exchange logs for client access information.

These platforms can provide valuable data for User-ID, enabling the firewall to apply policies based on user identity across diverse network environments.

https://docs.paloaltonetworks.com/prisma/prisma-access/prisma-access-cloud-managed-admin/secure-mobile-users-with-prisma-access/explicit-proxy/explicit-proxy-how-it-works

https://docs.paloaltonetworks.com/pan-os/11-0/pan-os-new-features/networking-features/web-proxy

https://docs.paloaltonetworks.com/panorama/9-1/panorama-admin/panorama-overview/centralized-firewall-configuration-and-update-management/device-groups/device-group-hierarchy

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClGJCA0

When dealing with a false positive, particularly for a spyware threat detected through DNS queries (as indicated by the category "dns-c2"), the correct course of action involves creating an exception in the Anti-Spyware profile, not the Vulnerability Protection profile. This is because the Anti-Spyware profile in Palo Alto Networks firewalls is designed to detect and block spyware threats, which can include command and control (C2) activities often signaled by DNS queries.

The steps to configure an exception for this specific spyware signature (threat ID: 1000011111) are as follows:

Navigate to Objects > Security Profiles > Anti-Spyware. This is where all the Anti-Spyware profiles are listed.

Select the related Anti-Spyware profile that is currently applied to the security policy which is generating the false positive.

Within the profile, go to the DNS Exceptions tab. This tab allows you to specify exceptions based on DNS signatures.

Search for the related threat ID (in this case, 1000011111) and click enable to create an exception for it. By doing this, you instruct the firewall to bypass the detection for this specific signature, effectively treating it as a false positive.

Commit the changes to make the exception active.

By following these steps, the administrator can effectively address the false positive without disabling the overall spyware protection capabilities of the firewall.

https://docs.paloaltonetworks.com/panorama/9-1/panorama-admin/manage-firewalls/manage-device-groups/manage-the-rule-hierarchy#idfb9e2593-a7f1-4e0d-aab5-a2903d654c99 https://docs.paloaltonetworks.com/panorama/9-1/panorama-admin/panorama-overview/centralized-firewall-configuration-and-update-management/device-groups/device-group-policies#id671977ca-1041-4605-8a80-fbc10f3f5d7b

Regardless of whether you generate Forward Trust certificates from your Enterprise Root CA or use a self-signed certificate generated on the firewall, generate a separate subordinate Forward Trust CA certificate for each firewall. The flexibility of using separate subordinate CAs enables you to revoke one certificate when you decommission a device (or device pair) without affecting the rest of the deployment and reduces the impact in any situation in which you need to revoke a certificate. Separate Forward Trust CAs on each firewall also helps troubleshoot issues because the CA error message the user sees includes information about the firewall the traffic is traversing. If you use the same Forward Trust CA on every firewall, you lose the granularity of that information.

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/decryption/configure-ssl-forward-proxy

https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-web-interface-help/network/network-network-profiles/network-network-profiles-monitor.html

TIPS & TRICKS: REDUCING MANAGEMENT PLANE LOAD:

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClSvCAK

TIPS & TRICKS: REDUCING MANAGEMENT PLANE LOAD—PART 2:

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClU4CAK

Palo Alto Networks Device Telemetry data, collected from firewalls with a device certificate installed, is stored on Palo Alto Networks Update Servers. This telemetry data includes information about threats, device health, and other operational metrics that are crucial for the continuous improvement of security services and threat intelligence. The collected data is anonymized and securely transmitted to Palo Alto Networks, where it is used to enhance the overall effectiveness of threat identification and prevention capabilities across all deployed devices. This collaborative approach helps in keeping the security ecosystem updated and resilient against emerging threats.

In a situation where Panorama and its managed firewalls lack internet access, updating PAN-OS requires a manual upload of the downloaded PAN-OS images. The process involves:

D. Upload the image to Panorama > Device Deployment > Software menu, and deploy it to the firewalls:

The engineer first uploads the downloaded PAN-OS images to Panorama. This is done through the "Device Deployment" section, specifically under the "Software" menu. This area of Panorama's interface is designed for managing PAN-OS versions and software updates for the managed devices.

Once the PAN-OS images are uploaded to Panorama, the engineer can then deploy these images to the firewalls directly from Panorama. This process allows for centralized management of software updates, ensuring that all firewalls can be updated to the latest PAN-OS version in a consistent and controlled manner, even without direct internet access.

This method streamlines the update process for environments with strict security requirements, allowing for the efficient deployment of necessary PAN-OS updates to maintain security and functionality.

https://docs.paloaltonetworks.com/globalprotect/9-1/globalprotect-admin/globalprotect-gateways/split-tunnel-traffic-on-globalprotect-gateways/configure-a-split-tunnel-based-on-the-domain-and-application

For log forwarding in PAN-OS, traffic and threat logs require a Log Forwarding profile attached to Security rules (Option B) to send logs to external systems (e.g., syslog, Panorama). Without this, logs are stored locally but not forwarded, a critical design consideration.

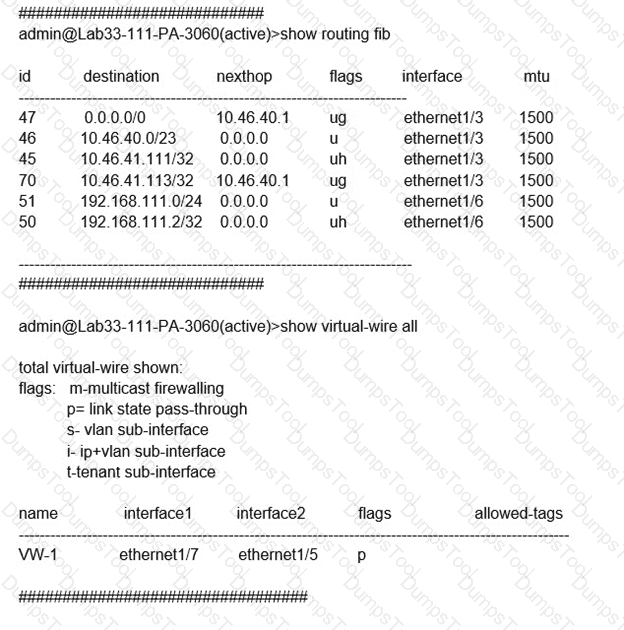

In the second image, VW ports mentioned are 1/5 and 1/7. Hence it can not be a part of any other routing. So if any traffic coming as ingress from 1/7, it has to go out via 1/5.

The egress interface for the traffic with ingress interface ethernet1/7, source 192.168.111.3, and destination 10.46.41.113 will be ethernet1/5. This is because the traffic will match the virtual wire with interfaces ethernet1/5 and ethernet1/7, which is configured to allow VLAN-tagged traffic with tags 10 and 201. The traffic will also match the security policy rule that allows traffic from zone Trust to zone Untrust, which are assigned to ethernet1/7 and ethernet1/5 respectively2. Therefore, the traffic will be forwarded to the same interface from which it was received, which is ethernet1/53.

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-new-features/user-id-features/dynamic-user-groups

Use the dynamic user group in a policy to regulate traffic for the members of the group. You will need to configure at least two rules: one to allow initial traffic to populate the dynamic user group and one to deny traffic for the activity you want to prevent (in this case, questionable-activity). To tag users, the rule to allow traffic must have a higher rule number in your rulebase than the rule that denies traffic.

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/policy/use-dynamic-user-groups-in-policy

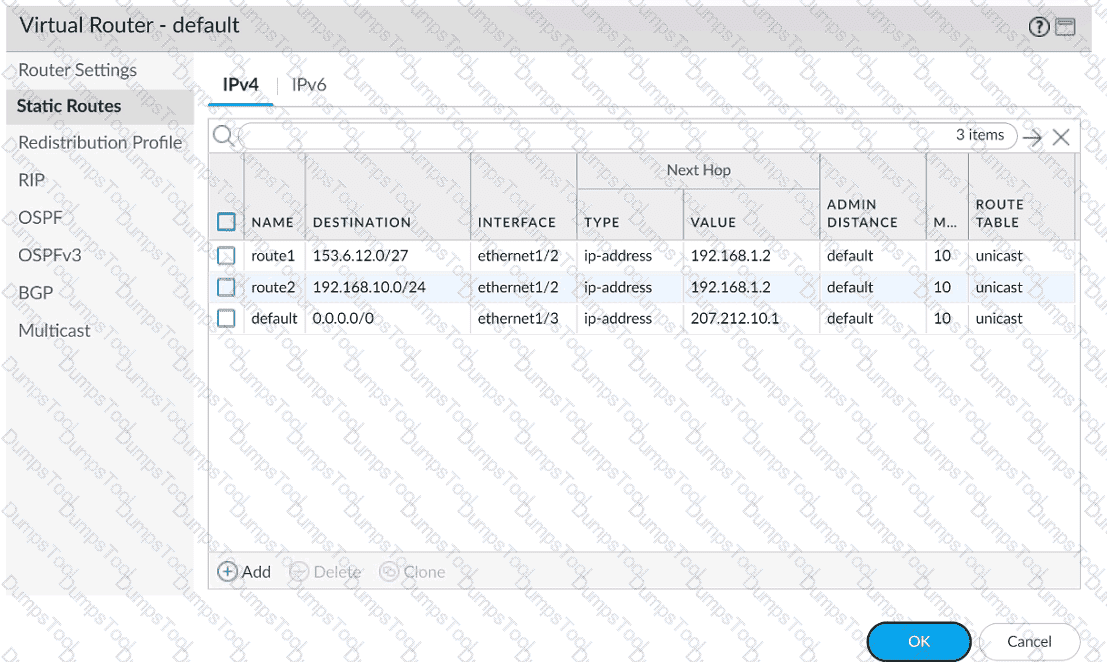

To determine the egress interface a Palo Alto Networks firewall will use to route a specific IP address, the appropriate command is test routing fib-lookup ip 10.2.5.3 virtual-router default. This command performs a Forwarding Information Base (FIB) lookup for the specified IP address within the context of the specified virtual router, which in this case is the default virtual router. The FIB lookup process checks the routing table and the associated forwarding information to determine the next-hop and the egress interface for the given IP address. This command is instrumental for troubleshooting and verifying routing decisions made by the firewall to ensure that traffic is routed as expected through the network infrastructure.

PAN-OS can decrypt and inspect SSL inbound and outbound connections going through the firewall. SSL decryption can occur on interfaces in virtual wire, Layer 2 or Layer 3 mode https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClmyCAC

Intermittent access post-policy update suggests the User-ID agent isn’t consistently mapping User A’s IP. Adding the subnets of User A’s machine and the resource to the Include List (Option D) ensures the agent monitors and maps those IPs, resolving connectivity by aligning User-ID with the policy.

For virtual systems (vSys) on a Palo Alto Networks firewall to communicate with each other, especially when separate virtual routers (VRs) are used for each vSys, the configuration must facilitate proper routing and security policy enforcement. The key aspects to focus on include:

A. External zones with the virtual systems added:

External zones are special types of zones that are used to facilitate traffic flow between virtual systems within the same physical firewall. By adding virtual systems to an external zone, you enable them to communicate with each other, effectively bypassing the need for traffic to exit and re-enter the firewall.

D. Add a route with next hop next-vr by using the VR configured in the virtual system:

When using separate VRs for each vSys, it's essential to configure inter-VR routing. This is done by adding routes in each VR with the next hop set to 'next-vr', specifying the VR of the destination vSys. This setup enables traffic to be routed from one virtual system's VR to another, facilitating communication between them.

E. Ensure the virtual systems are visible to one another:

Visibility between virtual systems is a prerequisite for inter-vSys communication. This involves configuring the virtual systems in a way that they are aware of each other's existence. This is typically managed in the vSys settings, where you can specify which virtual systems can communicate with each other.

By focusing on these configuration details, the network security engineer can ensure that the virtual systems can communicate effectively, maintaining the necessary isolation while allowing the required traffic flow.

Device Group Hierarchy

Shared

DATACENTER_DG

DC_FW_DG

REGIONAL_DG

OFFICE_FW_DG

FW-1_DG

Analysis

Considerations:

FW-1 is assigned to the FW-1_DG device group.

FW-2 is assigned to the OFFICE_FW_DG device group.

There are no objects configured in REGIONAL_DG and OFFICE_FW_DG device groups.

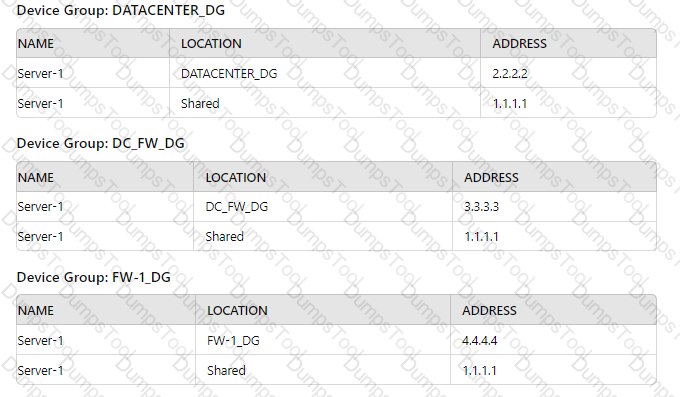

The address object Server-1 appears in multiple device groups with different IP addresses. The device groups have a hierarchy, which means objects can be inherited from parent groups unless overridden in the child group.

FW-1_DG:

Server-1 has IP 4.4.4.4, which will be pushed to FW-1 because it is in the FW-1_DG device group.

OFFICE_FW_DG (for FW-2):

Since there are no objects in OFFICE_FW_DG and REGIONAL_DG, FW-2 will inherit from Shared.

In the Shared group, Server-1 has IP 1.1.1.1.
