MCPA-Level-1 Questions and Answers

Explanation

Correct Answer: When a new required field is added to the method called by the API client

*****************************************

>> Generally, the logic on API clients need to be updated when the API contract breaks.

>> When a new method or a child method is added to an API , the API client does not break as it can still continue to use its existing method. So these two options are out.

>> We are left for two more where "datatype of the response if changed" and "a new required field is added".

>> Changing the datatype of the response does break the API contract. However, the question is insisting on the "invocation" logic and not about the response handling logic. The API client can still invoke the API successfully and receive the response but the response will have a different datatype for some field.

>> Adding a new required field will break the API's invocation contract. When adding a new required field, the API contract breaks the RAML or API spec agreement that the API client/API consumer and API provider has between them. So this requires the API client invocation logic to also be updated.

Explanation

Correct Answer: The test runs immediately after the Mule application has been compiled and packaged

*****************************************

>> Integration tests are the last layer of tests we need to add to be fully covered.

>> These tests actually run against Mule running with your full configuration in place and are tested from external source as they work in PROD.

>> These tests exercise the application as a whole with actual transports enabled. So, external systems are affected when these tests run.

So, these tests do NOT run immediately after the Mule application has been compiled and packaged.

FYI... Unit Tests are the one that run immediately after the Mule application has been compiled and packaged.

Explanation

Correct Answer:

1. Decrease the IT delivery gap

2. Meet various business demands without increasing the IT capacity

3. Make consumption of assets at the rate of production.

*****************************************

Explanation

Correct Answer: A higher number of discoverable API-related assets in the application network.

*****************************************

>> We do NOT get faster response times in fine-grained approach when compared to coarse-grained approach.

>> In fact, we get faster response times from a network having coarse-grained APIs compared to a network having fine-grained APIs model. The reasons are below.

Fine-grained approach:

1. will have more APIs compared to coarse-grained

2. So, more orchestration needs to be done to achieve a functionality in business process.

3. Which means, lots of API calls to be made. So, more connections will needs to be established. So, obviously more hops, more network i/o, more number of integration points compared to coarse-grained approach where fewer APIs with bulk functionality embedded in them.

4. That is why, because of all these extra hops and added latencies, fine-grained approach will have bit more response times compared to coarse-grained.

5. Not only added latencies and connections, there will be more resources used up in fine-grained approach due to more number of APIs.

That's why, fine-grained APIs are good in a way to expose more number of resuable assets in your network and make them discoverable. However, needs more maintenance, taking care of integration points, connections, resources with a little compromise w.r.t network hops and response times.

Explanation

Correct Answer: Unit tests (Whitebox)

*****************************************

Explanation

Correct Answer: The client ID and secret obtained from Anypoint Exchange for the API instance in the STAGING environment

*****************************************

>> We CANNOT use the client ID and secret of Anypoint Platform account or any individual environments for accessing the APIs

>> As the type of policy that is enforced on the API in question is "Client ID Enforcment Policy", OAuth token based access won't work.

Right way to access the API is to use the client ID and secret obtained from Anypoint Exchange for the API instance in a particular environment we want to work on.

References:

Managing API instance Contracts on API Manager

https://docs.mulesoft.com/api-manager/1.x/request-access-to-api-task

https://docs.mulesoft.com/exchange/to-request-access

https://docs.mulesoft.com/api-manager/2.x/policy-mule3-clie nt-id-based-policies

Explanation

Correct Answer: The number of API specifications in RAML or OAS format published to Anypoint Exchange

*****************************************

>> The success of C4E always depends on their contribution to the number of reusable assets that they have helped to build and publish to Anypoint Exchange.

>> It is NOT due to any factors w.r.t # of outages, Manual vs CI/CD deployments or Publicly accessible HTTP endpoints

>> Anypoint Platform APIs helps us to quickly run and get the number of published RAML/OAS assets to Anypoint Exchange. This clearly depicts how successful a C4E team is based on number of returned assets in the response.

Explanation

Correct Answer: A Non-Mule application

*****************************************

>> All type of Mule applications (Mule 3/ Mule 4/ with APIkit/ with Custom Java Code etc) running on Mule Runtimes support the Embedded Policy Enforcement on them.

>> The only option that cannot have or does not support embedded policy enforcement and must have API Proxy is for Non-Mule Applications.

So, Non-Mule application is the right answer.

Explanation

Correct Answer: Data on past API invocations to help identify anomalies and usage patterns across various APIs

*****************************************

API Invocation metrics provided by Anypoint Platform:

>> Does NOT provide any Return Of Investment (ROI) related information. So the option suggesting it is OUT.

>> Does NOT provide any information w.r.t how APIs are reused, whether there is effective usage of APIs or not etc...

>> Does NOT prodive any prediction information as such to help us proactively identify any future policy violations.

So, the kind of data/information we can get from such metrics is on past API invocations to help identify anomalies and usage patterns across various APIs.

Explanation

Correct Answer: It makes API Manager aware of API implementations and hence enables it to enforce policies.

*****************************************

>> API Autodiscovery is a mechanism that manages an API from API Manager by pairing the deployed application to an API created on the platform.

>> API Management includes tracking, enforcing policies if you apply any, and reporting API analytics.

>> Critical to the Autodiscovery process is identifying the API by providing the API name and version.

References:

https://docs.mulesoft.com/api-manager/2.x/api-auto-discovery-new-concept

https://docs.mulesoft.com/api-manager/1.x/api-auto-discovery

https://docs.mulesoft.com/api-manager/2.x/api-auto-discovery-new-conc ept

Explanation

Correct Answer: IP whitelist

*****************************************

>> OAuth 2.0 access token and Client ID enforcement policies are VERY common to apply on Experience APIs as API consumers need to register and access the APIs using one of these mechanisms

>> JSON threat protection is also VERY common policy to apply on Experience APIs to prevent bad or suspicious payloads hitting the API implementations.

>> IP whitelisting policy is usually very common in Process and System APIs to only whitelist the IP range inside the local VPC. But also applied occassionally on some experience APIs where the End User/ API Consumers are FIXED.

>> When we know the API consumers upfront who are going to access certain Experience APIs, then we can request for static IPs from such consumers and whitelist them to prevent anyone else hitting the API.

However, the experience API given in the question/ scenario is intended to work with a consumer mobile phone or tablet application. Which means, there is no way we can know all possible IPs that are to be whitelisted as mobile phones and tablets can so many in number and any device in the city/state/country/globe.

So, It is very LEAST LIKELY to apply IP Whitelisting on such Experience APIs whose consumers are typically Mobile Phones or Tablets.

Explanation

Correct Answer: A CloudHub worker fails with an out-of-memory exception.

*****************************************

>> An AWS Region itself going down will definitely result in an outage as it does not matter how many workers are assigned to the Mule App as all of those in that region will go down. This is a complete downtime and outage.

>> Extended outage of API manager during initial deployment of API implementation will of course cause issues in proper application startup itself as the API Autodiscovery might fail or API policy templates and polices may not be downloaded to embed at the time of applicaiton startup etc... there are many reasons that could cause issues.

>> A network outage onpremises would of course cause the Order Management System not accessible and it does not matter how many workers are assigned to the app they all will fail and cause outage for sure.

The only option that does NOT result in a service outage is if a cloudhub worker fails with an out-of-memory exception. Even if a worker fails and goes down, there are still other workers to handle the requests and keep the API UP and Running. So, this is the right answer.

Explanation

Correct Answer: The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance.

*****************************************

>> Once our API specifications are ready and published to Exchange, we need to visit API Manager and register an API instance for each API.

>> API Manager is the place where management of API aspects takes place like addressing NFRs by enforcing policies on them.

>> We can create multiple instances for a same API and manage them differently for different purposes.

>> One instance can have a set of API policies applied and another instance of same API can have different set of policies applied for some other purpose.

>> These APIs and their instances are defined PER environment basis. So, one need to manage them seperately in each environment.

>> We can ensure that same configuration of API instances (SLAs, Policies etc..) gets promoted when promoting to higher environments using platform feature. But this is optional only. Still one can change them per environment basis if they have to.

>> Runtime Manager is the place to manage API Implementations and their Mule Runtimes but NOT APIs itself. Though API policies gets executed in Mule Runtimes, We CANNOT enforce API policies in Runtime Manager. We would need to do that via API Manager only for a cherry picked instance in an environment.

So, based on these facts, right statement in the given choices is - "The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance".

Explanation

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Explanation

Correct Answer: Apply a basic authentication - LDAP policy; the internal Active Directory will be configured as the LDAP source for authenticating users.

*****************************************

>> IP Whitelisting does NOT fit for this purpose. Moreover, the users workstations may not necessarily have static IPs in the network.

>> OAuth 2.0 enforcement requires a client provider which isn't in the organizations system components.

>> It is not an effective approach to let every user create separate client credentials and configure those for their usage.

The effective way it to apply a basic authentication - LDAP policy and the internal Active Directory will be configured as the LDAP source for authenticating users.

Explanation

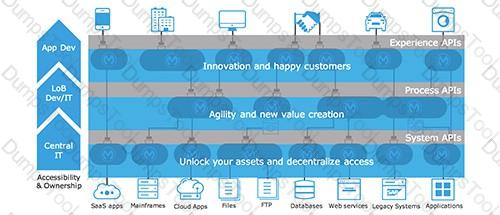

Correct Answer:

1. App Developers owns and focuses on Experience Layer APIs

2. LOB IT owns and focuses on Process Layer APIs

3. Central IT owns and focuses on System Layer APIs

References:

https://blogs.mulesoft.com/biz/api/experience-api-ownership/

https://blogs.mulesoft.com/biz/api/process-api-ownership/

https://blogs.mulesoft.com/biz/api/system-api-ownership/

Explanation

Correct Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.

*****************************************

Below TWO are characteristics of Integration Tests but NOT unit tests:

>> They test the validity of input and output of source and target systems.

>> They must be triggered by an external client tool or event source.

It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.

MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.

https://dzone.com/articles/munit-framework

Explanation

Correct Answers:

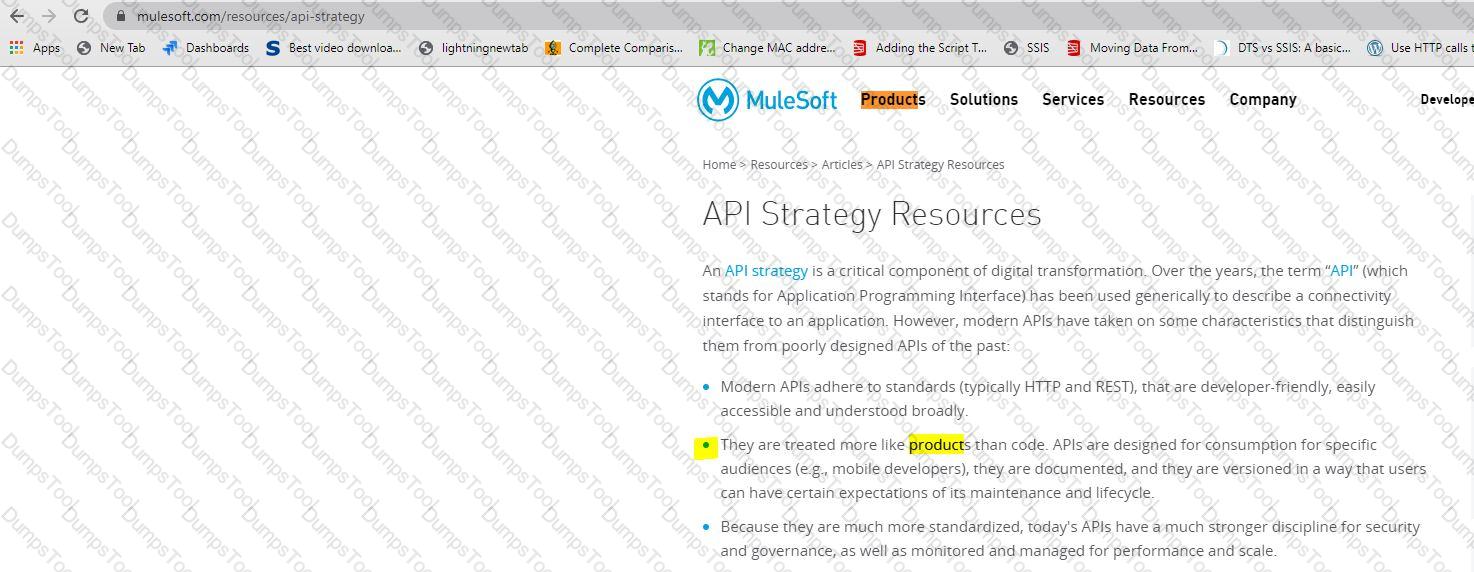

1. Each modern API must be treated like a product and designed for a particular target audience (for instance mobile app developers)

*****************************************

Bottom of Form

Top of Form

Explanation

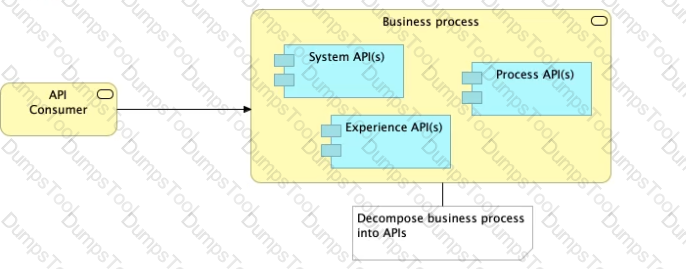

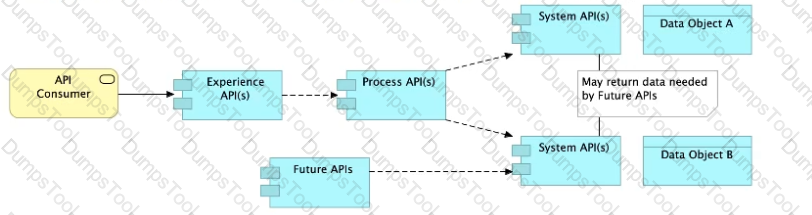

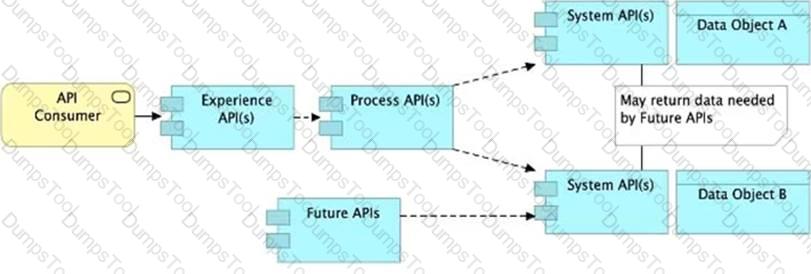

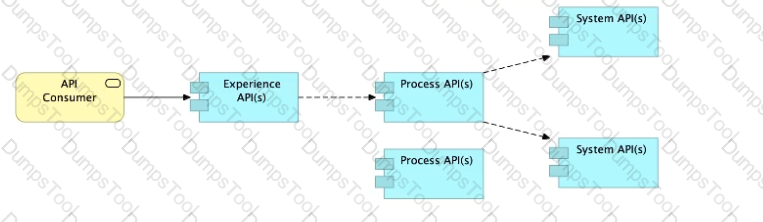

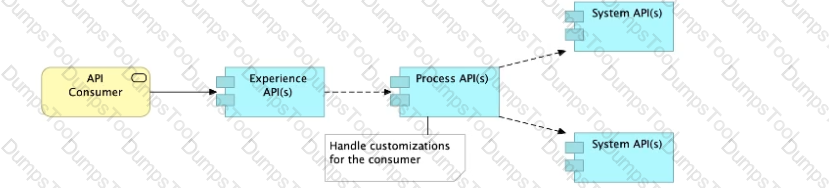

Correct Answer: Allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs.

*****************************************

>> All customizations for the end-user application should be handled in "Experience API" only. Not in Process API

>> We should use tiered approach but NOT always by creating exactly one API for each of the 3 layers. Experience APIs might be one but Process APIs and System APIs are often more than one. System APIs for sure will be more than one all the time as they are the smallest modular APIs built in front of end systems.

>> Process APIs can call System APIs as well as other Process APIs. There is no such anti-design pattern in API-Led connectivity saying Process APIs should not call other Process APIs.

So, the right answer in the given set of options that makes sense as per API-Led connectivity principles is to allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs. This way, some future Process APIs can make use of that data from System APIs and we need NOT touch the System layer APIs again and again.

Explanation

Correct Answer: API Consumer

*****************************************

>> API clients are piece of code or programs that use the client credentials of API consumer but does not directly interact with Anypoint Exchange to get the access

>> API consumer is the one who should get registered and request access to API and then API client needs to use those client credentials to hit the APIs

So, API consumer is the one who needs to request access on the API from Anypoint Exchange

https://www.folkstalk.com/2019/11/mulesoft-integration-and-platform.html

Explanation

Correct Answer: To invoke OAuth 2.0-protected APIs managed by Anypoint Platform, API clients must submit access tokens issued by that same Identity Provider

*****************************************

>> It is NOT necessary that single sign-on is required to sign in to Anypoint Platform because we are using an external Identity Provider for Client Management

>> It is NOT necessary that all APIs managed by Anypoint Platform must be protected by SAML 2.0 policies because we are using an external Identity Provider for Client Management

>> Not TRUE that the application network must include System APIs that interact with the Identity Provider because we are using an external Identity Provider for Client Management

Only TRUE statement in the given options is - "To invoke OAuth 2.0-protected APIs managed by Anypoint Platform, API clients must submit access tokens issued by that same Identity Provider"
