MCPA-Level-1-Maintenance Questions and Answers

Explanation

Correct Answer: API-led connectivity is not just an architecture or technology but also a way to organize people and processes for efficient IT delivery in the organization.

*****************************************

Explanation

Correct Answer: Unit tests (Whitebox)

*****************************************

Explanation

Correct Answer: They must be deployed to Anypoint Platform runtime planes that are managed by Anypoint Platform control planes, with both planes in the same Jurisdiction.

*****************************************

>> As per legal regulations, all data processing to be performed within a certain jurisdiction. Meaning, the data in USA should reside within USA and should not go out. Same way, the data in EU should reside within EU and should not go out.

>> So, just encrypting the data in transit and at rest does not help to be compliant with the rules. We need to make sure that data does not go out too.

>> The data that we are talking here is not just about the messages that are published to Anypoint MQ. It includes the apps running, transaction states, application logs, events, metric info and any other metadata. So, just replacing Anypoint MQ with a locally hosted ActiveMQ does NOT help.

>> The data that we are talking here is not just about the key/value pairs that are stored in Object Store. It includes the messages published, apps running, transaction states, application logs, events, metric info and any other metadata. So, just avoiding using Object Store does NOT help.

>> The only option left and also the right option in the given choices is to deploy application on runtime and control planes that are both within the jurisdiction.

Explanation

Correct Answer: API Consumer

*****************************************

>> API clients are piece of code or programs that use the client credentials of API consumer but does not directly interact with Anypoint Exchange to get the access

>> API consumer is the one who should get registered and request access to API and then API client needs to use those client credentials to hit the APIs

So, API consumer is the one who needs to request access on the API from Anypoint Exchange

Explanation

Correct Answer: Create separate Anypoint VPCs for non-production and production environments, then configure connections to the backend systems in the corresponding customer-hosted environments.

*****************************************

>> Creating different Business Groups does NOT make any difference w.r.t accessing the non-prod and prod customer-hosted environments. Still they will be accessing from both Business Groups unless process network restrictions are put in place.

>> We need to modify or couple the Mule Application Implementations with the environment. In fact, we should never implements application coupled with environments by binding them in the properties. Only basic things like endpoint URL etc should be bundled in properties but not environment level access restrictions.

>> IP addresses on CloudHub are dynamic until unless a special static addresses are assigned. So it is not possible to setup firewall rules in customer-hosted infrastrcture. More over, even if static IP addresses are assigned, there could be 100s of applications running on cloudhub and setting up rules for all of them would be a hectic task, non-maintainable and definitely got a good practice.

>> The best practice recommended by Mulesoft (In fact any cloud provider), is to have your Anypoint VPCs seperated for Prod and Non-Prod and perform the VPC peering or VPN tunneling for these Anypoint VPCs to respective Prod and Non-Prod customer-hosted environment networks.

Explanation

Correct Answer: System Layer

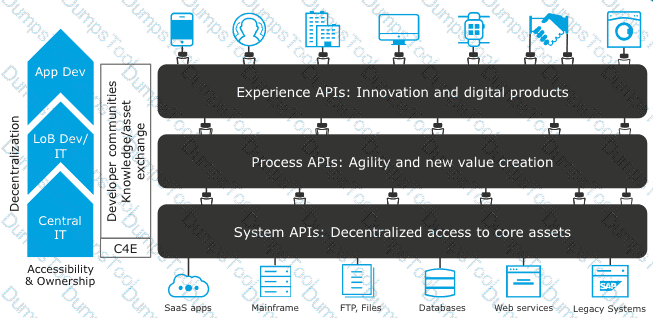

The APIs used in an API-led approach to connectivity fall into three categories:

System APIs – these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.

Process APIs – These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.

Experience APIs – Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

Explanation

Correct Answer: API implementations can run successfully in customer-hosted Mule runtimes, even when they are unable to communicate with the control plane.

*****************************************

>> We CANNOT use Shared Load balancer to load balance APIs on customer hosted runtimes

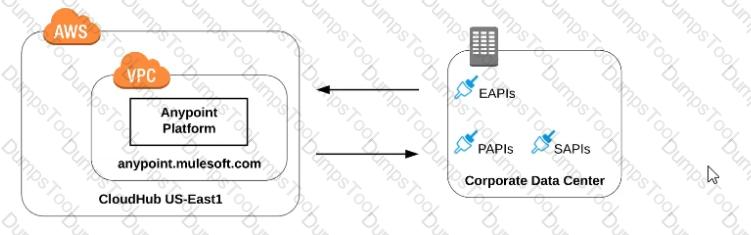

>> For Hybrid deployment models, the on-premises are first connected to Runtime Manager using Runtime Manager agent. So, the connection is initiated first from On-premises to Runtime Manager. Then all control can be done from Runtime Manager.

>> Anypoint Runtime Manager CANNOT ensure automatic HA. Clusters/Server Groups etc should be configured before hand.

Only TRUE statement in the given choices is, API implementations can run successfully in customer-hosted Mule runtimes, even when they are unable to communicate with the control plane. There are several references below to justify this statement.

References:

https://docs.mulesoft.com/runtime-manager/deployment-strategies#hybrid-deployments

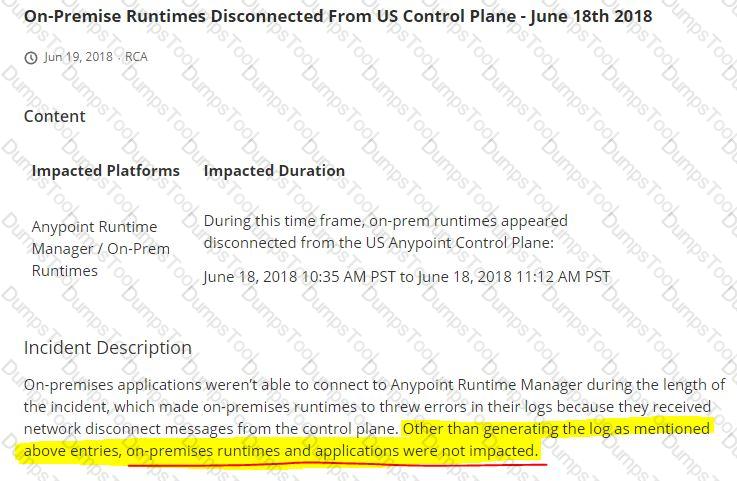

https://help.mulesoft.com/s/article/On-Premise-Runtimes-Disconnected-From-US-Control-Plane-June-18th-2018

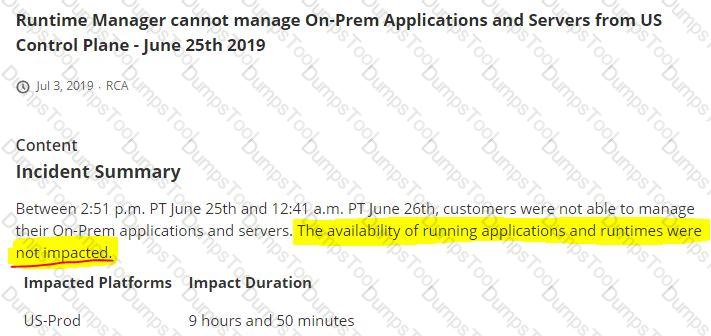

https://help.mulesoft.com/s/article/Runtime-Manager-cannot-manage-On-Prem-Applications-and-Servers-from-US-Control-Plane-June-25th-2 019

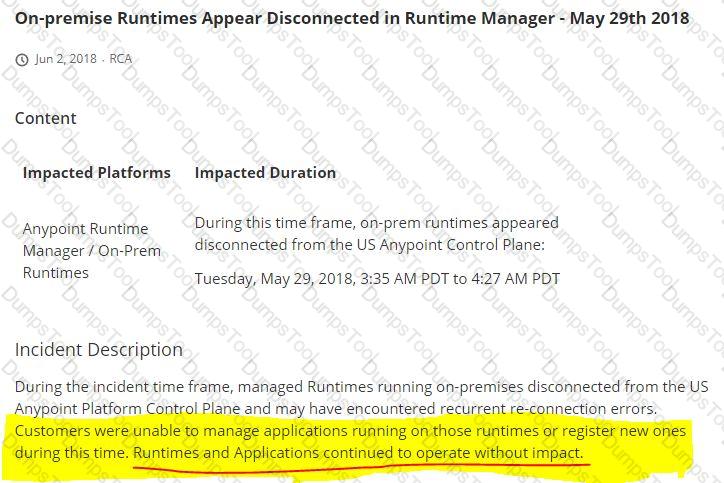

https://help.mulesoft.com/s/article/On-premise-Runtimes-Appear-Disconnected-in-Runtime-Manager-May-29th-2018

============================

============================
