HPE0-S60 Questions and Answers

To configure a Link Aggregation Group (LAG) for two connections within a server profile for a compute node running an ESXi system, a Virtual Distributed Switch (VDS) is required from the VMware side. VDS allows for the configuration of LAGs and provides advanced network features such as centralized management and monitoring, which are essential for setting up and managing LAGs.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

The HPE Superdome Flex system is the only HPE compute system that supports up to 16 CPU sockets, making it suitable for customers who require a hardware platform with such high scalability. The Superdome Flex is designed for mission-critical workloads and provides exceptional scalability and performance.

When troubleshooting a server profile in HPE OneView that is in a critical state due to a Link Aggregation Group (LAG), it is important to check if both FlexNICs are configured with the same speed. Inconsistent speeds can cause issues with link aggregation, leading to network instability and performance degradation.

When compute nodes cannot access the D3940 Storage Module in an HPE Synergy environment, the first thing to check is whether a logical interconnect has been created based on the 12Gb SAS switches. Logical interconnects are essential for defining the connection and communication pathways between the compute nodes and the storage module. Without a proper logical interconnect configuration, the compute nodes will not be able to access the storage module.

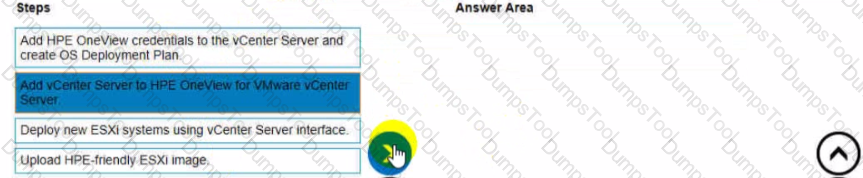

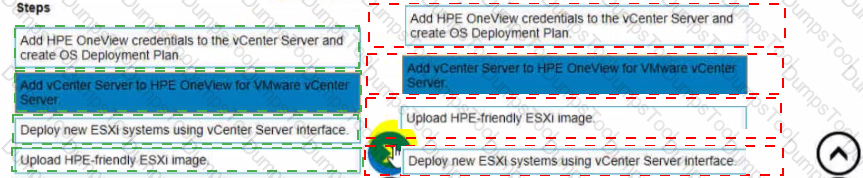

To configure HPE OneView for VMware vCenter Server to deploy ESXi systems, follow these steps in the correct order:

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server.

Upload HPE-friendly ESXi image.

Deploy new ESXi systems using vCenter Server interface.

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan:Integrate HPE OneView with vCenter Server by adding the necessary credentials and setting up the OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server:Ensure that vCenter Server is added to HPE OneView for VMware vCenter Server to enable communication and management.

Upload HPE-friendly ESXi image:Upload an ESXi image that is optimized for HPE hardware to the vCenter Server for use in the deployment process.

Deploy new ESXi systems using vCenter Server interface:Use the vCenter Server interface to deploy new ESXi systems based on the created server profile template and the uploaded ESXi image.

These steps ensure a seamless deployment and management of ESXi systems using HPE OneView integrated with VMware vCenter Server.

A logical interconnect group in HPE Synergy is used to define a consistent network configuration across multiple frames. The HPE Virtual Connect SE 100 Gb F32 Module for Synergy allows for logical interconnect groups to span across multiple frames. This is because the 100 Gb module supports high-speed connectivity and the necessary infrastructure to maintain consistent network configurations over multiple frames, which is essential for scalable and flexible Synergy environments.

When updating HPE OneView to version 6.1, it is necessary to first update to version 6.0, which is a milestone edition. Milestone editions include significant architectural changes and updates that are prerequisites for subsequent versions. This step ensures that the system is properly prepared and compatible with the new features and improvements introduced in version 6.1.

For VMware vSAN deployments, it is recommended that all drives in the D3940 storage modules be SSD drives to ensure optimal performance and efficiency. SSDs provide the necessary speed and reliability required by vSAN for handling storage-intensive operations and maintaining high performance.

In HPE Synergy, a management ring can indeed contain mixed frame link module (FLM) configurations. This means you can have a mix of 2-port and 4-port FLM modules within the same management ring without needing to replace the existing 2-port modules. This flexibility allows for gradual upgrades and scalability within the management ring.

The HPE D3940 storage module is designed to provide flexible and scalable storage within the HPE Synergy platform. Up to five D3940 storage modules can be installed in a single HPE Synergy frame when used with Gen10 servers. This configuration allows for high-density storage solutions within a single frame, making it ideal for environments that require substantial storage capacity.

With 15 HPE Synergy 12000 frames, the customer must create multiple logical enclosures to manage the setup efficiently. HPE Synergy typically supports up to five frames per logical enclosure, meaning that at least five logical enclosures would be necessary to manage all 15 frames. This ensures proper organization, management, and scalability of the resources.

HPE Superdome Flex allows for the expansion of powered-on nPars (nPartitions), but this capability is subject to certain conditions. One of these conditions is that the nPar does not use HPE Persistent Memory. Expanding an nPar with Persistent Memory typically requires a shutdown to reconfigure the memory settings safely.

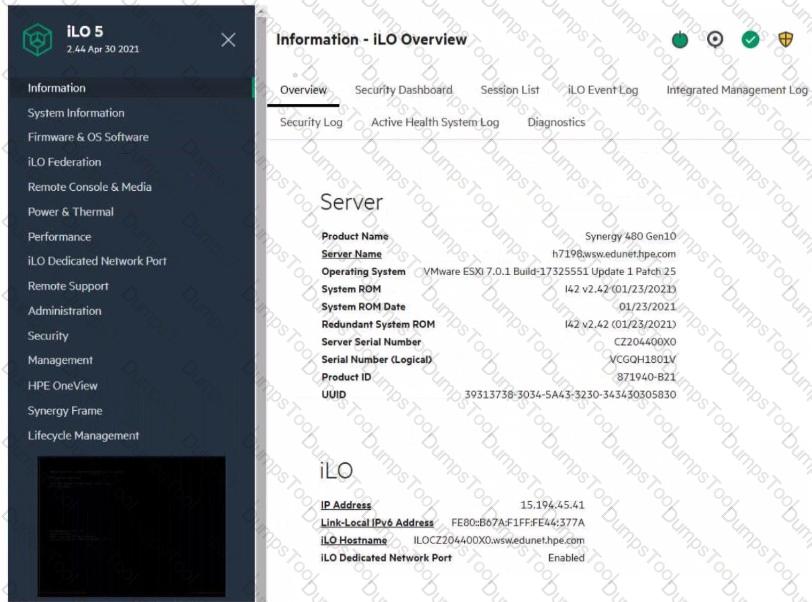

ThePerformancesection within the iLO management interface provides access to the Workload Advisor. This feature offers insights and analytics regarding the server's performance, helping to optimize workloads and manage resources efficiently.

HPE OneView for VMware vCenter Server provides integrated management and monitoring capabilities for systems managed by HPE OneView. This means that to leverage the full functionality of HPE OneView for VMware vCenter Server, the systems (both HPE Synergy and HPE ProLiant servers) must be managed through HPE OneView. This integration allows for comprehensive infrastructure management directly from the VMware vCenter interface.

Here are the correct matches for each HPE Synergy logical component with their respective definitions:

Enclosure groupDefinition:Contains the configuration intended for a set of physical enclosures.

Logical enclosureDefinition:A logical resource that defines a consistent configuration for an enclosure or a set of enclosures making up a logical enclosure.

Logical interconnectDefinition:A single administrative entity that consists of the configuration for a set of interconnects in a single enclosure or a frame link topology.

Logical interconnect groupDefinition:Acts as a recipe for creating a group that represents the available networks, uplink sets, and interconnect settings for a set of physical interconnects in a set of enclosures.

Enclosure group:An enclosure group in HPE Synergy defines the configuration settings, including logical interconnect groups and firmware baselines, for a set of physical enclosures.

Logical enclosure:A logical enclosure in HPE Synergy is a resource that includes one or more physical enclosures and their associated logical interconnects, providing a consistent configuration for those enclosures.

Logical interconnect:A logical interconnect represents a set of interconnects within an enclosure, managed as a single entity. It includes the configuration of the interconnects and their connections.

Logical interconnect group:A logical interconnect group (LIG) defines the network configuration, including available networks, uplink sets, and interconnect settings, that can be applied to multiple enclosures.

In HPE Synergy configurations, when using interconnect bay set 3, it implies that the compute nodes should be half-height. This is because bay set 3 is typically utilized in configurationswhere half-height compute nodes are used to ensure proper alignment and connectivity within the Synergy frame.

In HPE Synergy configurations, compute nodes must have a second CPU installed to access the second fabric. This requirement is due to the architecture of the Synergy compute nodes, where the second CPU is necessary to enable the additional PCIe lanes required for connectivity to the second fabric.
