CDCS Questions and Answers

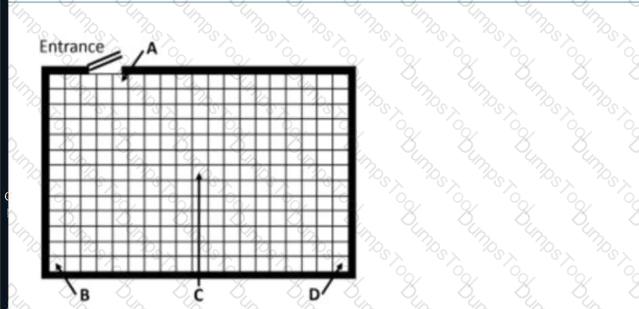

Perforated tiles should be located in front of equipment racks, aligned with cold aisles, to deliver supply air directly to server intakes. Best practice is one perforated tile per rack, adjusted based on airflow requirements and rack load.

Placing tiles at the back (A) disrupts airflow.

Spacing every 5th rack (B) provides insufficient cooling.

Placing near AC (D) causes uneven distribution and pressure loss.

Thus, option C is correct.

The correct formula for calculating Phase-to-Neutral Voltage in a three-phase power system is Phase-to-Neutral Voltage = Phase-to-Phase Voltage / 1.732. This formula applies to balanced three-phase systems, where 1.732 (or √3) represents the relationship between line-to-line and line-to-neutral voltages.

Detailed Explanation:

In three-phase systems, Phase-to-Phase Voltage is higher than Phase-to-Neutral Voltage by a factor of √3. Dividing the phase-to-phase voltage by 1.732 gives the phase-to-neutral voltage, which is critical for understanding power distribution in three-phase electrical systems commonly found in data centers.

EPI Data Center Specialist References:

EPI electrical training highlights the importance of knowing these calculations for designing and maintaining balanced power systems, which are essential for stable and efficient data center operations.

“Overcurrent” for protective devices is the condition above the device’s rated/trip value that causes operation (tripping/melting).

A = inrush tolerance, not the definition of overcurrent.

B = prospective short-circuit current (Ik).

Fire-rated glass must be installed within manufacturer’s tested maximum exposed area. Oversized panes risk failure under fire conditions. If the window exceeds 2 m², the correct approach is to subdivide it into smaller sections, each ≤2 m², using approved fire-rated frames.

Options B and C (silicone or aluminum splits) are not certified fire-rated framing methods. Option A is unsafe because normal glass provides no fire protection.

Therefore, option D ensures compliance and safety.

An End of Row (EoR) design minimizes the number of network switches, as multiple racks can share a single switch at the end of a row, reducing switch counts and simplifying management. This design centralizes network switching to fewer points, which reduces the complexity and number of switches required compared to a Top of Rack (ToR) design, where each rack typically has its own switch.

Detailed Explanation:

In EoR designs, each row has a single network switch that handles the connections for all racks within that row. This reduces the number of individual switches needed and centralizes network management, which is ideal for minimizing equipment and simplifying infrastructure in the data center.

EPI Data Center Specialist References:

EPI promotes the EoR design as a way to reduce switch counts and streamline management in data centers. This configuration allows for easier scaling and maintenance while maintaining efficient network connectivity.

The wet bulb and dry bulb temperatures become identical when the relative humidity reaches 100%. At this point, the air is fully saturated with moisture, meaning it can no longer absorb additional water vapor. As a result, the rate of evaporation decreases, and there is no difference between the dry bulb and wet bulb temperatures.

Detailed Explanation:

The dry bulb temperature measures the air temperature, while the wet bulb temperature takes into account the cooling effect of evaporation. When relative humidity is at 100%, the air has reached its saturation point, and no further evaporation occurs. This causes both the wet bulb and dry bulb thermometers to display the same temperature reading. This condition is critical in understanding environmental conditions, particularly in HVAC and data center environments, where humidity control is essential to avoid equipment overheating or corrosion.

EPI Data Center Specialist References:

The EPI Data Center Specialist training includes understanding humidity levels and their impact on data center environments. Knowing when wet bulb and dry bulb temperatures align helps data center operators manage moisture levels effectively, which is essential for preventing issues related to high humidity, such as condensation on IT equipment.

For balanced three-phase systems: where .

A Rated-4 facility requires dual active utility feeds, each from an independent substation, but they may come from the same utility provider if substations are geographically separate and independent.

Option A is too strict; ANSI/TIA-942 does not mandate two different companies.

Options C and D do not provide true independence and would fail Rated-4 requirements.

Thus, the minimum is two substations, possibly same provider.

A Power Usage Effectiveness (PUE) of 1.20 (achieved by Data Center B) indicates the highest facility efficiency among the three data centers. A lower PUE value signifies better energy efficiency, as it means that a greater proportion of the total energy consumed is used directly for IT equipment rather than for cooling, lighting, or other facility needs.

Detailed Explanation:

PUE is calculated as the ratio of total facility energy to IT equipment energy. A PUE close to 1.0 suggests that almost all the energy is dedicated to computing processes, with minimal overhead. With PUE values of 2.45, 1.20, and 1.90, Data Center B (1.20) operates most efficiently by devoting a higher percentage of its total energy to IT equipment.

EPI Data Center Specialist References:

The EPI curriculum emphasizes PUE as a key metric for data center efficiency, with lower values representing better performance. Achieving a PUE near 1.0 aligns with industry best practices for energy-efficient data center design and operation.

Modern UPS systems can synchronize their output to an external reference, either from the rectifier input (Feed A) or from the bypass input (Feed B). Synchronization ensures seamless transfer between normal and bypass operation.

The configuration depends on user or vendor settings:

If synchronized to the bypass (Feed B), the UPS can quickly transfer to bypass during overload or failure.

If synchronized to the rectifier (Feed A), the UPS maintains stable output independent of bypass conditions.

ANSI/TIA-942 does not mandate which feed the UPS must synchronize to, only that redundancy be maintained across feeds in a Rating-4 design. Manufacturers typically allow the choice depending on operational preference.

For optimal early smoke detection in a data center, it is crucial that the Very Early Smoke Detection Apparatus (VESDA) system be installed at locations where smoke will be detected as soon as it appears. Positioning the VESDA pipes at the air intake of the air conditioner inside the computer room is not ideal. This placement could result in a delayed detection response and the potential for bypass airflow to occur, which would impede the system’s ability to detect smoke effectively.

Detailed Explanation:

When VESDA pipes are installed at the air intake, the detection system relies on the smoke to be drawn into the air conditioning unit before detection can occur. This setup increases the reaction time as the smoke has to travel through the intake and get processed by the air conditioner. Furthermore, bypass airflow—a phenomenon where not all the air containing smoke particles passes through the VESDA pipes—could also delay or even prevent the system from detecting smoke early.

Ideally, VESDA pipes should be positioned where smoke is likely to accumulate first, such as near the ceiling or in the return airflow path to detect smoke at the earliest possible stage. This ensures that the detection system can quickly trigger alarms, providing more time to address potential fire hazards.

EPI Data Center Specialist References:

EPI Data Center Specialist training highlights that smoke detection should prioritize early response capabilities to maximize safety. The preferred installation for VESDA pipes is generally at points where smoke would naturally accumulate, rather than relying on air conditioning intakes where airflow can vary and delay detection. In their course materials, EPI emphasizes minimizing reaction time and reducing the impact of airflow dynamics on smoke detection efficiency.

Halocarbon agents such as FM-200 (HFC-227ea) and Novec-1230 (FK-5-1-12) are both defined under NFPA 2001 and ISO 14520 as clean agents, but their required design concentrations and physical properties differ. When calculating agent quantity, the minimum extinguishing concentration (MEC) and safety factor (S) must be taken into account. The S-factor is specific to each agent and reflects differences in molecular weight, density, and flame suppression chemistry.

For Novec-1230, the required design concentration is generally lower than for FM-200 (around 4.5–6% vs. 7–9%), but the calculation formula is the same except for substituting the correct S-factor. Therefore, you cannot reuse the exact formula parameters from FM-200; you must change the S-factor and apply Novec-1230’s physical constants.

This ensures compliance with NFPA 2001 Annex C, which provides correction formulas for room volume, temperature, and specific agent type. Using the wrong S-factor could result in underfilling or overfilling, compromising fire safety or increasing cost unnecessarily.

As relative humidity decreases, Electrostatic Discharge (ESD) risks increase. Lower humidity levels reduce the amount of moisture in the air, which normally helps dissipate static charges. When the humidity drops from 50% to 35%, the likelihood of static electricity accumulating on surfaces rises, leading to a higher potential for ESD incidents that could damage sensitive IT equipment.

Detailed Explanation:

ESD events are more common in dry environments because there is less atmospheric moisture to neutralize electrical charges. Maintaining relative humidity above 40% helps minimize the risk of ESD, which is why data centers often control humidity levels tightly to protect equipment from static discharge that could cause hardware failures or data loss.

EPI Data Center Specialist References:

EPI data center best practices stress the importance of maintaining stable humidity levels to prevent ESD, particularly in computer rooms. Recommended humidity ranges are typically above 40% to prevent conditions that would foster static buildup.

LCC (Life Cycle Cost) is the metric that accounts for capital cost, operational energy, maintenance, and disposal/replacement. This holistic view is critical when evaluating cooling technologies like CRACs, CRAHs, chilled water, or free cooling systems.

HER (Heat Exchange Ratio) and COP (Coefficient of Performance) measure operational efficiency but not total lifecycle costs.

PUE measures overall data center efficiency but not specifically cooling CAPEX/OPEX.

Thus, LCC is the comprehensive metric that covers installation, operation, and disposal.

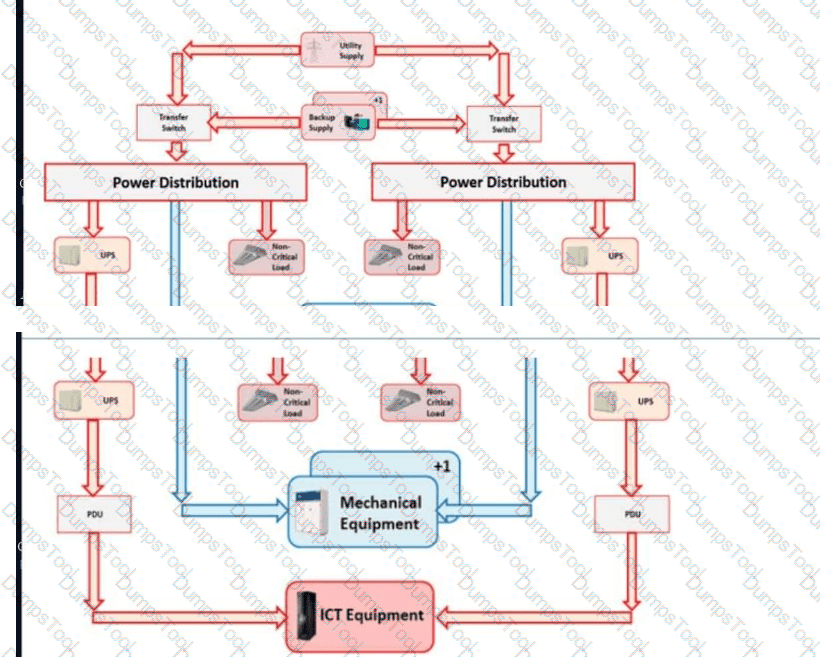

The electrical design shown in the diagrams represents a TIA-942 Rating-4 configuration. This design includes full redundancy and fault tolerance, as demonstrated by the dual power distribution paths from the utility supply to the critical loads. Each power distribution path is equipped with its own UPS, ensuring that the ICT equipment and mechanical equipment have uninterrupted power in case of any single point of failure.

Detailed Explanation:

A Rating-4 data center requires two independent power paths that are fully redundant and capable of supporting the load independently. In the diagrams:

There are dual feeds from the utility supply, each going through separate transfer switches and power distribution paths.

Both paths have backup sources (+1) and serve critical components through separate UPS systems, providing a completely redundant setup.

The design also includes redundant paths to the mechanical equipment and ICT equipment, which further indicates the fault-tolerant characteristics of a Rating-4 infrastructure.

This setup allows for concurrent maintainability and ensures that no single failure in power distribution or UPS can impact the data center’s operation, which is characteristic of the highest Tier/Rated-4 classification.

EPI Data Center Specialist References:

EPI guidelines confirm that TIA-942 Rating-4 requires full redundancy and fault tolerance for electrical infrastructure, ensuring continuous operation even during maintenance or failure events. This design meets all those requirements, thus aligning with Rating-4 standards.

When calculating Power Usage Effectiveness (PUE) in a data center that uses chilled water from an external source, like from a building owner, a weight factor for district chilled water must be applied. This is because PUE calculations aim to measure the energy efficiency of the data center’s own operations, and external utilities like district chilled water aren’t directly powered by the data center. A weight factor of 0.4 is typically used to account for the energy consumed to produce and deliver the chilled water, reflecting the indirect impact on the data center’s total energy consumption.

Detailed Explanation:

PUE is calculated as the ratio of the total facility energy to the IT equipment energy. If the cooling is provided by an external chilled water source, it’s necessary to adjust the calculations to accurately reflect the energy impact. By incorporating the 0.4 weight factor, data centers can calculate a more accurate PUE, aligning with standard methods and industry best practices.

EPI Data Center Specialist References:

EPI training on PUE highlights the importance of adjusting for external energy sources, such as district cooling, in the calculations. This ensures that PUE values remain accurate and comparable across different data centers, even when external utilities are used.

For a UPS system in a Rating-4 data center, the synchronization of output can indeed depend on the specific settings of the UPS. Generally, such systems allow for flexible configuration where the output can be synchronized to either power feed A or B, depending on which feed is preferred for stability or redundancy purposes.

Detailed Explanation:

In dual-feed setups, such as those in high-redundancy data centers, the UPS can be set to synchronize with either feed. This ensures that the UPS maintains continuity in case one feed becomes unstable or fails. The flexibility to choose synchronization to either feed enhances the resiliency and reliability of power supply, which is critical in Tier IV (Rating-4) facilities where uptime is paramount.

EPI Data Center Specialist References:

The EPI Data Center Specialist course underscores the importance of configurable UPS systems in Rating-4 data centers, where redundancy and continuous power are critical. By allowing synchronization to either feed, the UPS can maintain the highest level of reliability, which aligns with the rigorous standards expected in such environments.

High dust levels in a computer room are often due to improperly fitted floorboards. When floorboards are not securely installed or do not fit tightly, they allow dust and particles from the subfloor to enter the room. In a data center, this can lead to high levels of dust that affect air quality and equipment performance.

Detailed Explanation:

Raised floors in data centers can accumulate dust and debris, especially if the floorboards are not properly sealed. Loose or improperly fitted floorboards allow contaminants from the subfloor to enter the data center environment, increasing the dust levels over time. Proper installation and maintenance of floor panels are essential to prevent dust infiltration and maintain clean conditions.

EPI Data Center Specialist References:

EPI training emphasizes proper flooring installation and maintenance to control air quality within data centers. Correctly fitted floorboards prevent dust accumulation from the subfloor, which helps protect sensitive equipment and maintains a cleaner environment.

The diagram shows three UPS modules, each 100 kW, connected in parallel to support a 100 kW IT load. That means:

One module (100 kW) can support the load (N).

Two additional modules are installed as redundancy.

This equals N+2 redundancy.

2+N+1 and 2(N+1) imply dual active paths not shown.

N+N+N is not an industry term.

Thus, the correct redundancy level is N+2.

To calculate the cooling airflow requirement for ICT equipment, you can use the formula:

CFM=Power (kW)×3160ΔT(°F)\text{CFM} = \frac{\text{Power (kW)} \times 3160}{\Delta T (\text{°F})}CFM=ΔT(°F)Power (kW)×3160​

For equipment consuming 6 kW with a Delta-T of 20°F:

CFM=6×316020=948≈1,000 CFM\text{CFM} = \frac{6 \times 3160}{20} = 948 \approx 1,000 \, \text{CFM}CFM=206×3160​=948≈1,000CFM

Detailed Explanation:

This formula provides an estimate of the cubic feet per minute (CFM) of air required to cool the equipment based on its power consumption and the temperature difference (Delta-T) between intake and exhaust. The Delta-T represents the cooling effectiveness of the airflow.

EPI Data Center Specialist References:

EPI recommends using this calculation for determining airflow requirements in data centers, ensuring that cooling systems are adequately sized to maintain equipment within safe temperature limits.

EoR centralizes access/aggregation switches at the end of each row, reducing the number of access switches compared with ToR (one per rack), which simplifies management and often lowers Ops costs.

A, D are incorrect generalizations.

ANSI/TIA-942 requires a risk assessment–based approach to physical security; ballistic protection is not mandated but may be justified by threat analysis.

A is incomplete (it may still be required by risk).

NFPA 75 (IT equipment rooms) recommends pre-action sprinklers for data processing spaces to minimize accidental water discharge risk; wet-pipe is generally discouraged directly over IT hardware.

Hypoxic air systems continuously reduce the oxygen concentration in the protected area to below the level required for combustion (typically 15–16%), while still remaining safe for human occupancy (>14%). By lowering oxygen concentration, ignition and flame propagation are prevented.

This is different from halocarbon or inert-gas clean agents, which flood the room only upon detection of fire. Hypoxic systems are preventive, creating a permanent fire-retardant environment.

They do not remove heat (A), fuel (C), or use water (D). Their key mechanism is oxygen displacement.

Data centers typically have high airflow environments due to CRAC/CRAH units, containment, and raised floors. Standard smoke detectors (ionization or photoelectric) often fail to detect incipient smoke because the air movement disperses particles.

The correct solution is VESDA/VIEW (Very Early Warning) smoke detection systems, which use aspirating smoke detectors (ASD). These systems continuously sample air through pipes and can detect smoke particles at concentrations as low as 0.001% obscuration/m. This provides early detection well before fire growth, allowing mitigation without system shutdown.

Dry pipe sprinklers (A) are suppression, not detection.

Ionization detectors (B) are sensitive to flaming fires but unreliable in high-airflow environments.

Photoelectric detectors (C) are better for smoldering fires but still inadequate in high airflow compared to ASD systems.

Relative Humidity (RH) is defined as the ratio of the actual water vapor content in the air to the maximum possible water vapor content at a given temperature. To calculate RH:

Dry bulb temperature (DBT): the ambient air temperature.

Wet bulb temperature (WBT): the temperature measured by a thermometer covered with a wet wick, influenced by evaporative cooling.

Using DBT and WBT, the humidity ratio and dew point can be determined with a psychrometric chart or Mollier diagram. From there, RH is calculated as:

A black text on a white background AI-generated content may be incorrect.

Options A and B are incomplete, while option C is an experimental method, not standard practice. The recognized method is option D.

The attenuation factor for shielding material is typically calculated using the formula A = 20 log (R / M). This equation provides the attenuation in decibels (dB), where R represents the measured electromagnetic field strength, and M is the maximum acceptable level. The logarithmic scale helps quantify how much the shielding reduces EMF levels relative to the maximum allowable value.

Detailed Explanation:

This formula calculates attenuation by comparing the measured value with the acceptable threshold, with the result expressed in decibels. A higher attenuation indicates more effective shielding material, essential for environments requiring robust EMF management.

EPI Data Center Specialist References:

EPI standards include the use of logarithmic formulas to evaluate attenuation levels, ensuring that shielding materials provide adequate reduction in EMF to protect sensitive equipment within data centers.

MPO connectors are multi-fiber connectors that support 12, 24, or more fibers in a single connector. Their key advantage is enabling parallel optics—where multiple fibers transmit simultaneously. This makes them ideal for 40GBASE-SR4 and 100GBASE-SR10 Ethernet links.

With OM4 or OM5 fiber, MPO cabling supports short-reach high-speed links in modern data centers.

Option A is incorrect; MPO works with OM3/OM4/OM5.

Option C is misleading; all connectors degrade with repeated use.

Option D is false because MPO is optical-only.

The real advantage is parallel multi-fiber transmission in one connector, simplifying cabling for high-speed networking.

OM5 is optimized for Short Wavelength Division Multiplexing (SWDM) between 850–953 nm. This allows transmission of multiple wavelengths over a single fiber pair, reducing the number of fibers required for high-speed links.

OM4 already supports 100 GbE to 150 m, but OM5 with SWDM extends reach and reduces cabling bulk.

Option B is false because OM5 offers distinct SWDM benefits.

Option C is incorrect—OM5 is laser-optimized, not LED-based.

Option D is misleading; OM5 doesn’t extend 100 GbE to 500 m (that requires single-mode OS2 fiber).

Thus, the key advantage is SWDM support.

Electromagnetic field (EMF) strength around cables is primarily influenced by current, not voltage. In a single-phase system, the live and neutral conductors are separated, creating a larger magnetic loop area. This produces stronger stray EMF when current increases.

In a balanced three-phase system, the magnetic fields from the three conductors largely cancel each other out, resulting in much lower net EMF, even at higher currents.

Therefore, the correct statement is that increasing current in single-phase cables produces higher EMF compared to three-phase cables. Options B, C, and D incorrectly link EMF to voltage or incorrect current behavior.

Battery sizing requires determining the real power demand of the UPS. With 30 kVA at 0.8 PF, the real load is 24 kW. To calculate required ampere-hours for 15 minutes of runtime, we need:

Where P = load, t = runtime, V = battery voltage, and η = UPS efficiency.

Without UPS efficiency, we cannot know actual DC load on the batteries. A UPS with 90% efficiency will require more battery capacity than one with 95%. None of the other listed parameters (PF, imbalance, charging current) are critical for runtime capacity calculation.
