D-PVM-OE-01 Questions and Answers

Step by Step Comprehensive Detailed Explanation:

SRDF/Metro is a high-availability solution that provides synchronous replication between two storage arrays located within a metropolitan distance. It utilizes a witness to prevent data loss in the event of a split-brain scenario (where communication between the arrays is lost).

In SRDF/Metro, there can be onlyoneWitness Group defined between two specific arrays. This Witness Group manages the witness device that acts as a tie-breaker in case of a communication failure between the arrays.

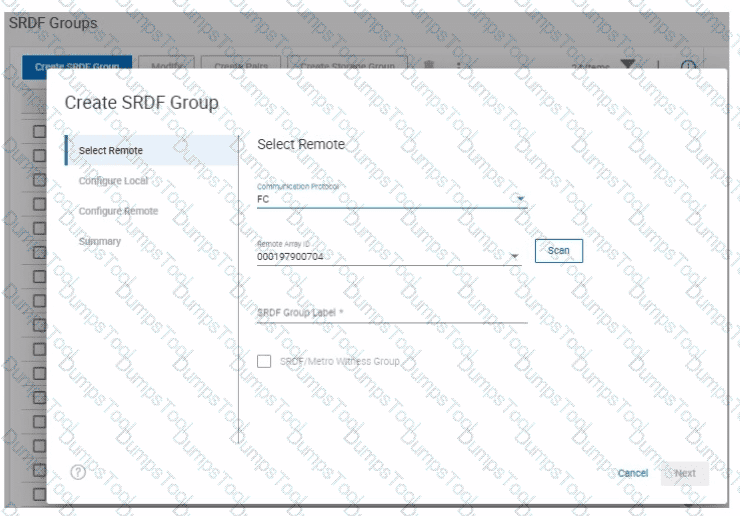

Since the exhibit shows that SRDF/Metro has already been configured between the two arrays using a physical witness, the option to create another SRDF/Metro Witness Group is grayed out because a Witness Group already exists for that pair of arrays.

Why other options are incorrect:

B. SRDF/Metro Witness Groups can only be created with CLI:While CLI can be used, Witness Groups can also be created through Unisphere for PowerMax.

C. The SRDF Group Label needs to be left blank when creating an SRDF/Metro Witness Group:This is not a requirement. Witness Groups can have labels.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF/Metro configuration, including the role of the witness and the Witness Group. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF/Metro and its functionalities, including witness configuration and best practices.

Step by Step Comprehensive Detailed Explanation:

Unisphere for PowerMax provides a "System > Hardware" view that offers insights into the physical components of your PowerMax storage array. On newly installed 2000 and 8000 series arrays, this view would typically show information about:

Front-end directors:These directors handle host connectivity and data transfer to and from the array. The view would likely display details about the number of front-end directors, their types, and their status.

Back-end directors:These directors manage the connection to the physical disks (storage media) within the array. The view may show the number of back-end directors, their types, and their status.

RDF (Remote Data Facility):If the array is configured for SRDF replication, the hardware view might display information about the RDF directors or components responsible for managing remote replication.

Why other options are incorrect:

A. Capacity, performance, and protection:While these are important aspects of a PowerMax system, they are typically found in other sections of Unisphere, such as the "Dashboard" or "Storage" views.

B. Provision, protect and set host I/O limits:These are management functions accessible through Unisphere, but not typically displayed directly under the "System > Hardware" view.

D. I/O Profile, performance thresholds, and anomaly detection:These are related to performance monitoring and analysis, which are usually found in the "Performance" section of Unisphere.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides detailed information about the different views and functionalities available within the tool. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of PowerMax systems and their management using Unisphere. It may provide context for understanding the information displayed in the "System > Hardware" view.

Step by Step Comprehensive Detailed Explanation:

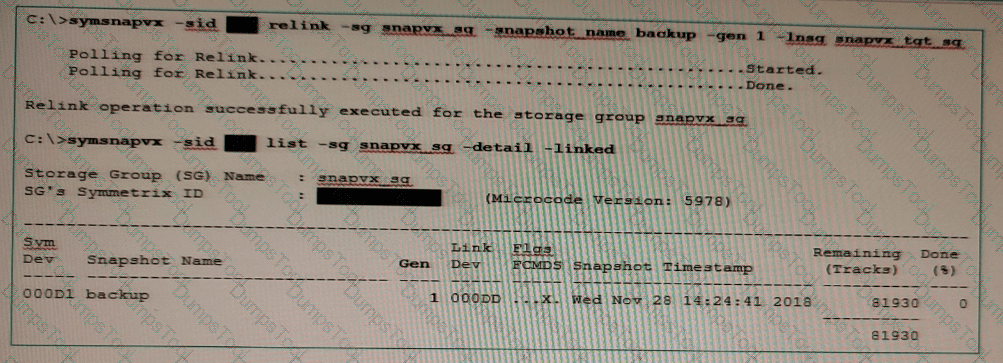

SnapVX Linked Targets:SnapVX is a snapshot technology used in Dell PowerMax storage arrays. A linked target is a volume that provides read/write access to a specific point-in-time copy (snapshot) of a source volume.

Read/Write Access:Unlike traditional snapshots, which are typically read-only, SnapVX linked targets allow modifications. This makes them suitable for use cases like testing, development, and data analysis where changes need to be made to a copy of the data without affecting the original source.

Secure Snapshots:SnapVX offers the capability to create "secure snapshots." These snapshots are write-protected and prevent any modifications or deletion, ensuring data integrity and protection against accidental or malicious changes.

Why other options are incorrect:

B. They support a maximum of 1024 snaps per volume:This is partially correct. While a source volume can have up to 1024 snapshots, this limit includes all types of snapshots (manual, automated, and legacy), not just linked targets.

B. They cannot send data to SRDF:This is incorrect. SnapVX linked targets can participate in SRDF (Symmetrix Remote Data Facility) replication, allowing for disaster recovery and data mobility.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and commands, including how to create, link, and manage snapshots. It confirms the read/write capability of linked targets and the ability to create secure snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It highlights the benefits of SnapVX linked targets for various use cases. You can find this document on the Dell Support website by searching for "PowerMax Family Essentials and Best Practices Guide."

Okay, I understand. We need to perform a system health check and review the compliance status for a PowerMax array with SID ending in 1762 using the Unisphere simulator, then generate and download a compliance report.

Here's how you would do it in the Unisphere for PowerMax simulator, based on the provided image and common Unisphere functionality:

Steps:

1. Launch the Simulator and Access the System Health View

Open Unisphere for PowerMax in your web browser.

You should already be logged in to the simulator, with the PowerMax array with SID 1762.

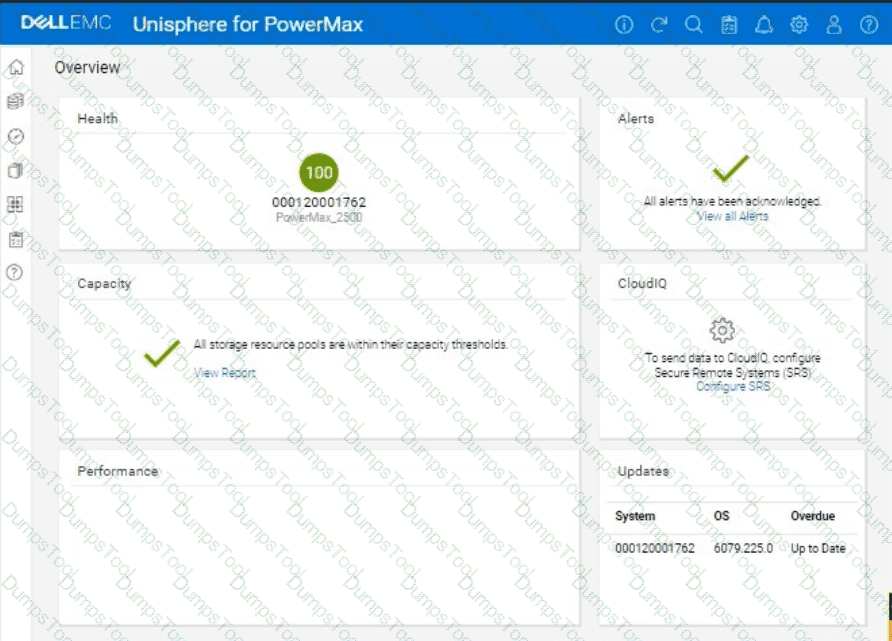

The initialOverviewpage (as shown in the image) provides a good starting point for a health check.

2. Analyze the Overview Page

Health:The "Health" section displays the overall health status of the array. In the image, it shows "100" with a green checkmark, which indicates that the array is currently healthy.

Alerts:The "Alerts" section will show if there are any active alerts. In the image, it shows a green checkmark and "All alerts have been acknowledged," meaning no unacknowledged alerts. You can click "View all Alerts" to see the alert history.

Capacity:The "Capacity" section indicates whether storage resource pools are within their capacity thresholds. The green checkmark and "All storage resource pools are within their capacity thresholds" message indicate that capacity is currently healthy. You can click "View Report" for more details.

Performance:The "Performance" section is not detailed in the image, but it would typically provide a quick overview of the array's performance.

Updates:The "Updates" section shows the system's PowerMaxOS code level and whether any updates are overdue. In the image, it shows that the system is "Up to Date."

3. Navigate to the Compliance Section

In the left-hand navigation pane, click onData Protectionto expand it.

Click onComplianceunder Data Protection.

4. Review Compliance Status

The Compliance view will show you the overall compliance status of your storage groups against the defined compliance policies.

Review the compliance status for each Storage Group.

Look for any storage groups that are marked as "Non-Compliant."

5. Generate the Compliance Report

Click on"Generate Report"(or a similarly worded button) within the Compliance view. This might also be represented as an icon in the simulator.

Select all Storage GroupsSince we need to generate the report for all storage groups.

Report Format:Choose the desired report format. Common options are usually PDF, CSV, or HTML. For this simulation, let's assume PDF is available and select it.

Download the Report:Once the report is generated, there will typically be a"Download"or similar option to save the report to your local system. Click it to download the compliance report.

6. Further Health Checks (Optional):

Detailed Performance Metrics:You can navigate to thePerformancesection in the left navigation pane (under "Dashboard") to view more detailed performance metrics for various components of the array.

Hardware Status:You can typically find a "Hardware" section (or similarly named section) that provides information about the physical components of the array (e.g., DAEs, directors, ports).

Step by Step Comprehensive Detailed Explanation:

The Workload Planner in Unisphere for PowerMax helps you analyze and predict the performance impact of adding new workloads to your storage array. It uses sophisticated algorithms to calculate howthe addition of a new workload will affect the existing workloads and whether it will violate any service level objectives (SLOs).

To determine if a Storage Group workload is stable, the Planner considers two key calculated values:

Read Response Time:The predicted read response time of the Storage Group after the new workload is added.

Write Response Time:The predicted write response time of the Storage Group after the new workload is added.

The Planner compares these calculated values against the service level (SL) defined for the Storage Group. Ifboththe calculated read and write response times fall within the defined SL response time, the Planner considers the workload to be stable. This means that the new workload can be added without negatively impacting the performance of the existing workloads or violating the SLOs.

Why other options are incorrect:

A. One of the calculated values is within 10-20% of the SL-defined response time:Both read and write response times must be within the defined SL, not just one.

B. Both calculated values are within a 10-15% threshold of the SL-defined response time:The threshold is not fixed at 10-15%. The calculated values must be within the actual SL-defined response time.

C. One of the calculated values remains within the SL-defined response time:Again, both read and write response times need to be within the defined SL.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides detailed information about the Workload Planner feature, including how it calculates and analyzes workload stability. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about performance management and workload planning in PowerMax, providing context for understanding the Workload Planner's functionality.

Okay, I understand. The task is to verify the completion of Non-Disruptive Migrations (NDM) and then remove the migration environment using the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the Migration Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator.

In the left-hand navigation pane, locate the section related to migrations. This is usually under either:

Data Mobility

Migration

Expand the relevant section and click onMigrations(or a similar option like "Local Migrations" or "NDM"). This will take you to the view where you can manage Non-Disruptive Migrations.

2. Verify Migration Session Status

The Migrations view will list all current and past migration sessions.

Look for the following status indicators to confirm that the migrations have completed successfully:

Status:The status should typically be "Completed," "Cutover Complete," or a similar status indicating successful completion.

Progress:If a progress bar or percentage is shown, it should be at 100% or show that all data has been synchronized.

Important:If any sessions are still in a "Running," "Synchronizing," or other non-completed state, do not proceed with removing the migration environment. Wait for them to complete.

3. Select Completed Migrations for Removal

Once you've verified that all relevant migration sessions are successfully completed, select the sessions that you want to remove.

You can usually select sessions by:

Clicking a checkbox next to each session.

Clicking on the session itself (if the interface allows it).

4. Remove the Migration Environment

After selecting the completed migration sessions, look for an action button or menu option to remove them. This might be labeled:

"Remove"

"Delete"

"Cleanup"

"Remove Session"

Click the appropriate button to initiate the removal process.

Confirmation:You will likely be prompted with a confirmation message to make sure you want to remove the selected migration sessions. Verify that you have selected the correct sessions and confirm the removal.

5. Verify Removal (Optional)

After the removal operation completes, the Migrations view should refresh.

Verify that the migration sessions you removed are no longer listed.

We need to provision 2 TB of storage to the ESXi1 host on a PowerMax array (SID 1762) using Unisphere, in a multi-tenant environment. We'll use auto-provisioning with the following specifics:

Storage Group Name:ESXi1_SG

Port Group:(A new port group with Directors OR-1C:0 and OR-2C:0)

Volume Size:2 TB (single volume)

Other Settings:Default

Here are the step-by-step instructions, tailored for the Unisphere simulator as described in the question:

Steps:

1. Launch the Simulator and Navigate to Storage Groups

Open Unisphere for PowerMax in your web browser.

You should already be logged in to the simulator, with the PowerMax array with SID 1762.

In the left-hand navigation pane, click onStorage>Storage Groups.

2. Initiate Storage Group Creation

Click theCreatebutton (likely a plus "+" icon) in the Storage Groups section to start the Create Storage Group wizard.

3. Name the Storage Group

In the "Create Storage Group" wizard:

Storage Group Name:Enter ESXi1_SG.

Enable FAST/Service Level:Do not check this option, as we are leaving all other settings at their default.

ClickNextorContinue(the exact wording might vary).

4. Add Volumes

Ensure"Create new volumes"is selected.

Number of Volumes:Enter 1.

Volume Size:

Enter 2.

Select TB from the dropdown for the unit.

ClickNext.

5. Create the Port Group

You should now be on the "Connectivity" or "Host" step, where you will add a new port group.

Select "Create Port Group"

Port Group Name:Give the new port group a name. You can use something descriptive like "ESXi1_PG," or any name that follows your organization's naming conventions.

Select Ports:

Find and select the following Directors and ports from the list of available ports:

OR-1C:0

OR-2C:0

Note:The simulator may not allow you to highlight the exact director ports as in a production environment. It will likely display all directors and ports under the selected array. Just ensure they are selected as part of the port group.

ClickNext.

6. Add host to the Masking View

Select "Add Host"

Select "Create New Host"

Host Name:ESXi1

Initiators:You don't have specific initiators to add in this simulation, so you can skip this part or add any from the available options. This is because we are working within a simulated environment.

ClickNext

7. Review and Create

You'll be presented with a summary page that shows:

Storage Group: ESXi1_SG

Volume: 1 x 2 TB volume

Port Group: (The new port group you created with OR-1C:0 and OR-2C:0)

Host: ESXi1

Carefully review all the settings to make sure they are correct.

ClickRun NoworFinish(or similar wording) to create the storage group, volume, port group, and masking view.

8. Verification (Optional)

After the operation completes, you can verify the results:

Go back to theStorage Groupslist. You should see the ESXi1_SG storage group.

Click on ESXi1_SG to view its details. You should see the 2 TB volume and the associated host (ESXi1) and port group.

You can also navigate toHosts>Port Groupsto verify that the new port group was created correctly.

Finally, you can navigate toHosts>Masking Viewsto verify that a masking view was created correctly.

Okay, I understand. We need to configure a recurring exclusion window in the Unisphere for PowerMax simulator to exclude performance load during a weekly backup that occurs every Sunday from 8:00 AM to 9:00 AM. This exclusion will prevent the backup load from affecting system-level compliance calculations.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality:

Steps:

1. Launch the Simulator and Navigate to the System Settings

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the image).

In the left-hand navigation pane, locate the settings or configuration section. The exact location might vary slightly, but it's often found under:

Home>System Settings

Settings(an icon representing settings, like a gear)

Admin>System

In this instance, click thegearicon on the top right corner of the Unisphere interface.

2. Find the Exclusion Window Settings

Within the system settings, look for a section related to performance monitoring, metrics, or thresholds.

Within this section, search for an option to configure "Exclusion Windows," "Scheduled Exclusions," or something similar. The exact name may vary.

3. Create a New Exclusion Window

Click on a button or link to create a new exclusion window. This might be labeled:

"Create"

"Add"

"+"(a plus icon)

A new window or panel will appear, allowing you to configure the exclusion window settings.

4. Configure the Exclusion Window Settings

Name (Optional):You can give the exclusion window a descriptive name, such as "Weekly Backup Exclusion."

Type:Select"Recurring"or"Repeating"as the exclusion window type.

Schedule:

Day of the Week:Select"Sunday".

Start Time:Set the start time to 08:00 (or 8:00 AM). Make sure the time is in 24-hour format or that you correctly select AM if using 12-hour format.

End Time:Set the end time to 09:00 (or 9:00 AM).

Scope/Target:Since we want this exclusion to apply at the system level, make sure the scope is set to"System"or the entire array (SID 1762 in this case). You might not need to explicitly select this if system-level is the default.

Components/Metrics:In some Unisphere versions, you can choose which components or metrics to exclude. In our case, we want to exclude the load for "all components." If there's an option to select components, either choose "All" or leave it at the default (which likely includes all components).

5. Save the Exclusion Window

After configuring all the settings, review them carefully to make sure they are correct.

Click the button to save the exclusion window. This might be labeled:

"Create"

"Save"

"OK"

"Apply"

6. Verify Exclusion Window Creation (Optional)

After the exclusion window is created, you can usually verify its settings in the exclusion window list.

You should see the new exclusion window listed with the correct schedule (Sunday, 8:00 AM - 9:00 AM) and scope (system level).

Topic2, Multiple Choice Questions

Step by Step Comprehensive Detailed Explanation:

The Dell VSI (Virtual Storage Integrator) vSphere plug-in is a tool that integrates Dell storage management capabilities into the VMware vSphere environment. It allows administrators to manage storage directly from the vSphere client. Within the "Configure Storage" section of the VSI plug-in, you can manage:

Snapshots:The plug-in allows you to create, delete, and restore snapshots of virtual machines' storage volumes. This provides a convenient way to protect data and revert to previous states if needed.

Why other options are incorrect:

A. Remote replication:While PowerMax supports remote replication (SRDF), this is typically managed through Unisphere or Solutions Enabler, not the VSI plug-in.

B. Port flags:Port configurations are usually handled through Unisphere or Solutions Enabler.

C. Access control:Access control and security settings are typically managed through Unisphere or other security tools.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax and VMware vSphere Configuration Guide:This guide provides detailed information about the Dell VSI vSphere plug-in and its functionalities, including snapshot management. You can find this document on the Dell Support website by searching for "PowerMax and VMware vSphere Configuration Guide."

Dell VSI for VMware vSphere User Guide:This guide specifically focuses on the VSI plug-in and its features, including storage configuration options.

Step by Step Comprehensive Detailed Explanation:

The PowerMax 8500 is a high-end storage array designed for enterprise environments with demanding capacity requirements. The maximum capacity per array in a PowerMax 8500 is24 petabytes effective (PBe).

This means that after considering data reduction technologies like deduplication and compression, the array can store up to 24 petabytes of usable data.

Why other options are incorrect:

A. 8 PBe, B. 18 PBe, C. 20 PBe:These values are lower than the actual maximum capacity of the PowerMax 8500.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax 8500 Hardware Information Guide:This guide provides detailed technical specifications for the PowerMax 8500, including its maximum capacity. You can find this document on the Dell Support website by searching for "PowerMax 8500 Hardware Information Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 8500 model and its key features and capabilities.

Step by Step Comprehensive Detailed Explanation:

Solutions Enabler (SE) 10 introduces some changes to the output format of certain commands for better clarity and consistency. When querying a PowerMax 2000 (which is based on older VMAX architecture) using symcfg list -dir, you might encounter differences in the output compared to previous SE versions.

To ensure backward compatibility and see the output in the familiar format, you need to use the -mode v9x argument. This tells SE 10 to display the output in the style of SE 9.x, which is compatible with the PowerMax 2000.

Why other options are incorrect:

B. Look for CPU instead of Cores as these have been rebranded...:While there might be terminology changes, this is not the primary reason for the output difference.

C. Specify the full 12-digit serial number with -sid so SE 10 understands...:The serial number is not directly related to the output format.

D. Use syraconfigure -version -dir as in SE 10 support for outputs...:The syraconfigure command is not the correct command for this purpose.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about the symcfg command and its options, including the -mode argument for backward compatibility. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

https://infohub.delltechnologies.com/en-US/l/dell-emc-powermax-and-vmax-all-flash-timefinder-snapvx-local-replication-1/redirect-on-write/

Step by Step Comprehensive Detailed Explanation:

In TimeFinder SnapVX, snapshots of a source volume are assigned generation numbers. These numbers indicate the order in which the snapshots were created. The first snapshot taken has a generation number of 0, the second has 1, and so on.

In this case, four snapshots were created at different times:

8:00 AM (Generation 0)

10:00 AM (Generation 1)

12:00 PM (Generation 2)

2:00 PM (Generation 3)

Therefore, the snapshot created at 2:00 PM has a generation number of3.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and functionalities, including how generation numbers are assigned to snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Step by Step Comprehensive Detailed Explanation:

TimeFinder SnapVX is a snapshot technology in PowerMax that allows you to create point-in-time copies of data. When using SnapVX, you can link target volumes to a snapshot to create writable copies of the data at that specific point in time.

The maximum number of target volumes that can be linked to a single snapshot on a source volume is255. This limitation ensures efficient management and performance of the SnapVX snapshots and linked targets.

Why other options are incorrect:

B. 256, C. 512, D. 1024:These numbers exceed the maximum limit of linked targets per snapshot.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and limitations, including the maximum number of linked targets per snapshot. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It may provide context for understanding the limitations and best practices for using SnapVX snapshots and linked targets.
