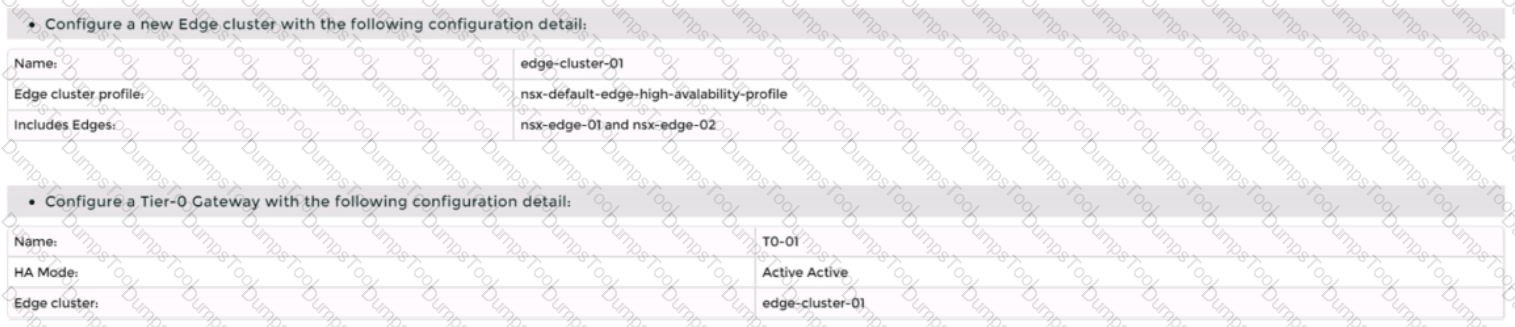

To deploy a new instance of NSX-T into an environment with two isolated tenants, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.
• Navigate to System > Fabric > Nodes > Edge Transport Nodes and click Add Edge VM.
• Enter a name and an optional description for the edge VM. Select the compute manager, cluster, and resource pool where you want to deploy the edge VM. Click Next.
• Select the deployment size and form factor for the edge VM. For this task, you can select Medium as the size and VM as the form factor. Click Next.
• Select the datastore and folder where you want to store the edge VM files. Click Next.
• Configure the management network settings for the edge VM. Enter a hostname, a management IP address, a default gateway, a DNS server, and a domain search list. Optionally, you can enable SSH and join the edge VM to a domain. Click Next.
• Configure the transport network settings for the edge VM. Select an N-VDS as the host switch type and enter a name for it. Select an uplink profile from the drop-down menu or create a new one by clicking New Uplink Profile. Map the uplinks to the physical NICs on the edge VM. For example, map Uplink 1 to fp-eth0 and Uplink 2 to fp-eth1. Optionally, you can configure IP assignment, MTU, or LLDP for the uplinks. Click Next.
• Review the configuration summary and click Finish to deploy the edge VM.
• Repeat steps 2 to 8 to deploy another edge VM for redundancy.
• Navigate to Networking > Tier-0 Gateway and click Add Gateway > VRF.
• Enter a name and an optional description for the VRF gateway. Select an existing tier-0 gateway as the parent gateway or create a new one by clicking New Tier-0 Gateway.
• Click VRF Settings and enter a VRF ID for the tenant. Optionally, you can enable EVPN settings if you want to use EVPN as the control plane protocol for VXLAN overlay networks.
• Click Save to create the VRF gateway.
• Repeat steps 10 to 13 to create another VRF gateway for the second tenant with a different VRF ID.
• Navigate to Networking > Segments and click Add Segment.
• Enter a name and an optional description for the segment. Select VLAN as the connectivity option and enter a VLAN ID for the segment. For example, enter 128 for Tenant A’s first uplink VLAN segment.
• Select an existing transport zone from the drop-down menu or create a new one by clicking New Transport Zone.
• Click Save to create the segment.
• Repeat steps 15 to 18 to create three more segments for Tenant A’s second uplink VLAN segment (VLAN ID 129) and Tenant B’s uplink VLAN segments (VLAN ID 158 and 159).

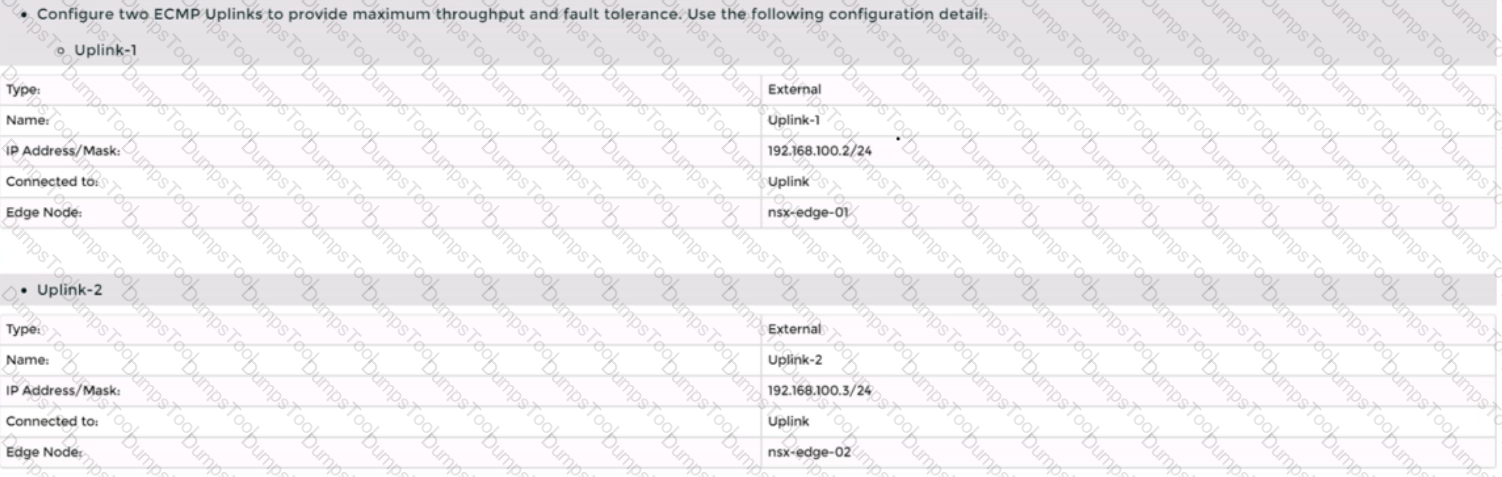

• Navigate to Networking > Tier-0 Gateway and select the VRF gateway that you created for Tenant A.
• Click Interfaces > Set > Add Interface.
• Enter a name and an optional description for the interface.
• Enter the IP address and mask for the external interface in CIDR format, such as 10.10.10.1/24.
• In Type, select External.
• In Connected To (Segment), select the VLAN segment that you created for Tenant A’s first uplink VLAN segment (VLAN ID 128).
• Select an edge node where you want to attach the interface, such as Edge-01.
• Enter the Access VLAN ID from the list as configured for the segment, such as 128.
• Click Save and then Close.
• Repeat steps 21 to 28 to create another interface for Tenant A’s second uplink VLAN segment (VLAN ID 129) on another edge node, such as Edge-02.
• Repeat steps 20 to 29 to create two interfaces for Tenant B’s uplink VLAN segments (VLAN ID 158 and 159) on each edge node using their respective VRF gateway and IP addresses.

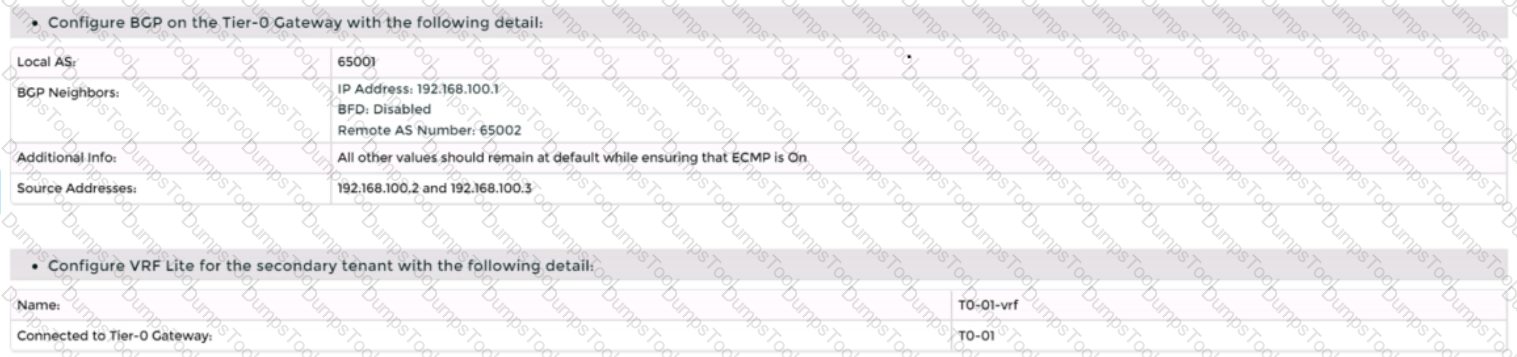

• Configure BGP on each VRF gateway using NSX UI or CLI commands12.You need to specify the local AS number, remote AS number, BGP neighbors, route redistribution, route filters, timers, authentication, graceful restart, etc., according to your requirements34.
• Configure BGP on each physical router using their respective CLI commands56.You need to specify similar parameters as in step 31 and ensure that they match with their corresponding VRF gateway settings78.
• Verify that BGP sessions are established between each VRF gateway and its physical router neighbors using NSX UI or CLI commands . You can also check the routing tables and BGP statistics on each device .
• You have successfully deployed a new instance of NSX-T into an environment with two isolated tenants using VRF Lite and BGP.

To enable logging for the production NSX-T environment, you need to follow these steps:

• Verify via putty with SSH that the administrator can connect to all NSX-Transport Nodes. You can use the credentials identified in Putty (admin) to log in to each transport node. For example, you can use the following command to connect to the sfo01w01en01 edge transport node:ssh admin@sfo01w01en01. You should see a welcome message and a prompt to enter commands.
• Verify that there is no current active logging enabled by reviewing that directory is empty -/var/log/syslog-. You can use thelscommand to list the files in the /var/log/syslog directory. For example, you can use the following command to check the sfo01w01en01 edge transport node:ls /var/log/syslog. You should see an empty output if there is no active logging enabled.
• Enable NSX Manager Cluster logging. You can use thesearch_web("NSX Manager Cluster logging configuration")tool to find some information on how to configure remote logging for NSX Manager Cluster. One of the results isNSX-T Syslog Configuration Revisited - vDives, which provides the following steps:
• Select multiple configuration choices that could be appropriate success criteria. You can use thesearch_web("NSX-T logging success criteria")tool to find some information on how to verify and troubleshoot logging for NSX-T. Some of the possible success criteria are:
• Enable NSX Edge Node logging. You can use thesearch_web("NSX Edge Node logging configuration")tool to find some information on how to configure remote logging for NSX Edge Node. One of the results isConfigure Remote Logging - VMware Docs, which provides the following steps:

set logging-server proto level [facility ] [messageid ] [serverca <filename>] [clientca <filename>] [certificate <filename>] [key <filename>] [structured-data ]

• Validate logs are generated on each selected appliance by reviewing the "/var/log/syslog”. You can use thecatortailcommands to view the contents of the /var/log/syslog file on each appliance. For example, you can use the following command to view the last 10 lines of the sfo01w01en01 edge transport node:tail -n 10 /var/log/syslog. You should see log messages similar to this:

2023-04-06T12:34:56+00:00 sfo01w01en01 user.info nsx-edge[1234]: 2023-04-06T12:34:56Z nsx-edge[1234]: INFO: [nsx@6876 comp="nsx-edge" subcomp="nsx-edge" level="INFO" security="False"] Message from nsx-edge

You have successfully enabled logging for the production NSX-T environment.

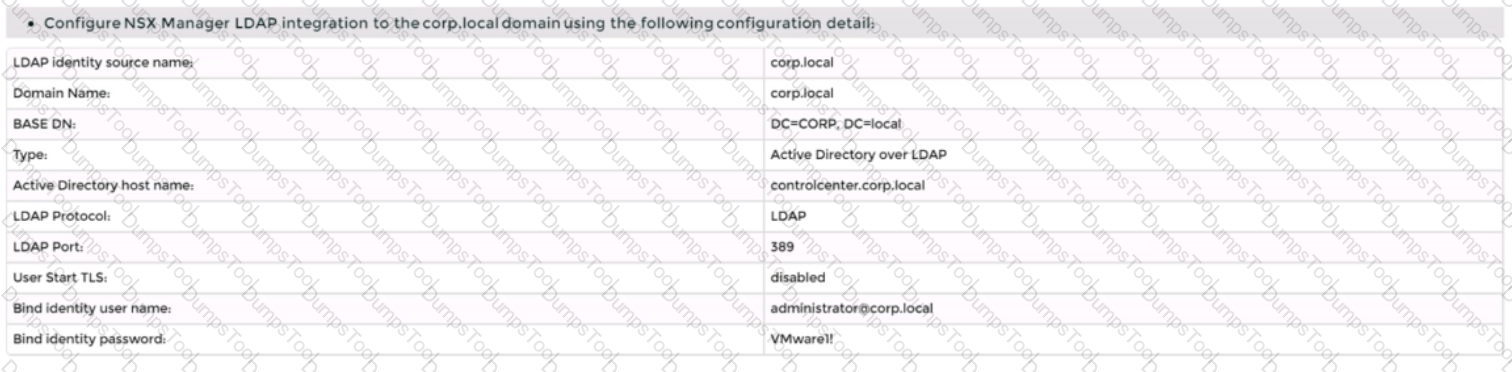

To integrate NSX Manager with LDAP to better control NSX administrators’ roles and responsibilities, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.
• Navigate to System > User Management > LDAP and click Add Identity Source.
• Enter a name for the identity source, such as corp.local.
• Enter the domain name of your Active Directory server, such as DC=corp,DC=local.
• Select Active Directory over LDAP as the type from the drop-down menu.
• Click Set to configure LDAP servers. You can add up to three LDAP servers for failover support, to each domain.
• Enter the hostname or IP address of your LDAP server, such as corpdcserver.corp.local.
• Select LDAP as the protocol from the drop-down menu.
• Enter the port number for the LDAP server, such as 389.
• Click Connection Status to test the connection to the LDAP server. If successful, you will see a green check mark and a message saying “Connection successful”.
• Optionally, you can enable StartTLS to use encryption for the LDAP connection. To do this, toggle the Use StartTLS button and enter the certificate of the LDAP server in PEM format in the text box below.
• Click Save to add the LDAP server.
• Repeat steps 6 to 12 to add more LDAP servers if needed.
• Enter the bind entry user name and password for the LDAP server, such as Administrator@corp.local and VMware1!.
• Click Save to create the identity source.
• Navigate to System > User Management > Users and Roles and click Add Role Assignment for LDAP.
• Select corp.local as the domain from the drop-down menu.
• Enter nsx-admin@corp.local in the search box and select it from the list that appears.
• Select Enterprise Admin as the role from the drop-down menu.
• Click Save to assign the role to the user.

You have successfully integrated NSX Manager with LDAP and configured nsx-admin@corp.local Active Directory account as an Enterprise Admin access role.

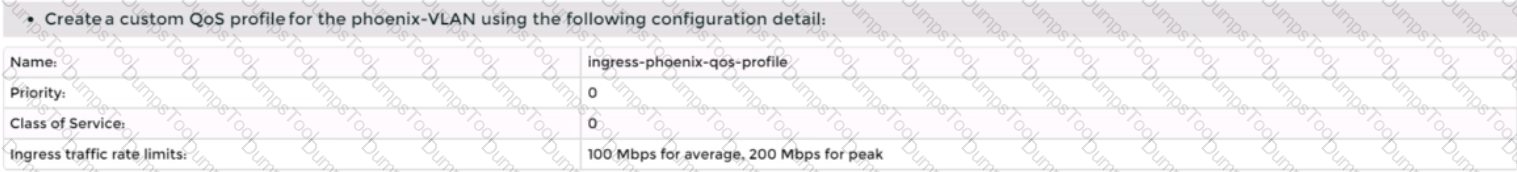

To create a custom QoS profile to prioritize the traffic on the phoenix-VLAN segment and limit the rate of ingress traffic, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.
• Navigate to Networking > Segments > Switching Profiles and click Add Switching Profile. Select QoS as the profile type.
• Enter a name and an optional description for the QoS profile, such as phoenix-QoS.
• In the Mode section, select Untrusted as the mode from the drop-down menu. This will allow you to set a custom DSCP value for the outbound IP header of the traffic on the segment.
• In the Priority section, enter 46 as the DSCP value. This will mark the traffic with Expedited Forwarding (EF) per-hop behavior, which is typically used for high-priority applications such as voice or video.
• In the Class of Service section, enter 5 as the CoS value. This will map the DSCP value to a CoS value that can be used by VLAN-based logical ports or physical switches to prioritize the traffic.
• In the Ingress section, enter 1000000 as the Average Bandwidth in Kbps. This will limit the rate of inbound traffic from the VMs to the logical network to 1 Mbps.
• Optionally, you can also configure Peak Bandwidth and Burst Size settings for the ingress traffic, which will allow some burst traffic above the average bandwidth limit for a short duration.
• Click Save to create the QoS profile.
• Navigate to Networking > Segments and select the phoenix-VLAN segment that you want to apply the QoS profile to.
• Click Actions > Apply Profile and select phoenix-QoS as the switching profile that you want to apply to the segment.
• Click Apply to apply the profile to the segment.

You have successfully created a custom QoS profile and applied it to the phoenix-VLAN segment.
