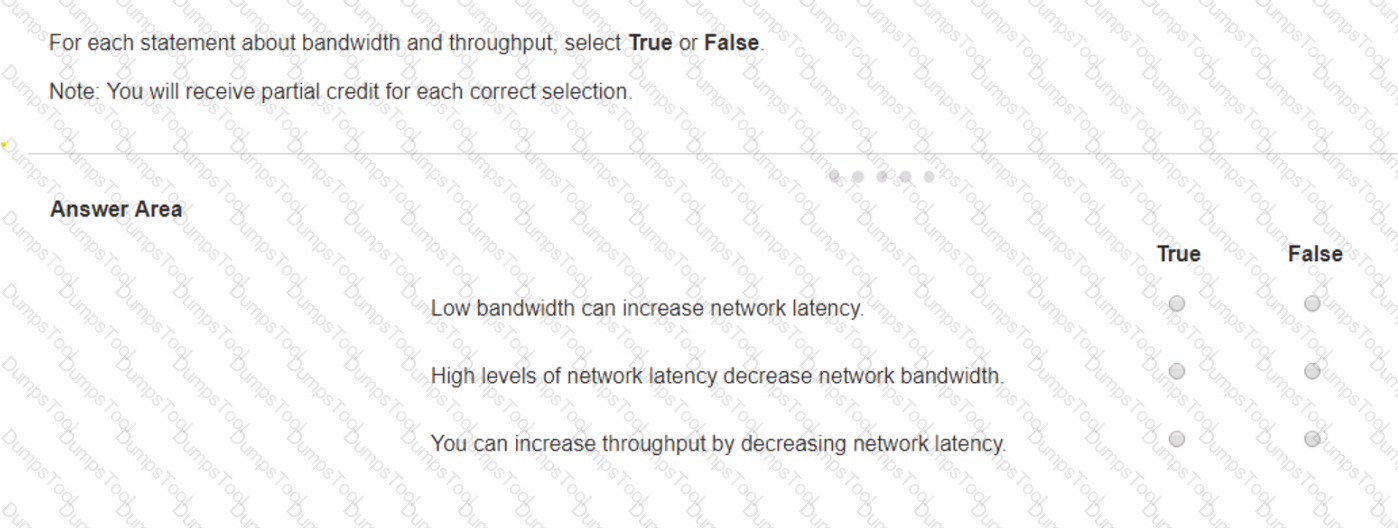

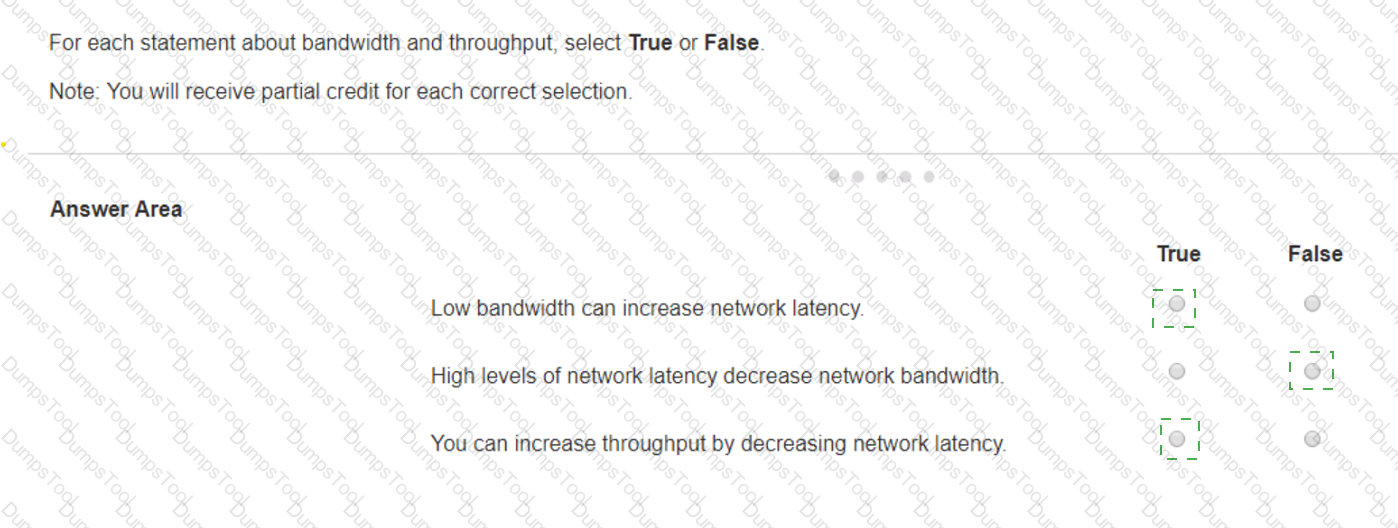

Statement 1: Low bandwidth can increase network latency.

True: Low bandwidth can result in increased network latency because the network may become congested, leading to delays in data transmission.

Statement 2: High levels of network latency decrease network bandwidth.

False: High levels of network latency do not decrease the available network bandwidth, but they do affect the perceived performance and throughput of the network.

Statement 3: You can increase throughput by decreasing network latency.

True: Decreasing network latency can increase throughput because data can be transmitted more quickly and efficiently without delays.

Bandwidth vs. Latency: Bandwidth refers to the maximum rate at which data can be transferred over a network path. Latency is the time it takes for a data packet to travel from the source to the destination.

Low bandwidth can cause network congestion, which can increase latency as packets wait to be transmitted.

High latency does not reduce the actual bandwidth but can affect the overall performance and efficiency of data transmission.

Reducing latency can lead to higher throughput because the network can handle more data in a given period without delays.

References:

Network Performance Metrics: Cisco Network Performance

Understanding Bandwidth and Latency: Bandwidth vs. Latency

•1000BASE-T Cable: This refers to Gigabit Ethernet over twisted-pair cables (Cat 5e or higher).

•Connector: RJ-45 connectors are used for Ethernet cables, including those used for 1000BASE-T.

•Coax: Used for cable TV and older Ethernet standards like 10BASE2.

•RJ-11: Used for telephone connections.

•OS2 LC: Used for fiber optic connections.

References:

•Ethernet Standards and Cables: Ethernet Cable Guide

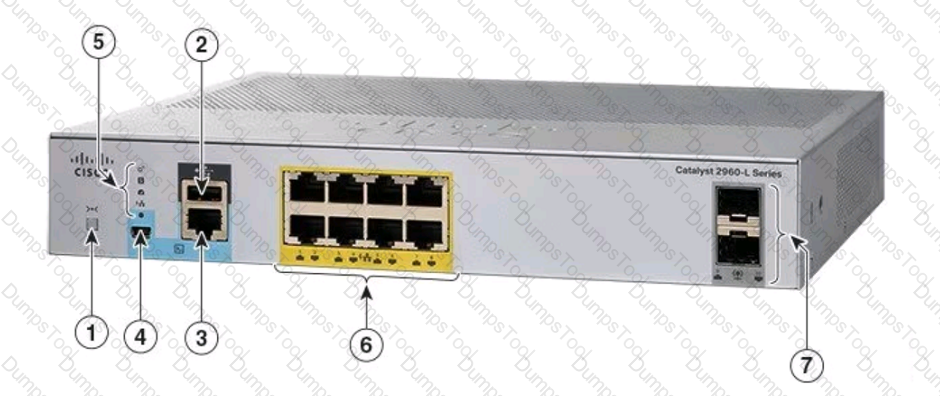

In the provided image of the Cisco PoE switch, the ports identified with number 6 are the standard RJ-45 Ethernet ports typically found on switches that provide both data connectivity and Power over Ethernet (PoE). PoE ports are designed to supply power to devices such as IP phones, wireless access points, and other PoE-enabled devices directly through the Ethernet cable.

Ports:

•2: Console port (for management and configuration)

•3 and 4: Specific function ports (often for management)

•6: RJ-45 Ethernet ports (capable of providing PoE)

•7: SFP ports (for fiber connections, typically do not provide PoE)

Thus, the correct answer is C. Ports identified with number 6.

References :=

•Cisco Catalyst 2960-L Series Switches Data Sheet

•Cisco PoE Overview

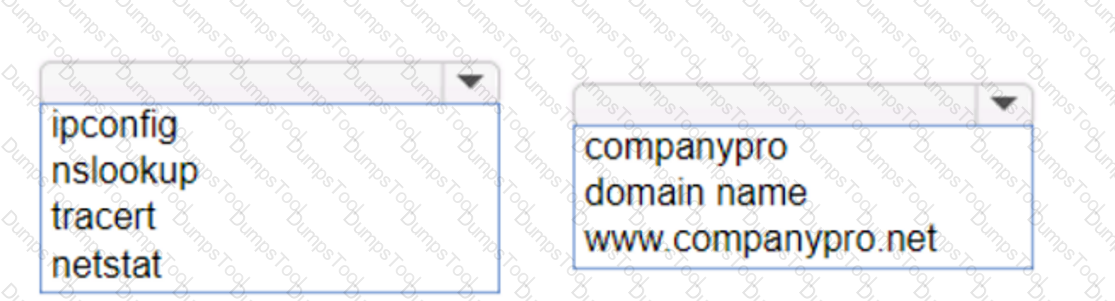

To list the IPv4 addresses associated with the host name www.companypro.net, you should use the following command:

nslookup www.companypro.net

This command will query the DNS servers to find the IP address associated with the hostname provided. If you want to ensure that it returns the IPv4 address, you can specify the -type=A option, which stands for Address records that hold IPv4 addresses1. However, the nslookup command by default should return the IPv4 address if available.

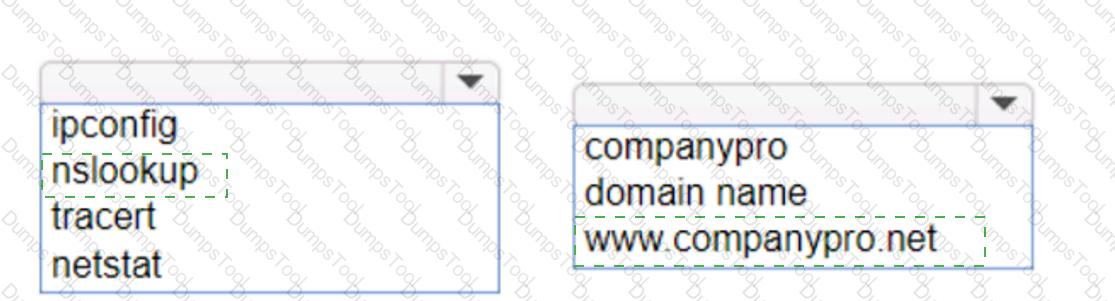

To list the IPv4 addresses associated with the host name www.companypro.net , you should use the nslookup command.

Command: nslookup

Target: www.companypro.net

So, the completed command is:

nslookup www.companypro.net

nslookup: This command is used to query the Domain Name System (DNS) to obtain domain name or IP address mapping or for any other specific DNS record.

www.companypro.net : This is the domain name you want to query to obtain its associated IP addresses.

References:

Using nslookup: nslookup Command Guide

The CIDR (Classless Inter-Domain Routing) notation for the subnet mask 255.255.252.0 is /22. This notation indicates that the first 22 bits of the IP address are used for network identification, and the remaining bits are used for host addresses within the network1.

References :=

•Subnet Cheat Sheet – 24 Subnet Mask, 30, 26, 27, 29, and other IP Address CIDR Network References

=========================

•Subnet Mask to CIDR Notation: The given subnet mask is 255.255.252.0. To convert this to CIDR notation:

•Convert the subnet mask to binary: 11111111.11111111.11111100.00000000

•Count the number of consecutive 1s in the binary form: There are 22 ones.

•Therefore, the CIDR notation is /22.

References:

•Understanding Subnetting and CIDR: Cisco CIDR Guide
