2V0-41.23 Questions and Answers

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/nsx-application-platform/GUID-42EDE0AD-CD65-41AC-9694-AD0CCEC35969.html

The insertion point for East-West network introspection is the Guest VM vNIC. Network introspection is a service insertion feature that allows third-party network services to be integrated with NSX. Network introspection enables traffic redirection from the Guest VM vNIC to a service virtual machine (SVM) that runs the partner service. The SVM can then inspect, monitor, or modify the traffic before sending it back to the original destination1. The other options are incorrect because they are not the insertion points for East-West network introspection. The Tier-0 router is used for North-South routing and network services. The partner SVM is the service virtual machine that runs the partner service, not the insertion point. The host physical NIC is not involved in network introspection. References: Network Introspection Settings

NSX Global Manager is a feature of NSX that allows managing multiple NSX domains across different sites or clouds from a single pane of glass. NSX Global Manager supports Federation, which is a capability that enables synchronizing configuration and policy across multiple NSX domains. Federation has many benefits such as simplifying operations, improving resiliency, and enabling disaster recovery.

The only supported mode in NSX Global Manager when using Federation is Policy mode. Policy mode means that NSX Global Manager acts as a policy manager that defines and distributes global policies to local NSX managers in different domains. Policy mode also allows local NSX managers to have their own local policies that can override or merge with global policies.

https://docs.vmware.com/en/VMware-NSX/4.0/administration/GUID-29998FC5-C1AB-40BC-B669-6E8E9937F345.html

Distributed Firewall on VDS is a feature of NSX-T Data Center that allows users to install Distributed Security for vSphere Distributed Switch (VDS) without the need to deploy an NSX Virtual Distributed Switch (N-VDS). This feature provides NSX security capabilities such as Distributed Firewall (DFW), Distributed IDS/IPS, Identity Firewall, L7 App ID, FQDN Filtering, NSX Intelligence, and NSX Malware Prevention. To enable this feature, the following requirements must be met in the environment:

• The NSX version must be 3.2 and later1. This is the minimum version that supports Distributed Security for VDS.
• The VDS version must be 6.6.0 and later1. This is the minimum version that supports the NSX host preparation operation that activates the DFW with the default rule set to allow.

References:

• Overview of NSX IDS/IPS and NSX Malware Prevention

ECMP (Equal Cost Multi-Path) is a routing protocol that increases the north and south communication bandwidth by adding an uplink to the tier-0 logical router and configure it for each Edge node in an NSX Edge cluster2. The ECMP routing paths are used to load balance traffic and provide fault tolerance for failed paths2. The tier-0 logical router must be in active-active mode for ECMP to be available2. A maximum of eight ECMP paths are supported2. Configuring ECMP on the tier-0 gateway can address low throughput and congestion by distributing the traffic among multiple paths and avoiding bottlenecks.

Deploying Large size Edge node/s can also address low throughput and congestion by providing more resources (memory, CPU, disk) for the Edge node to handle the network traffic. The NSX Edge VM system requirements vary depending on the appliance size, which affects the bandwidth, NAT/firewall, load balancer, and VPN capabilities of the Edge node1. A Large size Edge node has 32 GB memory, 8 vCPU, 200 GB disk space, and can support 2-10 Gbps bandwidth, L2-L4 features, and L7 load balancer1. An Extra Large size Edge node has 64 GB memory, 16 vCPU, 200 GB disk space, and can support more than 10 Gbps bandwidth, L2-L4 features, L7 load balancer, and VPN1. Deploying a larger size Edge node can improve the performance and capacity of the tier-0 gateway. References: 2: Understanding ECMP Routing - VMware Docs(https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-443B6B0D-F179-429E-83F3-E136038332E0.html)  1: NSX Edge VM System Requirements - VMware Docs(https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/installation/GUID-22F87CA8-01A9-4F2E-B7DB-9350CA60EA4E.html)

According to the VMware NSX Documentation1, NSX-T Data Center supports the following types of DHCP configuration on a segment:

• Local DHCP server: This option creates a local DHCP server that has an IP address on the segment and provides dynamic IP assignment service only to the VMs that are attached to the segment.
• Gateway DHCP server: This option is attached to a tier-0 or tier-1 gateway and provides DHCP service to the networks (overlay segments) that are directly connected to the gateway and configured to use a gateway DHCP server.
• DHCP Relay: This option relays the DHCP client requests to the external DHCP servers that can be in any subnet, outside the SDDC, or in the physical network.

https://docs.vmware.com/en/VMware-NSX/4.0/administration/GUID-486C1281-C6CF-47EC-B2A2-0ECFCC4A68CE.html

https://docs.vmware.com/en/VMware-NSX-Intelligence/4.0/user-guide/GUID-DC78552B-2CC4-410D-A6C9-3FE0DCEE545B.html

• AS-Path Prepend: This attribute allows you to prepend one or more AS numbers to the AS path of a route, making it appear longer and less preferable to other BGP routers. You can use this attribute to manipulate the inbound traffic from your BGP peers by advertising a longer AS path for some routes and a shorter AS path for others .
• MED: This attribute stands for Multi-Exit Discriminator and allows you to specify a preference value for a route among multiple exit points from an AS. You can use this attribute to manipulate the outbound traffic to your BGP peers by advertising a lower MED value for some routes and a higher MED value for others .

According to the VMware Knowledge Base, this CLI command is used for packet capture on the ESXi node. pktcap-uw stands for Packet Capture User World and is a tool that allows you to capture packets from various points in the network stack of an ESXi host. You can use this tool to troubleshoot network issues or analyze traffic flows.

The other options are either incorrect or not available for this task. tcpdump is not a valid CLI command for packet capture on the ESXi node, as it is a tool that runs on Linux systems, not on ESXi hosts. debug is not a valid CLI command for packet capture on the ESXi node, as it is a generic term that describes the process of finding and fixing errors, not a specific tool or command. set capture is not a valid CLI command for packet capture on the ESXi node, as it does not exist in the ESXi CLI.

https://kb.vmware.com/s/article/2051814

According to the VMware NSX Documentation, these are two NAT rule types that are supported for a tier-0 gateway configured in active-standby high availability mode. NAT stands for Network Address Translation and is a feature that allows you to modify the source or destination IP address of a packet as it passes through a gateway.

• Destination NAT: This rule type allows you to change the destination IP address of a packet from an external IP address to an internal IP address. You can use this rule type to provide access to your internal servers from external networks using public IP addresses.
• Source NAT: This rule type allows you to change the source IP address of a packet from an internal IP address to an external IP address. You can use this rule type to provide access to external networks from your internal servers using public IP addresses.

According to the VMware NSX CLI Reference Guide, this CLI command shows the syslog messages on the NSX Manager node. You can use this command to view the system logs for troubleshooting or monitoring purposes.

The other options are either incorrect or not available for this task. get log-file auth.log is a CLI command that shows the authentication logs on the NSX Manager node, not the syslog messages. /var/log/syslog/syslog.log is not a CLI command, but a file path that may contain syslog messages on some Linux systems, but not on the NSX Manager node. show log manager follow is not a valid CLI command, as there is no show log command or manager option in the NSX CLI.

## NSX Cli command

get log-file

get log-file follow

# Below are commonly used log files, there are many more log files

get log-file [follow]

# use [follow] to continuing monitor

Example: get log-file syslog follow

get log-file syslog

According to the VMware NSX Documentation, this is the NSX feature that can be leveraged to achieve consistent policy configuration and simplicity across sites:

• NSX Federation: This feature allows you to create and manage a global network infrastructure that spans across multiple sites using a single pane of glass. You can use this feature to synchronize policies, segments, gateways, firewalls, VPNs, load balancers, and other network services across sites.

According to the VMware NSX 4.x Professional documents and tutorials, a RouterLink port is a logical port that connects a Tier-1 gateway to a Tier-0 gateway. This port is automatically created when a Tier-1 gateway is associated with a Tier-0 gateway from the NSX UI or API. The RouterLink port enables routing between the two gateways and carries all the routing protocols and traffic. There is no need to manually create a logical switch or segment for this purpose1.

Federation is a feature of NSX that allows the administrator to manage multiple NSX instances with a single pane of glass view, create gateways and segments that span one or more locations, and configure and enforce firewall rules consistently across locations1. Federation provides centralized policy management for security and networking services for all locations and pushes it down to NSX Local Managers at the respective sites for enforcement1. Federation also enables disaster recovery and workload mobility scenarios by providing consistent network and security policies across different sites1. References: 1: NSX Federation - VMware Docs(https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-D5B6DC79-6733-44A7-8072-50221CF2122A.html)

The answer is A. SR is instantiated and automatically connected with DR.

SR stands for Service Router and DR stands for Distributed Router. They are components of the NSX Edge node that provide different functions1

The SR is responsible for providing stateful services such as NAT, firewall, load balancing, VPN, and DHCP. The DR is responsible for providing distributed routing and switching between logical segments and the physical network1

When a stateful service is enabled for the first time on a Tier-0 Gateway, the NSX Edge node automatically creates an SR instance and connects it with the existing DR instance. This allows the stateful service to be applied to the traffic that passes through the SR before reaching the DR2

According to the VMware NSX 4.x Professional Exam Guide, understanding the SR and DR components and their functions is one of the exam objectives3

To learn more about the SR and DR components and how they work on the NSX Edge node, you can refer to the following resources:

• VMware NSX Documentation: NSX Edge Components 1
• VMware NSX 4.x Professional: NSX Edge Architecture
• VMware NSX 4.x Professional: NSX Edge Routing

A group is a logical construct that represents a collection of objects in NSX, such as segments, segment ports, virtual machines, IP addresses, MAC addresses, tags, or security policies. A group can be used to define dynamic membership criteria based on various attributes or filters. A group can also be used as the scope of a distributed firewall rule, which means that the rule will apply to all the traffic that matches the group membership criteria32

https://docs.vmware.com/en/VMware-Validated-Design/5.0.1/com.vmware.vvd.sddc-nsxt-design.doc/GUID-74141ABD-C9AF-4A92-8338-092CD67EB56E.html

https://www.hydra1303.com/nsx-t-routing-part-i#:~:text=Logical%20routing%20in%20NSX%2DT,using%20static%20routes%20or%20BGP

https://www.delltechnologies.com/asset/en-us/products/converged-infrastructure/technical-support/docu96042.pdf

According to the VMware NSX 4.x Professional documents and tutorials, an NSX Manager is a standalone appliance that hosts the API services, the management plane, control plane, and policy management. The NSX Manager has three built-in roles: policy, manager, and controller2. The policy role handles the declarative configuration of the system and translates it into desired state for the manager role. The manager role receives and validates the configuration from the policy role and stores it in a distributed persistent database. The manager role also publishes the configuration to the central control plane. The controller role implements the central control plane that computes the network state based on the configuration and topology information3. The other roles (master, cloud, and zookeeper) are not valid NSX Manager roles.

According to the web search results, error code 1001 is related to a time synchronization issue between the ESXi host and the NSX Manager. This can cause problems when configuring a time-based firewall rule, which requires the ESXi host and the NSX Manager to have the same time zone and NTP server settings . To resolve this error, you need to restart the NTP service on the ESXi host to synchronize the time with the NSX Manager. You can use the following command to restart the NTP service on the ESXi host:

/etc/init.d/ntpd restart

The other options are not valid solutions for this error. Reinstalling the NSX VIBs on the ESXi host will not fix the time synchronization issue. Changing the time zone on the ESXi host may cause more discrepancies with the NSX Manager. Reconfiguring the ESXi host with a local NTP server may not be compatible with the NSX Manager’s NTP server.

 Unicast is the traffic type that an NSX administrator should use for validating connectivity between App and DB virtual machines that reside on different segments. According to the VMware documentation1, unicast traffic is the traffic type that is used to send a packet from one source to one destination. Unicast traffic is the most common type of traffic in a network, and it is used for applications such as web browsing, email, file transfer, and so on2. To perform a traceflow with unicast traffic, the NSX administrator needs to specify the source and destination IP addresses, and optionally the protocol and related parameters1. The traceflow will show the path of the packet across the network and any observations or errors along the way3. The other options are incorrect because they are not suitable for validating connectivity between two specific virtual machines. Multicast traffic is the traffic type that is used to send a packet from one source to multiple destinations simultaneously2. Multicast traffic is used for applications such as video streaming, online gaming, and group communication4. To perform a traceflow with multicast traffic, the NSX administrator needs to specify the source IP address and the destination multicast IP address1. Broadcast traffic is the traffic type that is used to send a packet from one source to all devices on the same subnet2. Broadcast traffic is used for applications such as ARP, DHCP, and network discovery. To perform a traceflow with broadcast traffic, the NSX administrator needs to specify the source IP address and the destination MAC address as FF:FF:FF:FF:FF:FF1. Anycast traffic is not a valid option, as it is not supported by NSX Traceflow. Anycast traffic is a traffic type that is used to send a packet from one source to the nearest or best destination among a group of devices that share the same IP address. Anycast traffic is used for applications such as DNS, CDN, and load balancing.

https://docs.vmware.com/en/VMware-NSX/4.0/administration/GUID-D57429A1-A0A9-42BE-A299-0C3C3546ABF3.html

An alarm can be suppressed for a specific duration in hours.

According to the VMware NSX documentation, an alarm can be in one of the following states: Open, Acknowledged, Suppressed, or Resolved12

An alarm in a Suppressed state means that the status reporting for this alarm has been disabled by the user for a user-specified duration12

When a user moves an alarm into a Suppressed state, they are prompted to specify the duration in hours. After the specified duration passes, the alarm state reverts to Open. However, if the system determines the condition has been corrected, the alarm state changes to Resolved13

To learn more about how to manage alarm states in NSX, you can refer to the following resources:

• VMware NSX Documentation: Managing Alarm States 1
• VMware NSX Documentation: View Alarm Information 2
• VMware NSX Intelligence Documentation: Manage NSX Intelligence Alarm States 3

https://docs.vmware.com/en/VMware-NSX-Intelligence/1.2/user-guide/GUID-EBD3C5A8-F9AB-4A22-BA40-92D61850C1E6.html

To activate Malware Prevention on the NSX Application Platform, the steps are:

• In the NSX Manager UI, select System and in the Configuration section, select NSX Application Platform.
• Navigate to the Features section, locate the NSX Malware Prevention feature card, and click Activate or anywhere in the card.
• In the NSX Malware Prevention activation window, select one of the available cloud regions from which you can access the NSX Advanced Threat Prevention cloud service.
• Click Run Prechecks. This precheck process can take some time as the system validates that the minimum license requirement is met and that it is eligible for use with the NSX Advanced Threat Prevention cloud service. The system also validates that the selected cloud region is reachable.
• Click Activate. This step can take some time1. Therefore, the correct answer is D. The other options are incorrect because they involve activating or deploying NSX Network Detection and Response, which is a different feature from Malware Prevention. References: Activate NSX Malware Prevention

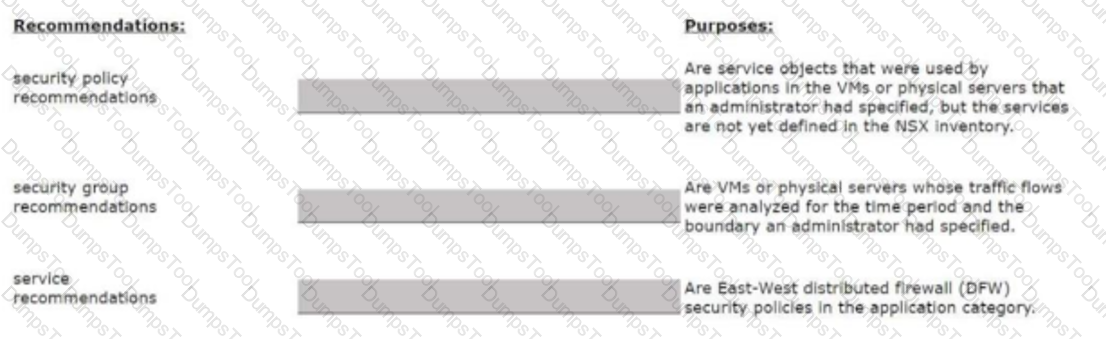

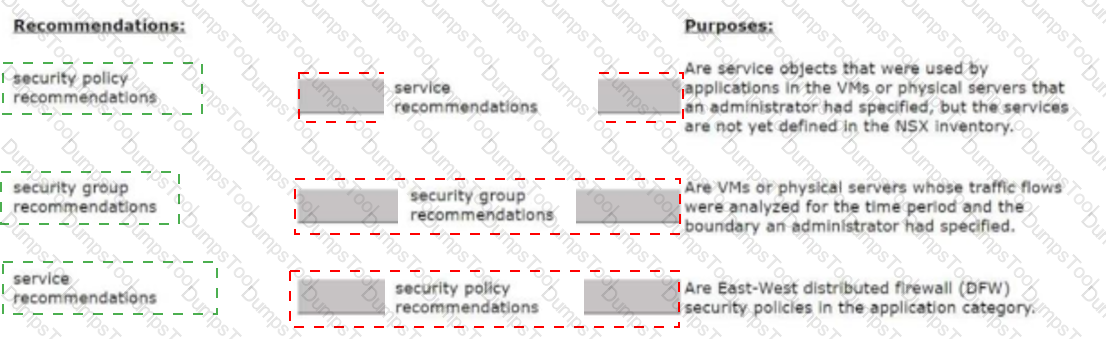

• Security policy recommendations: Are East-West distributed firewall (DFW) security policies in the application category12.
• Security group recommendations: Are VMs or physical servers whose traffic flows were analyzed for the time period and the boundary you had specified12.
• Service recommendations: Are service objects that were used by applications in the VMs or physical servers that you had specified, but the services are not yet defined in the NSX inventory12.

https://docs.vmware.com/en/VMware-NSX-Intelligence/4.1/user-guide/GUID-BA3B0D67-4AA8-439E-A845-4598DAD6B9D0.html

To generate the support bundle logs on the NSX Manager via API, the NSX administrator needs to use the POST method with the URL https://nsxmgr_ip/api/1.0/appliance-management/techsupportlogs/NSX, where nsxmgr_ip is the IP address of the NSX Manager 1. This will create a tech support bundle file with a name like vcpnv.tgz. To download the generated tech support bundle file via CLI, the NSX administrator needs to use the get support-bundle file vcpnv.tgz command on the NSX Manager1. The other commands are incorrect because they either do not generate or download the support bundle logs, or they are not related to the NSX Manager.

https://docs.vmware.com/en/VMware-NSX/4.1/nsx-application-platform/GUID-50FB1A3F-07D8-4125-9252-DB05C28BE7E1.html: Procedure From your browser, log in with Enterprise Admin privileges to an NSX Manager at https:// . Navigate to System > Support Bundle. In the Request Bundle tab, select NSX Application Platform from the Type drop-down menu.
