2V0-32.22 Questions and Answers

To search archived logs in vRealize Log Insight (vRLI), an administrator needs to follow these steps:

C. SSH into the vRLI appliance, mount the archiving NFS share then import the archive using CLI : This involves establishing an SSH connection to the vRLI appliance, mounting the NFS share where the archived logs are stored, and then using the loginsight repository import command to import the logs into vRLI. This process makes the archived logs searchable within the vRLI interface.

When tasked with analyzing the impact of deploying a new application in an environment utilizing an external storage array, the appropriate What-If Analysis in VMware vRealize Operations is Workload Planning: Traditional. This analysis allows administrators to model the addition of new workloads to traditional (non-hyperconverged) infrastructures, providing insights into resource utilization and capacity planning.

To perform this analysis:

Navigate to the What-If Analysis Section:

In the vRealize Operations interface, go to Plan > Capacity.

Click on the What-If Analysis tile.

Select Workload Planning: Traditional:

Click the ADD button.

Choose Add VMs under the Workload Planning: Traditional tile.

Configure the New Workload:

Specify the data center or custom data center where the new application will be deployed.

Define the workload profile by either:

Manually entering the number of vCPUs, memory, storage, and expected usage percentage.

Importing attributes from existing VMs to use as templates.

Set the Time Frame:

Enter the start and end dates for the period during which the workload will be active. The system can project scenarios up to one year from the current date.

Run the Analysis:

After configuring the workload, run the scenario to receive vRealize Operations' assessment.

The system will indicate whether the proposed workload fits within the targeted infrastructure and provide projections on resource utilization over time.

This process enables administrators to forecast the impact of new applications on existing resources, ensuring informed decisions regarding capacity and performance.

When managing content between two vRealize Operations instances using vRealize Suite Lifecycle Manager (vRSLCM), encountering issues during content release to the second instance can arise due to several factors. Two possible causes include:

Insufficient Endpoint Configuration:

Policy Configuration: If only the policy "Allow content to be captured from this endpoint" is configured for both vRealize Operations endpoints, it permits content capture but does not authorize content release. To enable content release, the policy "Allow content to be released to this endpoint" must also be configured. Without this policy, vRSLCM cannot deploy content to the target endpoint, leading to release failures.

Version Compatibility Issues:

Version Mismatch: Content release between different versions of vRealize Operations Manager may encounter compatibility issues. Features or content types available in one version might not be supported in another, causing release processes to fail. Ensuring both vRealize Operations instances are running compatible versions is crucial for seamless content management.

VMware Skyline proactively identifies potential problems and helps improve resolution time by collecting, aggregating, and analyzing product usage data. 1 This allows it to provide recommendations and insights to avoid issues and optimize your environment. 2

= vRealize Operations can help optimize capacity and performance in a virtual infrastructure by determining recommendations for oversized and undersized virtual machines . It analyzes resource usage patterns and provides recommendations for right-sizing VMs, ensuring that they have the appropriate resources to meet their performance requirements without wasting resources.

When deploying a content pack in vRealize Log Insight, the following pre-configured content types are provided:

Dashboards: Visual representations of log data, offering insights into system operations and performance.

Extracted Fields: Custom fields derived from log data, facilitating more detailed analysis and querying.

These components enhance the functionality of vRealize Log Insight by providing structured views and data extractions tailored to specific applications or systems.

Deploying vRealize Operations (vROps) with resilience and minimal resource consumption requires careful consideration of the deployment architecture. To meet the requirements of consuming minimal cluster compute resources while ensuring resilience against a single node failure, deploying vROps as a cluster with High Availability (HA) enabled is the optimal choice.

Understanding vROps High Availability (HA):

Architecture: In an HA configuration, vROps operates with a primary node and a replica node, along with data nodes as needed. The replica node mirrors the primary node's data, ensuring continuity in case of a failure.

Resource Efficiency: Enabling HA adds redundancy with minimal additional resource overhead compared to other high-availability configurations.

Failure Resilience: With HA enabled, if the primary node fails, the replica node seamlessly takes over, maintaining operational continuity without data loss.

Deployment Steps:

Initial Deployment:

Deploy the primary vROps node.

Add a replica node to enable HA.

Include additional data nodes if necessary, based on environment size and requirements.

Enable High Availability:

Access the vROps administration interface.

Navigate to the Cluster Management settings.

Enable the High Availability option.

Validation:

Ensure that the cluster status indicates HA is active.

Verify that the replica node is synchronized with the primary node.

Benefits of This Approach:

Minimal Resource Consumption: Deploying a primary and a replica node, with HA enabled, uses fewer resources compared to configurations like Continuous Availability (CA), which require more nodes and higher resource allocation.

Resilience: The HA setup ensures that the system can withstand a single node failure without service disruption, meeting the specified resilience requirement.

References:

For detailed information on vROps deployment and HA configuration, consult VMware's official documentation:

vRealize Operations Manager High Availability Configuration

Deploying vRealize Operations Manager

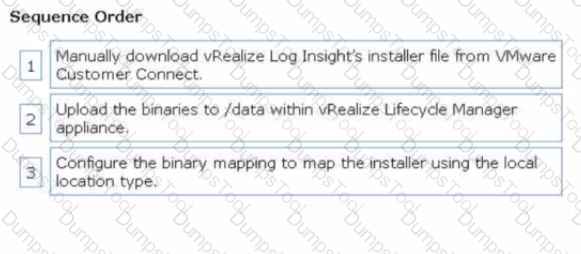

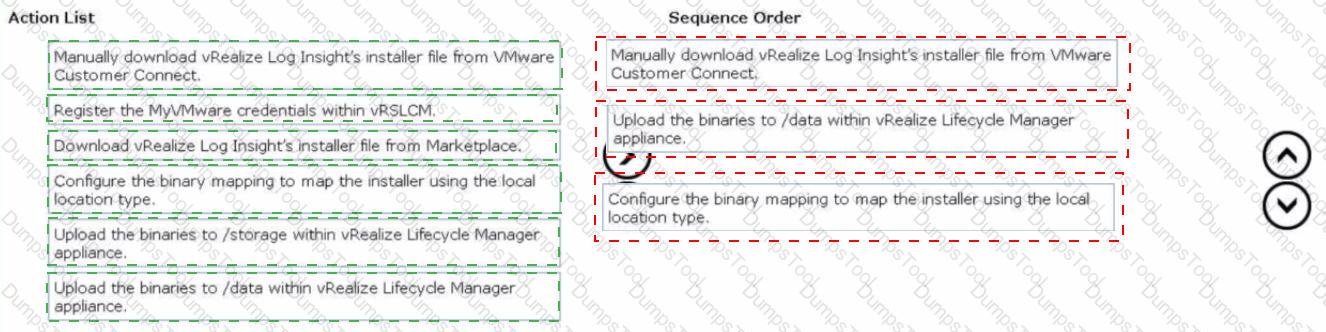

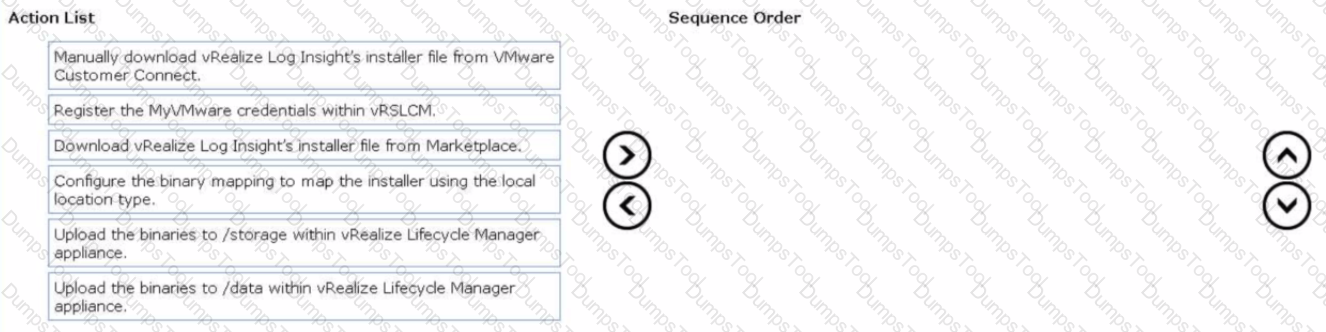

 Manually download vRealize Log Insight’s installer file from VMware Customer Connect:

In an environment without internet connectivity, the installer file must be manually downloaded from VMware Customer Connect to your local system.

 Upload the binaries to /data within vRealize Lifecycle Manager appliance:

After obtaining the installer file, upload the binaries to the /data directory in the vRSLCM appliance. This ensures the installer is locally available.

 Configure the binary mapping to map the installer using the local location type:

Map the uploaded installer binaries in vRSLCM using the local location type so that vRSLCM can reference the binaries during the installation process.

Questions no: 36 Verified Answer = A, B, C, and E Comprehensive Detailed Explanation with all VMware References = To create an identically configured deployment of a production vRealize Operations cluster managed by vRealize Suite Lifecycle Manager (vRSLCM), follow these steps:

E. Export the configuration for the Production vRSLCM Environment [29]: Export the existing configuration of the production environment as a JSON file. This file contains all the necessary details for replicating the deployment.

A. Create a new vRSLCM Environment using the JSON Configuration file [30]: Use the exported JSON file to create a new environment in vRSLCM. This will replicate the basic structure and settings of the production environment.

B. Update the JSON file to replace any configuration details [31]: Modify the JSON file to update any specific configuration details, such as IP addresses, hostnames, and resource allocations, to match the requirements of the new deployment.

C. Create new locker SSL certificates and passwords for the new deployment [32]: Generate new SSL certificates and passwords for the new deployment to ensure security and avoid conflicts with the production environment.

Questions no: 37 Verified Answer = D Comprehensive Detailed Explanation with all VMware References = When configuring the log masking feature in vRealize Log Insight, it's important to understand how it affects log data. The correct statement is:

D. A log mask configuration is applied to all stored logs after creating and enabling the configuration [33]: Log masking in vRealize Log Insight is not limited to newly ingested logs. Once a log mask configuration is created and enabled, it applies retroactively to all stored logs that match the masking criteria. This ensures consistent masking across all relevant log data.

Here's why the other options are incorrect:

A. A log mask configuration does not take precedence to a configured and enabled archival rule: Log masking takes precedence over archival rules. If a log entry matches a masking rule, the masking will be applied before the archival rule is evaluated.

B. A log mask configuration can be applied to logs in which the FieldName field and the filter criteria have Dynamic fields: Log mask configurations cannot be applied to logs with dynamic fields in the FieldName or filter criteria.

C. A log mask configuration is applied only to the logs that are ingested after creating and enabling the configuration: As mentioned earlier, log masking applies to all stored logs, not just newly ingested ones.

When setting up vRealize Log Insight integration within vRealize Operations, administrators configure the vRealize Log Insight management pack . This management pack enables vRealize Operations to collect and analyze log data from vRealize Log Insight, providing deeper insights into the environment and facilitating troubleshooting.

The other options are not relevant to the vRealize Log Insight integration:

The vRealize Log Insight content pack: Content packs in vRealize Log Insight provide predefined dashboards and alerts for specific applications or services, but they are not directly involved in the integration with vRealize Operations.

The vRealize Log Insight troubleshooting dashboard: This refers to dashboards within vRealize Log Insight itself, not a configuration element within vRealize Operations.

The vRealize Log Insight collector group instance: Collector groups in vRealize Log Insight are used to define groups of log sources, but they are not directly configured within vRealize Operations for integration purposes.

vRealize Log Insight supports various deployment architectures to meet scalability and high availability requirements. A six-node cluster with three nodes in each of two datacenters is a valid deployment model, offering both redundancy and load balancing across datacenters.

Key Considerations:

Cluster Composition:

A vRealize Log Insight cluster can include up to 12 nodes: one primary and multiple worker nodes.

Nodes within a cluster should be of the same size and located within the same data center to ensure optimal performance.

Integrated Load Balancer (ILB):

Utilizing the ILB ensures that incoming ingestion traffic is properly balanced across nodes, maintaining availability even if some nodes become unavailable.

Data Center Placement:

While nodes are typically deployed within the same data center, deploying across multiple data centers can provide disaster recovery capabilities.

Ensure that network latency between datacenters is minimal to prevent performance degradation.

To monitor third-party storage array metrics in vRealize Operations, follow these steps:

Verify Compatibility:

Before proceeding, ensure that the desired Management Pack is compatible with your specific version and edition of vRealize Operations.

Consult the VMware Compatibility Guide for this information.

Download the Management Pack:

Visit the VMware Marketplace to locate the appropriate Management Pack for your storage array.

Download the PAK file to your local system.

Install and Configure the Management Pack:

Log in to vRealize Operations Manager as an administrator.

Navigate to Administration > Solutions.

Click the Add button to initiate the installation wizard.

Upload the downloaded PAK file and follow the on-screen instructions to complete the installation.

After installation, configure the adapter instance by providing necessary credentials and connection details to enable data collection from the storage array.

By completing these steps, vRealize Operations will be equipped to collect and analyze metrics from your third-party storage arrays, enhancing your monitoring capabilities.

To restrict application developers' access in vRealize Log Insight to logs from specific hosts, you can define a data set and associate it with a user role.

Steps:

Define a Data Set:

In vRealize Log Insight, navigate to the Administration section.

Create a new data set that includes the specific ESXi hosts where the application is running.

Create a Role:

Define a new role or modify an existing one to include permissions for accessing logs.

Associate Data Set with Role:

Link the previously defined data set to the role, ensuring that users assigned to this role can only access logs from the specified hosts.

Assign Role to Users:

Assign the role to the application developers, thereby restricting their access to the designated set of hosts.

This configuration ensures that developers have access only to the logs pertinent to their applications, enhancing security and data segregation within vRealize Log Insight.
