OMG-OCUP2-ADV300 Questions and Answers

In UML, profiles are mechanisms to extend the UML for a specific domain or purpose. The UML specification allows for one profile to reuse or import elements from another profile. This enables modularity and encourages reusability of profile elements across different domains. Additionally, one profile may extend the stereotypes or metaclasses defined in another profile, which allows for the creation of layered profiles where each layer adds its own specificities. This is a common practice in software and systems modeling to cater to different aspects of a system within separate profiles, which are then integrated to form a comprehensive model. The capability to reuse and extend profiles is defined in the UML 2.x Superstructure Specification, which gives guidelines on how to define and use profiles within UML.

In UML, the keyword «isSubstitutable» is used to indicate that instances of one classifier may be used in place of instances of another classifier. This concept is commonly applied in the context of generalization, where a subclass can be substituted for its superclass. The substitutability is a fundamental principle of object-oriented design, particularly in the Liskov Substitution Principle, which states that objects of a superclass should be replaceable with objects of a subclass without affecting the correctness of the program. This principle is reflected in UML's support for polymorphism, which is implicit in the generalization relationships between classifiers.

During the lexical analysis of Action Language for Foundational UML (fUML) text, whitespace (such as spaces, tabs, and line breaks) is discarded. The lexical analysis focuses on identifying meaningful tokens (such as keywords, identifiers, and operators) while ignoring whitespace, which does not contribute to the semantics of the language2.

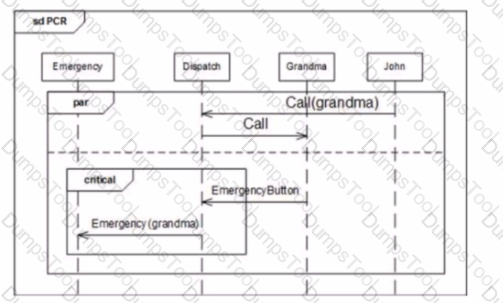

In UML 2, a “critical” section in a sequence diagram, like the one depicted, refers to a period where certain interactions are protected so that they can be executed without interruption or interference from other interactions (events). This is akin to a critical section in multi-threading where certain threads have exclusive access to resources or operations for a period of time. The correct answer is option C because it aligns with this definition: during the “critical” section on the sequence diagram, no other events may interfere between its events.

In UML, when an operation is marked with the term{guarded}, it means that the operation is subject to a concurrency constraint. It specifies that the operation cannot have overlapping executions; in other words, if the operation is already in execution, a new attempt to start it will have to wait until the current one completes. This prevents race conditions and ensures thread safety for that operation when dealing with concurrent accesses in multi-threaded environments. This interpretation is based on the UML 2.x Superstructure Specification, which describes how operations can be marked with constraints to define their behavioral features in terms of concurrency.

The provided diagram fragment seems to indicate a situation involving a template. In UML, a template is a parameterizable element, and a bound element is a specific manifestation of that template wherein the parameters have been replaced with actual values or types. If 'List' is a template class, it cannot be directly used as a type. Instead, one must use a bound element of the List, meaning the template parameters of List must be bound to actual types before it can beused. For instance, if List is a template expecting a type T, then a concrete class might be List or List, where Customer or Order are actual types replacing the template parameter T. This use of templates and bound elements is according to the UML specification, which details how templates are defined and instantiated within UML models.

A UML profile can define several different elements to extend the UML for a specific domain, platform, or purpose. Besides stereotypes, a profile can define DataTypes and Enumerations, which can be used within Stereotypes to type the tagged values. A profile can also define Classes, which can be used as base classes for stereotypes. However, a profile does not typically define instances of elements, such as Objects, nor does it define composite structures, such as Components. The intent of a profile is to adapt existing metamodel elements through the use of stereotypes, tag definitions, and constraints rather than to create instances or define system architectures. This definition and use of a profile are aligned with the guidelines in the UML 2.x Superstructure Specification, which outlines what elements a profile can define within the UML framework.

State Machine Events in UML are triggers for transitions and do not classify as objects or classifiers; thus they do not inherently have features:

• A.Incorrect, because State Machine Events are not treated as classifiers with features.
• B.Incorrect, though it hints at an extended use case, State Machine Events do not extend classifiers in standard UML usage.
• C.Correct, State Machine Events are not Classifiers and therefore cannot have features such as properties or operations.
• D.Incorrect, because UML State Machines certainly have an Event concept, but these Events are not classified as having features.

References:

• UML Specification: State Machine chapter, specifically sections discussing the nature of events and triggers.
• Further insights can be found in the event and trigger management sections of the UML 2.5 Documentation.

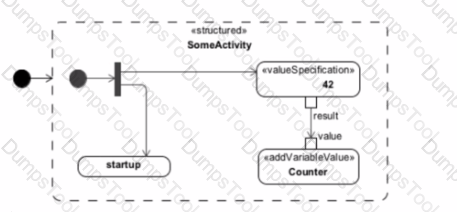

Before the SomeActivity action is executed, the value of "Counter" is not specified in the given diagram fragment; therefore, we cannot assume that it has a value. This leads to the answer C, "It is empty." In UML, unless an initial value is explicitly specified for a variable, it cannot be assumed to have a default value.

References:

• UML 2.5 Specification: The UML specification's section on variables and actions would explain that unless initialized, variables do not have a default value.

A MOF (Meta Object Facility) 2.x Model is not always a valid UML (Unified Modeling Language) 2.x Model. The MOF 2.x and UML 2.x serve different purposes and have different scopes of application. While UML is a general-purpose modeling language used to define software systems, MOF is a language for defining metamodels, which can include UML itself1.

The MOF 2.x specification provides the basis for metamodel definition in OMG’s (Object Management Group’s) family of modeling languages, which includes UML. However, it is based on a simplification of UML 2’s class modeling capabilities1. MOF is designed to be simpler, directly implementable, and provides a set of CORBA interfaces for manipulating meta objects2. In contrast, UML is used as a general-purpose modeling language with potentially many implementation targets2.

Therefore, a MOF 2.x Model can be a valid UML 2.x Model when certain limitations are observed, such as adhering to the simplified class modeling capabilities that MOF is based on. This means that while a MOF model can resemble a UML model in terms of visual representation, it is fundamentally a MOF model, and its validity as a UML model depends on the extent to which it conforms to the UML specifications

In UML, modeling individual things (such as instances) involves making statements about them. Here are the details for each option:

• A. A UML Model can contain individual things (e.g. Instances) UML does not prescribe the level of detail to be used in the description.
• B. A UML Model can contain statements about individual things If a thing is an instance of a Classifier, these statements must be consistent (all mandatory Properties must be defined, all Constraints must be satisfied).
• C. A UML Model can contain statements about individual things These statements can be incomplete, imprecise, and abstract, but not wrong.
• D. A UML Model can contain statements about individual things. These statements can be incomplete, imprecise, abstract, may turn out to be wrong, or even be asserted as counterfactual.
• E. A UML Model can only contain statements about sets of individual things (e.g. Classifiers).

References:

• UML 2.5.1 Specification

Remember that UML is a modeling language, and its primary purpose is to capture and communicate information about systems and their components. The level of detail, precision, and correctness can vary based on the modeling context and the specific use case. Therefore, option D best reflects the UML approach to modeling individual things.

Please note that the information provided here is based on UML 2.5.1, and it’s essential to consult the official UML specification for the most accurate and up-to-date details.

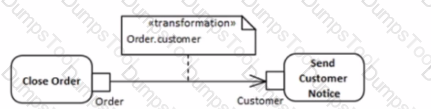

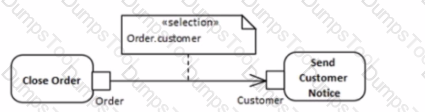

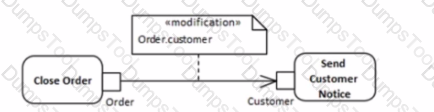

The correct answer is C, which uses a transformation edge to indicate that when an order is closed, information is transformed or processed to notify the customer. This is expressed in UML with an object flow that has a transformation property, which specifies how an object is transformed from one state to another as it flows along the edge. Thisis appropriate for a scenario where closing an order leads to the creation of a customer notice, implying some form of transformation or processing of the order information to generate the notice.

References:

• UML 2.5 Specification: The UML 2.5 specification details how object flows with transformations can be used to show that one piece of data is transformed into another as it flows from one action to another.

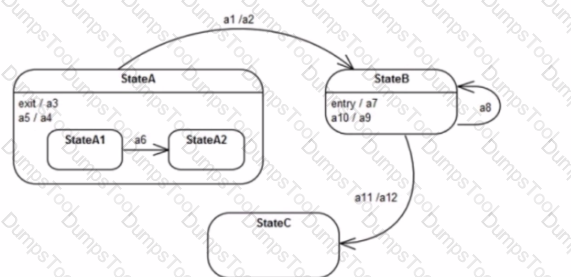

Assuming the system is inStateA1, the behaviors (or actions) executed when moving toStateCwould begin with any behaviors associated with internal transitions or exit actions withinStateA1. Transitiona6would be the trigger to go fromStateA1toStateA2, executinga4(the exit action ofStateA1) before the transition. Upon exitingStateAaltogether (a3is the exit action forStateA), the system would follow the transition labeleda1toStateB, executinga7as the entry action ofStateB. Then, the transition fromStateBtoStateCwould occur, likely with an internal trigger withinStateBor by completion, followed bya11to complete the transition intoStateC. The actions follow the flow of state transitions and the associated entry and exit actions as prescribed by UML state machine behavior specifications.

In UML, a simple State can indeed be redefined, but the specifics of how it is redefined matter:

• Ais incorrect as redefinition of States, including simple States, is permitted.
• Bis correct. A simple State can be effectively removed or altered through redefinition in a derived StateMachine, which could include changing its type or characteristics.
• Csuggests that a simple State can be turned into a composite State. While theoretically possible in the context of redefinition, this option might be considered a significant alteration that could be misleading without additional context.
• Dis incorrect; UML does support State Redefinition.

References:

• UML Specification, particularly the sections on Redefinition and StateMachines.
• Detailed rules on state redefinition are outlined in the UML 2.5 Documentation, specifically under StateMachine specializations.

A stereotype in UML is a powerful extension mechanism that allows developers to tailor UML models for particular domains or platforms. Stereotypes can adapt UML model elements by adding constraints, changing notation, and adding attributes and operations. However, they cannot remove existing constraints from a model element12.

• Notation Change (A): Stereotypes can indeed change the notation of a model element to make it more expressive or domain-specific. For example, a stereotype could be used to visually distinguish between different kinds of classes in a class diagram1.
• Adding Constraints (B): Stereotypes can add new constraints to a model element to specify additional rules or requirements that are not defined by the standard UML1.
• Removing Constraints ©: This is not a capability of stereotypes. Constraints define rules that must be followed, and once they are part of a model element, they cannot be removed by a stereotype. Instead, they are an intrinsic part of the model’s definition1.
• Adding Attributes and Operations (D): Stereotypes can be used to add attributes and operations to a model element, which allows for the specification of additional properties or behaviors that are not part of the standard UML metamodel1.

In summary, while stereotypes are versatile and can extend the capabilities of UML model elements in various ways, they do not have the ability to remove constraints that are already applied to those elements. This is because constraints are consideredfundamental rules that govern the integrity of the model, and removing them would potentially violate the model’s correctness or completeness1.

The MOF capability that supports the correlation of model elements across model transformations, where both the source and target models may be subject to change, is known as Federation1. Federation allows for the integration of different models, ensuring that changes in one model can be reflected in another, thus maintaining consistency across transformations.

A coregion in a UML Sequence Diagram is a notation that:

• A.Incorrect, as interactions are behavioral units that can involve multiple lifelines and are not specific to a coregion.
• B.Incorrect, as combined fragments are constructs that control flow with interaction operands, not directly related to a coregion.
• C.Correct. A coregion is a shorthand notation for a parallel combined fragment on a single lifeline. It allows for the representation of parallel behavior within a single lifeline.
• D.Incorrect, as the area between lifelines for communication is not what defines a coregion.

References:

• UML Specification: Sequence Diagrams section, specifically about coregion and combined fragments.
• The concept and usage of coregions in sequence diagrams are further elaborated in the UML 2.5 Documentation, under the Sequence Diagrams section.

To represent specific hardware environments in a deployment model, a modeler should create a UML profile that includes the necessary hardware stereotypes with applicable details. A profile allows the modeler to extend the standard UML metamodel to include domain-specific elements that can be applied to deployment models. These stereotypes can represent different types of hardware components and their attributes, which can then be used to model the physical aspects of the deployment environment. The creation and application of profiles are supported by the UML 2.x Superstructure Specification, which details how to tailor UML to particular domains or platforms using profiles.

To orchestrate multiple actions within UML, a modeler should use StructuredActivityNodes:

• A.Extending Behavior and adding desired Actions is not specifically about coordinating multiple actions; it's about defining new behaviors.
• B.Correct. StructuredActivityNodes are a part of UML that provides a mechanism to group a set of actions together and manage the data flows between them, thus coordinating the actions.
• C.Using the standard Action and adding desired tag values does not inherently coordinate actions.
• D.Extending Action and specifying constraints to be relaxed or removed does not directly relate to coordinating other actions.

References:

• UML Specification: Activities section, which describes the use of StructuredActivityNodes.
• The use of StructuredActivityNodes for coordinating actions is elaborated in the UML 2.5 Documentation under Activity Diagrams.

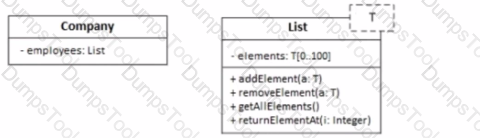

When a template classifier is used to specify the type of a typed element, the actual parameters for the template classifier's formal parameters must be provided by a set of bound elements. This means that for a template classifier to be used as a type, there must be a corresponding binding that specifies what elements are used as arguments for its template parameters. This allows the typed element to have a concrete type that is a specific instantiation of the template classifier with particular values for its template parameters. This use of template classifiers is described in the UML 2.x Superstructure Specification, which details how template binding works to create specific instances of template classifiers.

The capability that enables the discovery and manipulation of metaobjects and metadata is Reflection. In the context of the Meta-Object Facility (MOF), reflection allows you to examine and interact with the structure and semantics of metamodels, models, and their elements. It provides a way to introspect and dynamically access information about the modeling constructs, such as classes, attributes, relationships, and constraints.

In UML, a Dependency is a relationship that signifies that one NamedElement, the client, depends on another NamedElement, the supplier, meaning that a change in the supplier could affect the client. If NamedElement A is the supplier and NamedElement B is the client in a Dependency relationship, and there is a Comment indicating that both participate in a transformation, the interpretation is that B (the client) depends on A (the supplier) for that transformation. The comment does not necessarily change the nature of the Dependency relationship; it simply adds additional information about the nature of their interaction. A transformation could mean that B transforms A's supplied element in some way, but in terms of UML Dependency relationships,it would still be interpreted as "A depends on B" or "B requires A for its transformation". This interpretation aligns with the UML 2.x Infrastructure and Superstructure specifications, which explain Dependencies and their meanings within the UML metamodel.
