First, you need to open the Prism Central CLI from the Windows Server 2019 workstation. You can do this by clicking on the Start menu and typing “Prism Central CLI”. Then, you need to log in with the credentials provided to you.

Second, you need to run the two commands that I have already given you in Desktop\Files\Network\flow.txt. These commands are:

net.update_vpc_traffic_config virtual_switch=vs1 net.update_vpc_east_west_traffic_config permit_vpc_traffic=true

These commands will update the virtual switch that carries the VPC traffic to vs1, and update the VPC east-west traffic configuration to allow only VPC traffic. You can verify that these commands have been executed successfully by running the command:

net.get_vpc_traffic_config

This command will show you the current settings of the virtual switch and the VPC east-west traffic configuration.

Third, you need to SSH directly to any AHV node (not a CVM) in the cluster and run the command:

ovs-vsctl show

This command will display an overview of the Open vSwitch configuration on the AHV node. You can copy and paste the output of this command to a new text file named Desktop\Files\Network\AHVswitch.txt.

You can use any SSH client such as PuTTY or Windows PowerShell to connect to the AHV node. You will need the IP address and the credentials of the AHV node, which you can find in Prism Element or Prism Central.

remove # from greens

On AHV execute:

sudo ovs-vsctl show

CVM access AHV access command

nutanix@NTNX-A-CVM:192.168.10.5:~$ ssh root@192.168.10.2 "ovs-vsctl show"

Open AHVswitch.txt and copy paste output

To create a report named VMs_Power_State that lists the VMs in the cluster and their basic details including the power state for the last month, you can follow these steps:

Log in to Prism Central and click on Entities on the left menu.

Select Virtual Machines from the drop-down menu and click on Create Report.

Enter VMs_Power_State as the report name and a description if required. Click Next.

Under the Custom Views section, select Data Table. Click Next.

Under the Entity Type option, select VM. Click Next.

Under the Custom Columns option, add the following variables: Name, Cluster Name, vCPUs, Memory, Power State. Click Next.

Under the Time Period option, select Last Month. Click Next.

Under the Report Settings option, select Monthly from the Schedule drop-down menu. Enter admin@syberdyne.net as the Email Recipient. Select CSV as the Report Output Format. Click Next.

Review the report details and click Finish.

To generate an instance of the report named VMs_Power_State as a CSV and save the zip file as Desktop\Files\VMs_Power_state.zip, you can follow these steps:

Log in to Prism Central and click on Operations on the left menu.

Select Reports from the drop-down menu and find the VMs_Power_State report from the list. Click on Run Now.

Wait for the report to be generated and click on Download Report. Save the file as Desktop\Files\VMs_Power_state.zip.

1.Open the Report section on Prism Central (Operations > Reports)

2.Click on the New Report button to start the creation of your custom report

3.Under the Custom Views section, select Data Table

4.Provide a title to your custom report, as well as a description if required.

5.Under the Entity Type option, select VM

6.This report can include all as well as a selection of the VMs

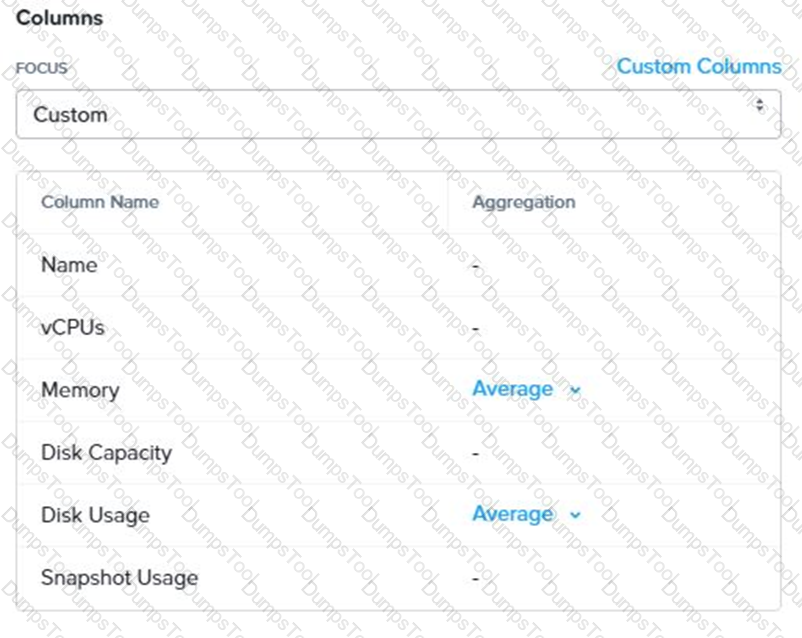

7.Click on the Custom Columns option and add the below variables:

a.Name - Name of the listed Virtual Machine

b.vCPUs - A combination of the vCores and vCPU's assigned to the Virtual Machine

c.Memory - Amount of memory assigned to the Virtual Machine

d.Disk Capacity - The total amount of assigned virtual disk capacity

e.Disk Usage - The total used virtual disk capacity

f.Snapshot Usage - The total amount of capacity used by snapshots (Excluding Protection Domain snapshots)

8.Under the Aggregation option for Memory and Disk Usage accept the default Average option

9.Click on the Add button to add this custom selection to your report

10.Next click on the Save and Run Now button on the bottom right of the screen

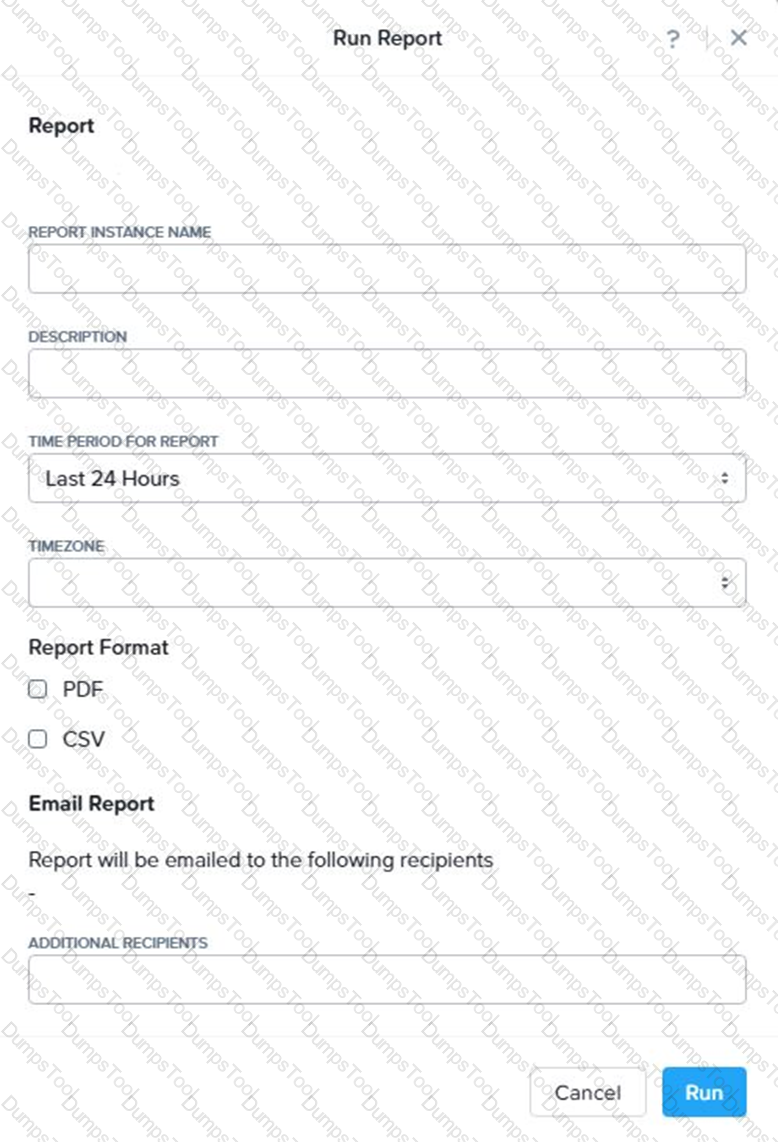

11.Provide the relevant details on this screen for your custom report:

12.You can leave the Time Period For Report variable at the default of Last 24 Hours

13.Specify a report output of preference (PDF or CSV) and if required Additional Recipients for this report to be mailed to. The report can also simply be downloaded after this creation and initial run if required

14.Below is an example of this report in a CSV format:

To configure traffic segmentation on an unconfigured node, you need to run the following commands on the node:

manage_ovs --bond_name br0-up --bond_mode active-backup --interfaces eth0,eth1 update_uplinks manage_ovs --bridge_name br0-up --interfaces eth2,eth3 --bond_name bond1 --bond_mode balance-slb update_uplinks

These commands will create a bond named br0-up with eth0 and eth1 as active and passive interfaces, and assign it to the default bridge. Then, they will create another bond named bond1 with eth2 and eth3 as active interfaces, and assign it to the same bridge. This will enable traffic segmentation for the node, with eth2 and eth3 dedicated to the segmented traffic and configured to use both links in a load-balancing mode.

I have replaced the x in the file Desktop\Files\Network\unconfigured.txt with the appropriate character or string for you. You can find the updated file in Desktop\Files\Network\configured.txt.

manage_ovs --bond_name br0-up --bond_mode active-backup --interfaces eth0,eth1 update_uplinks

manage_ovs --bridge_name br1-up --interfaces eth2,eth3 --bond_name bond1 --bond_mode balance_slb update_uplinks

https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2071-AHV-Networking:ovs-command-line-configuration.html

https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LLEzCAO

https://jsonformatter.curiousconcept.com/#

acli net.list(uuid network defult_net)

ncli cluster info(uuid cluster)

Put Call: https://Prism Central IP address : 9440/api/nutanix/v3vms

Edit these lines to fix the API call, do not add new lines or copy lines.

You can test using the Prism Element API explorer or PostMan

Body:

{

{

"spec": {

"name": "Test_Deploy",

"resources": {

"power_state":"OFF",

"num_vcpus_per_socket": ,

"num_sockets": 1,

"memory_size_mib": 8192,

"disk_list": [

{

"disk_size_mib": 51200,

"device_properties": {

"device_type":"DISK"

}

},

{

"device_properties": {

"device_type":"CDROM"

}

}

],

"nic_list":[

{

"nic_type": "NORMAL_NIC",

"is_connected": true,

"ip_endpoint_list": [

{

"ip_type": "DHCP"

}

],

"subnet_reference": {

"kind": "subnet",

"name": "default_net",

"uuid": "00000000-0000-0000-0000-000000000000"

}

}

],

},

"cluster_reference": {

"kind": "cluster",

"name": "NTNXDemo",

"uuid": "00000000-0000-0000-0000-000000000000"

}

},

"api_version": "3.1.0",

"metadata": {

"kind": "vm"

}

}

https://www.nutanix.dev/2019/08/26/post-a-package-building-your-first-nutanix-rest-api-post-request/
