MCIA-Level-1 Questions and Answers

When leveraging Anypoint MQ Audit Logs, it's important to note that they include logs for operations such as creating, deleting, modifying, and purging queues. These logs are crucial for auditing and monitoring the state and changes made to the message queues within Anypoint MQ. However, they do not include logs for individual message actions like sending, receiving, or browsing messages.

References

• MuleSoft Documentation on Anypoint MQ Audit Logs
• Anypoint Platform Audit Logging Overview

Explanation

Correct answer is Workers are randomly distributed across available AZs within that region. This ensure high availability for deployed mule applications Mulesoft documentation reference :

https://docs.mulesoft.com/runtime-manager/cloudhub-hadr

Explanation

Correct answer is IBM: CICS CRM: SOAP

* Within Anypoint Exchange, MuleSoft offers the IBM CICS connector. Anypoint Connector for IBM CICS Transaction Gateway (IBM CTG Connector) provides integration with back-end CICS apps using the CICS Transaction Gateway.

* Anypoint Connector for Salesforce Marketing Cloud (Marketing Cloud Connector) enables you to connect to the Marketing Cloud API web services (now known as the Marketing Cloud API), which is also known as the Salesforce Marketing Cloud. This connector exposes convenient operations via SOAP for exploiting the capabilities of Salesforce Marketing Cloud.

Explanation

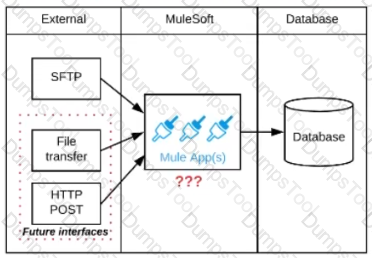

* Scatter-Gather is used for parallel processing, to improve performance. In this scenario, input files are coming from different vendors so mostly at different times. Goal here is to minimize the impact of future change. So scatter Gather is not the correct choice.

* If we use 1 API to receive all files from different Vendors, any new vendor addition will need changes to that 1 API to accommodate new requirements. So Option A and C are also ruled out.

* Correct answer is Create an API that receives the file and invokes a Process API with the data contained in the file, then have the Process API process the data using a MuleSoft Batch Job and other System APIs as needed. Answer to this question lies in the API led connectivity approach.

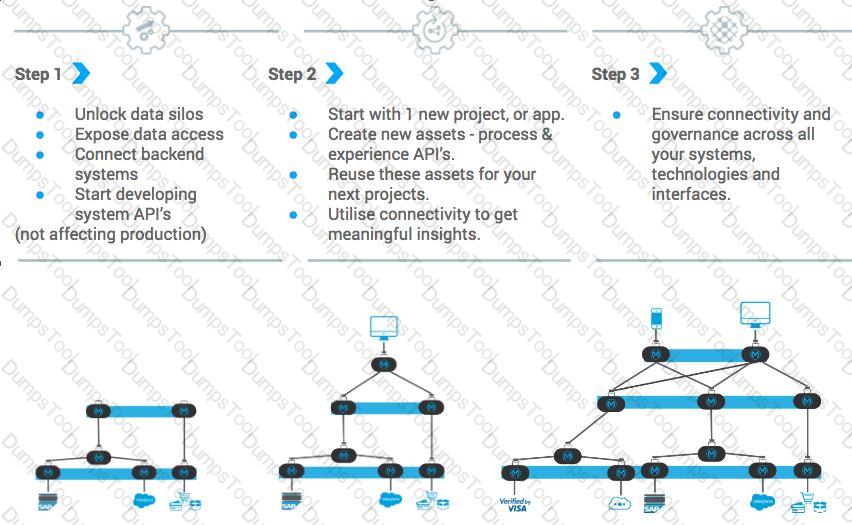

* API-led connectivity is a methodical way to connect data to applications through a series of reusable and purposeful modern APIs that are each developed to play a specific role – unlock data from systems, compose data into processes, or deliver an experience. System API : System API tier, which provides consistent, managed, and secure access to backend systems. Process APIs : Process APIs take core assets and combines them with some business logic to create a higher level of value. Experience APIs : These are designed specifically for consumption by a specific end-user app or device.

So in case of any future plans , organization can only add experience API on addition of new Vendors, which reuse the already existing process API. It will keep impact minimal.

Diagram Description automatically generated

Explanation

Anypoint Platform provides a scripting and command-line tool for both Anypoint Platform and Anypoint Platform Private Cloud Edition (Anypoint Platform PCE). The command-line interface (CLI) supports both the interactive shell and standard CLI modes and works with: Anypoint Exchange Access management Anypoint Runtime Manager

• Requirement Analysis: The security team requires any external API call to be restricted by an IP include list. This ensures that only specified IP addresses can access the third-party API.
• Design Plan: To fulfill this requirement, implementing a proxy for the third-party API is the best approach. This proxy can enforce the IP include list policy.
• Implementation Steps:
• Advantages:

References

• MuleSoft Documentation on API Proxies
• MuleSoft Documentation on IP Whitelist Policy

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

• Create a Mule domain project.
• Add the Database connector and its configuration to the domain project.
• Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

• MuleSoft Documentation on Domain Projects
• Best Practices for Reusable Configuration in MuleSoft

The Kubernetes controller is implementing horizontal scalability by adding another pod replica in response to increased application load. Horizontal scaling involves adding more instances of a service or application to handle the increased load, as opposed to vertical scaling, which would involve adding more resources (CPU, RAM) to a single instance. Horizontal scaling is a key feature of cloud-native applications and is supported by Kubernetes to ensure high availability and performance.

References:

• Kubernetes Horizontal Pod Autoscaling
• Understanding Horizontal vs. Vertical Scaling

Customer Relationship Management (CRM) systems are designed to manage a company’s interactions with current and potential customers. They provide capabilities for tracking prospect data, managing customer interactions, and analyzing customer information to improve cross-selling opportunities. By using a CRM system, organizations can consolidate customer information, enhance customer relationships, and leverage data analytics to drive sales and marketing efforts.

References:

• What is CRM?
• Benefits of CRM Systems

Explanation

Correct answer is By default, the Anypoint CLI and Mule Maven plugin are not included in the Mule runtime Maven is not part of runtime though it is part of studio. You do not need it to deploy in order to deploy your app. Same is the case with CLI.

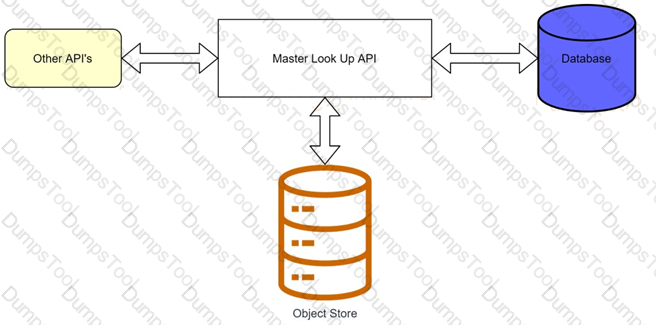

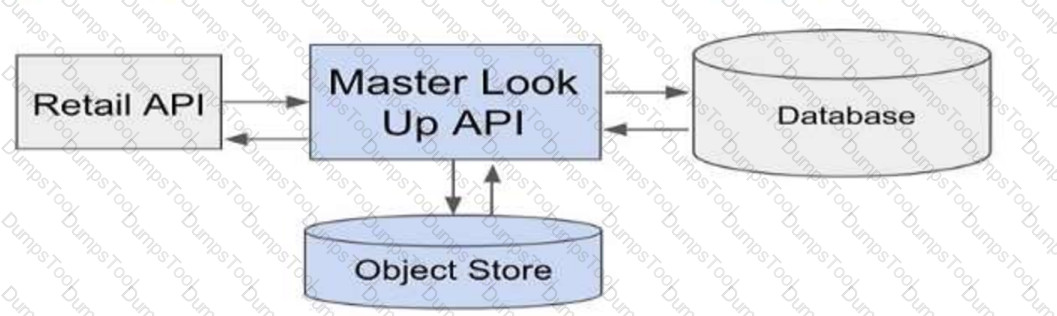

A. Implement HTTP caching policy for all GET endpoints for the master lookup API and implement locking to synchronize access to object store

Comprehensive Detailed Step by Step ExplanationTo resolve the performance issue observed during the performance testing of the Master lookup API, the best approach involves caching and synchronization:

• HTTP Caching Policy:
• Object Store Locking:

By implementing these two strategies, the response time of the Master lookup API will be significantly improved, and the performance issue will be resolved.

References

• MuleSoft HTTP Caching Policy
• MuleSoft Object Store Connector

According to MuleSoft’s recommended REST conventions, the HTTP method GET should be used to specify how API clients can request data from a specified resource. The GET method is designed to retrieve data from a server at the specified resource. It is one of the most common HTTP methods used in RESTful APIs, ensuring that data retrieval is performed without any side effects on the server or resource.

References:

• MuleSoft REST API Design Best Practices
• HTTP Methods in RESTful Services

Explanation

Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.

In a typical MuleSoft integration project, the role primarily responsible for building API implementations is the API Developer. The API Developer focuses on writing the code that implements the logic, data transformations, and business processes defined in the API specifications. They use tools like Anypoint Studio to develop and test Mule applications, ensuring that the APIs function as required and integrate seamlessly with other systems and services.

While the API Designer is responsible for defining the API specifications and the Integration Architect for designing the overall integration solution, the API Developer translates these designs into working software. The Operations team typically manages the deployment, monitoring, and maintenance of the APIs in production environments.

References

• MuleSoft Documentation on Roles and Responsibilities
• Anypoint Platform Development Best Practices

Explanation

Correct behavior is Each request is routed to ONE ARBITRARY CloudHub worker out of ALL three CloudHub workers

Explanation

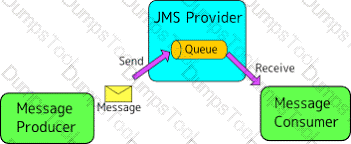

* To send message or receive JMS (Java Message Service) message no separate network connection need to be established. So option A, C and D are ruled out.

Correct Answer: The JMS connector supports both sending and receiving of JMS messages over the protocol determined by the JMS provider.

* JMS Connector enables sending and receiving messages to queues and topics for any message service that implements the JMS specification.

* JMS is a widely used API for message-oriented middleware.

* It enables the communication between different components of a distributed application to be loosely coupled, reliable, and asynchronous.

MuleSoft Doc Reference: https://docs.mulesoft.com/jms-connector/1.7/

Diagram, text Description automatically generated

• Dealer D1 - AUTO Acknowledgment:
• Dealer D2 - Manual Acknowledgment:
• Ensuring Message Delivery:

References:

• MuleSoft Documentation on JMS Acknowledgment
• Best practices for Reliable Messaging

To hide sensitive data exchanged between API consumers and API implementations while allowing the conversion of tokenized fields back to their original values for other API requests or responses, the best approach is to use tokenization. This involves:

• Tokenization Format: Create a tokenization format that will be used to apply a tokenization policy in the API gateway. This format ensures that sensitive fields in message payloads are replaced with tokenized values that maintain a similar format, making them less recognizable as sensitive data.
• Tokenization Policy: Apply a tokenization policy in the API gateway that replaces sensitive data with tokenized values.
• Detokenization Policy: Apply a corresponding detokenization policy in the API gateway to convert tokenized values back to their original values when required by other APIs.

This method does not require recoding the API implementations and ensures that sensitive data is protected while still being accessible in its original form when necessary.

References

• MuleSoft Documentation on Tokenization Policies
• API Gateway Security Best Practices

Explanation

* HTTP/1.1 keeps all requests and responses in plain text format.

* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos

* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

..cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp. .cloudhub.io redirects to

http://mule-worker-myApp. .cloudhub.io:8081

HTTPS traffic to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8082

During the API implementation phase, the integration team should use the API specification to build the MuleSoft application. This involves leveraging the defined API contract to guide the development of the API’s actual implementation. By adhering to the specification, developers ensure that the API meets the agreed-upon requirements and behaviors. This phase includes coding, integrating with backend systems, and ensuring that the implementation aligns with the design and functional requirements outlined in the API specification.

References:

• API-led Connectivity Best Practices
• API Lifecycle Management

Explanation

* Mule High Availability Clustering provides basic failover capability for Mule. * When the primary Mule Runtime becomes unavailable, for example, because of a fatal JVM or hardware failure or it’s taken offline for maintenance, a backup Mule Runtime immediately becomes the primary node and resumes processing where the failed instance left off. * After a system administrator recovers a failed Mule Runtime server and puts it back online, that server automatically becomes the backup node. In this case, Alice, once up, will become backup ---------------------------------------------------------------------------------------------------------------------------------------------- Reference: https://docs.mulesoft.com/mule-runtime/4.3/hadr-guide So correct choice is : Files are polled form Bob node Bob is now the primary node

• To design an integration Mule application that processes orders and ensures reliability even with an unreliable back-end system, the following components and ActiveMQ queues should be used:

• Until Successful Scope: This scope ensures that the Mule application will continue trying to submit the order to the back-end system until it succeeds or reaches a specified retry limit. This helps in handling transient network issues or minor outages of the back-end system.
• ActiveMQ Long-Retry Queues: By placing the orders in long-retry queues, the application can manage retries over an extended period. This is particularly useful when the back-end system experiences longer outages. The ActiveMQ broker, located within the organization’s firewall, can reliably handle these queues.
• ActiveMQ Dead-Letter Queues: Orders that cannot be successfully submitted after all retry attempts should be moved to dead-letter queues. This allows for manual processing of these orders. The dead-letter queue ensures that no orders are lost and provides a clear mechanism for handling failed submissions.

Implementation Steps:

• HTTP Listener: Set up an HTTP listener to receive incoming orders.
• Immediate Acknowledgment: Immediately acknowledge the receipt of the order to the client.
• Until Successful Scope: Use the Until Successful scope to attempt submitting the order to the back-end system. Configure retry intervals and limits.
• Long-Retry Queues: Configure ActiveMQ long-retry queues to manage retries.
• Dead-Letter Queues: Set up ActiveMQ dead-letter queues for orders that fail after maximum retry attempts, allowing for manual intervention.

This approach ensures that the system can handle temporary and prolonged back-end outages while minimizing manual processing.

References:

• MuleSoft Documentation on Until Successful Scope: https://docs.mulesoft.com/mule-runtime/4.3/until-successful-scope
• ActiveMQ Documentation: https://activemq.apache.org/

Explanation

* "Create a Mule domain project that maintains the credentials as Mule domain-shared resources" is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization’s data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized – and potentially malicious – use by anyone with access to the Mule application

Scatter-Gather sends a request message to multiple targets concurrently. It collects the responses from all routes, and aggregates them into a single message.

Anypoint Exchange is the Anypoint Platform component that helps integration developers discover and share reusable APIs, connectors, and templates. It acts as a central repository where developers can publish and access various assets, facilitating reuse and collaboration within the organization. By using Anypoint Exchange, developers can reduce duplication of effort, speed up development processes, and ensure consistency across integrations.

Other components like API Manager, Anypoint Studio, and Design Center serve different purposes, such as managing APIs, developing Mule applications, and designing API specifications, but they are not specifically focused on discovering and sharing reusable assets.

References

• MuleSoft Documentation on Anypoint Exchange
• Best Practices for Asset Reuse on Anypoint Platform

Explanation

Correct answer is Implement transformation logic in the new Mule application using DataWeave, invoking existing transformation services when possible. * The key here minimal testing effort, "Extend existing transformation logic" is not a feasible option because additional functionality is highly specific to the new Mule application so it should not be a part of commonly used functionality. So this option is ruled out. * "Implement transformation logic in the new Mule application using DataWeave, replicating the transformation logic of existing transformation services" Replicating the transformation logic of existing transformation services will cause duplicity of code. So this option is ruled out. * "Implement and expose all transformation logic as microservices using DataWeave, so it can be reused by any application component that needs it, including the new Mule application" as question specifies that the transformation is app specific and wont be used outside

The Publish/Subscriber Messaging Bus (Pub/Sub) model is well-suited for high-volume, real-time communication and notification requirements. In this scenario, the retailer needs to notify its order management, warehouse, and billing systems within 15 minutes of order submission. Pub/Sub messaging systems enable asynchronous communication where messages (orders) are published to a topic and multiple subscribers (order management, warehouse, billing systems) receive notifications simultaneously. This decouples the systems and ensures that each subscriber receives the message promptly for subsequent processing.

References:

• Understanding Pub/Sub Messaging
• MuleSoft's Approach to Event-Driven Architecture

Explanation

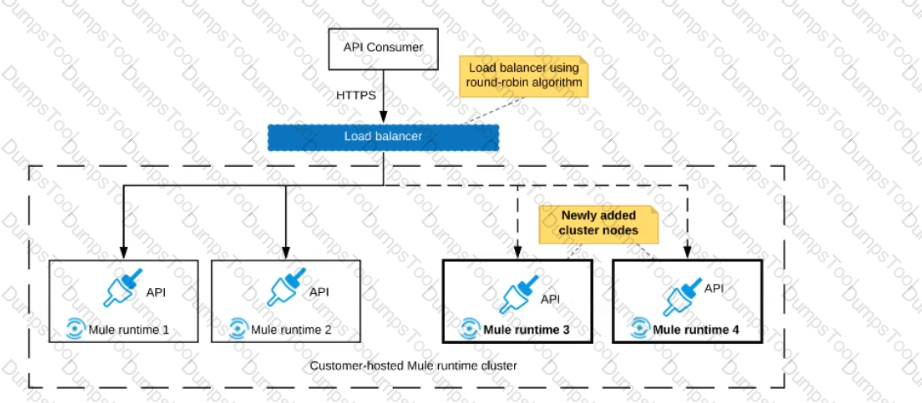

* Clustering is a group of servers or mule runtime which acts as a single unit.

* Mulesoft Enterprise Edition supports scalable clustering to provide high availability for the Mulesoft application.

* In simple terms, virtual servers composed of multiple nodes and they communicate and share information through a distributed shared memory grid.

* By default, Mulesoft ensures the High availability of applications if clustering implemented.

* Let's consider the scenario one of the nodes in cluster crashed or goes down and under maintenance. In such cases, Mulesoft will ensure that requests are processed by other nodes in the cluster. Mulesoft clustering also ensures that the request is load balanced between all the nodes in a cluster.

* Clustering is only supported by on-premise Mule runtime and it is not supported in Cloudhub.

Correct answer is External monitoring tools or log aggregators must be configured to recognize the new nodes

* Rest of the options are automatically taken care of when a new node is added in cluster.

When an API client makes an HTTP request to an API gateway with an Accept header containing the value "application/json", the valid HTTP response payload should be in JSON format. The correct JSON format for indicating a healthy status is {"status": "healthy"}. This format uses a JSON object with a key-value pair where the key is "status" and the value is "healthy".

Other options provided are not valid JSON responses:

• healthy is XML format.
• status('healthy') and status: healthy are not valid JSON syntax.

References

• HTTP Content Negotiation and Accept Headers
• JSON Formatting and Syntax Rules

Explanation

Correct answer is Mule correlation ID By design, Correlation Ids cannot be changed within a flow in Mule 4 applications and can be set only at source. This ID is part of the Event Context and is generated as soon as the message is received by the application. When a HTTP Request is received, the request is inspected for "X-Correlation-Id" header. If "X-Correlation-Id" header is present, HTTP connector uses this as the Correlation Id. If "X-Correlation-Id" header is NOT present, a Correlation Id is randomly generated. For Incoming HTTP Requests: In order to set a custom Correlation Id, the client invoking the HTTP request must set "X-Correlation-Id" header. This will ensure that the Mule Flow uses this Correlation Id. For Outgoing HTTP Requests: You can also propagate the existing Correlation Id to downstream APIs. By default, all outgoing HTTP Requests send "X-Correlation-Id" header. However, you can choose to set a different value to "X-Correlation-Id" header or set "Send Correlation Id" to NEVER.

To enable package-specific debugging for the org.apache.cxf package, you need to update the logging configuration in the Mule application's log4j2.xml file. The steps are as follows:

• Open the log4j2.xml file in your Mule application.
• Add an AsyncLogger element with the name property set to org.apache.cxf and the level set to DEBUG. This configuration specifies that only the logs from the org.apache.cxf package should be logged at the DEBUG level.
• Save the changes to the log4j2.xml file.
• Redeploy the updated Mule application to the CloudHub production environment to apply the new logging configuration.

This approach ensures that only the specified package's logging level is changed to DEBUG, minimizing the potential performance impact on the application.

References

• MuleSoft Documentation on Configuring Logging
• Log4j2 Configuration Guide

When a Mule application using VM queues is deployed to a customer-hosted cluster or multiple CloudHub v1.0 workers/replicas, messages are consumed in a non-deterministic way. This means that any of the nodes in the cluster or any of the workers can consume the messages from the VM queues, but there is no guaranteed order or specific pattern (such as round-robin or sequential processing).

This non-deterministic message consumption helps in distributing the load and handling messages more efficiently across multiple nodes or workers, improving the scalability and reliability of the application.

References

• MuleSoft Documentation on VM Queues and Clustering
• Best Practices for Deploying Mule Applications in Clusters

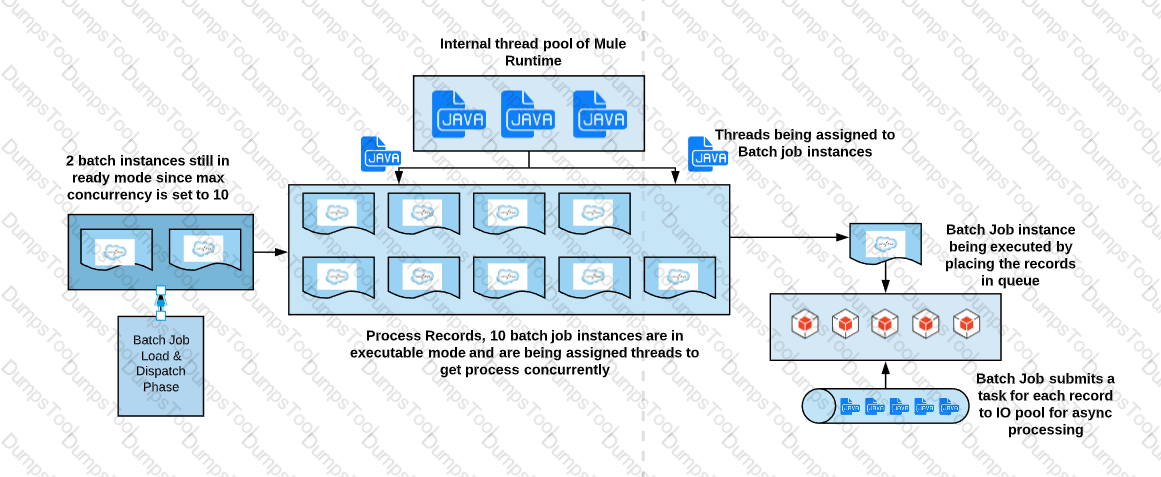

* Each Batch Job uses SEVERAL THREADS for the Batch Steps

* Each Batch Step instance receives ONE record at a time as the payload. It's not received in a block, as it does not wait for multiple records to be completed before moving to next batch step. (So Option D is out of choice)

* RECORDS are processed IN PARALLEL within and between the two Batch Steps.

* RECORDS are not processed in order. Let's say if second record completes batch_step_1 before record 1, then it moves to batch_step_2 before record 1. (So option C and D are out of choice)

* A batch job is the scope element in an application in which Mule processes a message payload as a batch of records. The term batch job is inclusive of all three phases of processing: Load and Dispatch, Process, and On Complete.

* A batch job instance is an occurrence in a Mule application whenever a Mule flow executes a batch job. Mule creates the batch job instance in the Load and Dispatch phase. Every batch job instance is identified internally using a unique String known as batch job instance id.

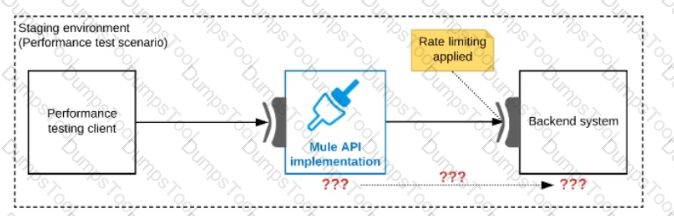

In the given scenario, a rate limiting policy has been applied to the SOAP API and a global error handler is configured to handle HTTP:RETRY_EXHAUSTED errors with a 429 status code. The rate limiting policy will trigger when the client exceeds the allowed quota of API calls. Since the HTTP:RETRY_EXHAUSTED error specifically catches quota exhaustion errors and the error handler is configured to return a 429 status code, the expected HTTP status returned to the client when the quota is exceeded will be 429. This error code indicates that the user has sent too many requests in a given amount of time ("rate limiting").

References:

• MuleSoft Documentation on Error Handling
• HTTP Status Codes

To efficiently handle the invocation of vendor applications and retry requests that generate timeout errors, the most performant way is:

• Scatter-Gather Scope: Use a Scatter-Gather scope to invoke each vendor application in parallel. This approach allows the API to send requests to both vendors simultaneously, reducing overall processing time.
• Until-Successful Scope: Inside each route of the Scatter-Gather scope, use an Until-Successful scope to handle retries. The Until-Successful scope will retry the request in case of timeout errors until the request succeeds or the maximum retry limit is reached.

This combination ensures that the API can handle intermittent network issues efficiently while minimizing redundant transactions and maximizing performance.

References

• MuleSoft Documentation on Scatter-Gather Scope
• MuleSoft Documentation on Until-Successful Scope and Error Handling

• Try-Catch Scope for Data Fetching:
• Async Scope for Inserting Records into Audit Database:
• Ensuring Better Throughput:

References:

• MuleSoft Documentation on Async Scope
• Best practices for Error Handling in MuleSoft

Explanation

Correct answer is Untill Successful scope can be implemented while calling backend API's The Until Successful scope repeatedly triggers the scope's components (including flow references) until they all succeed or until a maximum number of retries is exceeded The scope provides option to control the max number of retries and the interval between retries The scope can execute any sequence of processors that may fail for whatever reason and may succeed upon retry

When a Mule application uses batch job scope to process large datasets and is deployed on multiple CloudHub workers without persistence queues enabled, the following scenario occurs if a worker crashes:

• Batch Job Scope: Batch jobs are designed to handle large datasets by splitting the work into records and processing them in parallel.
• Non-Persistent Queues: When persistence is not enabled, the state of the batch processing is not stored persistently. This means that if a worker crashes, the state of the in-progress batch job is lost.
• Worker Crash Consequence:

This behavior can cause issues such as duplicate data in Salesforce CRM and inefficiencies in processing.

References

• MuleSoft Batch Processing
• MuleSoft CloudHub Workers

Explanation

Correct answer is using below set of activities Until Successful component ActiveMQ long retry Queue ActiveMQ Dead Letter Queue for manual processing We will see why this is correct answer but before that lets understand few of the concepts which we need to know. Until Successful Scope The Until Successful scope processes messages through its processors until the entire operation succeeds. Until Successful repeatedly retries to process a message that is attempting to complete an activity such as: - Dispatching to outbound endpoints, for example, when calling a remote web service that may have availability issues. - Executing a component method, for example, when executing on a Spring bean that may depend on unreliable resources. - A sub-flow execution, to keep re-executing several actions until they all succeed, - Any other message processor execution, to allow more complex scenarios. How this will help requirement : Using Until Successful Scope we can retry sending the order to backend systems in case of error to avoid manual processing later. Retry values can be configured in Until Successful Scope Apache ActiveMQ It is an open source message broker written in Java together with a full Java Message Service client ActiveMQ has the ability to deliver messages with delays thanks to its scheduler. This functionality is the base for the broker redelivery plug-in. The redelivery plug-in can intercept dead letter processing and reschedule the failing messages for redelivery. Rather than being delivered to a DLQ, a failing message is scheduled to go to the tail of the original queue and redelivered to a message consumer. How this will help requirement : If backend application is down for a longer duration where Until Successful Scope wont work, then we can make use of ActiveMQ long retry Queue. The redelivery plug-in can intercept dead letter processing and reschedule the failing messages for redelivery. Mule Reference: https://docs.mulesoft.com/mule-runtime/4.3/migration-core-until-successful

An Enterprise Architect would use a single enterprise-wide canonical data model (CDM) when designing an integration solution to achieve the following benefits:

• Reduced Dependencies: By standardizing on a single data model, it simplifies the integration process between multiple systems that may use different data formats. This eliminates the need for numerous point-to-point transformations.
• Consistency and Reusability: A CDM ensures consistent data representation across the enterprise, which promotes data integrity and reusability of integration components.
• Simplified Maintenance: Having a single data model reduces the complexity of maintaining and updating integration solutions, as changes need to be made in only one place.

The CDM acts as an abstraction layer that decouples systems, facilitating easier integration and reducing the potential for errors.

References

• MuleSoft Documentation on Canonical Data Models
• Best Practices for Data Integration with MuleSoft

Explanation

* When you create an Anypoint VPC, the range of IP addresses for the network must be specified in the form of a Classless Inter-Domain Routing (CIDR) block, using CIDR notation.

* This address space is reserved for Mule workers, so it cannot overlap with any address space used in your data center if you want to peer it with your VPC.

* To calculate the proper sizing for your Anypoint VPC, you first need to understand that the number of dedicated IP addresses is not the same as the number of workers you have deployed.

* For each worker deployed to CloudHub, the following IP assignation takes place: For better fault tolerance, the VPC subnet may be divided into up to four Availability Zones.

* A few IP addresses are reserved for infrastructure. At least two IP addresses per worker to perform at zero-downtime.

* Hence in this scenario 2048 IP's are required to support the requirement.

Explanation

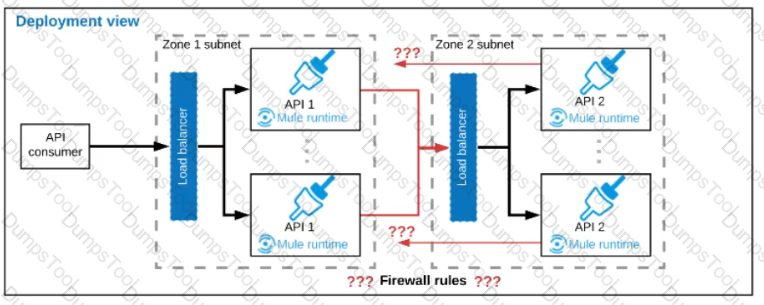

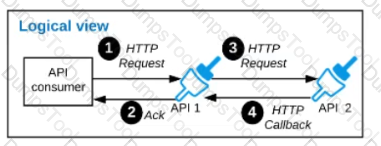

* If your API implementation involves putting a load balancer in front of your APIkit application, configure the load balancer to redirect URLs that reference the baseUri of the application directly. If the load balancer does not redirect URLs, any calls that reach the load balancer looking for the application do not reach their destination.

* When you receive incoming traffic through the load balancer, the responses will go out the same way. However, traffic that is originating from your instance will not pass through the load balancer. Instead, it is sent directly from the public IP address of your instance out to the Internet. The ELB is not involved in that scenario.

* The question says “each API is deployed to multiple redundant Mule runtimes”, that seems to be a hint for self hosted Mule runtime cluster. Set Inbound allowed for the LB, outbound allowed for runtime to request out.

* Hence correct way is to enable communication from each API’s Mule Runtimes and Network zone to the load balancer of the other API. Because communication is asynchronous one

• Digital Transformation Goals:
• CloudHub Runtimes:
• Suitability for Digital Transformation:

References:

• MuleSoft Documentation on CloudHub: CloudHub
• MuleSoft Digital Transformation Insights: MuleSoft Digital Transformation

AnTo resolve performance issues with the Master Look Up API, the following methods can be applied:

• Implement the HTTP caching policy for all GET endpoints for the Master Look Up API: This caching policy helps reduce the number of database queries by storing frequently accessed data in cache, thus improving response times for subsequent requests.
• Upgrade the vCore size from 0.1 vCore to 0.2 vCore: Increasing the vCore size can provide more computational resources, which can improve the processing power and overall performance of the API, particularly under high load conditions.

References:

• HTTP Caching Policy
• Scaling and Performance

swer: A

Explanation

Context of the question is about managing and governing mule applications deployed on Anypoint platform.

Anypoint API Manager (API Manager) is a component of Anypoint Platform that enables you to manage, govern, and secure APIs. It leverages the runtime capabilities of API Gateway and Anypoint Service Mesh, both of which enforce policies, collect and track analytics data, manage proxies, provide encryption and authentication, and manage applications.

Mule Ref Doc : https://docs.mulesoft.com/api-manager/2.x/getting-started-proxy

The advantage of using OAuth 2.0 client credentials and access tokens over only API keys for API authentication is that if the access token is compromised, the client credentials do not have to be reissued.

OAuth 2.0 is a secure protocol for authenticating clients and authorizing them to access protected resources. It works by having the client authenticate with the authorization server and receive an access token, which is then used to authenticate requests to the API. If the access token is compromised, it can be revoked and replaced without needing to reissue the client credentials.

References: MuleSoft Certified Integration Architect - Level 1 Official Text Book and Resources:

• Chapter 7: Security
• Section 7.2: OAuth 2.0

According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

• NIST Definition of Cloud Computing
• Hybrid Cloud Overview and Benefits

In a microservices application architecture, each service is designed to be an independent deployment artifact. This means that services can be deployed, updated, and scaled independently of one another. This characteristic allows for greater flexibility and agility in managing applications, as individual services can be scaled up or down based on demand without impacting other services. It also enhances fault isolation, as issues in one service do not necessarily affect the entire application.

This is in contrast to monolithic architectures, where all components are packaged and deployed together, often resulting in a single point of failure and difficulties in scaling and updating specific parts of the application.

References

• MuleSoft Documentation on Microservices Architecture
• Principles of Microservices Design

When multiple Mule applications need to listen on the same port (e.g., port 443), configuring them individually will cause a conflict because only one application can bind to a specific port on a server at a time. To resolve this, you can use a Mule domain project, which allows multiple Mule applications to share configurations, including HTTP listeners. Here’s how you can do it:

• Create a Mule Domain Project:
• Configure the Shared HTTP Listener:

• Reference the Shared HTTP Listener in Mule Applications:

• Deploy the Domain Project and Applications:

By using a domain project to centralize the HTTP listener configuration, you ensure that both APIs can listen on port 443 without conflicts, allowing customers to access both APIs through the same port.

References

• MuleSoft Documentation: Domain Projects
• MuleSoft Documentation: HTTP Listener Configuration

Explanation

Before we answer this question , we need to understand what median (50th percentile) and 80th percentile means. If the 50th percentile (median) of a response time is 500ms that means that 50% of my transactions are either as fast or faster than 500ms.

If the 90th percentile of the same transaction is at 1000ms it means that 90% are as fast or faster and only 10% are slower. Now as per upstream SLA , 99th percentile is 800 ms which means 99% of the incoming requests should have response time less than or equal to 800 ms. But as per one of the backend API , their 95th percentile is 1000 ms which means that backend API will take 1000 ms or less than that for 95% of. requests. As there are three API invocation from upstream API , we can not conclude a timeout that can be set to meet the desired SLA as backend SLA's do not support it.

Let see why other answers are not correct.

1) Do not set a timeout --> This can potentially violate SLA's of upstream API

2) Set a timeout of 100 ms; ---> This will not work as backend API has 100 ms as median meaning only 50% requests will be answered in this time and we will get timeout for 50% of the requests. Important thing to note here is, All APIs need to be executed sequentially, so if you get timeout in first API, there is no use of going to second and third API. As a service provider you wouldn't want to keep 50% of your consumers dissatisfied. So not the best option to go with.

*To quote an example: Let's assume you have built an API to update customer contact details.

- First API is fetching customer number based on login credentials

- Second API is fetching Info in 1 table and returning unique key

- Third API, using unique key provided in second API as primary key, updating remaining details

* Now consider, if API times out in first API and can't fetch customer number, in this case, it's useless to call API 2 and 3 and that is why question mentions specifically that all APIs need to be executed sequentially.

3) Set a timeout of 50 ms --> Again not possible due to the same reason as above Hence correct answer is No timeout is possible to meet the upstream API's desired SLA; a different SLA must be negotiated with the first downstream API or invoke an alternative API

For integrating flight data into an online aggregation website with secure, high-performance, and asynchronous message exchange, the most suitable interface technologies supported by MuleSoft are:

• AsyncAPI over HTTPS: AsyncAPI is a specification for asynchronous APIs, which is ideal for high-performance, event-driven communication. Using HTTPS ensures secure communication.
• AMQP with RabbitMQ: AMQP (Advanced Message Queuing Protocol) is a protocol for message-oriented middleware. RabbitMQ is a popular message broker that supports AMQP, allowing for reliable and asynchronous message exchange.
• JSON/REST over HTTPS: JSON is a lightweight data-interchange format, and REST (Representational State Transfer) is an architectural style for designing networked applications. Using HTTPS ensures secure communication.

Implementation Steps:

• Define the AsyncAPI specification for the flight data events and set up the infrastructure to handle these events over HTTPS.
• Set up RabbitMQ and configure AMQP for message queuing. Ensure that your MuleSoft application is capable of consuming and producing messages using the RabbitMQ connector.
• Implement RESTful APIs using JSON over HTTPS to expose the flight data securely.

These technologies collectively ensure secure, asynchronous, and high-performance integration.

References:

• MuleSoft Documentation: AsyncAPI
• MuleSoft Documentation: RabbitMQ Connector
• MuleSoft Documentation: JSON and REST APIs

Explanation

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

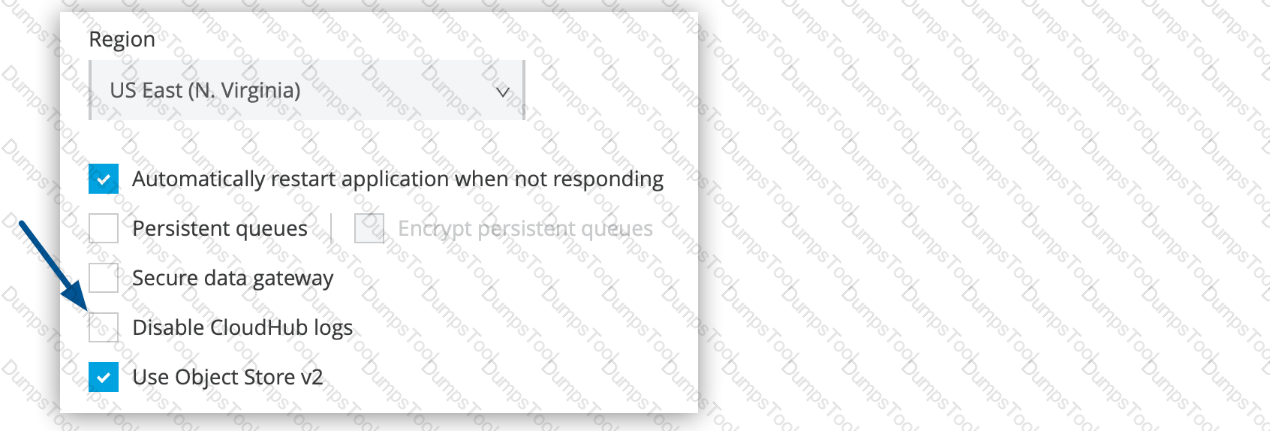

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

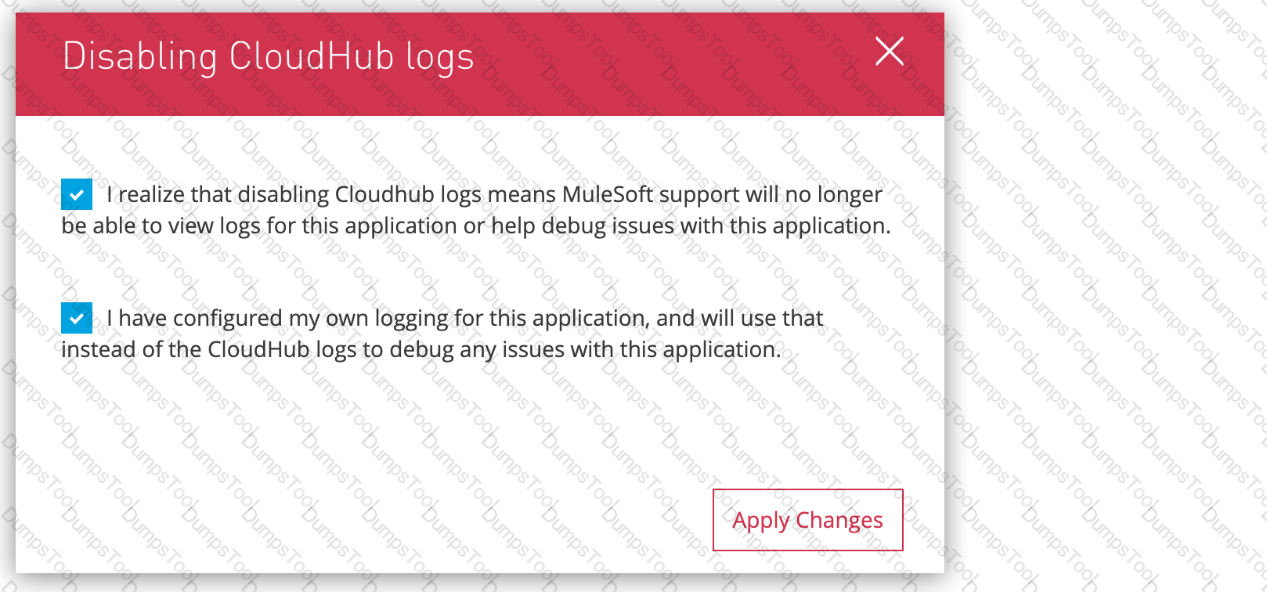

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender

Anypoint Platform provides the productivity advantage of automatic API proxy generation. This feature enables developers to quickly create proxies for their APIs, which act as intermediaries that forward requests to the appropriate backend services. Automatic proxy generation simplifies the process of securing and managing APIs, allowing developers to enforce policies, monitor traffic, and analyze usage without having to manually configure these aspects.

References:

• API Proxies on Anypoint Platform
• Improving API Productivity with Anypoint Platform

MuleSoft customers often favor a MuleSoft-hosted Anypoint Platform runtime plane over a customer-hosted runtime for the following reasons:

• Reduced time-to-market for the first application (C): Using a MuleSoft-hosted runtime plane accelerates the deployment process because MuleSoft manages the infrastructure, allowing customers to focus on developing and deploying their applications quickly. This leads to faster time-to-market for the initial application and subsequent updates.
• Reduced IT operations effort (E): By leveraging a MuleSoft-hosted environment, customers offload the operational responsibilities, such as infrastructure maintenance, updates, and scalability management, to MuleSoft. This reduces the IT operations workload and allows internal teams to focus on more strategic initiatives.

In contrast, other options like reduced application latency and increased application throughput are not directly influenced by whether the runtime plane is MuleSoft-hosted or customer-hosted.

References

• MuleSoft Anypoint Platform Documentation
• MuleSoft Hosted vs. Customer Hosted Deployment Guides

In an HTTP/1.1-compliant web service, the class of HTTP response status codes that indicates successful client requests is the 2xx class. These status codes signify that the client's request was successfully received, understood, and accepted by the web service. Common 2xx status codes include:

• 200 OK: The request was successful.
• 201 Created: The request was successful and a new resource was created.
• 202 Accepted: The request has been accepted for processing, but the processing is not yet complete.

Other status code classes like 3xx (redirection), 4xx (client errors), and 5xx (server errors) indicate different types of responses and do not signify successful request processing.

References

• IETF RFC 2616: HTTP/1.1 Specification
• HTTP Status Code Definitions

When migrating from an on-premises cluster to a Runtime Fabric (RTF) cluster, and needing to enable Mule applications to store and share data across application replicas and restarts, the use of Anypoint Object Store V2 is the most suitable option. Here’s why and how to implement it:

• Understanding Object Store V2:
• Setting Up Anypoint Object Store V2:
• Configuration Steps:

xml

• uk.co.certification.simulator.questionpool.PList@18be5ce0

xml

• Deploying on RTF:
• Benefits:

References:

• MuleSoft Documentation on Object Store V2
• MuleSoft Documentation on Runtime Fabric

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

References:

• MuleSoft's API-led Connectivity Approach
• Service-Oriented Architecture (SOA) Principles

Explanation

V2 Rest API is recommended for on premise applications to access Object Store. It also comes with overhead of encryption and security of using rest api. With Object Store v2, the API call is localized to the same data center as the Runtime Manager app.

But in this case requirement is to access the OS of other mule application and not the same mule application.

You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

However, Object Store v2 is not designed for app-to-app communication.

When configuring the TLS context for an HTTP request to the Google Maps API, the primary goal is to ensure that the Mule application can establish a secure connection. Here’s a detailed explanation of the necessary steps:

• Download Google Public Certificate:
• Generate JKS File from Certificate:

keytool -importcert -file google.cer -keystore truststore.jks -alias google

• Add JKS File to Truststore:

• Configure HTTP Request Connector:

By completing these steps, your Mule application will trust the Google Maps API server’s certificate, allowing for secure communication.

References

• MuleSoft Documentation: Configuring TLS
• Google Maps API Documentation

In Anypoint Exchange, policies are the asset type that represents configuration modules extending the functionality of an API and enforcing capabilities such as security. Policies can be applied to APIs to control access, apply throttling, manage security, and other aspects that modify or extend the behavior of APIs.

Rulesets, REST APIs, and connectors serve different purposes within the Anypoint Platform. Rulesets are used for validation or routing decisions. REST APIs define the endpoints and methods for API interactions, and connectors enable connectivity to various systems and services. Only policies are specifically designed to enforce additional capabilities on APIs.

References

• MuleSoft Anypoint Platform Documentation on API Policies
• Anypoint Exchange Overview

Explanation

* Setting a transaction timeout for the Bitronix transaction manager

● Set the transaction timeout either

– In wrapper.conf

– In CloudHub in the Properties tab of the Mule application deployment

● The default is 60 secs. It is defined as

mule.bitronix.transactiontimeout = 120

* This property defines the timeout for each transaction created for this manager.

If the transaction has not terminated before the timeout expires it will be automatically rolled back.

---------------------------------------------------------------------------------------------------------------------

Additional Info around Transaction Management:

Bitronix is available as the XA transaction manager for Mule applications

● To use Bitronix, declare it as a global configuration element in the Mule application

● Each Mule runtime can have only one instance of a Bitronix transaction manager, which is shared by all Mule applications

● For customer-hosted deployments, define the XA transaction manager in a Mule domain

– Then share this global element among all Mule applications in the Mule runtime

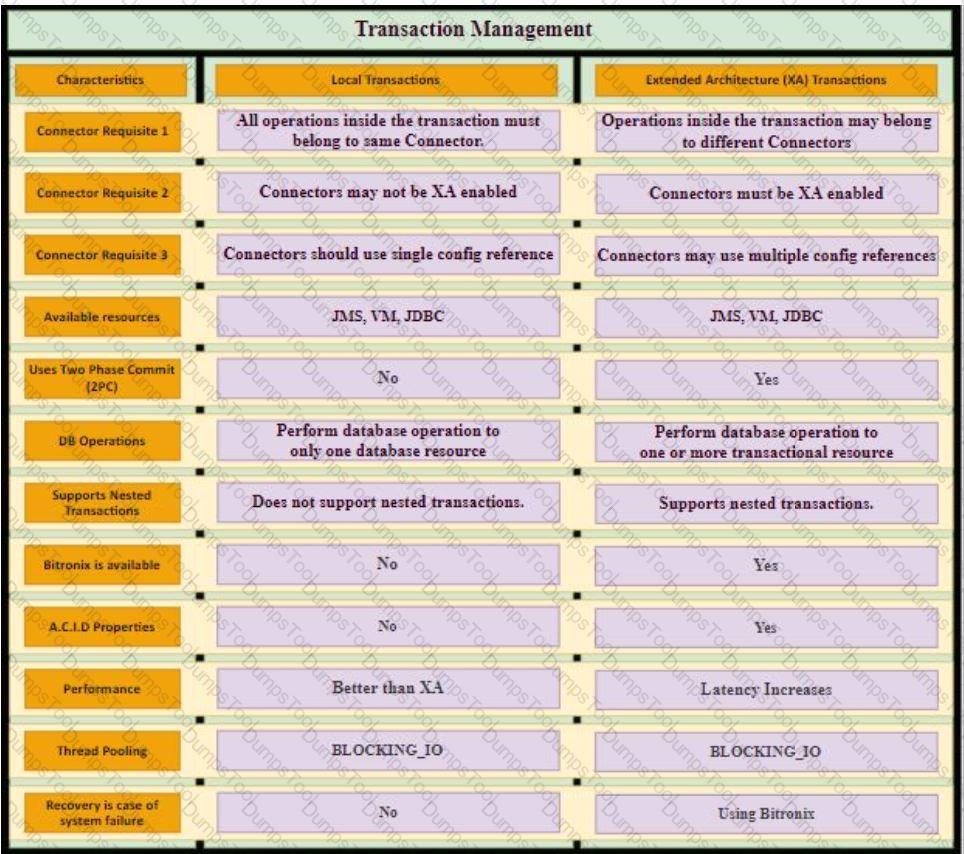

Graphical user interface, table Description automatically generated with medium confidence

A MuleSoft developer can use Anypoint Studio to implement an API as a Mule application, run the application locally, and execute unit tests against the running application. Anypoint Studio is an integrated development environment (IDE) for designing, building, testing, and deploying Mule applications. It provides tools for local development and testing, including MUnit for creating and running unit tests, making it a comprehensive solution for developing MuleSoft applications.

References:

• Anypoint Studio Overview
• Using MUnit for Unit Testing

Explanation

* Organization should continue to use SCM system of their choice, in addition to keeping source code for these asset types in Anypoint Exchange, thereby enabling parallel development, branching.

* Reason is that Anypoint exchange is not full fledged version repositories like GitHub.

* But at same time it is tightly coupled with Mule assets

Explanation

Connected Apps

The Connected Apps feature provides a framework that enables an external application to integrate with Anypoint Platform using APIs through OAuth 2.0 and OpenID Connect. Connected apps help users delegate their access without sharing sensitive credentials or giving full control of their accounts to third parties. Actions taken by connected apps are audited, and users can also revoke access at any time. Note that some products do not currently include client IDs in this release of the Connected Apps feature. The Connected Apps feature enables you to use secure authentication protocols and control an app’s access to user data. Additionally, end users can authorize the app to access their Anypoint Platform data.

Mule Ref Doc : https://docs.mulesoft.com/access-management/connected-apps-overview

For handling millions of requests per day with high performance and reliability, JMS (Java Message Service) transactions are the most suitable method. JMS transactions ensure that messages are processed reliably and can be rolled back in case of failures, providing transactional integrity. This is crucial for a trading company where reliable message processing is critical.

Using JMS transactions within Mule clusters allows for the decoupling of message producers and consumers, improving scalability and fault tolerance. JMS provides built-in mechanisms for handling transactional messaging, ensuring that messages are processed once and only once, even in the event of system failures.

References:

• MuleSoft Documentation on JMS

In a typical REST request, the order of interaction is:

• API Client: The client initiates the request to access data or functionality exposed by the API.
• API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.
• API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

References:

• Understanding REST APIs
• API Design and Implementation

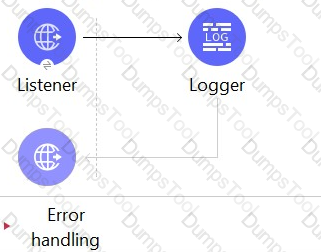

In Mule applications, different components are handled by specific thread pools to optimize performance and resource utilization.

• HTTP Listener: This component handles incoming HTTP requests and is managed by the Shared Selector Pool. The Shared Selector Pool is responsible for handling non-blocking IO operations efficiently.
• Logger: The Logger component is lightweight and does not perform CPU-intensive operations. It is managed by the CPU_LITE thread pool, which is designed for lightweight CPU operations.

This separation ensures that IO-bound operations do not block CPU-bound operations, maintaining optimal performance and responsiveness in the application.

References:

• MuleSoft Threading and Thread Pools
• MuleSoft HTTP Listener Documentation

=========================

Anypoint MQ is a cloud-based messaging service provided by MuleSoft. It is designed to work within MuleSoft's cloud ecosystem, which can impose certain limitations that might prevent its use in some scenarios:

• Message Broker Must Be Hosted On-Premises:
• Ability for a Third Party Outside the Company's Network to Consume Events from the Queue:

References

• MuleSoft Documentation: Anypoint MQ
• MuleSoft Anypoint MQ Overview

To address the reliability and scalability issues faced by the insurance provider, adding a load balancer and configuring additional servers in a cluster configuration is the optimal solution. Here's why:

• Load Balancing: Implementing a load balancer will help distribute incoming API requests evenly across multiple servers. This prevents any single server from becoming a bottleneck, thereby improving the overall performance and reliability of the system.
• Cluster Configuration: By setting up a cluster configuration, you ensure that multiple servers work together as a single unit. This provides several benefits:
• Maintenance: With a cluster configuration, servers can be taken offline for maintenance one at a time without affecting the overall availability of the applications, as the load balancer can redirect traffic to the remaining servers.
• VM Queues and Object Stores: In a clustered environment, the use of VM queues and object stores can be more efficiently managed as these resources are distributed across multiple servers, reducing the risk of contention and improving throughput.

References:

• MuleSoft Documentation on Clustering: https://docs.mulesoft.com/mule-runtime/4.3/clustering
• Best Practices for Scaling Mule Applications: https://blogs.mulesoft.com/dev/mule-dev/mule-4-scaling-applications/

The Salesforce API used to deploy, retrieve, create, update, or delete customization information, such as custom object definitions, using Mule Salesforce Connectors in a Mule application, is the Metadata API. The Metadata API enables programmatic access to the metadata of Salesforce organizations, allowing developers to manage customizations and configurations programmatically.

Using the Metadata API, Mule applications can automate the deployment and management of Salesforce customizations, facilitating continuous integration and deployment processes within Salesforce environments.

References

• MuleSoft Documentation on Salesforce Connectors
• Salesforce Metadata API Developer Guide

A major distinguishing characteristic of an application network, according to MuleSoft, is that it is built for change and self-service. An application network connects applications, data, and devices with APIs, enabling self-service access and reuse of assets. This architecture allows organizations to rapidly adapt to changing business needs, fosters innovation, and reduces time to market by empowering different teams to access and integrate systems independently without waiting for centralized IT.

References:

• Application Networks: The Future of Integration
• MuleSoft's Approach to Building Application Networks

Explanation

Correct answer is Create a mocking service that replicates the backend system’s production performance characteristics. Then configure the API implementation to use the mocking service and conduct the performance tests

* MUnit is for only Unit and integration testing for APIs and Mule apps. Not for performance Testing, even if it has the ability to Mock the backend.

* Bypassing the backend invocation defeats the whole purpose of performance testing. Hence it is not a valid answer.

* Scaled down performance tests cant be relied upon as performance of API's is not linear against load.

• Requirement Analysis: Jenkins files and folders used for CI/CD configurations are not part of the actual Mule package and should be excluded from the deployed archive.
• Solution: MuleSoft provides the .muleignore file to specify files and directories that should be excluded from the packaged application.
• Implementation Steps:

# .muleignore example /path/to/jenkins/file1 /path/to/jenkins/folder/*

• uk.co.certification.simulator.questionpool.PList@18be4c30
• Advantages:

References

• MuleSoft Documentation on .muleignore

To meet the requirements of enriching logging with more context and improving throughput while reducing latency, the customer should use an asynchronous logging approach. Here's why option B is correct:

• Async Logger: Asynchronous logging helps in improving the performance by decoupling the logging from the main thread of execution. This reduces the latency of message processing since logging operations are offloaded to a separate thread.
• Logging Level Greater than INFO: Logging at levels such as WARN, ERROR, or FATAL ensures that only essential logs are written asynchronously, further enhancing performance. Avoiding DEBUG or TRACE levels unless necessary reduces the overhead of logging.
• Pattern Layout with [%MDC]: Using the pattern layout with [%MDC] in the log4j2.xml configuration file allows the inclusion of mapped diagnostic context in the logs. MDC is a feature that provides context-specific information, such as transaction IDs or user IDs, which helps in tracing and debugging.

Example configuration in log4j2.xml:

This configuration ensures that the logs are enriched with context information provided by MDC and processed asynchronously to maintain high throughput and low latency.

References

• Log4j2 Asynchronous Logging
• Mapped Diagnostic Context (MDC) in Log4j2
