MB-820 Questions and Answers

You are working on an on-premises Business Central instance and unable to download symbols for a new AL project. The current configuration in launch.json does not allow you to download symbols, and you need to make corrections.

Key Points in the Scenario:

Instance name is TEST.

Developer services port is 7149.

Windows authentication is being used.

Correct Answers:

A. Change the server Instance parameter to TEST.

The serverInstance parameter must match the name of the Business Central instance, which is TEST in this scenario. You need to modify this to reflect the correct instance name.

B. Add the port: 7149 parameter.

Since the developer services are using port 7149, you need to specify this in the launch.json file by adding the port parameter with the value 7149.

Incorrect Options:

C. Change the name parameter to TEST: The name parameter is just a label and does not affect downloading symbols, so changing this won't help.

D. Change the authentication parameter to UserPassword: The authentication method is already set to Windows, which is valid for this scenario. Changing it to UserPassword is unnecessary unless specified by the system.

E. Check which server the instance is installed on and replace http://localhost with the correct IP address: Since the server is on the same machine as Visual Studio Code (as specified), localhost is correct.

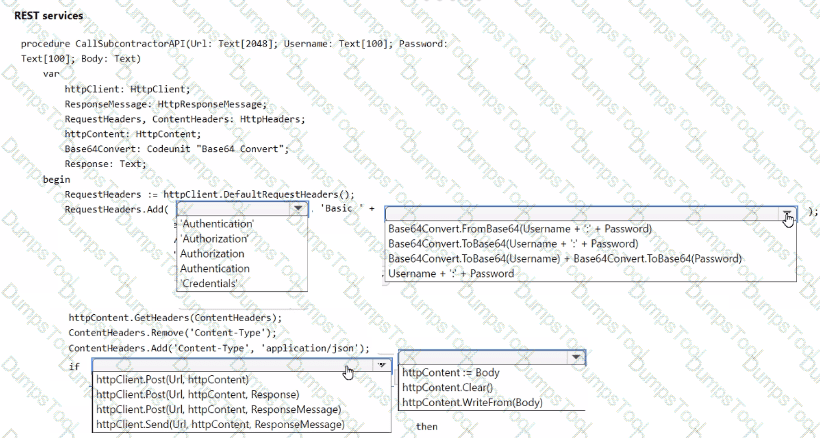

To correctly write the code to call the subcontractor's REST API, you would need to set the Authorization header with the base64 encoded username and password for basic authentication. The code segment indicates the use of the Base64Convert codeunit to convert the username and password to base64 format, which is then prefixed with "Basic " to form the proper Authorization header value.

The correct method to add the Authorization header to the RequestHeaders would be:

RequestHeaders.Add('Authorization', 'Basic ' + Base64Convert.ToBase64(Username + ':' + Password));

And the correct method to set the httpContent with the body of the request would be:

httpContent.WriteFrom(Body);

These are the necessary steps to form a well-structured HTTP request for basic authentication and to include the body of the request in the API call.

In the context provided by the case study, when calling an API action from a mobile application, the correct format for a POST request to an action in Business Central typically involves specifying the entity (/issues), the ID of the entity (88122e0e-5796-ec11-bb87-000d3a392eb5), and the action to be called (/Copy). The action name should match the exact name as defined in the AL code, which is case-sensitive.

Option A is incorrect because it uses a non-standard format for the action call.

Option B uses the PATCH method, which is generally used for update operations, not for calling actions.

Option C is correct as it uses the POST method, which is appropriate for calling actions, and correctly specifies the entity, ID, and action name.

Option D is incorrect because the action name /copy is in lowercase, while AL is case-sensitive, and it should match the case exactly as defined in the code.

Option E incorrectly adds 'MicrosoftNAV' before the action name, which is not standard for calling actions in Business Central APIs.

Hence, the correct action to use when calling the Issue API action from the mobile application is given in Option C.

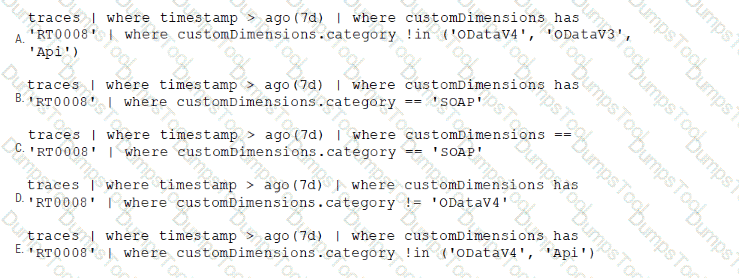

The task is to identify unwanted incoming web service calls during the last seven days. To do this, we need to look at KQL (Kusto Query Language) queries that would filter out web service calls based on the timestamp (to ensure the calls are within the last seven days) and by certain characteristics that would indicate they are unwanted, such as the wrong type of protocol (SOAP in this case, as Contoso Ltd. plans to dismiss using it).

Looking at the options:

Option A: This query selects all traces where the timestamp is within the last 7 days and where the custom dimension has a value of 'RT0008', and where the category is either 'ODataV4', 'ODataV3', or 'Api'. This query would show all API calls except SOAP, so it does not directly answer the question about unwanted calls.

Option B: This query filters for traces with a timestamp within the last 7 days, where 'RT0008' is present, and specifically looks for the category 'SOAP'. This query is correct because it directly targets SOAP calls, which are the unwanted calls according to Contoso Ltd.'s plans.

Option C: Similar to option B, this query filters for traces within the last 7 days and looks for 'RT0008' but uses the equality operator for the category 'SOAP'. This would also correctly return the unwanted SOAP calls.

Option D: This query also filters for traces within the last 7 days, but it excludes the 'ODataV4' category, which doesn't necessarily target the unwanted SOAP calls.

Option E: This query selects traces where the timestamp is within the last 7 days and the custom dimension has 'RT0008'. However, it filters out categories 'ODataV4' and 'Api', which does not directly help in identifying the unwanted SOAP calls.

Therefore, the queries that should be used to determine if there are unwanted incoming web service calls (SOAP calls) in the tenant during the last seven days are Options B and C. These queries are specific to identifying SOAP protocol usage, which is what Contoso Ltd. considers unwanted.

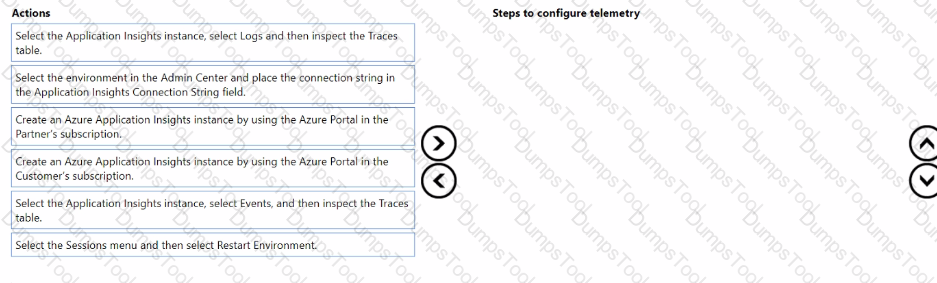

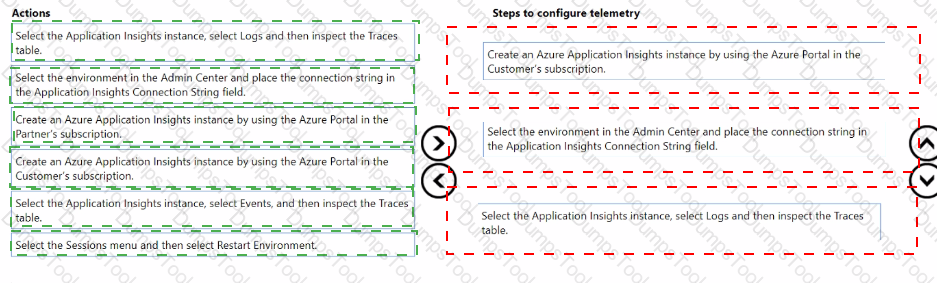

The correct sequence of actions to configure telemetry for the SaaS tenant and test whether the ingested signals are displayed would be:

Create an Azure Application Insights instance by using the Azure Portal in the Customer's subscription.

Select the environment in the Admin Center and place the connection string in the Application Insights Connection String field.

Select the Application Insights instance, select Logs and then inspect the Traces table.

To set up telemetry for a SaaS tenant using Azure Application Insights, you need to follow these steps:

Create an Azure Application Insights instance: This is the first step where you create an instance in Azure that will collect the telemetry data. This should be done in the customer's Azure subscription because it's their data that you're monitoring.

Configure the SaaS tenant to use the created Application Insights instance: This involves entering the correct connection string in the Business Central Admin Center so that telemetry data from the tenant is sent to the Application Insights instance.

Verify that telemetry is being collected: After configuring, you would check if the telemetry is arriving as expected by inspecting the Traces table in the Azure Application Insights instance. The 'Traces' table holds the telemetry data, which you can query to verify that the correct signals are being ingested.

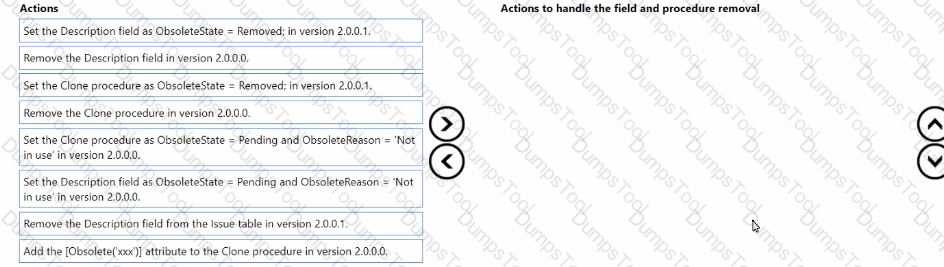

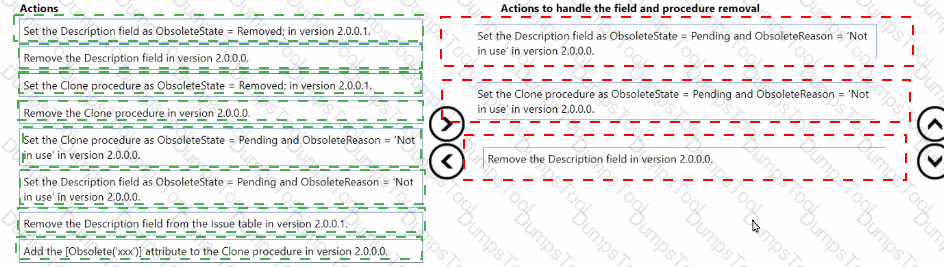

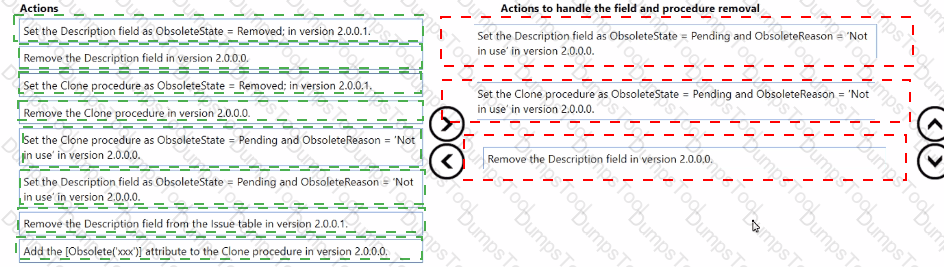

In Business Central, when you need to handle the removal of fields and procedures to ensure that other extensions are not affected by these changes, you typically follow a two-step deprecation process. This allows other developers and users to adapt to the changes before they are fully enforced. Here are the steps to handle the removal:

Mark as Obsolete: In the first version where the decision to remove the field or procedure is made, you set the ObsoleteState to Pending and provide an ObsoleteReason. This doesn't remove the feature but indicates to users and developers that it will be removed in the future. This step is crucial for backward compatibility.

Removal: In a subsequent version, after users have had time to adapt to the deprecation warning, you can then remove the field or procedure or set the ObsoleteState to Removed.

Based on these guidelines, here are the three actions you should perform in sequence:

Set the Description field as ObsoleteState = Pending and ObsoleteReason = 'Not in use' in version 2.0.0.0.

Set the Clone procedure as ObsoleteState = Pending and ObsoleteReason = 'Not in use' in version 2.0.0.0.

Remove the Description field from the Issue table in version 2.0.0.1.

These steps will ensure that anyone using the Description field or Clone procedure will receive a warning about the pending deprecation before it is actually removed, thereby minimizing the impact on other extensions and providing a clear path for migration.

When handling the removal of fields and procedures in Microsoft Dynamics 365 Business Central, the process should be carried out in a way that allows other extensions or dependent features to adapt to the changes without causing immediate failures.

Set Obsolete State and Reason for Description Field (Version 2.0.0.0): The first step involves marking the Description field as obsolete by setting the ObsoleteState to 'Pending'. This is a non-breaking change, signaling to other developers and users that the field is planned for removal in a future version. An ObsoleteReason should also be provided to explain why the field is being deprecated.

Set Obsolete State and Reason for Clone Procedure (Version 2.0.0.0): Similarly, the Clone procedure should be marked as obsolete with the ObsoleteState set to 'Pending'. This indicates that the procedure is no longer in use and will be removed in the future. Providing an ObsoleteReason is best practice as it explains the rationale behind the decision.

Remove the Description Field (Version 2.0.0.1): In the subsequent version, after the developers and users have been given time to adapt to the deprecation notice, the Description field can be safely removed from the Issue table. This is considered a breaking change, hence it is done after the field has been marked as obsolete in a previous version.

The reason for not removing the Description field and Clone procedure immediately in version 2.0.0.0 is to avoid causing runtime errors for any extensions or integrations that may depend on these components. By following this sequence, you provide a clear deprecation path that helps maintain the stability of the overall system while evolving the schema.

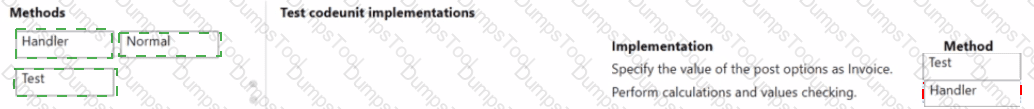

Specify the value of the post options as Invoice:

Test

Perform calculations and values checking:

Handler

In the context of Microsoft Dynamics 365 Business Central testing, the 'Test' attribute is used to mark a method as a test method. This is where you would specify the action or the behavior you're testing – in this case, setting the post options as Invoice. It's within these test methods that you would simulate setting the posting option to "Invoice" programmatically.

For performing calculations and checking values, you would use 'Handler' methods to handle specific business events or conditions that occur within the system, such as before or after posting a document. These handlers can ensure that calculations are done correctly and that all validation checks pass before the document is posted.

The 'Normal' method would be a standard method that could be involved in the posting process, ensuring that all business logic is correctly applied and that the calculations and value checks are as expected.

In a test codeunit, you would typically have test methods that call these handler and normal methods to verify the business logic in various scenarios, such as posting with different options or checking the results of calculations under different conditions.

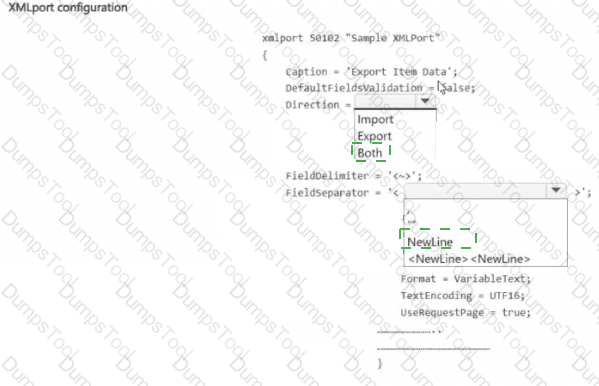

 Direction: Both

 Format: VariableText

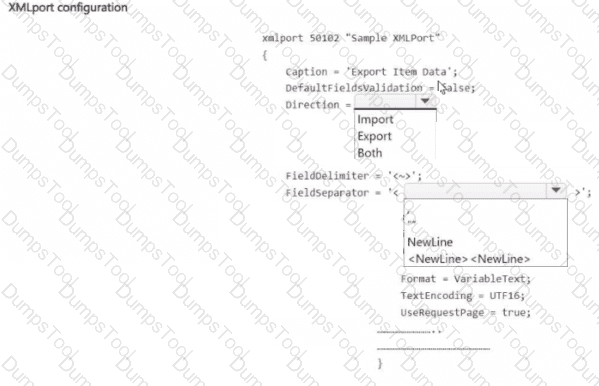

You are configuring an XMLport for Business Central with the following requirements:

Specifies import or export on the Request page at runtime.

Formats the data in a non-fixed length CSV format.

XMLport Configuration:

Specifies import or export on the Request page at runtime.The Direction property must be set to Both.

This allows the XMLport to both import and export data depending on user selection during runtime.

Formats the data in a non-fixed length CSV format.The Format property must be set to VariableText.

VariableText is used for delimited text formats like CSV, which do not have a fixed length for fields.

To create the Approver field in the Item table using an AL extension, perform the following actions in sequence:

Create an enum object named Approver and include all options.

Create a table extension object for an Item table with an Approver field of enum type named Approver in the fields section.

Create a page extension object that extends the Item Card object. Add the field to the fields section.

Build and extend tables:To add a new field to an existing table in Business Central using AL extension, you need to define an enumeration (enum) with the possible values for the new field. Then, you create a table extension object where you add the new field and specify its type as the enum you created. This adds the field to the Item table. Finally, you modify the user interface to display the new field by creating a page extension for the Item Card page and adding the new field to it.

To round up a decimal variable to four decimal places in Microsoft Dynamics 365 Business Central, you should use the Round function with specific parameters. The correct formula is Result := Round(AmountLCY, 0.0001, '=') (B). This function rounds the AmountLCY variable to the nearest value based on the second parameter, which is 0.0001 in this case, representing four decimal places. The third parameter, '=', specifies that the function should round to the nearest value, which effectively rounds up the value when it's halfway between two possible rounded values. This approach ensures that the AmountLCY variable is accurately rounded to four decimal places, which is essential for financial calculations and reporting to maintain precision.

Based on the PowerShell script snippet you've provided and the scenario described, you need to configure Docker sandbox environments for a company with specific requirements for Test Toolkit installations.

For SandboxA, since it is configured without the Test Toolkit installed, you would typically use the PowerShell cmdlet Install-TestToolkitToBcContainer to install the Test Toolkit into the Business Central Docker container.

For SandboxB, which must be configured from scratch with the Test Toolkit installed during configuration, you would include the Test Toolkit as part of the New-BcContainer script block that creates the container.

The relevant cmdlets and parameters for SandboxB would include:

-includeTestToolkit: This parameter ensures that the Test Toolkit is included during the creation of the new container.

Given the limited context from the image, here's how you should complete the cmdlets for SandboxB:

Add -includeTestToolkit in the New-BcContainer script to ensure the Test Toolkit is installed when creating SandboxB.

Since you are setting up SandboxB from scratch, you don't need to run Install-TestToolkitToBcContainer separately as the toolkit will be included at the time of container creation with the -includeTestToolkit parameter.

For the New-BcContainer cmdlet, you would fill in the placeholders with the appropriate values for artifactUrl, imageName, and licenseFile if they are required for your specific setup.

Handler methods are used in tests to simulate user interactions, such as responding to dialogs, confirmation messages, or option selections. Since you need to simulate the user interaction of selecting a posting option (Ship, Invoice, Ship & Invoice), a Handler method would be the appropriate choice for capturing this kind of user input.

Normal attribute and Test attribute are used for marking methods for test execution, but they do not simulate user interaction, making Handler method the correct answer.

For more details, see the Microsoft Docs on Test Codeunits and Handler Methods.

To roll back changes to a test method after run time, you should:

Set the TransactionModel attribute to AutoRollback.

To run an approve action on a test page named TestPageA, you should:

Configure TestPageA.Approve.Invoke().

In Business Central's testing framework, the TransactionModel attribute can be set to AutoRollback. This ensures that any changes made during the test are rolled back after the test is complete, leaving the database in its original state.

For running an action on a test page, you would use the 'Invoke' method on the action you wish to perform. In this case, to run an approve action on TestPageA, you would use TestPageA.Approve.Invoke() within your test codeunit. This simulates the user action of approving something on the page.

These actions ensure that the testing environment is properly set up to test specific functionalities without persisting test data and to invoke actions as part of the test scenarios.

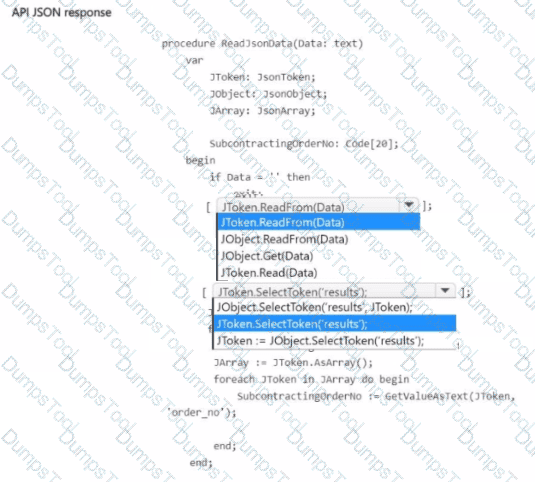

Code Segment Analysis:

The AL code is trying to read JSON data from a response and process it to extract subcontracting order numbers. It uses JsonToken, JsonObject, and JsonArray to work with the JSON data.

JToken.ReadFrom(Data): This line reads the incoming JSON data and converts it into a token. It processes the full JSON body so you can start working with it.

JToken.SelectToken("results"): This line selects the part of the JSON containing the results array. The key "results" is where the JSON response data is expected to be found.

JsonArray: Once the results are extracted, they are stored as an array, and each element in the array (which is expected to contain subcontracting order numbers) is processed.

SubcontractingOrderNo: The extracted order_no from the JSON is stored in this variable.

Breakdown of Steps:

JToken.ReadFrom(Data): This step reads the entire JSON response.

JToken.SelectToken("results"): This step selects the results array from the JSON response.

JArray.AsArray(): This step converts the selected results token into a JSON array that can be iterated over.

GetValueAsText(JToken, 'order_no'): This step retrieves the order_no from each element in the array.

Correct Code Completion:

JToken.ReadFrom(Data): This is the correct method to read the incoming JSON response, as it will convert the string into a JsonToken that can be further processed.

JToken.SelectToken("results"): This is the correct method to extract the results array from the token. This method looks for the key "results" in the JSON and retrieves the relevant array.

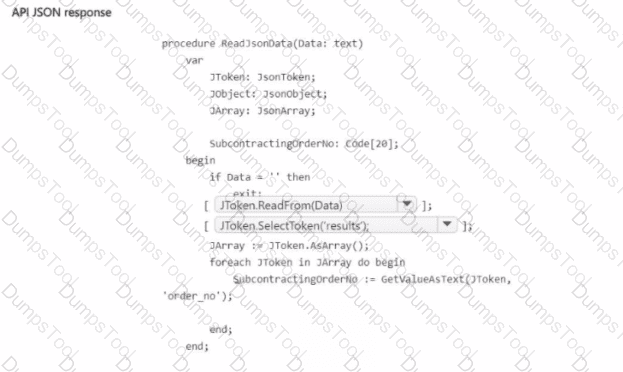

Final Code Segment:

al

Copy code

procedure ReadJsonData(Data: text)

var

JToken: JsonToken;

JObject: JsonObject;

JArray: JsonArray;

SubcontractingOrderNo: Code[20];

begin

if Data = '' then

exit;

JToken := JToken.ReadFrom(Data); // Step 1: Read the JSON response data.

JToken := JToken.SelectToken('results'); // Step 2: Select the "results" array.

JArray := JToken.AsArray(); // Convert the token into a JSON array.

foreach JToken in JArray do begin

SubcontractingOrderNo := GetValueAsText(JToken, 'order_no'); // Retrieve the order number.

end;

end;

JToken.ReadFrom(Data): This reads the raw JSON data string and converts it into a JSON token that can be processed.

JToken.SelectToken("results"): This extracts the results array from the JSON data.

JArray.AsArray(): Converts the token into an array so we can iterate over it.

GetValueAsText(JToken, 'order_no'): Extracts the order_no value from each item in the array.

API Publishing for Extensions:

In Business Central, when creating custom APIs like RoomsAPI, it is important to ensure that they are automatically published during the installation or upgrade of the extension.

To achieve this, you can include a codeunit of type Install in the extension that explicitly publishes the custom API (RoomsAPI) as a web service. This ensures that it is available for use immediately after the extension is deployed without requiring manual intervention.

Codeunit Type:

A codeunit of type Install runs when the extension is installed or upgraded. This type of codeunit can be used to perform setup tasks such as publishing web services or APIs like RoomsAPI.

Why Not Other Options?

Option A (default API configuration): This would not automatically publish the RoomsAPI. Default APIs do not cover custom APIs.

Option B (enable APIs for the environment): Enabling APIs in Business Central allows the standard APIs to be used, but custom APIs still need to be manually published.

Option C (publish via Web Services page): This would work but requires manual intervention to publish RoomsAPI, which does not fulfill the requirement of automatic publishing during installation.

Reference Documentation:

Publishing APIs in Extensions

Codeunit Types in Business Central

In the context of Microsoft Dynamics 365 Business Central, an extension may not appear in the tenant for several reasons, particularly after an upgrade to a new major version.

Option A suggests that the extension was published as a DEV extension, which typically would not cause it to disappear after an upgrade because DEV extensions are intended for development and testing within sandbox environments.

Option B indicates that the extension was not compatible with the new version within 60 days of the first notification. This is a likely reason because Microsoft enforces compatibility rules, and extensions that are not made compatible within the specified timeframe might be removed or disabled.

Option C refers to the extension being published as a PTE (Per-Tenant Extension) and mentions the Platform parameter not being updated. This could cause issues, but not specifically the disappearance of the extension after an upgrade.

Option D expands on Option C by adding that both the Platform and Runtime parameters were not updated in the application file. This is a critical aspect because if these parameters are not correctly set to indicate compatibility with the new version of Business Central, the extension could be disabled or removed.

Option E is similar to Option B but mentions a 90-day period. This option does not align with standard Business Central practices for version compatibility requirements.

Therefore, the two possible reasons for the disappearance of the extension in the tenant after an upgrade are that the extension was not compatible with the new version within the required timeframe (Option B) and that the extension was published as a PTE without the Platform and Runtime parameters being updated (Option D).

Table Structure in Business Central: When creating entities such as "non-conformity" entities in Business Central, you use document tables to represent entities that have a header and line structure. In this case, the non-conformity entity has:

A header with common information (Non-conformity Number, Date, Vendor No., etc.).

One or more lines representing the detailed information for each non-conforming item.

Document Table Usage:

Document Table: A document table is the correct table type for scenarios where you have a header (with general information like vendor details) and lines (with detailed, item-specific information).

Document tables are typically used for entities such as Sales Orders, Purchase Orders, or any other transactional data where you have both header and line information.

Supplemental Table (Option C):

Supplemental tables are usually used to add supplementary information to existing data in Business Central. In this case, we need to store detailed line information, which is a core part of the entity rather than supplementary data, so a supplemental table would not be appropriate here.

Document History Table (Option A):

Document history tables are used to track changes and historical data for entities but are not suitable for the main introduction of the entity and its lines. This option is also not appropriate.

Reference Documentation:

Introduction to Business Central Tables

Document Tables in Business Central

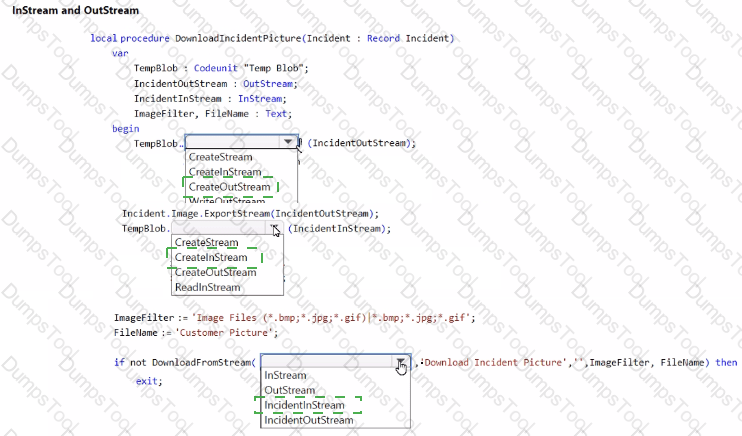

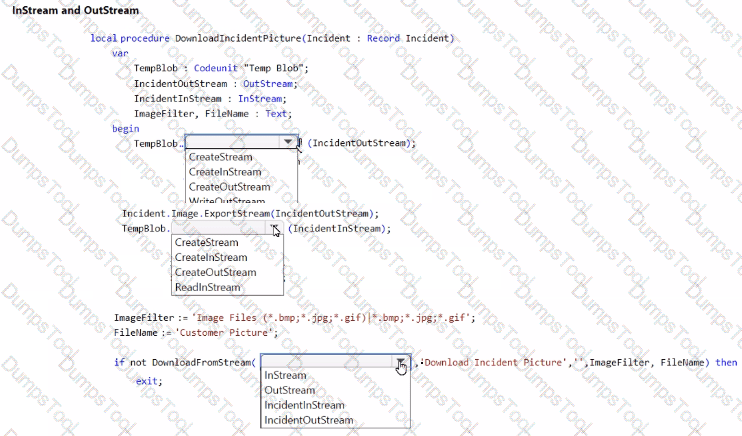

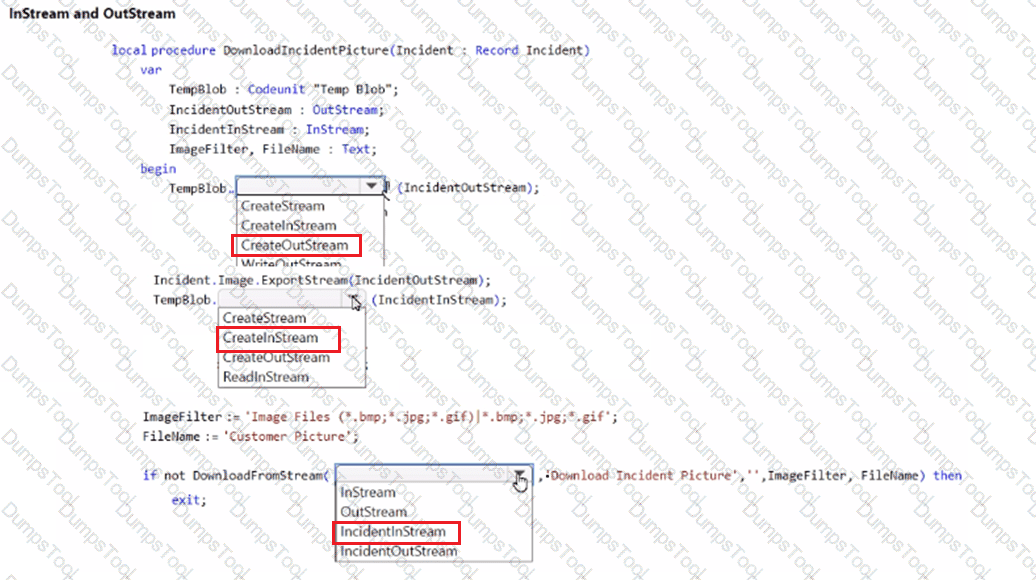

var

TempBlob: Codeunit "Temp Blob";

IncidentOutStream: OutStream;

IncidentInStream: InStream;

ImageFilter, FileName: Text;

begin

// Initialize the TempBlob and streams

TempBlob.CreateOutStream(IncidentOutStream);

Rec.Image.ExportStream(IncidentOutStream); // 'Rec' refers to the current Room Incident record

TempBlob.CreateInStream(IncidentInStream);

// Set the filters and filename for the image

ImageFilter := 'Image Files (*.bmp,*.jpg,*.jpeg,*.gif)|*.bmp;*.jpg;*.jpeg;*.gif';

FileName := 'Customer Picture';

// Prompt the user to download the image

if not DownloadFromStream(IncidentInStream, '', 'Download Incident Picture', '', ImageFilter, FileName) then

Error('Unable to download the image.');

end;

 Design pattern for the setup table:

The correct selection here is Adapter. The Adapter design pattern is commonly used when you need to handle integration points or create a setup table that acts as an intermediary for data manipulation, which fits the requirement for the configuration of the non-conformity functionality.

 Data type of the primary key field:

The correct data type is Code. In Business Central, when creating a table with a primary key field, the Code data type is typically used for fields such as document numbers, codes, and identifiers. For a setup table, a Code field is appropriate for keys like "No." series or setup identifiers.

 Property required to prevent users from adding records:

The correct property is InitValue. This property is used to set initial values for fields and can be configured in such a way that users are prevented from adding records directly, typically enforcing control over record creation and editing in configuration scenarios.

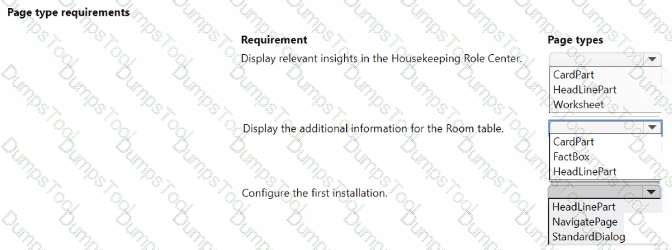

For the requirements provided, the appropriate page types should be selected as follows:

Display relevant insights in the Housekeeping Role Center: HeadlinePart

Display the additional information for the Room table: FactBox

Configure the first installation: StandardDialog

Comprehensive Detailed ExplanationIn the context of Microsoft Dynamics 365 Business Central, page types are crucial for determining how information is presented to the user.

HeadlinePart: This page type is designed to display key data and insights in a concise and visually appealing manner, often used in Role Centers to highlight important information. It is suitable for the Housekeeping Role Center to display relevant insights.

FactBox: This page type is used to display supplementary information related to a selected record in the main part of the page. It's often used to show additional details about a record in a list, card, or document page. In this scenario, it is suitable for showing additional information about a specific Room when viewing the Room table.

StandardDialog: This is a page type that provides a modal dialog for user interaction, commonly used for setup wizards, confirmations, and input forms that require user action before proceeding. This is appropriate for configuring the first installation, where a step-by-step guided interaction is necessary.

In Business Central, fields in tables are assigned specific data types that determine the kind of data they can store. For the Non-conformity table mentioned in the case study, the following data types should be used:

Date for the Non-Conformity Date field: This is because the Non-conformity Date field is required to store only the date when the non-conformity was recorded. The Date data type is appropriate for storing dates without times.

Code for the Non-Conformity Number field: The Non-conformity Number field is described to use alphanumeric values with a format that includes "NC" and the year, like "NC24-001". In Business Central, the Code data type is used for fields that store alphanumeric keys. It is a text field with a limited length, which makes it suitable for number series that contain letters and numbers.

Other options are not suitable:

A. Integer for the Non-conformity Number field: This would not be appropriate because the Non-conformity Number includes alphanumeric characters and not just integers.

B. DateTime for the Non-Conformity Date field: This is not correct because there is no requirement to store the time alongside the date.

C. Char for the Non-Conformity Number field: Char data type is not typically used in Business Central for number series or identifiers. The Code data type is preferred for this purpose.

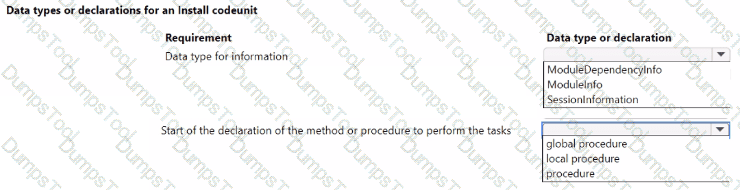

For the Install codeunit required for the extension used for installing or updating the Housekeeping app, you should use the following data type and declaration:

Data type for information: ModuleInfo

Start of the declaration of the method or procedure to perform the tasks: local procedure

In AL language, which is used for developing extensions in Business Central, an Install codeunit is a special type of codeunit that is used to handle installation or upgrade logic for an extension.

ModuleInfo is a data type that contains information about the current extension, such as its version. It is typically used within the OnInstallAppPerCompany or OnUpgradePerCompany triggers of an Install codeunit to determine if the app is being installed for the first time or upgraded.

A local procedure within an Install codeunit is a method that is only accessible within the codeunit itself. It is not visible to other objects or extensions. This is suitable for tasks that are internal to the installation process and should not be exposed globally.

These selections align with the requirements of handling installation and update procedures in a controlled and encapsulated manner within Business Central extensions.

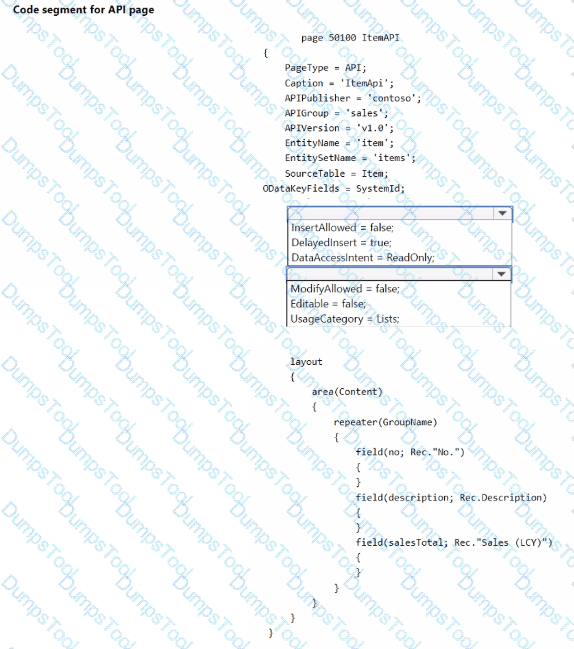

Read Scale-Out:

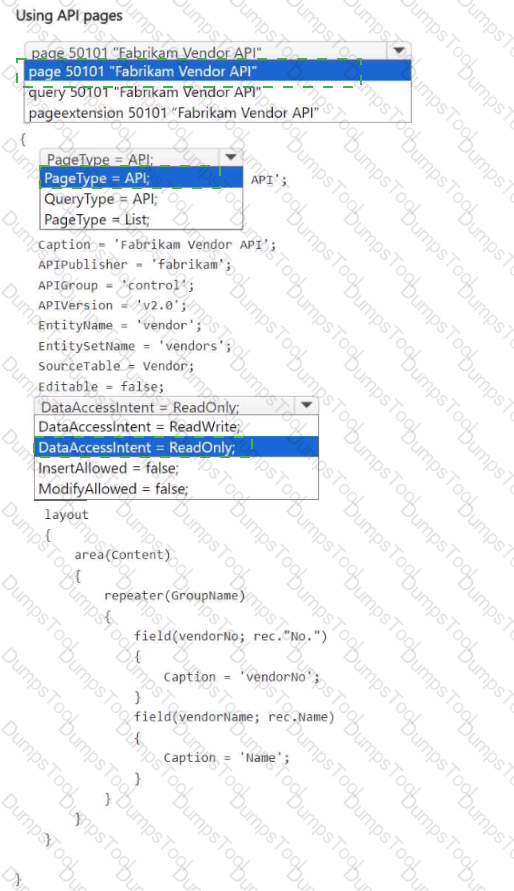

Read scale-out is a feature in Business Central that allows you to improve performance by distributing read-only queries (such as the ones from the ticketAPI) across multiple read replicas in the cloud database. This reduces the load on the primary database and helps improve the response time for read-intensive operations, like analyzing POS data through the ticketAPI.

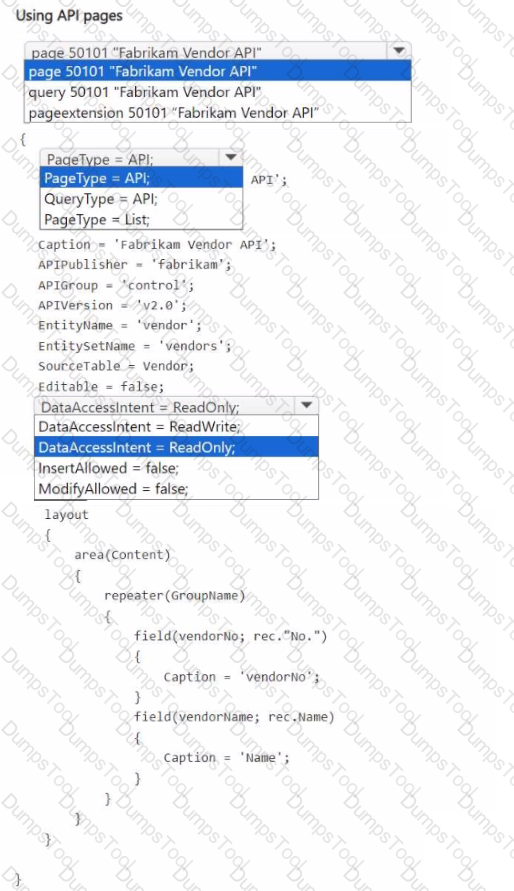

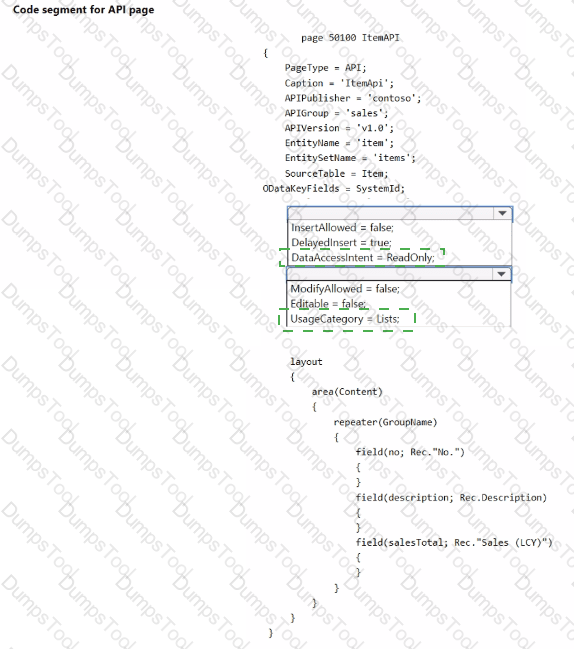

Data Access Intent - ReadOnly:

When enabling read scale-out, you can configure the DataAccessIntent property of APIs to be ReadOnly. This directs the system to use read replicas to handle read-only queries, which enhances performance by offloading such queries from the primary database.

Why Not Other Options?

Option A (ODataReadonlyGetEnabled): This parameter is unrelated to read scale-out and primarily affects OData services behavior, not API performance tuning.

Option B (AccessByPermission): Setting the permission to Read does not directly affect the performance. It only controls access based on user permissions.

Option D (DataAccessIntent ReadOnly): While setting this property to ReadOnly helps in read-only operations, enabling read scale-out (option C) ensures the underlying infrastructure is optimized to handle such read operations, which is the fundamental action required.

Reference Documentation:

Read Scale-Out in Business Central

Data Access Intent in AL

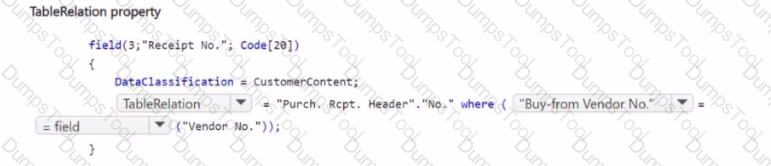

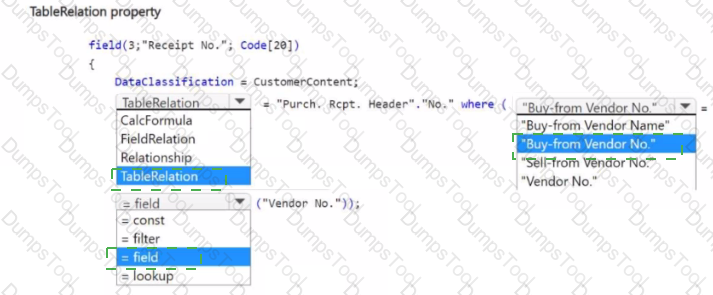

field(3; "Receipt No."; Code[20])

{

DataClassification = CustomerContent;

TableRelation = "Purch. Rcpt. Header"."No." where ("Buy-from Vendor No." = field("Vendor No."));

}

Field Declaration:

The field(3; "Receipt No."; Code[20]) part defines the field in the table with ID 3 and type Code with a length of 20. This field will hold the receipt number.

DataClassification:

CustomerContent is selected for the DataClassification property, which categorizes the data for privacy and compliance management. This aligns with Business Central's recommendations for handling sensitive data in customer-related tables.

TableRelation Property:

The TableRelation property links the "Receipt No." field to another table, which in this case is the "Purch. Rcpt. Header" table. This ensures that only valid receipt numbers from the Purchase Receipt Header table can be selected or entered in this field.

Relation Filter:

The filter condition is applied using the where clause. It ensures that the Receipt No. is only from the Purchase Receipt Header records where the "Buy-from Vendor No." matches the "Vendor No." of the current record.

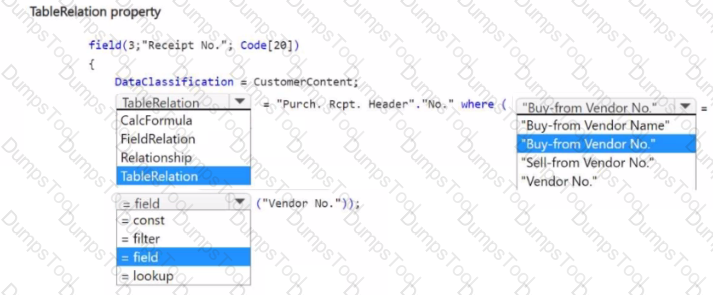

The condition field("Vendor No.") is selected from the drop-down as shown in the image. This links the vendor information in the non-conformity table to the receipt in the Purchase Receipt Header table.

By linking the "Vendor No." fields, you ensure that only receipt numbers from the correct vendor are available, which improves data consistency and reduces errors during data entry.

References to AL Language:

The TableRelation property is frequently used to create references between tables in Business Central. In this case, the correct relationship between the "Purch. Rcpt. Header" and the Non-conformity table is established using the TableRelation and filter.

Reference Documentation:

AL TableRelation Property

AL Field Syntax
