DP-420 Questions and Answers

The partition key is what will determine how data is routed in the various partitions by Cosmos DB and needs to make sense in the context of your specific scenario. The IoT Device ID is generally the "natural" partition key for IoT applications.

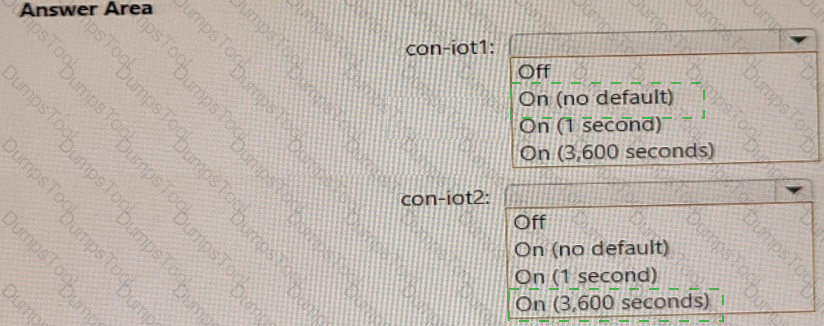

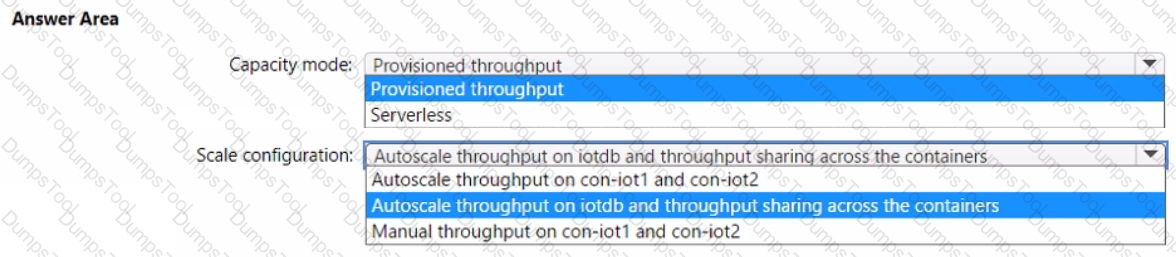

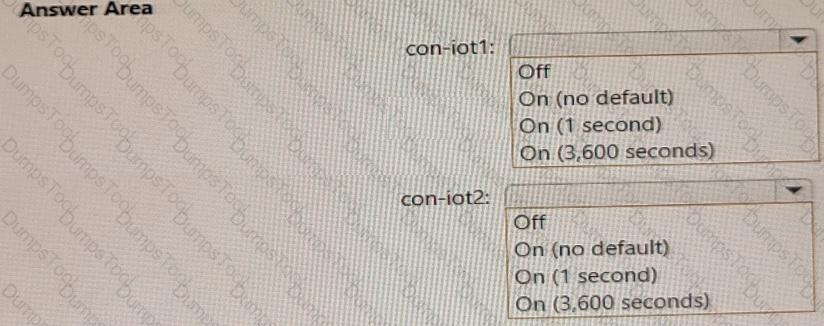

Scenario: The iotdb database will contain two containers named con-iot1 and con-iot2.

Ensure that Azure Cosmos DB costs for IoT-related processing are predictable.

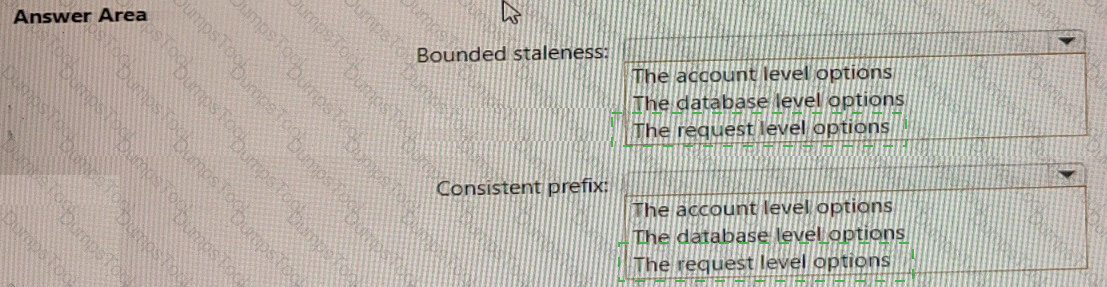

Bounded staleness is frequently chosen by globally distributed applications that expect low write latencies but require total global order guarantee. Bounded staleness is great for applications featuring group collaboration and sharing, stock ticker, publish-subscribe/queueing etc.

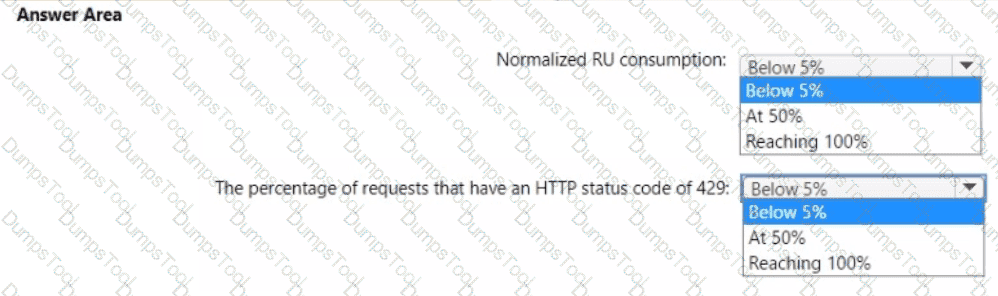

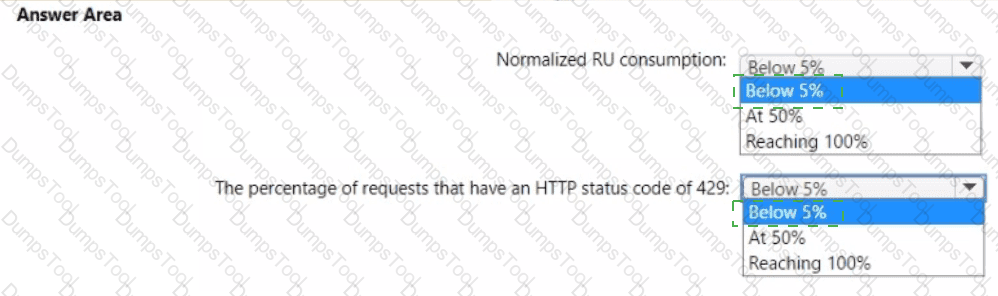

Scenario: Application updates in con-product frequently cause HTTP status code 429 "Too many requests". You discover that the 429 status code relates to excessive request unit (RU) consumption during the updates.

Based on the characteristics of the application and the provided document structure, the most suitable partition key value for coll1 in the given scenario would be the customerId, Option B.

The application frequently creates new orders by different customers and customers often view their past order history. Using customerId as the partition key would ensure that all orders associated with a particular customer are stored in the same partition. This enables efficient querying of past order history for a specific customer and reduces cross-partition queries, resulting in lower costs and improved performance.

a partition key is a JSON property (or path) within your documents that is used by Azure Cosmos DB to distribute data among multiple partitions3. A partition key should have a high cardinality, which means it should have many distinct values, such as hundreds or thousands1. A partition key should also align with the most common query patterns of your application, so that you can efficiently retrieve data by using the partition key value1.

Based on these criteria, one possible partition key that you could use for coll1 is B. customerId.

This partition key has the following advantages:

It has a high cardinality, as each customer will have a unique ID3.

It aligns with the query patterns of the application, as customers will often view their past order history3.

It minimizes costs, as it reduces the number of cross-partition queries and optimizes the storage and throughput utilization1.

This partition key also has some limitations, such as:

It may not be optimal for scenarios where orders need to be queried independently from customers or aggregated by date or other criteria3.

It may result in hot partitions or throttling if some customers create orders more frequently than others or have more data than others1.

It may not support transactions across multiple customers, as transactions are scoped to a single logical partition2.

Depending on your specific use case and requirements, you may need to adjust this partition key or choose a different one. For example, you could use a synthetic partition key that concatenates multiple properties of an item2, or you could use a partition key with a random or pre-calculated suffix to distribute the workload more evenly2.

Box 1: No

Four containers with 1000 RU/s each.

Box 2: No

Max 8000 RU/s for db2. 8 containers, so 1000 RU/s for each container.

Box 3: Yes

Max 8000 RU/s for db2. 8 containers, so 1000 RU/s for each container. Can very well add an additional container.

Because the integrated cache is specific to your Azure Cosmos DB account and requires significant CPU and memory, it requires a dedicated gateway node. Connect to Azure Cosmos DB using gateway mode.

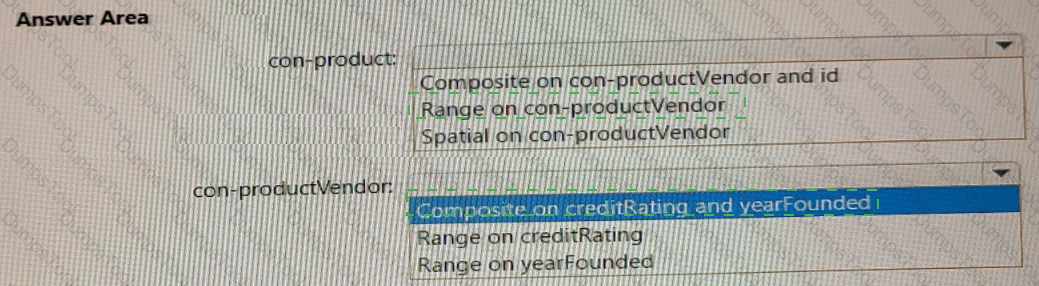

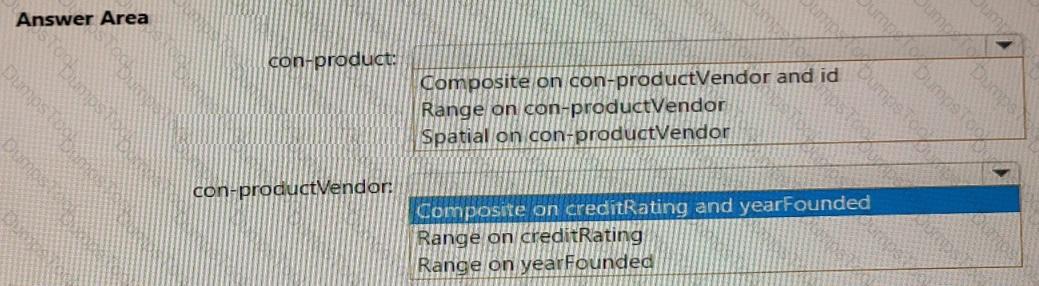

App1 queries the con-product and con-productVendor containers.

Note: Request unit is a performance currency abstracting the system resources such as CPU, IOPS, and memory that are required to perform the database operations supported by Azure Cosmos DB.

Scenario:

Develop an app named App1 that will run from all locations and query the data in account1.

Once multi-region writes are configured, maximize the performance of App1 queries against the data in account1.

Whenever there are multiple solutions for a requirement, select the solution that provides the best performance, as long as there are no additional costs associated.

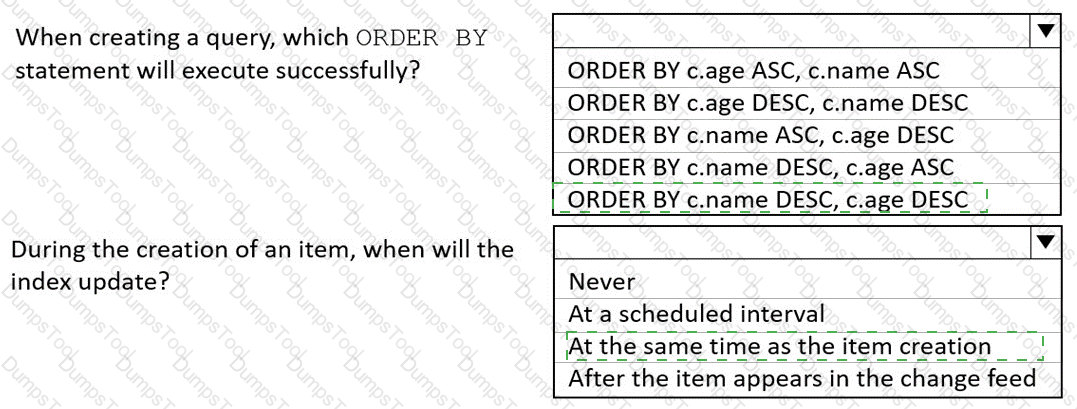

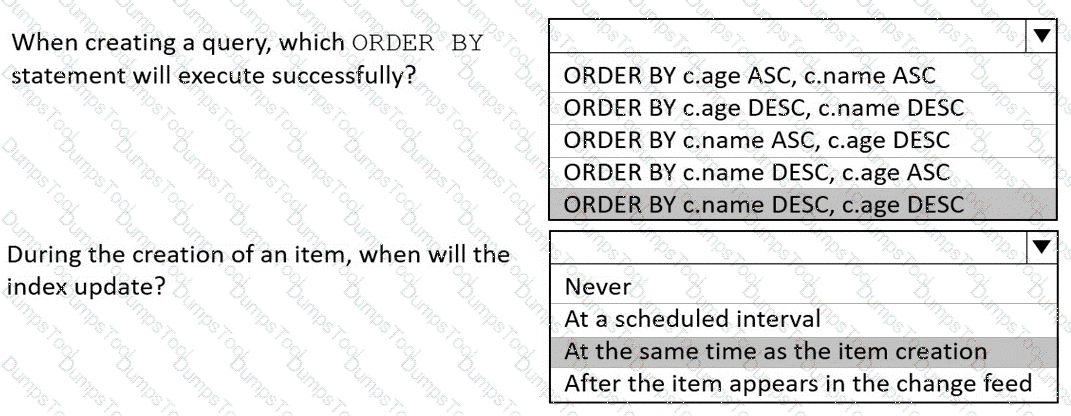

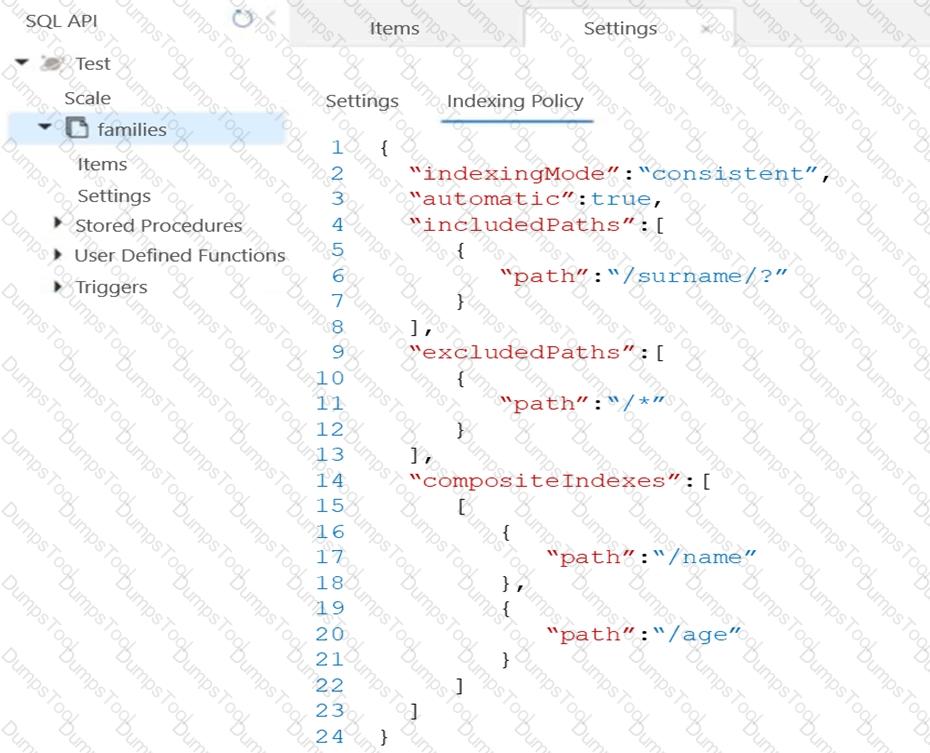

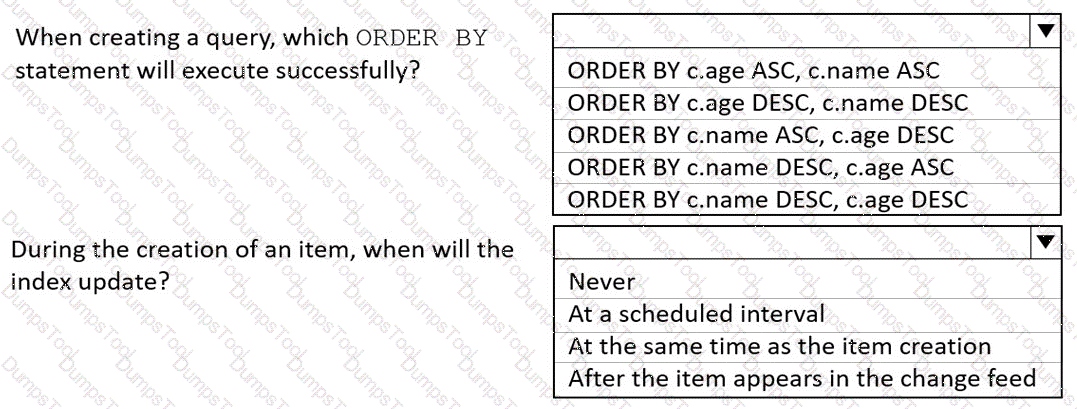

Box 1: ORDER BY c.name DESC, c.age DESC

Queries that have an ORDER BY clause with two or more properties require a composite index.

The following considerations are used when using composite indexes for queries with an ORDER BY clause with two or more properties:

If the composite index paths do not match the sequence of the properties in the ORDER BY clause, then the composite index can't support the query.

The order of composite index paths (ascending or descending) should also match the order in the ORDER BY clause.

The composite index also supports an ORDER BY clause with the opposite order on all paths.

Box 2: At the same time as the item creation

Azure Cosmos DB supports two indexing modes:

Consistent: The index is updated synchronously as you create, update or delete items. This means that the consistency of your read queries will be the consistency configured for the account.

None: Indexing is disabled on the container.

Box 1 = Range Azure Cosmos DB supports three types of indexes: range, spatial and composite. For the query you provided, which is an equality query on a single property, the best type of index to use is range. Range index is based on an ordered tree-like structure and it is used for equality queries, range queries and checking for the presence of a property1. Range index also supports any string or number2.

Box 2 = Composite

Azure Cosmos DB supports three types of indexes: range, spatial and composite. For the query you provided, which is an order by query on two properties, the best type of index to use is composite. Composite index is used for optimizing order by queries on multiple properties1. Composite index allows you to specify a list of property paths and sort orders that are used for ordering items2.

Box 3 = spatial

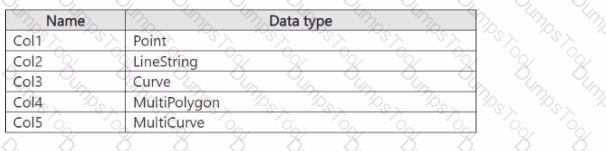

Azure Cosmos DB supports three types of indexes: range, spatial and composite. For the query you provided, which is a spatial query on a point property, the best type of index to use is spatial. Spatial index is used for querying items based on their location or proximity to a given point1. Spatial index supports point, polygon and linestring data types2.

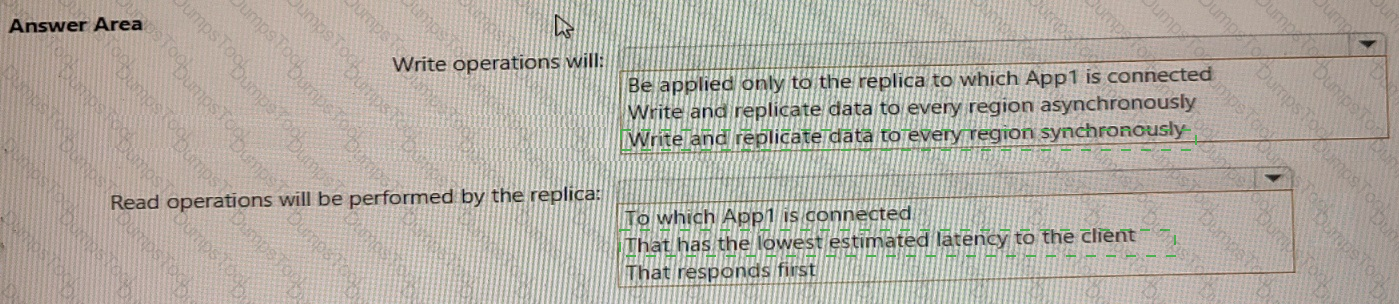

This is because the write concern is mapped to the default consistency level configured on your Azure Cosmos DB account, which is strong in this case. Strong consistency ensures that every write operation is synchronously committed to every region associated with your Azure Cosmos DB account. The eventual consistency level that the application uses only applies to the read operations. Eventual consistency offers higher availability and better performance, but it does not guarantee the order or latency of the reads.

Batch size: An integer that represents how many objects are being written to Cosmos DB collection in each batch. Usually, starting with the default batch size is sufficient. To further tune this value, note:

Cosmos DB limits single request's size to 2MB. The formula is "Request Size = Single Document Size * Batch Size". If you hit error saying "Request size is too large", reduce the batch size value.

The larger the batch size, the better throughput the service can achieve, while make sure you allocate enough RUs to empower your workload.

Instead create an Azure function that uses Azure Cosmos DB Core (SQL) API change feed as a trigger and Azure event hub as the output.

The Azure Cosmos DB change feed is a mechanism to get a continuous and incremental feed of records from an Azure Cosmos container as those records are being created or modified. Change feed support works by listening to container for any changes. It then outputs the sorted list of documents that were changed in the order in which they were modified.

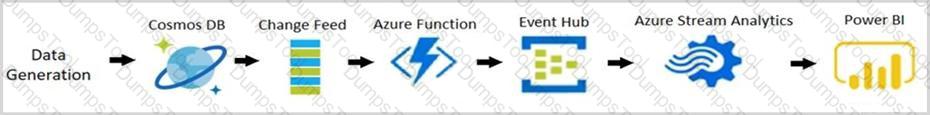

The following diagram represents the data flow and components involved in the solution:

If a query has a filter with two or more properties, adding a composite index will improve performance.

Consider the following query:

SELECT * FROM c WHERE c.name = “Tim” and c.age > 18

In the absence of a composite index on (name ASC, and age ASC), we will utilize a range index for this query. We can improve the efficiency of this query by creating a composite index for name and age.

Queries with multiple equality filters and a maximum of one range filter (such as >,<, <=, >=, !=) will utilize the composite index.

Store multiple entity types in the same container.

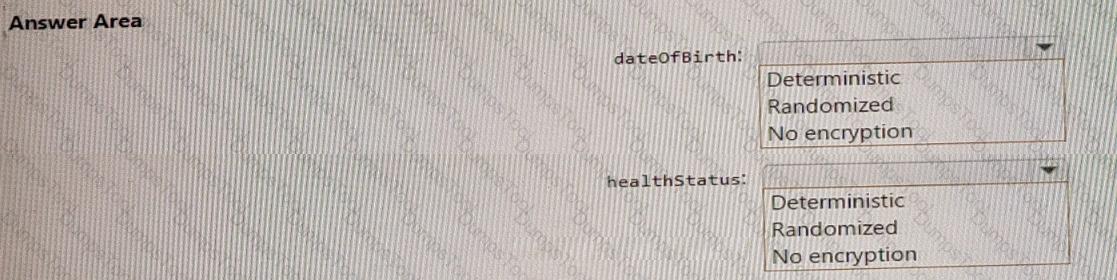

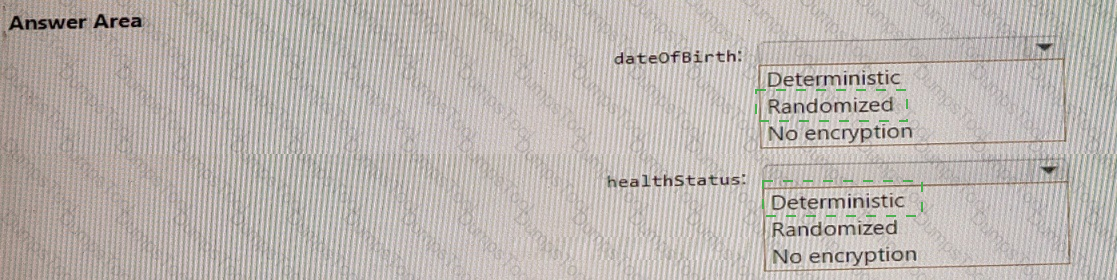

Box 1 = Randomized

Box 2 = Deterministic

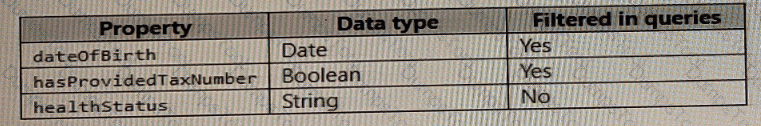

Always Encrypted for Azure Cosmos DB supports two types of encryption: deterministic and randomized1. Deterministic encryption always produces the same encrypted value for any given plain text value. Randomized encryption produces a different encrypted value for the same plain text value.

For dateOfBirth, randomized encryption is the strongest type of encryption because it provides better protection against statistical analysis and brute-force attacks. Deterministic encryption would not be suitable for dateOfBirth because it could reveal patterns or allow equality comparisons1.

For healthStatus, deterministic encryption is the strongest type of encryption because it allows queries to perform equality comparisons and filters on the encrypted property. Randomized encryption would not be suitable for healthStatus because it would prevent any queries on the encrypted property1.
