JN0-664 Questions and Answers

In PIM-SM (Protocol Independent Multicast - Sparse Mode), the Designated Router (DR) plays a crucial role in multicast forwarding. The DR is responsible for various tasks depending on whether it is connected to the source or the receiver. Let's analyze each statement regarding the PIM DR in a PIM-SM domain.

1. **Statement A: The source DR sends PIM register messages from the source network to the RP.**

- Correct. In PIM-SM, the DR on the source's local network is responsible for encapsulating multicast packets in PIM Register messages and sending them to the Rendezvous Point (RP). This process ensures that the RP is aware of active sources.

2. **Statement B: If the DR priorities match, the router with the lowest IP address is selected as the DR.**

- Incorrect. The correct rule is that if the DR priorities match, the router with the **highest** IP address is selected as the DR. The election process first compares priorities; if priorities are equal, the IP addresses are compared to select the DR.

3. **Statement C: The receiver DR sends PIM join and PIM prune messages from the receiver network toward the RP.**

- Correct. In PIM-SM, the DR on the receiver's local network sends PIM Join messages toward the RP to join the multicast distribution tree. Similarly, it sends PIM Prune messages to leave the tree when there are no interested receivers.

4. **Statement D: By default, PIM DR election is performed on point-to-point links.**

- Incorrect. By default, PIM DR election is performed on multi-access networks (e.g., Ethernet). On point-to-point links, there is no need for a DR election as there are only two routers involved.

**Conclusion**:

The correct statements regarding the PIM DR in a PIM-SM domain are:

**A. The source DR sends PIM register messages from the source network to the RP.**

**C. The receiver DR sends PIM join and PIM prune messages from the receiver network toward the RP.**

**References**:

- Juniper Networks Documentation on PIM-SM: [PIM-SM Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/pim-sparse-mode-overview.html)

- RFC 7761, Protocol Independent Multicast - Sparse Mode (PIM-SM): [RFC 7761](https://tools.ietf.org/html/rfc7761) which details the PIM-SM protocol, including DR roles and election procedures.

To create a summary route for IS-IS, you need to configure a policy statement that matches the prefixes to be summarized and sets the next-hop to discard. You also need to configure a summary-address statement under the IS-IS protocol hierarchy that references the policy statement. In this case, the policy statement leak-v6 is trying to match the prefix 2001:db9:a:fa00::/61 exactly, but this prefix is not advertised by any router in the network. Therefore, no summary route is created. To fix this, you need to delete the longer keyword from the route-filter term and change the prefix length to /61 exact. This will match any prefix that falls within the /61 range. You also need to delete the export statement under protocols isis, because this will export all routes that match the policy statement to other IS-IS routers, which is not desired for a summary route.

In the exhibit, the output of the `show route protocol bgp` command is shown for the prefix `172.16.20.4/30`. Let's analyze the provided BGP routing table to determine which statements are correct.

1. **AS Path Analysis**:

- The AS path for the route `172.16.20.4/30` is shown as `2 I`.

- This indicates that the route was learned from AS 2 and it is an internal (iBGP) route within the same AS.

2. **Multiple Paths**:

- The route has two next-hop IP addresses: `10.0.18.2` via interface `ge-1/0/4.0` and `10.0.19.2` via interface `ge-1/0/5.0`.

- This indicates that BGP multipath is configured, which allows multiple equal-cost paths to be used for load balancing.

- BGP multipath must be explicitly configured to use multiple paths for the same prefix.

3. **Multihop vs. Multipath**:

- **Multihop Configuration**: This is typically used for establishing BGP sessions with peers that are not directly connected. It is not related to load balancing.

- **Multipath Configuration**: This is used to enable load balancing across multiple paths for the same prefix, which is the case here.

**Conclusion**:

Given the above analysis:

- **C. This route is learned from the same AS number**: Correct. The AS path `2 I` indicates the route was learned from the same AS number (AS 2).

- **D. The multipath configuration is used for load balancing**: Correct. The presence of multiple next-hops indicates that BGP multipath is configured for load balancing.

Thus, the correct answers are:

**C. This route is learned from the same AS number.**

**D. The multipath configuration is used for load balancing.**

**References**:

- Junos OS BGP Multipath Documentation: [Junos OS BGP Multipath](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/bgp-multipath.html)

- Junos OS BGP Configuration Guide: [Junos OS BGP Configuration](https://www.juniper.net/documentation/en_US/junos/topics/concept/bgp-routing-overview.html)

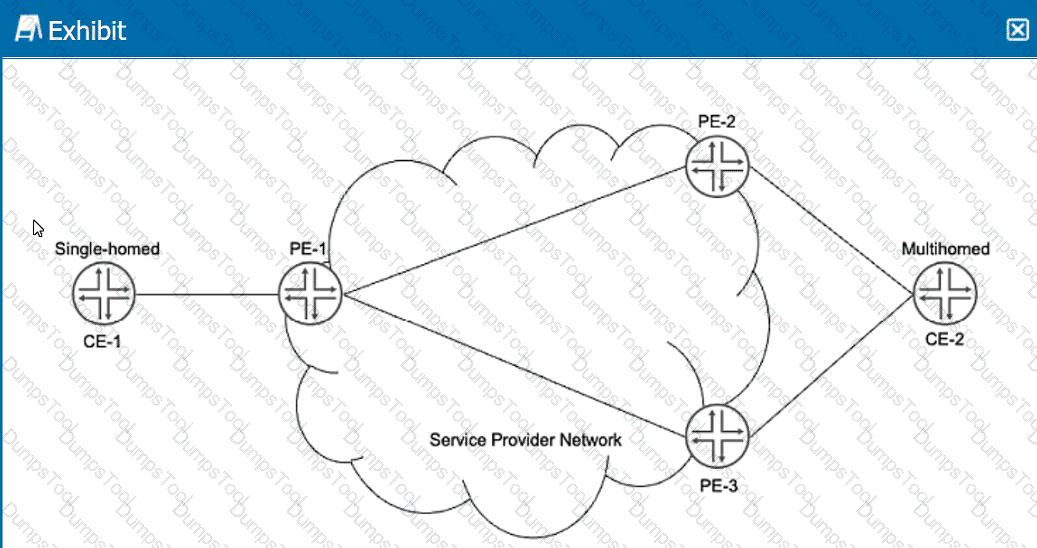

BGP signaled Layer 2 VPN is a type of VPN that uses BGP to distribute VPN labels and information for Layer 2 connectivity between sites over an MPLS network. BGP signaled Layer 2 VPN requires the support of the l2vpn NLRI on all core BGP devices1. The l2vpn NLRI is a new address family that carries Layer 2 VPN information such as the VPN identifier, the attachment circuit identifier, and the route distinguisher. The l2vpn NLRI is used for both auto-discovery and signaling of Layer 2 VPNs2. In this scenario, we are configuring a BGP signaled Layer 2 VPN across an MPLS enabled core network. Therefore, we need to ensure that all core BGP devices support the l2vpn NLRI.

References: 1: https://www.juniper.net/documentation/us/en/software/junos/vpn-l2/topics/concept/vpn-layer-2-overview.html  2: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_l2_vpns/configuration/xe-16/mp-l2-vpns-xe-16-book/vpls-bgp-signaling-l2vpn-inter-as-option-a.html

The customer interface in an LDP-signaled pseudowire is the interface on the PE router that connects to the CE device. An LDP-signaled pseudowire is a type of Layer 2 circuit that uses LDP to establish a point-to-point connection between two PE routers over an MPLS network. The customer interface can have different encapsulation types depending on the type of traffic that is carried over the pseudowire. The encapsulation types are ethernet-ccc, vlan-ccc, extended-vlan-ccc, atm-ccc, frame-relay-ccc, ppp-ccc, cisco-hdlc-ccc, and tcc-ccc. Depending on the encapsulation type, the customer interface can accept or reject tagged or untagged frames in the data plane, and include or exclude VLAN tags in the control plane LDP advertisement. The following table summarizes the behavior of different encapsulation types:

amplification attacks are a type of distributed denial-of-service (DDoS) attack that exploit the characteristics of certain protocols to amplify the traffic sent to a victim. For example, an attacker can send a small DNS query with a spoofed source IP address to a DNS server, which will reply with a much larger response to the victim. This way, the attacker can generate a large amount of traffic with minimal resources.

One of the methods to protect against amplification attacks is destination-based Remote Triggered Black Hole (RTBH) filtering. This technique allows a network operator to drop traffic destined to a specific IP address or prefix at the edge of the network, thus preventing it from reaching the victim and consuming bandwidth and resources. RTBH filtering can be implemented using BGP to propagate a special route with a next hop of 192.0.2.1 (a reserved address) to the edge routers. Any traffic matching this route will be discarded by the edge routers.

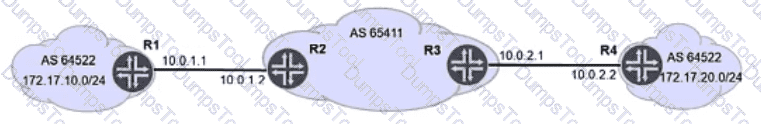

The problem in this scenario is that R1 and R8 are not receiving each other’s routes because of private AS numbers in the AS path. Private AS numbers are not globally unique and are not advertised to external BGP peers. To solve this problem, you need to do the following:

Configure loops on routers in AS 65412 and advertise-peer-as on routers in AS 64498. This allows R5 and R6 to advertise their own AS number (65412) instead of their peer’s AS number (64498) when sending updates to R7 and R8. This prevents a loop detection issue that would cause R7 and R8 to reject the routes from R5 and R62.

Configure remove-private on advertisements from AS 64497 toward AS 64498 and from AS 64500 toward AS 64499. This removes any private AS numbers from the AS path before sending updates to external BGP peers. This allows R2 and R3 to receive the routes from R1 and R4, respectively3.

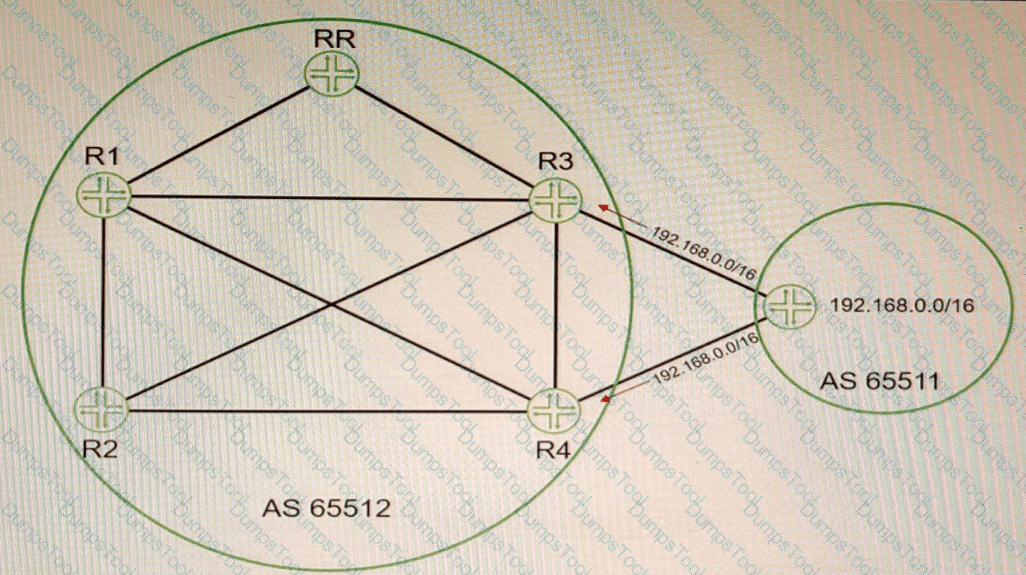

Route reflection is a BGP feature that allows a router to reflect routes learned from one IBGP peer to another IBGP peer, without requiring a full-mesh IBGP topology. Route reflectors do not change any existing BGP attributes by default when advertising routes, unless explicitly configured to do so. A BGP peer does not require any configuration changes to become a route reflector client, only the route reflector needs to be configured with the client parameter under [edit protocols bgp group group-name neighbor neighbor-address] hierarchy level.

The class-of-service (CoS) configuration in the exhibit shows how traffic is scheduled on the ge-0/0/0 interface. Let's analyze each statement to determine its correctness:

A. Incoming traffic will not be classified because no classifier exists in the configuration.

This statement is correct. The configuration shown does not include any classifier, so no explicit classification is defined. As a result, incoming traffic will not be classified according to any custom criteria.

B. The best-effort queue can transmit more than 40% of the total bandwidth on the ge-0/0/0 interface, if no other queue is using that bandwidth.

This statement is correct. The transmit-rate percent 40 means that 40% of the bandwidth is guaranteed for the best-effort queue, but it can use more bandwidth if other queues (like the priority scheduler) are not utilizing their allocated bandwidth.

C. Incoming traffic will be classified using the default classifier.

This statement is incorrect. Without an explicit classifier in the configuration, there is no mention of a default classifier being used. Therefore, the incoming traffic won't be classified based on the configuration shown.

D. The best-effort queue can never transmit more than 40% of the total bandwidth on the ge-0/0/0 interface, even if that bandwidth is available.

This statement is incorrect. The transmit-rate percent 40 sets a guaranteed minimum bandwidth but does not set a maximum limit. The best-effort queue can utilize more bandwidth if other queues are not using their allocated portions.

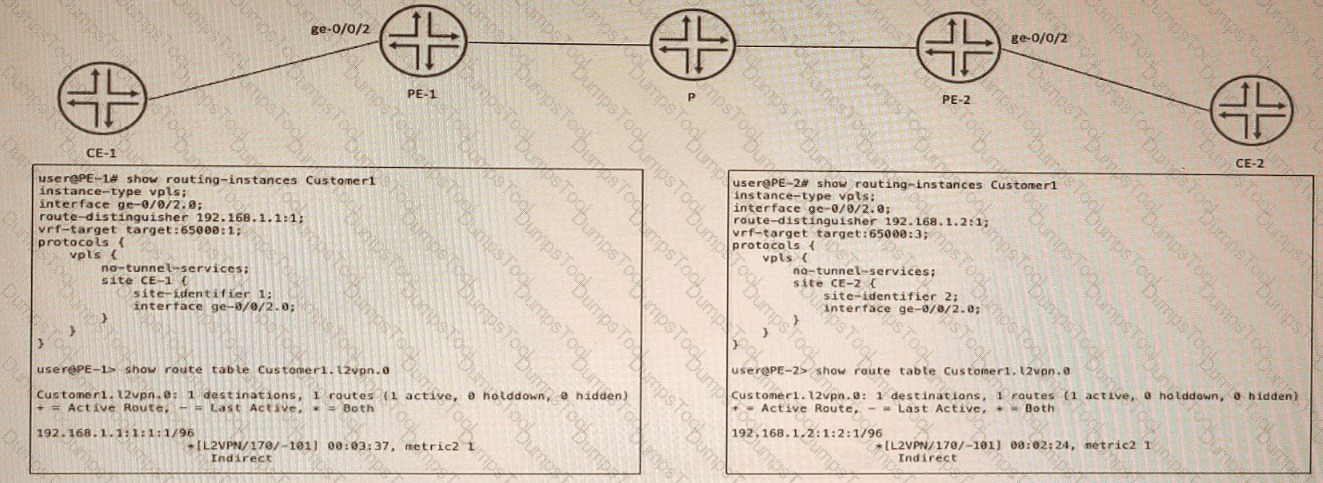

https://www.juniper.net/documentation/us/en/software/nce/feature-guide-virtual-private-lan-service/topics/task/vpls-ldp-signaling-solutions.html

https://www.juniper.net/documentation/us/en/software/junos/vpn-l2/topics/concept/vpns-configuring-vpls-routing-instances.html#id-11510150__id-11568648

AToM (Any Transport over MPLS) is a framework that supports various Layer 2 transport types over an MPLS network core. One of the transport types supported by AToM is LDP Layer 2 circuit, which is a point-to-point Layer 2 connection that uses LDP for signaling and MPLS for forwarding. LDP Layer 2 circuit can support Layer 2 connectivity without using BGP and can be scalable and efficient by using a single MPLS LSP for multiple VPN connections. The customer can maintain all routing for their private network by using their own CE switches.

According to 1 and 2, BGP Layer 2 VPNs use BGP to distribute endpoint provisioning information and set up pseudowires between PE devices. BGP uses the Layer 2 VPN (L2VPN) Routing Information Base (RIB) to store endpoint provisioning information, which is updated each time any Layer 2 virtual forwarding instance (VFI) is configured. The prefix and path information is stored in the L2VPN database, which allows BGP to make decisions about the best path.

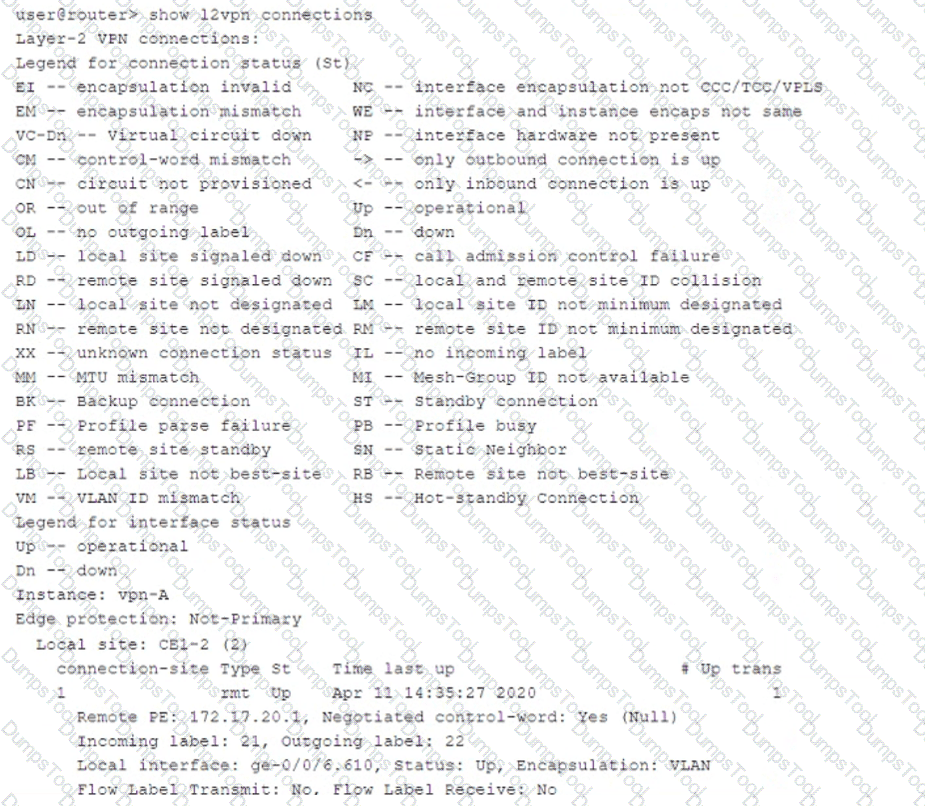

In the output shown in the exhibit, we can see some information about the L2VPN RIB and the pseudowire state. Based on this information, we can infer the following statements:

The PE is attached to a single local site. This is correct because the output shows only one local site ID (1) under the L2VPN RIB section. A local site ID is a unique identifier for a site within a VPLS domain. If there were multiple local sites attached to the PE, we would see multiple local site IDs with different prefixes.

The connection has not flapped since it was initiated. This is correct because the output shows that the uptime of the pseudowire is equal to its total uptime (1w6d). This means that the pseudowire has been up for one week and six days without any interruption or flap.

There has been a VLAN ID mismatch. This is not correct because the output shows that the remote and local VLAN IDs are both 0 under the pseudowire state section. A VLAN ID mismatch occurs when the remote and local VLAN IDs are different, which can cause traffic loss or misdelivery. If there was a VLAN ID mismatch, we would see different values for the remote and local VLAN IDs.

The PE router has the capability to pop flow labels. This is correct because the output shows that the flow label pop bit is set under the pseudowire state section. The flow label pop bit indicates that the PE router can pop (remove) the MPLS flow label from the packet before forwarding it to the CE device. The flow label is an optional MPLS label that can be used for load balancing or traffic engineering purposes.

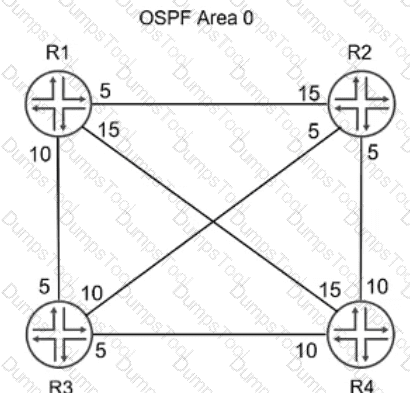

OSPF is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. OSPF prevents routing loops in multi-area networks by using two methods: area hierarchy and SPF algorithm. Area hierarchy is the concept of dividing a large OSPF network into smaller areas that are connected to a backbone area (area 0). This reduces the amount of routing information that each router has to store and process, and also limits the scope of link-state updates within each area. All areas are required to connect to area 0 either directly or through virtual links2. SPF algorithm is the method that OSPF uses to calculate the shortest path to each destination in the network based on link-state information. The SPF algorithm runs on each router and builds a shortest-path tree that represents the topology of the network from the router’s perspective. The SPF algorithm prunes looped paths within an area by choosing only one best path for each destination3.

References: 2: https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/concept/ospf-area-overview.html  3: https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/concept/ospf-spf-algorithm-overview.html

The brackets [ ] in the AS path identify an AS set, which are groups of AS numbers in which the order does not matter. An AS set is used when BGP aggregates routes from different ASs into a single prefix. For example, if BGP aggregates routes 10.0.0.0/16 and 10.1.0.0/16 from AS 100 and AS 200, respectively, into a single prefix 10.0.0.0/15, then the AS path for this prefix will be [100 200]. An AS set reduces the length of the AS path and prevents routing loops.

behavior aggregate (BA) classifiers and multifield (MF) classifiers are two types of classifiers that are used to assign packets to a forwarding class and a loss priority based on different criteria. The forwarding class determines the output queue for a packet. The loss priority is used by a scheduler to control packet discard during periods of congestion.

A BA classifier maps packets to a forwarding class and a loss priority based on a fixed-length field in the packet header, such as DSCP, IP precedence, MPLS EXP, or IEEE 802.1p CoS bits. A BA classifier is computationally efficient and suitable for core devices that handle high traffic volumes. A BA classifier is useful if the traffic comes from a trusted source and the CoS value in the packet header is trusted.

An MF classifier maps packets to a forwarding class and a loss priority based on multiple fields in the packet header, such as source address, destination address, protocol type, port number, or VLAN ID. An MF classifier is more flexible and granular than a BA classifier and can match packets based on complex filter rules. An MF classifier is suitable for edge devices that need to classify traffic from untrusted sources or rewrite packet headers.

You can configure both a BA classifier and an MF classifier on an interface. If you do this, the BA classification is performed first and then the MF classification. If the two classification results conflict, the MF classification result overrides the BA classification result.

Based on this information, we can infer the following statements:

The packet will be discarded. This is not correct because the packet will not be discarded by the classifiers unless it matches a filter rule that specifies discard as an action. The classifiers only assign packets to a forwarding class and a loss priority based on their match criteria.

The packet will be processed by the BA classifier first, then the MF classifier. This is correct because if both a BA classifier and an MF classifier are configured on an interface, the BA classification is performed first and then the MF classification. If they conflict, the MF classification result overrides the BA classification result.

The packet will be forwarded with no classification changes. This is not correct because the packet will be classified by both the BA classifier and the MF classifier if they are configured on an interface. The final classification result will determine which output queue and which discard policy will be applied to the packet.

The packet will be processed by the MF classifier first, then the BA classifier. This is not correct because if both a BA classifier and an MF classifier are configured on an interface, the BA classification is performed first and then the MF classification. If they conflict, the MF classification result overrides the BA classification result.

In the provided exhibit, the configuration involves using a RIB (Routing Information Base) group to facilitate internet access for VPN-A Site 1 through PE-1. The goal is to provide VRF Internet access over a single connection.

1. **Understanding RIB Groups**:

- RIB groups allow for the import and export of routes between different routing tables.

- In this scenario, we have two RIBs: `inet.0` (the main routing table) and `VPN-A.inet.0` (the VRF-specific routing table).

2. **Statement Analysis**:

- **A. You must use the RIB group to move a default route, which is learned through BGP, from the inet.0 table to the VPN-A.inet.0 table.**

- Correct. To provide Internet access to VPN-A, the default route (0.0.0.0/0) learned via BGP in the `inet.0` table must be made available in the `VPN-A.inet.0` table. This is done using the RIB group to import the default route.

- **B. You do not need to use the RIB group to move interface routes from the inet.0 table to the VPN-A.inet.0 table.**

- Correct. Interface routes (connected routes) are typically directly added to both the global and the VRF routing tables without needing a RIB group. These routes are known to the VRF because the interfaces are part of the VRF configuration.

- **C. You do not need to use the RIB group default route, which is learned through BGP, from the inet.0 table to the VPN-A.inet.0 table.**

- Incorrect. As discussed, the default route needs to be imported into the VRF's routing table using a RIB group to enable Internet access for the VRF.

- **D. You must use the RIB group to move interface routes from the inet.0 table to the VPN-A.inet.0 table.**

- Incorrect. Interface routes are directly associated with the VRF interfaces and are automatically known to the VRF routing table. There is no need to use a RIB group for these routes.

**Conclusion**:

The correct answers are:

**A. You must use the RIB group to move a default route, which is learned through BGP, from the inet.0 table to the VPN-A.inet.0 table.**

**B. You do not need to use the RIB group to move interface routes from the inet.0 table to the VPN-A.inet.0 table.**

**References**:

- Juniper Networks Documentation on RIB Groups: [RIB Groups Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/rib-groups-overview.html)

- Junos OS VPNs Configuration Guide: [Junos VPNs Configuration](https://www.juniper.net/documentation/en_US/junos/topics/concept/vpns-overview.html)

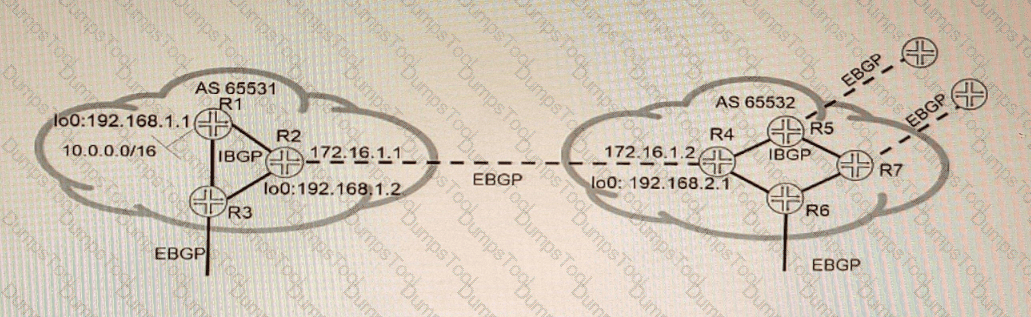

BGP is an exterior gateway protocol that uses path vector routing to exchange routing information among autonomous systems. BGP uses various attributes to select the best path to each destination and to propagate routing policies. Some of the common BGP attributes are AS path, next hop, local preference, MED, origin, weight, and community. BGP attributes can be classified into four categories: well-known mandatory, well-known discretionary, optional transitive, and optional nontransitive. Well-known mandatory attributes are attributes that must be present in every BGP update message and must be recognized by every BGP speaker. Well-known discretionary attributes are attributes that may or may not be present in a BGP update message but must be recognized by every BGP speaker. Optional transitive attributes are attributes that may or may not be present in a BGP update message and may or may not be recognized by a BGP speaker. If an optional transitive attribute is not recognized by a BGP speaker, it is passed along to the next BGP speaker. Optional nontransitive attributes are attributes that may or may not be present in a BGP update message and may or may not be recognized by a BGP speaker. If an optional nontransitive attribute is not recognized by a BGP speaker, it is not passed along to the next BGP speaker. In this question, we have four routers (R1, R2, R3, and R4) that are connected in a full mesh topology and running IBGP. R3 receives the 192.168.0.0/16 route from its EBGP neighbor and advertises it to R1 and R4 with different BGP attribute values. We are asked which statements are correct about the BGP routes on R3 that are learned from the ISP-A neighbor. Based on the information given, we can infer that the correct statements are:

By default, the next-hop value for these routes is not changed by ISP-A before being sent to R3. This is because the default behavior of EBGP is to preserve the next-hop attribute of the routes received from another EBGP neighbor. The next-hop attribute indicates the IP address of the router that should be used as the next hop to reach the destination network.

The BGP local-preference value that is used by ISP-A is not advertised to R3. This is because the local-preference attribute is a well-known discretionary attribute that is used to influence the outbound traffic from an autonomous system. The local-preference attribute is only propagated within an autonomous system and is not advertised to external neighbors.

References: : https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13753-25.html : https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13762-40.html : https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13759-37.html

In the exhibit, the PE-to-CE protocol used is OSPF, and there is an OSPF neighborship between CE-1 and CE-2 within the same Area 0. Let's analyze the default OSPF routing behavior in this setup to determine the correct statement.

1. **OSPF Neighborship**:

- CE-1 and CE-2 have an OSPF neighborship directly within Area 0.

- OSPF prefers intra-area routes over inter-area and external routes.

2. **Default Routing Behavior**:

- Since CE-1 and CE-2 are directly connected through an OSPF link within the same area, OSPF will prefer this direct intra-area path over any other paths learned via the PE routers and the L3VPN.

- This is because intra-area routes have a lower metric compared to inter-area or external routes.

3. **Metric Considerations**:

- By default, OSPF will route traffic between Site-1 and Site-2 through the direct link between CE-1 and CE-2, unless the link's metric is artificially increased to make it less preferable.

- There is no need to adjust metrics for the CE-1 to PE-1 link to prefer the CE-1 to CE-2 path, as OSPF already prefers direct intra-area paths.

**Conclusion**:

Given the default behavior of OSPF and the topology shown in the exhibit, the correct statement is:

**B. Hosts at Site-1 will reach hosts at Site-2 through the CE-1 and CE-2 link by default.**

**References**:

- OSPF Design Guide: [Juniper Networks OSPF Design Guide](https://www.juniper.net/documentation/en_US/junos/topics/concept/ospf-design-overview.html)

- Juniper Networks Technical Documentation on OSPF: [Junos OS OSPF Configuration Guide](https://www.juniper.net/documentation/en_US/junos/topics/concept/ospf-routing-overview.html)

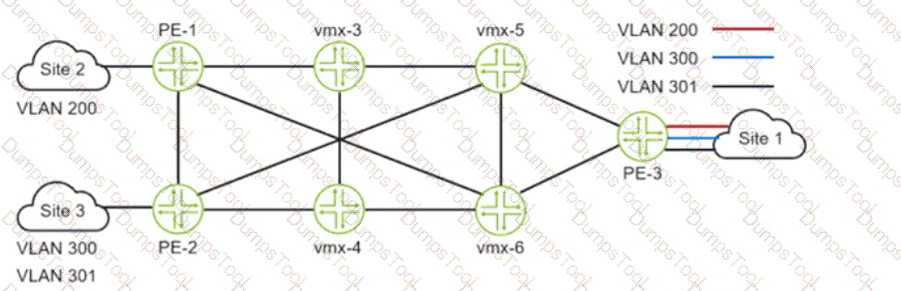

To allow Site 1 to access three VLANs that are located in Site 2 and Site 3, you need to configure three L2VPN routing instances on PE-1, one for each VLAN. Each L2VPN routing instance will have a different VLAN ID and a different VNI for VXLAN encapsulation. Each L2VPN routing instance will also have a different vrf-target export value to identify which VPN routes belong to which VLAN. This way, PE-1 can forward traffic from Site 1 to Site 2 and Site 3 based on the VLAN tags and VNIs.
