H12-831_V1.0 Questions and Answers

Comprehensive and Detailed In-Depth Explanation:

1. Understanding VPN Route Targets (RTs) in MPLS VPNs

Route Targets (RTs) define which VPN routes should be imported and exported among PE routers.

Import-extcommunity: Specifies which VPN routes should be accepted into a VRF.

Export-extcommunity: Specifies which VPN routes should be advertised from a VRF.

Correctly configuring RTs ensures proper route exchange between VPN sites.

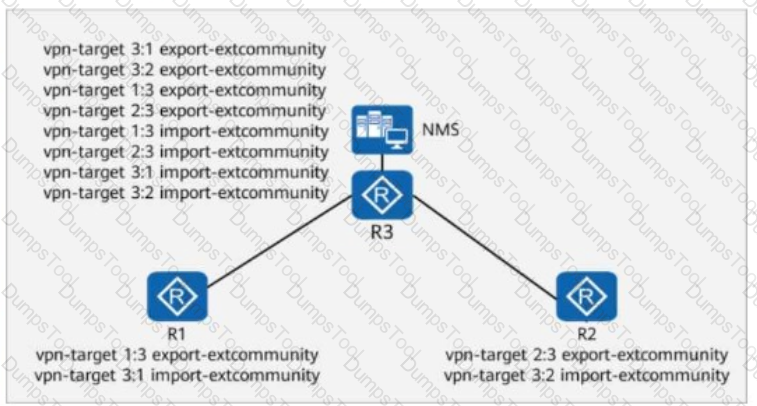

2. Analyzing the RTs in the Diagram

R3's Current Configuration:

plaintext

CopyEdit

vpn-target 3:1 export-extcommunity

vpn-target 3:2 export-extcommunity

vpn-target 1:3 export-extcommunity

vpn-target 1:3 import-extcommunity

vpn-target 3:1 import-extcommunity

vpn-target 3:2 import-extcommunity

R1's Configuration:

plaintext

CopyEdit

vpn-target 1:3 export-extcommunity

vpn-target 3:1 import-extcommunity

R2's Configuration:

plaintext

CopyEdit

vpn-target 2:3 export-extcommunity

vpn-target 3:2 import-extcommunity

R3 has redundant RTs because it both exports and imports unnecessary RTs.

We need to remove only redundant RTs without affecting NMS connectivity.

3. Evaluating Each Answer Choice

A. "undo vpn-target 3:1 import-extcommunity" (❌ Incorrect)

R1 exports RT 1:3, and R3 imports it as 3:1.

Removing 3:1 import-extcommunity would block R3 from receiving routes from R1, disrupting connectivity to NMS.

Thus, this option is incorrect.

B. "undo vpn-target 1:3 export-extcommunity" (✅ Correct)

R3 exports RT 1:3, but there is no need for R3 to advertise routes with 1:3.

R1 already exports 1:3, and R3 only needs to import it.

Removing vpn-target 1:3 export-extcommunity does not affect connectivity but eliminates redundancy.

✅ This is a correct choice.

C. "undo vpn-target 1:3 import-extcommunity" (❌ Incorrect)

R3 needs to import 1:3 to receive routes from R1 (which is required for NMS communication).

If removed, R3 will not receive necessary routes, breaking connectivity.

Thus, this option is incorrect.

D. "undo vpn-target 2:3 export-extcommunity" (✅ Correct)

R2 exports RT 2:3, but R3 does not need to receive it.

This RT is redundant and can be removed without affecting connectivity.

✅ This is a correct choice.

4. Evaluating the Answer Choices

Option

Correct?

Reasoning

A

❌ Incorrect

R3 must import 3:1 from R1 to maintain connectivity.

B

✅ Correct

Removing export-extcommunity 1:3 eliminates redundancy without affecting connectivity.

C

❌ Incorrect

Removing import-extcommunity 1:3 would block R3 from receiving necessary routes.

D

✅ Correct

Removing export-extcommunity 2:3 eliminates redundancy without affecting connectivity.

✅ Correct Answer: B and D.

Final Conclusion:

Route Targets (RTs) are used in MPLS VPNs to control route import/export policies.

R3 has redundant RTs, and removing unnecessary exports (1:3 and 2:3) optimizes configuration.

Correct commands to remove redundancy without affecting connectivity are:

✅ undo vpn-target 1:3 export-extcommunity

✅ undo vpn-target 2:3 export-extcommunity

Thus, the correct answer is: B and D.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding the Issue of OSPF Type 5 LSAs in a Dual-Homed CE Scenario

OSPF Type 5 LSAs (External LSAs) are used in OSPF to advertise external routes, such as those learned via BGP or redistributed from another protocol.

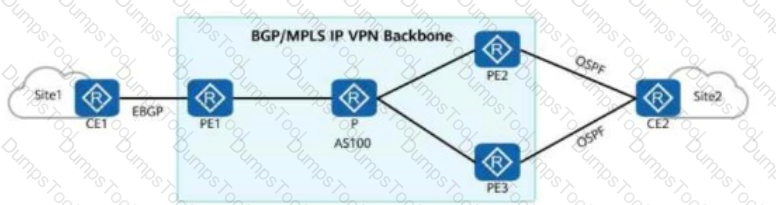

In a dual-homed CE setup, like the one in the figure, CE2 connects to both PE2 and PE3 using OSPF.

PE2 and PE3 both redistribute BGP routes into OSPF and advertise them to CE2.

CE2 then forwards these LSAs between PE2 and PE3, potentially causing a routing loop because each PE may re-learn its own previously advertised routes.

2. How Route Tags Prevent Loops in OSPF-BGP Redistribution

The route-tag command assigns a tag to redistributed routes.

When a router receives an external OSPF LSA (Type 5), it checks the route tag.

If the route tag matches the locally configured tag, the router ignores the route to prevent loops.

Example Configuration on PE Routers:

plaintext

CopyEdit

PE2:

router ospf 1

import-route bgp 100 route-tag 65001

PE3:

router ospf 1

import-route bgp 100 route-tag 65001

Both PE2 and PE3 tag their redistributed BGP routes with 65001.

If PE3 receives an LSA from CE2 with the tag 65001, it ignores it (because it knows it originally advertised it).

✅ This prevents OSPF from incorrectly preferring a route that was originally sourced from itself, avoiding routing loops.

3. Evaluating the Answer Choices

✅ TRUE: If the route tag of the received route matches the locally configured tag, the route is ignored, preventing loops.❌ FALSE: The statement is correct, so False is incorrect.

Thus, the correct answer is: A. TRUE

Final Conclusion:

✅ The statement is TRUE because route tagging is a valid method to prevent OSPF Type 5 LSA loops in dual-homed scenarios.

Comprehensive and Detailed In-Depth Explanation:

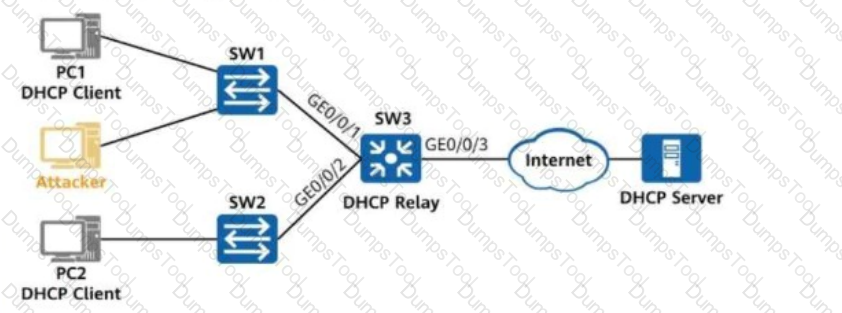

Understanding DHCP Snooping and its Configuration

1. What is DHCP Snooping?

DHCP Snooping is a security feature that helps prevent rogue DHCP servers from providing false IP configurations to clients.

It classifies switch ports as either:

Trusted (allowing DHCP replies from legitimate DHCP servers or relay agents).

Untrusted (blocking unauthorized DHCP responses from clients or attackers).

Analysis of the Commands

✅ A. [SW3-GigabitEthernet0/0/2] dhcp snooping enable (Required)

Interface GigabitEthernet0/0/2 is connected to a DHCP client (PC2).

DHCP snooping must be enabled on this interface to filter DHCP messages and prevent rogue DHCP servers.

Since PC2 is a client, this port should remain UNTRUSTED.

✅ This command is required.

❌ B. [SW3] dhcp snooping enable ipv4 (Not Required - Correct Answer)

The correct command to enable DHCP Snooping globally on Huawei switches is:

dhcp snooping enable

There is no need to explicitly specify ipv4 since DHCP is inherently an IPv4-based protocol.

❌ This command is unnecessary, making it the correct answer.

✅ C. [SW3-GigabitEthernet0/0/3] dhcp snooping trusted (Required)

GigabitEthernet0/0/3 is connected to the DHCP relay agent, which forwards DHCP messages between clients and the DHCP server.

This port must be configured as "trusted" to allow DHCP responses from the relay or the DHCP server.

✅ This command is required.

✅ D. [SW3-GigabitEthernet0/0/1] dhcp snooping enable (Required)

GigabitEthernet0/0/1 is connected to a DHCP client (PC1).

Similar to Port 0/0/2, DHCP snooping must be enabled on this interface to filter DHCP messages and prevent rogue DHCP responses.

✅ This command is required.

Final Conclusion:

✅ A. Required (PC2’s port needs DHCP snooping enabled).❌ B. Not required (Incorrect command syntax, ipv4 is unnecessary).✅ C. Required (Port connected to DHCP relay must be trusted).✅ D. Required (PC1’s port needs DHCP snooping enabled).

Thus, the correct answer is: B. [SW3] dhcp snooping enable ipv4.

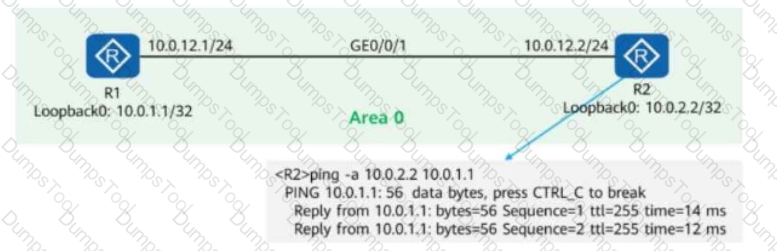

Comprehensive and Detailed In-Depth Explanation:

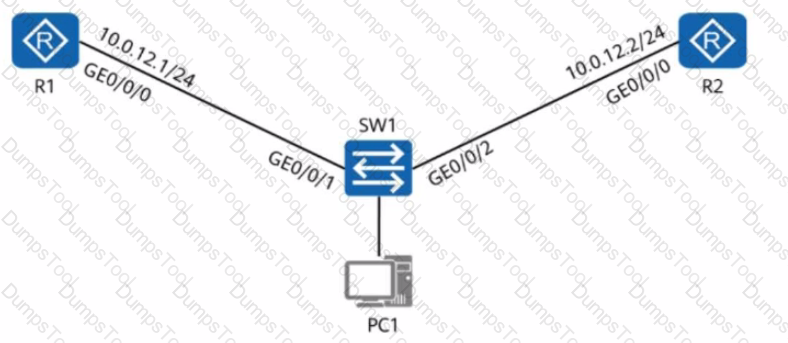

To determine the correct answer, we need to analyze how each command impacts OSPF neighbor relationships.

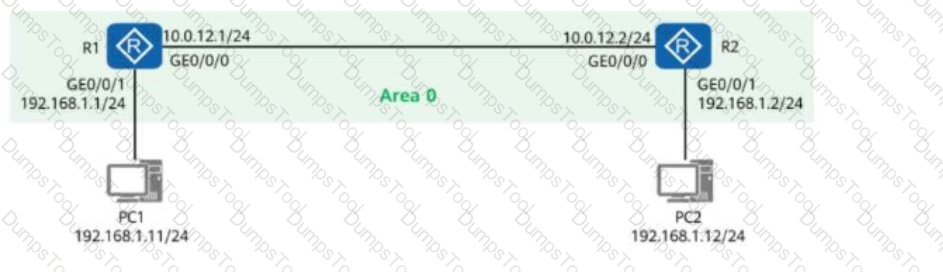

1. Understanding OSPF Neighbor Formation

OSPF routers form neighbor relationships when they meet the following conditions:

They are in the same subnet (IP addresses and subnet masks must match).

They are in the same OSPF area.

They use the same network type (e.g., Broadcast, Point-to-Point).

Authentication (if configured) must match.

Hello and Dead timers must match.

2. Analyzing Each Answer Option

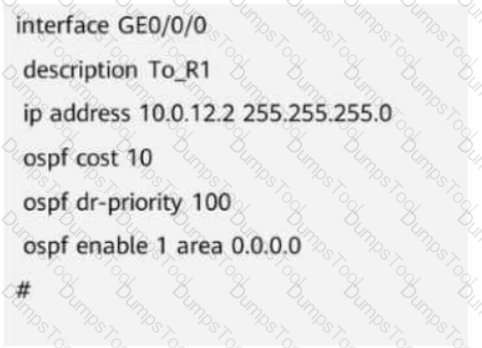

❌ A. "undo ip address 10.0.12.2 24" → Affects OSPF Neighbor Status

Removing the IP address will prevent the interface from sending and receiving OSPF Hello packets.

Without an IP address, OSPF cannot establish neighbor relationships.

Effect: Breaks OSPF neighbor status.

✅ B. "undo description" → Does NOT Affect OSPF Neighbor Status

The interface description is just a label for administrators and has no impact on OSPF functionality.

It does not affect neighbor relationships, routing, or communication.

Effect: No impact on OSPF neighbors.

❌ C. "undo ospf cost" → Affects OSPF Neighbor Status Indirectly

OSPF cost determines the path selection but does NOT break the neighbor relationship.

However, if the cost change leads to routing table recalculations, it might cause temporary convergence issues.

Effect: Does not directly break neighbor status, but affects route selection.

❌ D. "undo ospf dr-priority" → Affects OSPF Neighbor Status (Possibly Causes DR Re-Election)

OSPF DR/BDR election uses priority values.

If changed, a new election might occur, leading to a temporary loss of neighbor relationships.

Effect: Might cause OSPF neighbor reset (temporary impact on adjacency).

Comprehensive and Detailed In-Depth Explanation:

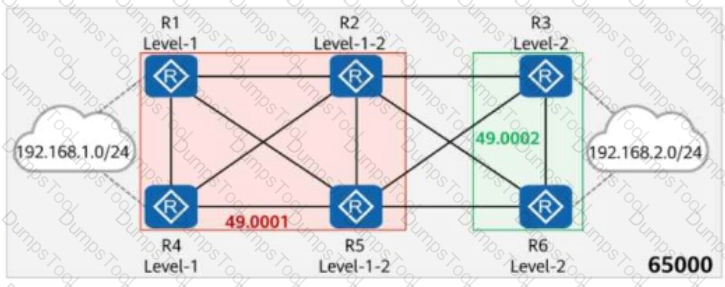

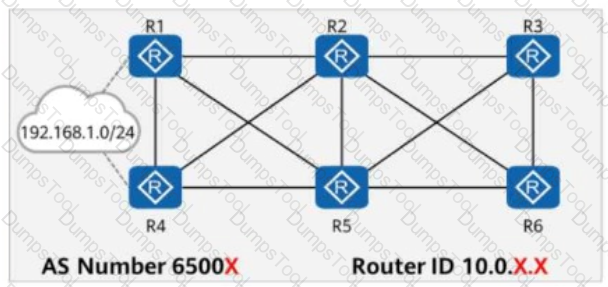

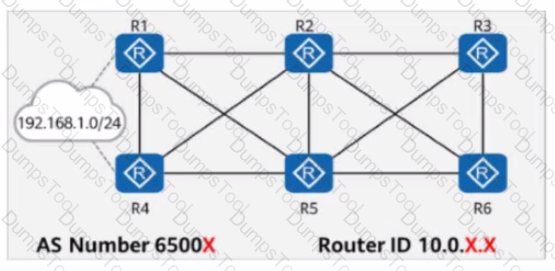

Understanding the BGP and IS-IS Network Topology in the Question:

IS-IS Areas:

Area 49.0001 (Level-1 IS-IS): R1, R2, R4, R5.

Area 49.0002 (Level-2 IS-IS): R3, R6.

R2 acts as an ABR (Area Border Router) and redistributes routes between Level-1 and Level-2 using import-route isis level-2 into level-1.

BGP Route Reflection & Peering:

R2 and R5 are Route Reflectors (RRs).

iBGP peering is established among all routers (R1, R2, R3, R4, R5, R6).

R1 and R4 import 192.168.1.0/24 into BGP, meaning this prefix will be advertised to all iBGP peers.

R3 and R6 import 192.168.2.0/24 into BGP, meaning this prefix will also be advertised to all iBGP peers.

Route Distribution Analysis:

Route to 192.168.1.0/24 (Imported by R1 & R4):

R1 and R4 advertise 192.168.1.0/24 into iBGP.

Since R2 and R5 are Route Reflectors (RRs), they will reflect these routes to all their iBGP clients (R1, R3, R4, R6).

R2 learns two valid routes to 192.168.1.0/24 (from R1 and R4).

R5, as another RR, learns both routes and advertises them as well.

R2 ultimately has three valid paths (direct from R1 and R4, plus a reflected route from R5).✅ Statement C is correct: The BGP routing table of R2 contains three valid routes to 192.168.1.0/24.

R5 also learns 192.168.1.0/24 from both R1 and R4.✅ Statement B is correct: The BGP routing table of R5 contains two valid routes to 192.168.1.0/24 (from R1 and R4).

Route to 192.168.2.0/24 (Imported by R3 & R6):

R3 and R6 import 192.168.2.0/24 into BGP.

R2 and R5 (Route Reflectors) learn this route and reflect it to their clients (R1, R3, R4, R6).

R4 receives three valid paths (directly from R3 and R6 via BGP, and one additional reflected path via R5).✅ Statement D is correct: The BGP routing table of R4 contains three valid routes to 192.168.2.0/24.

Checking Statement A:

R3 originally imports 192.168.2.0/24 and advertises it.

Since it is a Route Reflector Client of R5 and R2, it should have multiple routes via iBGP, not just one.❌ Statement A is incorrect because R3 should have multiple valid routes, not just one.

Final Conclusion:

✅ B. The BGP routing table of R5 contains two valid routes to 192.168.1.0/24.✅ C. The BGP routing table of R2 contains three valid routes to 192.168.1.0/24.✅ D. The BGP routing table of R4 contains three valid routes to 192.168.2.0/24.❌ A. The BGP routing table of R3 does NOT contain only one valid route to 192.168.2.0/24 (it has multiple routes).

Thus, the correct answers are: B, C, D.

Comprehensive and Detailed In-Depth Explanation:

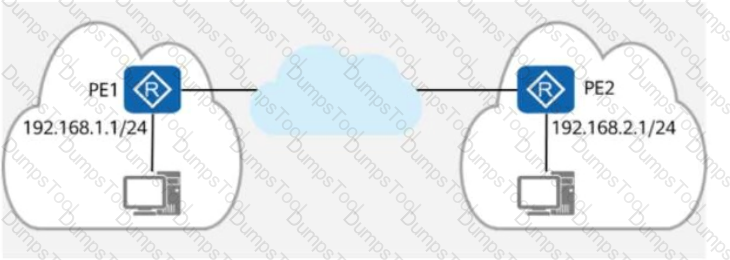

1. Understanding the Network Setup

PE1 (Provider Edge 1) is the gateway for network 192.168.1.1/24.

PE2 (Provider Edge 2) is the gateway for network 192.168.2.1/24.

A cloud-based backbone connects PE1 and PE2.

To verify end-to-end communication, engineers need to check reachability between PE1 and PE2.

2. Evaluating Each Answer Option

Option A: "Configuring NQA on PE1 and PE2, with the destination address being the IP address of each other."

✅ Correct.

NQA (Network Quality Analysis) is a network testing tool that allows connectivity testing between two devices.

Configuring NQA between PE1 and PE2 will verify end-to-end reachability.

Option B: "On PE1 and PE2, checking whether the ARP table contains the ARP entry of the peer network segment."

❌ Incorrect.

ARP (Address Resolution Protocol) is only used for resolving MAC addresses within the same broadcast domain.

Since PE1 and PE2 are in different network segments (separated by a routed network), they will not have ARP entries for each other.

Instead, routing entries should be checked, not ARP.

Option C: "On PE1, using 192.168.1.1 as the source address to ping 192.168.2.1."

✅ Correct.

A simple ping test using the source address of PE1 (192.168.1.1) to reach PE2 (192.168.2.1) will verify whether routing between the two locations is functional.

Option D: "On PE1 and PE2, checking whether there are routes to each other’s network segment in the routing tables."

✅ Correct.

If routing is not configured correctly, PE1 and PE2 will not know how to reach each other.

Checking the routing table ensures that both PEs have the correct next-hop information.

Final Answer:

✅ A, C, and D are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Using NQA for Network Connectivity Testing

Verifying Routing Table Entries for Inter-Network Communication

Understanding ARP and Its Limitations in Routed Networks

Comprehensive and Detailed In-Depth Explanation:

In IS-IS (Intermediate System to Intermediate System), each LSP (Link-State PDU) is identified by an LSP ID.

The LSP Number field is 4 bits long, meaning a single IS-IS process can generate up to 16 LSP fragments per system ID.

Since each fragment carries a limited amount of information, a router may exceed this limit if it needs to advertise a large number of routes.

Solution: By adding additional system IDs, an IS-IS router can generate more LSP fragments, thereby overcoming the limitation.

This method is commonly used in large-scale IS-IS networks to ensure scalability and efficient routing information exchange.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – IS-IS LSP Fragmentation Mechanism

Comprehensive and Detailed In-Depth Explanation:

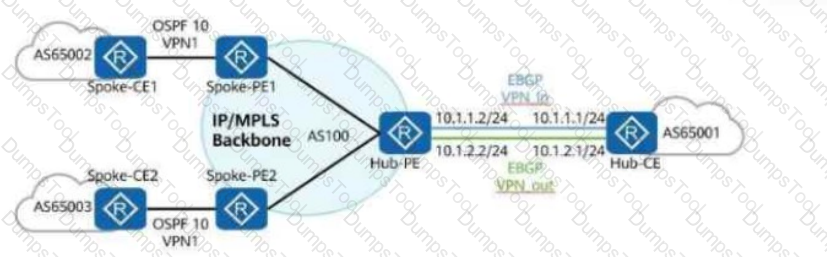

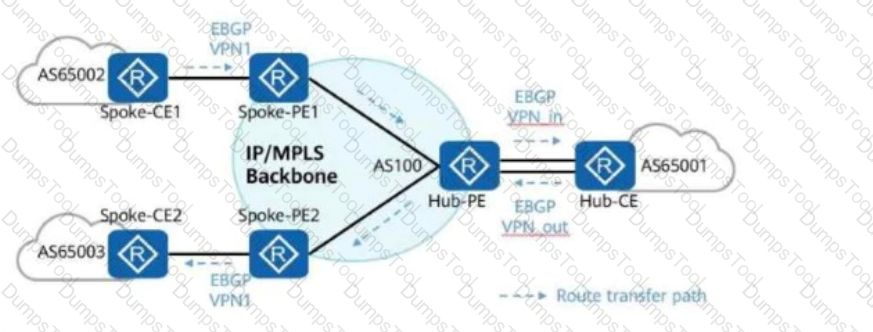

1. Understanding the Hub-Spoke Network Model in MPLS VPN

Hub-Spoke (or Route Reflector) topology is used in MPLS Layer 3 VPNs where multiple spoke sites communicate through a central hub.

The Hub-PE acts as an intermediate BGP speaker and redistributes routes between spokes.

The challenge is preventing routing loops when exchanging routes between spokes.

2. Understanding the Role of Site of Origin (SoO) in BGP/MPLS VPNs

BGP Site of Origin (SoO) is a route attribute used to prevent routing loops in scenarios where a hub redistributes routes between spokes.

If a route originating from a spoke is advertised back to the same site, SoO prevents it from being re-learned.

The SoO value (e.g., 200:1) ensures that a site does not accept its own previously advertised prefixes.

3. Analyzing the Answer Choices

❌ A. [Hub-PE-bgp-VPN_out] peer x.x.x.x allow-as-loop (Incorrect)

The allow-as-loop command allows BGP to accept routes with its own AS number in the AS path.

This is NOT needed in a Hub-Spoke VPN because BGP routes are not being looped through the same AS.

❌ This is unnecessary for preventing loops in a Hub-Spoke VPN.

❌ B. [Hub-PE-bgp-VPN_in] peer x.x.x.x allow-as-loop (Incorrect)

Again, allow-as-loop is used when a router needs to accept its own AS number in the BGP AS path.

This is NOT the mechanism used for preventing loops in Hub-Spoke VPNs; SoO is used instead.

❌ This is not required in this scenario.

✅ C. [Hub-PE-bgp-VPN_in] peer x.x.x.x soo 200:1 (Correct Answer)

The correct way to prevent spoke routes from looping through the hub is to apply the Site of Origin (SoO) attribute.

This command ensures that if a route with SoO 200:1 is received, it is not advertised back to the same spoke.

✅ This is the correct answer.

❌ D. [Hub-PE-bgp-VPN_out] peer x.x.x.x soo 200:1 (Incorrect)

Applying SoO on outgoing routes is NOT effective because the hub should mark received routes and prevent loops when re-advertising them.

SoO should be applied on the inbound (received) routes at the Hub-PE, not outbound.

❌ This is not the correct implementation of SoO.

Final Conclusion:

✅ Correct Answer: C. [Hub-PE-bgp-VPN_in] peer x.x.x.x soo 200:1❌ A. allow-as-loop is unnecessary in a Hub-Spoke MPLS VPN.❌ B. allow-as-loop is not relevant here.❌ D. SoO should be applied inbound, not outbound.

Thus, the correct answer is: C. [Hub-PE-bgp-VPN_in] peer x.x.x.x soo 200:1.

1. Understanding Router-LSAs in OSPFv3

Router-LSA (Type 1 LSA) is generated by every OSPFv3 router to describe its own links and connected networks within the same area.

Each router in an OSPF area generates exactly one Router-LSA to advertise its own topology information.

Router-LSAs are flooded throughout the area but do not cross area boundaries.

2. Analyzing the Given OSPFv3 Network

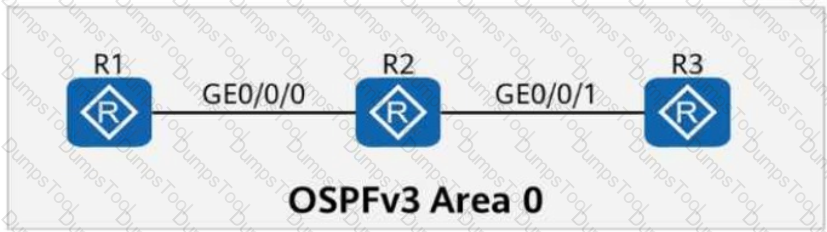

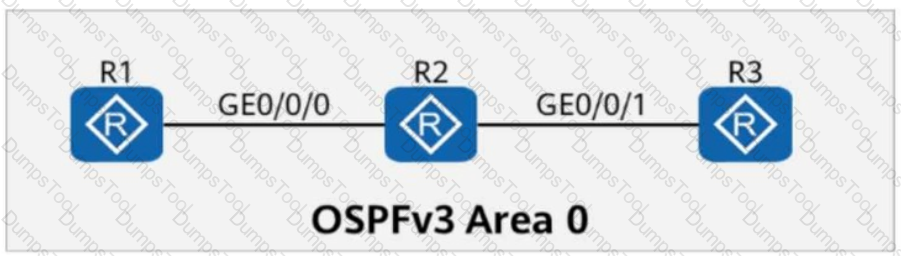

The topology consists of three routers: R1, R2, and R3, all connected in OSPFv3 Area 0.

Since all three routers participate in OSPFv3, each router generates its own Router-LSA (Type 1 LSA).

R2, as an OSPF router, will have its own Router-LSA and also receive the Router-LSAs from R1 and R3.

3. Counting the Number of Router-LSAs in R2’s LSDB

R1 generates 1 Router-LSA (for itself).

R2 generates 1 Router-LSA (for itself).

R3 generates 1 Router-LSA (for itself).

Total Router-LSAs in R2’s LSDB = 3 (one from each router).

Final Answer:

Answer: 3

HCIP-Datacom-Advanced Routing & Switching Technology References:

OSPFv3 LSA Types and Their Roles

Understanding Router-LSA (Type 1) and Its Function in LSDB

Comprehensive and Detailed In-Depth Explanation:

1. Understanding MPLS LDP (Label Distribution Protocol)

LDP (Label Distribution Protocol) runs over TCP port 646.

LDP uses the transport address (Loopback0 in this case) to establish TCP sessions between neighbors.

For an LDP session to be established, both routers must:

Enable LDP on the interface (GE0/0/1).

Allow TCP traffic on port 646 (used for LDP adjacency formation).

2. Analyzing the Issue and Possible Causes

The figure shows a successful ping from R2 to R1’s Loopback0 (10.0.1.1/32).

This means basic IP connectivity between R1 and R2 is working.

OSPF is properly advertising Loopback0 addresses between the routers.

The problem must be related to LDP itself, not general IP reachability.

3. Evaluating Each Answer Option

Option A: "R1’s GE0/0/1 rejects packets with the destination IP address 10.0.2.2."

Incorrect.

The ping test in the figure shows successful replies from 10.0.1.1 to 10.0.2.2, meaning packets to 10.0.2.2 are not being rejected.

This is NOT the cause of the LDP failure.

Option B: "MPLS LDP is not enabled on R2’s GE0/0/1."

Correct.

If LDP is not enabled on R2’s GE0/0/1, then R1 and R2 cannot form an LDP session.

MPLS LDP must be enabled on both interfaces for label exchange.

This is a valid cause of the issue.

Option C: "R2’s GE0/0/1 rejects packets with TCP destination port 646."

Correct.

LDP operates over TCP port 646, so if R2’s GE0/0/1 has a firewall or ACL blocking TCP port 646, then LDP will fail.

Blocking TCP 646 on R2’s interface would prevent the session from establishing.

This is another valid cause of the issue.

Option D: "R1’s GE0/0/1 rejects packets with UDP destination port 646."

Incorrect.

LDP does not use UDP; it uses TCP port 646.

This is not a valid cause of the issue.

Final Answer:

✅ B and C are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

MPLS LDP Session Establishment and TCP 646 Dependency

How OSPF Advertises Loopback0 for LDP Transport

Common LDP Debugging Techniques and ACL Issues

Restrict → Discards the packets that trigger static MAC address flapping and reports an alarm.

Protect → Discards the packets that trigger static MAC address flapping only and does not report an alarm.

Shutdown → Sets the interface state to error-down and reports an alarm.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding Port Security Modes

Port security is used to control access on a switch port based on MAC addresses. If a MAC address violation occurs (e.g., static MAC address flapping), the switch can take different actions based on the configured security mode.

Security Mode

Description

Restrict

Drops the violating packets and logs the violation by generating an alarm.

Protect

Drops the violating packets but does not generate an alarm.

Shutdown

Places the interface into error-disabled (error-down) state and logs an alarm.

2. Matching Each Security Mode with Its Operation

Protect Mode:

The switch drops the packets from the unauthorized MAC address.

No alarm is generated or logged.

Correct Mapping: "Discards the packets that trigger static MAC address flapping only and does not report an alarm."

Restrict Mode:

The switch drops the packets from the unauthorized MAC address.

An alarm is generated and logged in the system.

Correct Mapping: "Discards the packets that trigger static MAC address flapping and reports an alarm."

Shutdown Mode:

The switch shuts down the interface by placing it into the error-down state.

An alarm is generated and logged.

Correct Mapping: "Sets the interface state to error-down and reports an alarm."

Comprehensive and Detailed In-Depth Explanation:

1. Understanding DHCP Snooping

DHCP Snooping is a security feature that filters untrusted DHCP messages to prevent attacks such as:

Rogue DHCP servers distributing incorrect IP addresses.

DHCP starvation attacks.

In DHCP Snooping, switch ports are classified as:

Trusted Interfaces: Allow both DHCP requests and DHCP responses to pass through.

Untrusted Interfaces: Allow only DHCP requests but drop DHCP responses (to prevent rogue DHCP servers).

2. Analyzing Each Answer Option

Option A: "When receiving a DHCP response packet on GE0/0/2, the switch forwards the packet through GE0/0/1."

Correct.

GE0/0/2 is a trusted interface (connected to the DHCP server).

DHCP responses (ACK, NAK, OFFER) come from the DHCP Server.

Since DHCP responses are allowed on trusted interfaces, the switch forwards them to the client (PC1) via GE0/0/1.

Option B: "When receiving a DHCP request packet on GE0/0/2, the switch forwards the packet through GE0/0/3."

Incorrect.

DHCP requests originate from clients (PC1, attackers, etc.), not from the DHCP server.

The DHCP request should be forwarded to the DHCP server via a trusted interface (not GE0/0/3, which is untrusted).

Option C: "When receiving a DHCP response packet on GE0/0/3, the switch forwards the packet through GE0/0/1."

Incorrect.

GE0/0/3 is an untrusted interface (connected to the attacker).

DHCP responses (ACK, OFFER) from untrusted interfaces are dropped to prevent rogue DHCP attacks.

The switch will not forward the packet.

Option D: "When receiving a DHCP request packet on GE0/0/3, the switch forwards the packet through GE0/0/2."

Correct.

DHCP requests originate from clients (PC1 or attacker).

Since DHCP requests are allowed on untrusted interfaces, the switch forwards them to the DHCP server via the trusted interface (GE0/0/2).

Final Answer:

✅ A and D are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

DHCP Snooping and Port Trust Classification

How Trusted and Untrusted Ports Handle DHCP Packets

Preventing Rogue DHCP Servers Using DHCP Snooping

Comprehensive and Detailed In-Depth Explanation:

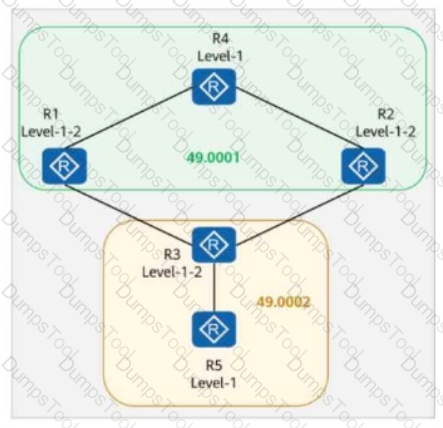

Understanding the IS-IS Network and IPv6 Route Summary Behavior

IS-IS Areas and Router Roles:

Area 49.0001 (Level-1-2): R1, R2, R4

Area 49.0002 (Level-1-2 & Level-1): R3 (Level-1-2), R5 (Level-1 only)

Effect of ipv6 summary 2000::/64 level-1-2 Command on R4

Route summarization in IS-IS allows an L1-L2 router (R4) to aggregate IPv6 prefixes and advertise a summary route (2000::/64) into both Level-1 and Level-2 areas.

This means R4 will advertise only 2000::/64 instead of specific /128 routes (like 2000::4/128).

All Level-1 and Level-2 routers connected to R4 will receive the summary route 2000::/64 instead of the detailed /128 routes.

Route Distribution Analysis for Each Statement

A. The routing table of R1 contains the route 2000::4/128. ✅ (True)

R1 is a Level-1-2 router in the same area (49.0001) as R4, so it receives both the summarized 2000::/64 route and the more specific 2000::4/128 route.

Since R1 is directly connected to R4, it can still learn the 2000::4/128 route.

✅ Statement A is true.

B. The routing table of R3 contains the route 2000::/64. ✅ (True)

R3 is a Level-1-2 router, meaning it can receive both Level-1 and Level-2 routes.

Since R4 (a Level-1-2 router) advertises the summarized 2000::/64 route into both levels, R3 will receive 2000::/64 in its routing table.

✅ Statement B is true.

C. The routing table of R2 contains the route 2000::/64. ✅ (True)

R2 is a Level-1-2 router in the same area as R4, meaning it receives the summarized 2000::/64 route.

This is expected behavior since R4 advertises the summary route into both Level-1 and Level-2 areas.

✅ Statement C is true.

D. The routing table of R5 does not contain the route 2000::/64. ❌ (False - Correct Answer)

R5 is a Level-1 router, meaning it can only receive Level-1 routes unless a default route is provided.

Since R3 (a Level-1-2 router) learns 2000::/64, it can propagate it into the Level-1 area (49.0002).

This means R5 will receive the summary route 2000::/64 from R3.

Thus, R5 does contain 2000::/64, making this statement false.

❌ Statement D is false (correct answer).

Final Conclusion:

✅ A. The routing table of R1 contains the route 2000::4/128. (True)✅ B. The routing table of R3 contains the route 2000::/64. (True)✅ C. The routing table of R2 contains the route 2000::/64. (True)❌ D. The routing table of R5 does not contain the route 2000::/64. (False - Correct Answer)

Thus, the correct answer is: D. The routing table of R5 does not contain the route 2000::/64 (False Statement).

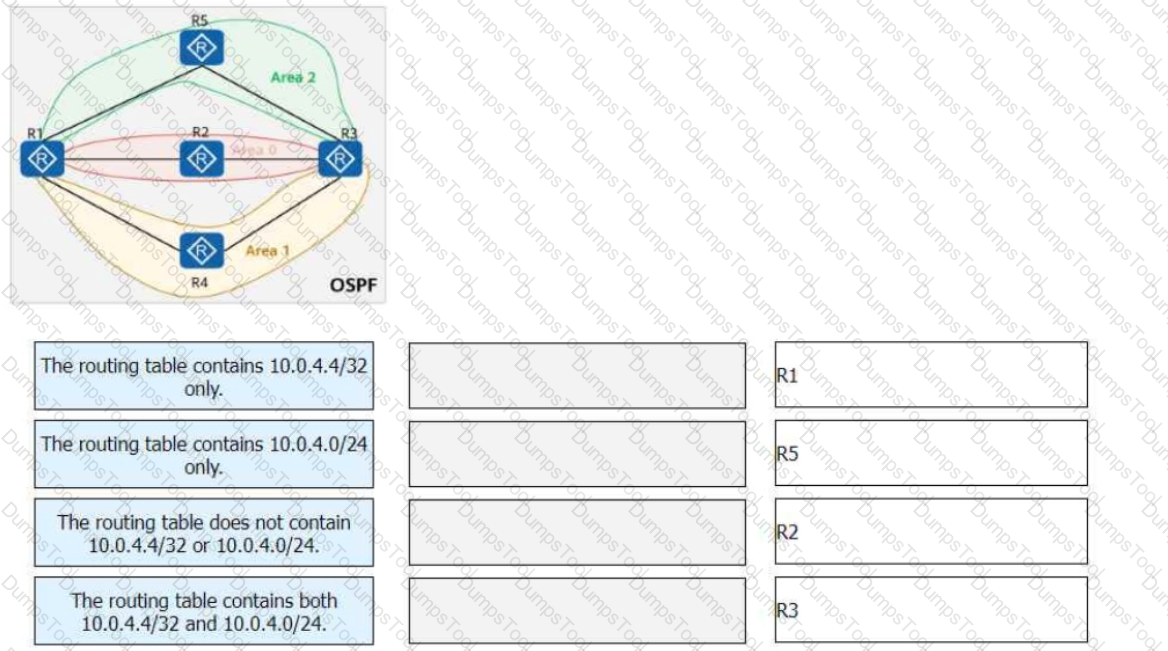

Comprehensive and Detailed In-Depth Explanation:

Key OSPF Concepts to Consider:

Area 1 is an NSSA (Not-So-Stubby Area):

NSSAs allow external routes but advertise them as Type-7 LSAs.

The ABR (R2) converts these Type-7 LSAs into Type-5 LSAs for the backbone (Area 0).

Area 2 is a Stub Area:

Stub areas do not allow external routes (Type-5 LSAs).

This means that R5 (inside Area 2) will NOT receive external routes like 10.0.4.4/32 or 10.0.4.0/24.

Effect of asbr-summary 10.0.4.0 255.255.255.0 on R1 and R3:

This command ensures that R1 and R3 will see a summarized route 10.0.4.0/24 instead of specific /32 routes.

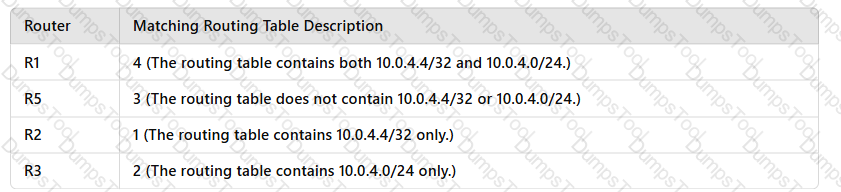

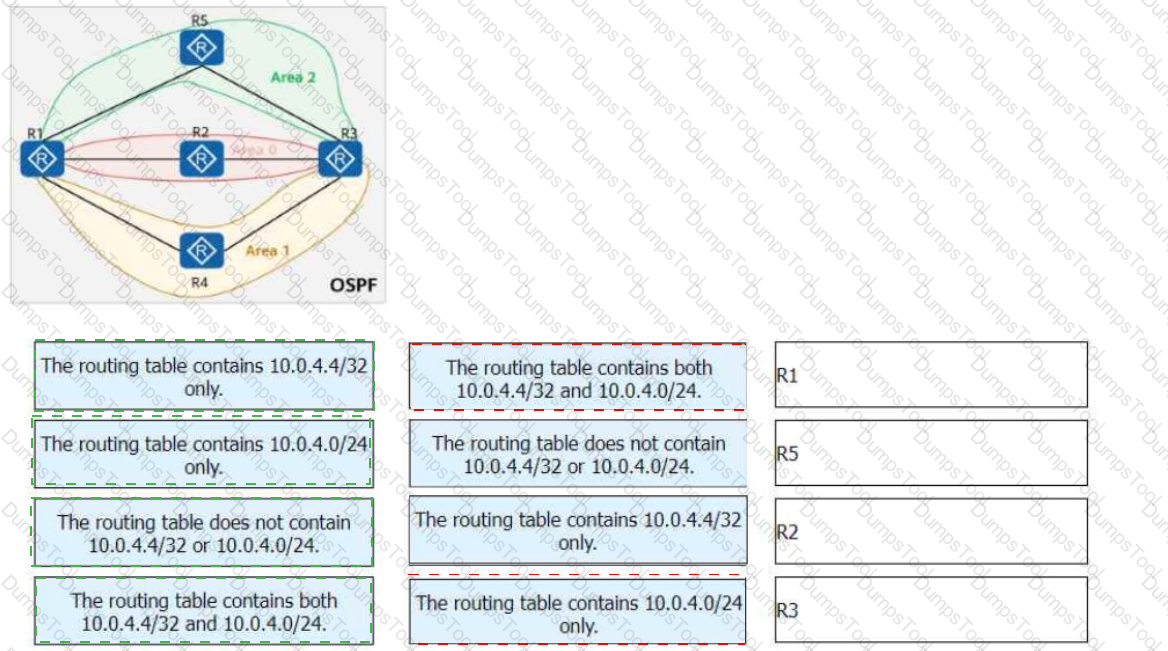

Routing Table Analysis:

R1 (ABR for NSSA, with ASBR summary configured)

Connected to Area 1 (NSSA) and Area 0 (Backbone)

Since asbr-summary 10.0.4.0 255.255.255.0 is configured on R1, it contains both 10.0.4.4/32 (from R4) and the summarized 10.0.4.0/24.

✅ Matches Option 4: The routing table contains both 10.0.4.4/32 and 10.0.4.0/24.

R5 (Inside Area 2 - Stub Area)

Stub areas do not receive external routes (Type-5 LSAs).

Since R5 is inside a stub area, it does not contain 10.0.4.4/32 or 10.0.4.0/24.

✅ Matches Option 3: The routing table does not contain 10.0.4.4/32 or 10.0.4.0/24.

R2 (ABR between NSSA and Backbone, but no ASBR summary configured)

R2 converts Type-7 LSAs from R4 into Type-5 LSAs and advertises them into Area 0.

Since no ASBR summary is configured on R2, it only sees the specific external route 10.0.4.4/32 but not the summarized 10.0.4.0/24.

✅ Matches Option 1: The routing table contains 10.0.4.4/32 only.

R3 (Another ABR with ASBR summary configured)

R3 has asbr-summary 10.0.4.0 255.255.255.0 configured, which means it will summarize the external routes.

Instead of 10.0.4.4/32, R3 will only have the summarized 10.0.4.0/24 route.

✅ Matches Option 2: The routing table contains 10.0.4.0/24 only.

References:

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 – OSPF Areas (Stub, NSSA, and Backbone)

OSPF External Route Advertisement and Summarization

OSPF NSSA Behavior and Type-7 to Type-5 Conversion

Comprehensive and Detailed In-Depth Explanation:

Understanding OSPFv3 Areas and Routing Behavior

OSPFv3 Area Types in the Network:

Area 1 (Stub Area): Does not accept external LSAs (Type 5) but can receive Inter-Area-Prefix-LSAs (Type 3).

Area 2 (Common Area): Fully functional area that allows both Type 3 (Inter-Area) and Type 5 (External) LSAs.

Area 3 (NSSA - Not-So-Stubby Area): Does not accept Type 5 (External) LSAs but allows ASBRs to inject external routes using Type 7 LSAs, which are later converted to Type 5 in other areas.

Effect of stub no-summary Command on Area 1 (Configured on R2):

This command prevents Type 3 LSAs from entering Area 1, meaning R4 will not learn about 2000::6/128 from other areas.

R4 only has a default route (::/0) provided by R2 but not individual routes like 2000::6/128.

Route and Packet Flow Analysis

A. "The LSDB of R4 contains the Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128." ❌ (False)

R4 is in Area 1 (a totally stub area), which does not receive Type 3 LSAs.

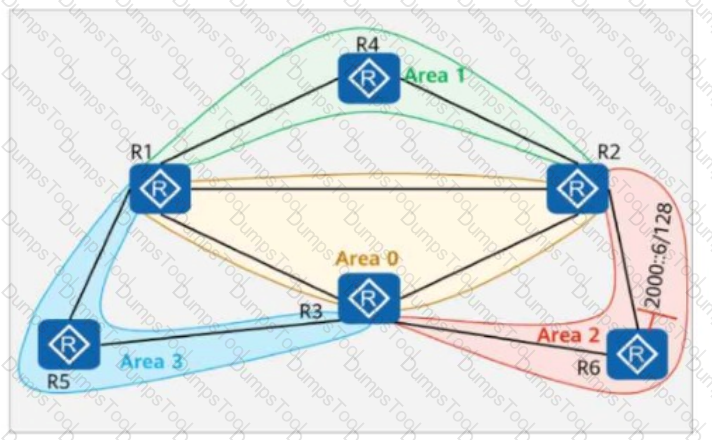

Since 2000::6/128 is an external route from Area 2, it will not be present in R4’s LSDB.

Thus, R4 does NOT have the Inter-Area-Prefix-LSA for 2000::6/128.

❌ Statement A is incorrect.

B. "The path for data packets from R4 to 2000::6 is R4 -> R1 -> R5 -> R3 -> R6." ❌ (False)

R4 is in a totally stub area (Area 1), and it does not have a specific route for 2000::6/128.

It only has a default route (::/0) pointing to R2.

If R4 forwards traffic, it will send it to R2, NOT via R1, R5, and R3.

❌ Statement B is incorrect.

C. "The routing table of R4 does not contain the route 2000::6/128." ✅ (True - Correct Answer)

R4 is in a totally stub area (Area 1), meaning it only receives a default route from R2 (::/0).

It does NOT receive specific routes like 2000::6/128.

✅ Statement C is correct.

D. "The path for data packets from R4 to 2000::6 is R4 -> R2 -> R6." ❌ (False)

While R4 does forward all unknown traffic to R2 (due to the default route), R2 will NOT directly forward to R6.

R2 is an ABR (Area Border Router), and the actual path to 2000::6 must traverse Area 2, likely through other routers.

❌ Statement D is incorrect.

Final Conclusion:

✅ C. The routing table of R4 does not contain the route 2000::6/128.

Thus, the correct answer is: C. The routing table of R4 does not contain the route 2000::6/128.

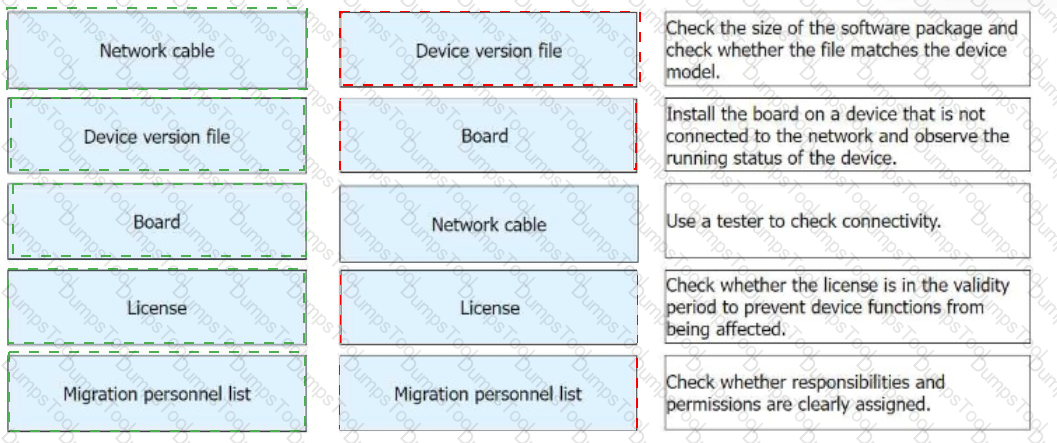

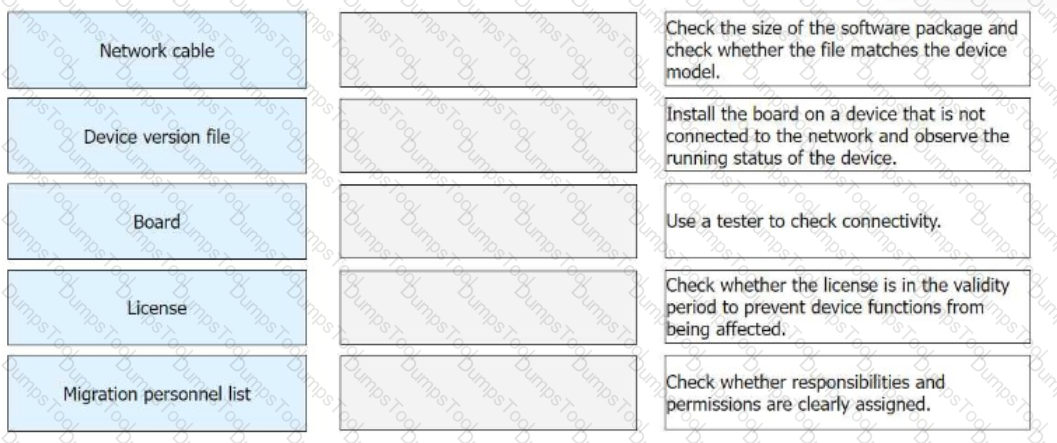

 Network cable → Use a tester to check connectivity.

 Device version file → Check the size of the software package and check whether the file matches the device model.

 Board → Install the board on a device that is not connected to the network and observe the running status of the device.

 License → Check whether the license is in the validity period to prevent device functions from being affected.

 Migration personnel list → Check whether responsibilities and permissions are clearly assigned.

Comprehensive and Detailed In-Depth Explanation:

1. Network Cable - Connectivity Testing:

Before starting a migration project, all network cables should be tested for physical connectivity issues.

Network testers can be used to detect any breaks, shorts, or incorrect wiring.

Ensuring proper connectivity avoids delays and troubleshooting issues during the migration.

2. Device Version File - Software Compatibility Check:

Firmware and software versions must be verified before upgrading or migrating network devices.

The device version file should match the model and hardware specifications to avoid compatibility issues.

If incorrect software is used, the device may not function properly or could become inoperable.

3. Board - Installation and Hardware Verification:

Before installing new hardware modules (boards, line cards, etc.) into a production environment, they should be tested in isolation.

Testing ensures the board is operational and does not introduce faults into the system.

If a board is faulty, it can cause device failure or unexpected behavior in the migration.

4. License - Validity and Activation Check:

Some network devices require licenses for full functionality (e.g., advanced routing, security features).

If a license is expired or missing, critical functions may be disabled after migration.

Checking license status in advance prevents unexpected downtime or service disruptions.

5. Migration Personnel List - Roles and Responsibilities Assignment:

Large network migrations require clear responsibility assignments for each team member.

A migration personnel list ensures that everyone knows their role, tasks, and permissions.

Proper coordination avoids miscommunication, errors, and project delays.

Key Takeaways:

✅ Network cables should be tested for connectivity.✅ Software versions should match the hardware model to prevent incompatibility.✅ Hardware boards should be tested before installing into production.✅ Licenses should be verified to prevent service disruptions.✅ Migration personnel roles should be clearly defined for smooth execution.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on Network Migration Best Practices.

Huawei Enterprise Networking Whitepapers, Guidelines on Software & Hardware Pre-checks for Migration.

Huawei Technical Documentation, License Management in Huawei Datacom Devices.

Comprehensive and Detailed In-Depth Explanation:

Understanding the network connectivity:

R1 and R2 are connected through 10.0.12.0/24 and running OSPF in Area 0.

PC1 (192.168.1.11/24) is connected to R1, and PC2 (192.168.1.12/24) is connected to R2.

Analyzing each option:

Option A: "R2 cannot ping 10.0.12.1." ❌ Incorrect

R2 is directly connected to 10.0.12.1/24 (R1) on GE0/0/0, so it can ping this IP without any routing issues.

Option B: "PC1 and PC2 cannot ping each other." ✅ Correct

OSPF is only running between R1 and R2. There is no indication that R1 and R2 are redistributing connected routes (192.168.1.0/24 and 192.168.1.0/24) into OSPF.

As a result, R1 does not know how to reach 192.168.1.12, and R2 does not know how to reach 192.168.1.11, making communication between PC1 and PC2 impossible.

Option C: "R1 cannot ping 192.168.1.2." ❌ Incorrect

192.168.1.2 is directly connected to R2, and if R1 can reach R2 through OSPF, then R1 should be able to ping 192.168.1.2.

Option D: "R1 cannot ping 192.168.1.12." ✅ Correct

192.168.1.12 is connected to R2, but if R2 does not advertise this network to R1, R1 has no route to reach it.

Since PC1 (192.168.1.11) and PC2 (192.168.1.12) are on different subnets, and there's no redistribution, R1 cannot reach PC2's IP.

Key Takeaways and Fix Recommendations:

To allow PC1 and PC2 to communicate, R1 and R2 must advertise their directly connected networks (192.168.1.0/24) in OSPF using the network command or by redistributing connected routes into OSPF.

Command example:

makefile

CopyEdit

R1:

router ospf 1

network 192.168.1.0 0.0.0.255 area 0

R2:

router ospf 1

network 192.168.1.0 0.0.0.255 area 0

This would allow R1 to learn about PC2's network and R2 to learn about PC1's network, enabling communication.

HCIP-Datacom-Advanced Routing & Switching Technology References:

HCIP-Datacom Official Certification Guide, Chapter on OSPF Network Design and Troubleshooting.

Huawei Datacom Training Materials, Section on OSPF Inter-Area and External Route Advertisements.

Huawei Datacom Configuration Guide, Command Reference for OSPF network advertisement and route redistribution.

Comprehensive and Detailed In-Depth Explanation:

Multicast MAC addresses follow the format 01-00-5E-XX-XX-XX, derived from the IPv4 multicast address (224.0.0.0 – 239.255.255.255).

The lower 23 bits of the IPv4 multicast address are mapped to the MAC address, causing ambiguity because different IPv4 multicast addresses can share the same MAC address.

The IPv4 multicast range (224.0.0.0 – 239.255.255.255) is divided as follows:✅ 224.0.0.0 – 224.0.0.255: Local Network Control Block (e.g., 224.0.0.1)✅ 224.0.1.0 – 238.255.255.255: Global and Reserved Multicast (e.g., 224.0.1.1, 225.0.1.1)❌ 239.0.0.0 – 239.255.255.255: Private Multicast (Not mapped to 01-00-5E)

The MAC 01-00-5e-00-01-01 corresponds to an IPv4 multicast address in the range 224.0.0.0 – 238.255.255.255, but not to 239.128.1.1, because addresses in the 239.x.x.x range are private multicast addresses.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – Multicast MAC Address Mapping

Comprehensive and Detailed In-Depth Explanation:

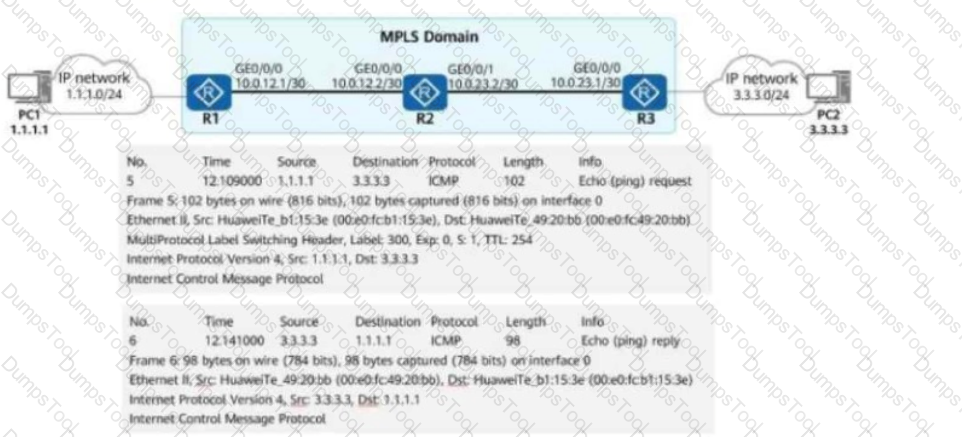

1. Understanding the MPLS Data Flow in the Figure

PC1 (1.1.1.1) sends a ping to PC2 (3.3.3.3).

The MPLS domain includes R1, R2, and R3.

R1 pushes an MPLS label onto the packet (Label: 300).

Packets from PC1 to PC2 are label-switched (MPLS forwarding).

Packets from PC2 to PC1 do not carry an MPLS label (IP forwarding).

2. Evaluating Each Answer Option

Option A: "If the device is R3, R3 forwards the packet from PC1 to PC2 over an IP route."

Incorrect.

The packet carries an MPLS label (Label 300) when entering the MPLS domain.

This means that R3 forwards the packet using MPLS, not a standard IP route.

If R3 were using an IP route, there would be no MPLS label in the packet.

Option B: "Packets from PC1 to PC2 are forwarded based on MPLS labels in the MPLS domain."

Correct.

The packet capture shows an MPLS label (Label 300), proving that PC1’s traffic is being forwarded using MPLS switching inside the MPLS domain.

This confirms that MPLS is being used for forwarding in one direction (PC1 → PC2).

Option C: "Packets from PC2 to PC1 are forwarded based on the IP packet header in the MPLS domain."

Correct in concept but incorrect in context.

The packet capture shows that the return traffic (PC2 → PC1) does not have an MPLS label.

However, the phrase "in the MPLS domain" makes this statement misleading, as R3 is forwarding based on pure IP routing, not MPLS forwarding.

Option D: "PC1 pings PC2."

Correct.

The packet capture clearly shows ICMP Echo Request (ping) from PC1 (1.1.1.1) to PC2 (3.3.3.3) and an ICMP Echo Reply from PC2.

This confirms that PC1 is pinging PC2 successfully.

Final Answer:

✅ B and D are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

MPLS Label Forwarding and Static LSPs

MPLS vs. IP Routing in Different Traffic Flows

Packet Header Analysis in MPLS Networks

Comprehensive and Detailed In-Depth Explanation:

Understanding the BGP Network Topology in the Question:

EBGP Peering

Each router forms EBGP peer relationships with directly connected neighbors.

This is a fully meshed topology, meaning each router exchanges BGP routes with its adjacent routers.

Routing Information for 192.168.1.0/24

R1 and R4 import the static route 192.168.1.0/24 into BGP.

Since BGP prefers the shortest AS path, traffic to 192.168.1.0/24 will follow the shortest path to R1 or R4.

Route Analysis for Each Statement:

Statement A: R6 → R5 → R4 ✅ (Correct)

R6 does not have a direct route to 192.168.1.0/24, so it must rely on BGP advertisements from its EBGP neighbors.

R5 learns the route to 192.168.1.0/24 from R4.

Therefore, R6 forwards traffic to R5, and then R5 sends it to R4.

✅ Correct path: R6 → R5 → R4

Statement B: R5 → R4 ✅ (Correct)

R5 is directly connected to R4, and since R4 advertises the 192.168.1.0/24 route via BGP,

R5 will forward traffic directly to R4 as the shortest AS path.

✅ Correct path: R5 → R4

Statement C: R2 → R1 ✅ (Correct)

R2 is directly connected to R1 and learns the 192.168.1.0/24 route from R1 via BGP.

Since R1 advertises the static route, R2 forwards traffic directly to R1.

✅ Correct path: R2 → R1

Statement D: R3 → R2 → R1 ✅ (Correct)

R3 is directly connected to R2 and learns the 192.168.1.0/24 route from R2 via BGP.

Since R2 prefers R1 as the shortest AS path to 192.168.1.0/24,

R3 will send traffic to R2, and R2 will send it to R1.

✅ Correct path: R3 → R2 → R1

Final Conclusion:

✅ A. The path for traffic from R6 to 192.168.1.0/24 is R6 → R5 → R4.✅ B. The path for traffic from R5 to 192.168.1.0/24 is R5 → R4.✅ C. The path for traffic from R2 to 192.168.1.0/24 is R2 → R1.✅ D. The path for traffic from R3 to 192.168.1.0/24 is R3 → R2 → R1.

Thus, the correct answers are: A, B, C, D.

Comprehensive and Detailed In-Depth Explanation:

Understanding the IS-IS Network Structure in the Question:

IS-IS Area IDs and Router Roles

Area 49.0001 (Level-1-2): Contains R1, R2, R4 (all Level-1-2 routers).

Area 49.0002 (Level-1-2 & Level-1): Contains R3 (Level-1-2) and R5 (Level-1 only).

Key Command Used: ipv6 default-route-advertise always level-1

This command forces R4 to advertise a default route (::/0) to all Level-1 routers within its area.

Only Level-1 routers in the same area as R4 will receive the default route.

Level-2 routers do not receive or propagate this default route unless additional configuration is done.

Route Distribution Analysis:

R4 (Level-1-2) is configured to advertise a default route to Level-1 routers.

R1 and R2 (both Level-1-2) are in the same area (49.0001) as R4, so they receive the default route.

R3 (Level-1-2) is in area 49.0002 but connects to R4 (49.0001), meaning it can receive the default route through its Level-1 connection.

R5 (Level-1 only) is in area 49.0002, but R4 does not propagate the default route to another Level-1 area (49.0002).

Since R5 is a Level-1 router and does not have a Level-2 connection, it cannot receive the default route from R4.

Final Conclusion:

✅ R1 receives the default route.✅ R2 receives the default route.✅ R3 receives the default route.❌ R5 does NOT receive the default route.

Thus, the correct answer is: C. R5.

To determine the correct answer, we need to analyze how OSPFv3 handles Router LSAs (Type 1 LSAs) in a simple Area 0 topology like the one shown in the figure.

1. Understanding OSPFv3 Router LSAs (Type 1 LSAs)

Router LSAs (Type 1 LSAs) are generated by each router within an OSPF area to describe its own directly connected links.

Each router in an OSPF area generates exactly one Type 1 LSA.

The Link-State Database (LSDB) on a router contains LSAs from all routers in the same area.

2. Analyzing the Network in the Figure

There are 3 routers: R1, R2, and R3.

All routers are in OSPFv3 Area 0 (which is a single area).

Each of these routers generates one Router LSA (Type 1 LSA).

Since R2 is in the same area as R1 and R3, its LSDB contains the Router LSAs from itself, R1, and R3.

3. Conclusion

The LSDB of R2 contains 3 Router LSAs (one from each router: R1, R2, and R3).

Final Answer: 3

To determine the correct command, we need to analyze BGP behavior in a Hub-Spoke topology and how routes are advertised in MPLS VPN environments.

1. Understanding the Hub-Spoke BGP/MPLS VPN Topology

The network consists of Hub-PE and Spoke-PE routers, which are MPLS VPN PEs.

Hub-PE is responsible for distributing routes between Spoke-PE1 and Spoke-PE2.

Spoke routers do not have direct IBGP peering with each other; instead, they rely on the Hub-PE to relay routes.

BGP next-hop handling is critical for proper route advertisement.

2. Why is the "next-hop-self" Command Required?

By default, when BGP advertises a route, the next-hop remains unchanged (i.e., the original next-hop is retained).

In Hub-Spoke topology, Spoke routers would receive routes with a next-hop IP that belongs to another Spoke-PE, which is not reachable directly.

To solve this issue, we use the next-hop-self command on the Hub-PE, so that:

Hub-PE updates the next-hop to its own address before advertising routes to the Spoke-PEs.

This ensures that Spoke-PE routers use the Hub-PE as the next-hop, making routes reachable and preventing blackholing.

3. Correct Command Usage

The administrator must run the following command under the BGP IPv4 address family of the BGP-VPN_out instance on Hub-PE:

shell

CopyEdit

peer 10.1.2.1 next-hop-self

This ensures that the next-hop for advertised routes is changed to the Hub-PE's IP, allowing proper route transmission in the Hub-Spoke MPLS VPN environment.

Comprehensive and Detailed In-Depth Explanation:To determine whether the statement is true or false, we need to analyze the OSPFv3 topology, the role of area types, and the behavior of Inter-Area-Prefix-LSAs. Let’s break it down step by step:

Understanding the OSPFv3 Topology and Area Types:

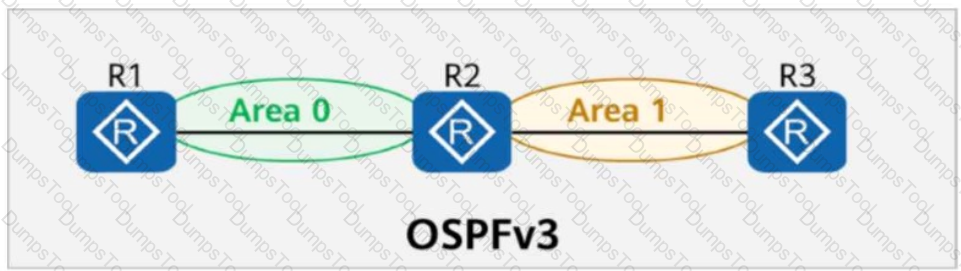

The figure shows three routers (R1, R2, and R3) connected in an OSPFv3 network. R1 and R2 are in Area 0 (the backbone area), while R2 and R3 are in Area 1 (a common area, also known as a standard or regular area).

R2 is an Area Border Router (ABR) because it connects Area 0 and Area 1. ABRs are responsible for summarizing and advertising routes between areas.

What is a Common Area in OSPFv3?:

A "common area" in OSPFv3 refers to a standard or regular OSPF area, as opposed to special areas like Stub, Totally Stubby, Not-So-Stubby Area (NSSA), or Totally NSSA. Common areas allow all types of LSAs, including inter-area, intra-area, and external LSAs, to be flooded within the area, except for restrictions in special area types.

Since Area 1 is described as a "common area," it behaves like a standard OSPF area, allowing the full exchange of LSAs, including Inter-Area-Prefix-LSAs.

Role of Inter-Area-Prefix-LSA (Type 3 LSA in OSPFv3):

Inter-Area-Prefix-LSAs (Type 3 LSAs in OSPFv3) are used by ABRs to advertise prefixes from one area to another. These LSAs are critical for inter-area routing, allowing routers in one area to learn about networks in other areas.

In this case, R2, as an ABR, generates Inter-Area-Prefix-LSAs to describe routes (network segments) in Area 1 and advertises them into Area 0. Conversely, R2 also receives Inter-Area-Prefix-LSAs from Area 0 (via R1) and advertises them into Area 1.

Does the Inter-Area-Prefix-LSA Exist in Both Area 0 and Area 1?:

Yes, Inter-Area-Prefix-LSAs exist in both areas because R2, as an ABR, floods these LSAs into both Area 0 and Area 1. Specifically:

R2 generates Inter-Area-Prefix-LSAs for network segments in Area 1 and advertises them into Area 0, where R1 (in Area 0) can receive and process them.

Similarly, R2 receives Inter-Area-Prefix-LSAs for network segments in Area 0 (from R1) and advertises them into Area 1, where R3 (in Area 1) can receive and process them.

Since Area 1 is a common area (not a stub or NSSA), it allows Inter-Area-Prefix-LSAs to be flooded within the area, ensuring that routers like R3 can learn about routes in Area 0, and routers like R1 can learn about routes in Area 1.

Verifying the Statement:

The statement claims that R2 generates an Inter-Area-Prefix-LSA to describe the routes of a network segment in Area 1, and such an LSA exists in both Area 0 and Area 1. This is accurate because:

R2, as an ABR, generates Inter-Area-Prefix-LSAs for Area 1’s network segments and floods them into Area 0.

R2 also receives and floods Inter-Area-Prefix-LSAs from Area 0 into Area 1.

Therefore, Inter-Area-Prefix-LSAs describing routes in Area 1 exist in both Area 0 and Area 1, making the statement true.

Conclusion:

The statement is true because Inter-Area-Prefix-LSAs generated by R2 for Area 1’s network segments are flooded into both Area 0 and Area 1, and Area 1, being a common area, allows these LSAs to exist within it.

References to HCIP-Datacom-Advanced Routing & Switching Technology Documents:

HCIP-Datacom-Advanced Routing & Switching Technology V1.0, Section on OSPFv3: OSPF Area Types, Inter-Area Routing, and LSA Types (specifically Inter-Area-Prefix-LSA, Type 3 LSA).

HCIP-Datacom-Advanced Routing & Switching Technology V1.0, Chapter on OSPF Routing Protocols: ABR Behavior, Common Areas, and LSA Flooding Mechanisms.

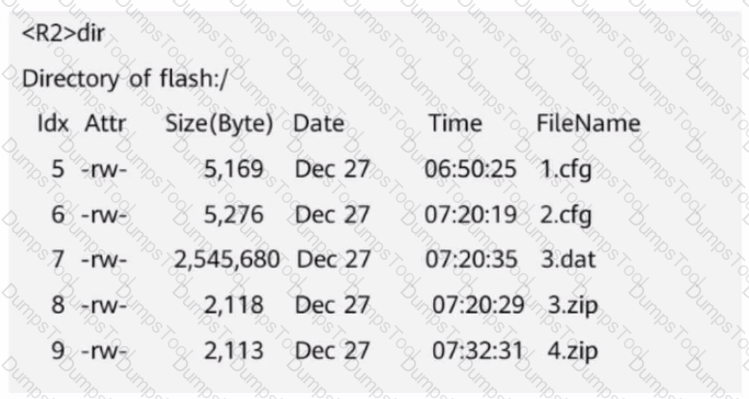

Comprehensive and Detailed In-Depth Explanation:

The display startup command is used to check the startup and running configuration details of a Huawei network device.

It provides information on:✅ Running system software (currently active firmware).✅ Running configuration file (current settings in use).✅ Startup system software (firmware that will load on reboot).✅ Startup configuration file (configuration that will be applied on reboot).✅ Paths of these files in the storage system.

This command helps network administrators ensure that the correct firmware and configuration files are used when the device boots.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – System Management and Configuration Files

Comprehensive and Detailed In-Depth Explanation:

LSR ID (Label Switch Router ID) uniquely identifies an MPLS router in the network.

By default, the LSR ID is the IP address of a physical interface on the router.

Best Practice: Manually configuring the LSR ID to use a loopback interface address improves stability and reachability in MPLS networks.

The loopback interface is always up, ensuring that the LSR ID remains accessible even if physical interfaces go down.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – MPLS LSR ID Configuration

Comprehensive and Detailed In-Depth Explanation:

1. Understanding MPLS Label Switching

MPLS (Multiprotocol Label Switching) operates by adding labels to packets to enable fast switching across an MPLS domain.

Labels are swapped at each router (LSR - Label Switch Router) based on the LFIB (Label Forwarding Information Base).

When an MPLS packet reaches a router, it checks the incoming label and swaps it with an outgoing label as per its label forwarding table.

The label value "3" is the implicit null label, which is used for PHP (Penultimate Hop Popping).

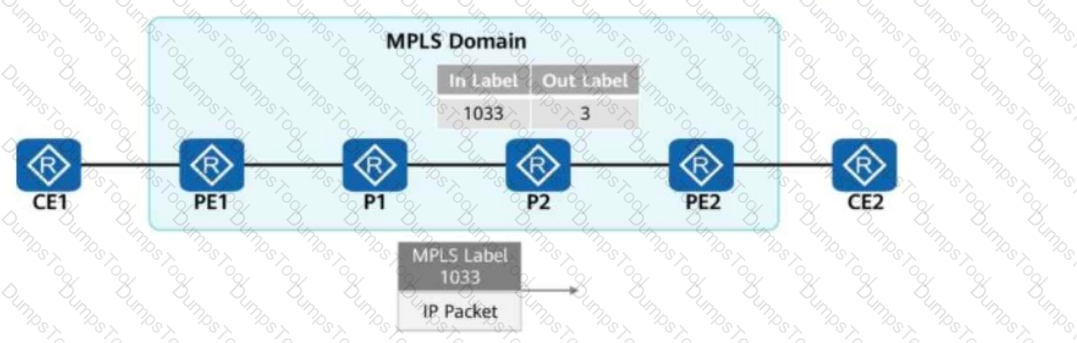

2. Analyzing the MPLS Label Flow in the Figure

At PE1: The packet enters the MPLS domain and is labeled with 1033.

At P1: P1 forwards the packet based on label 1033.

At P2:

P2 receives label 1033 and swaps it with label 3 (as per the figure).

Label 3 (implicit null) means that the label is removed before reaching PE2 (PHP - Penultimate Hop Popping).

This ensures that PE2 receives a pure IP packet without an MPLS label.

3. Evaluating Each Answer Option

Option A: "The label value is 3." → Incorrect.

Label 3 (implicit null) is not actually sent to PE2.

Instead, P2 removes the label before sending the packet to PE2.

Option B: "There is no label." → Correct.

Since P2 performs PHP (Penultimate Hop Popping), the label is removed, and PE2 receives only an IP packet.

Option C: "The label value is 1033." → Incorrect.

Label 1033 was used earlier in the MPLS path but was swapped out before reaching PE2.

Option D: "The label values are 3 and 1033." → Incorrect.

Only one label is present at a time.

Label 1033 was swapped for label 3, but label 3 was removed before reaching PE2.

Final Answer:

Answer: B (There is no label).

HCIP-Datacom-Advanced Routing & Switching Technology References:

MPLS Label Forwarding Mechanism

Penultimate Hop Popping (PHP) and Implicit Null Label (3)

MPLS Label Swapping and Label Forwarding Table (LFIB)
