Aruba AirMatch is a feature that optimizes RF Radio Frequency. RF is any frequency within the electromagnetic spectrum associated with radio wave propagation. When an RF current is supplied to an antenna, an electromagnetic field is created that then is able to propagate through space. performance and user experience by using machine learning algorithms and historical data to dynamically adjust AP power levels, channel assignments, and channel width. AirMatch performs live firmware upgrades on Aruba APs by partitioning all the APs based on RF neighborhood data and minimizing the impact on clients. AirMatch uses a rolling upgrade process that upgrades one partition at a time while ensuring that adjacent partitions are not upgraded simultaneously. References: https://www.arubanetworks.com/assets/ds/DS_AirMatch.pdf https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/arm/AirMatch.htm

AirMatch is a feature that provides centralized RF planning and optimization service for Aruba wireless networks. It uses cloud-based algorithms and machine learning to optimize the RF performance and user experience.References:https://www.arubanetworks.com/assets/ds/DS_AirMatch.pdf

In Aruba networks, the recommended Virtual Switching Framework (VSF) topologies include the daisy chain plus Multi-Active Detection (MAD) and the ring topology. The daisy chain topology with MAD provides a straightforward and effective way to connect multiple switches in a series while ensuring there is a mechanism in place (MAD) to detect and handle situations where more than one switch in the VSF might become active simultaneously. The ring topology offers redundancy by creating a looped connection pattern among the VSF members, enhancing network resilience and reliability.

The way that STP Spanning Tree Protocol. STP is a network protocol that ensures a loop-free topology for any bridged Ethernet local area network by preventing redundant paths between switches or bridges from creating loops that cause broadcast storms, multiple frame transmission, and MAC table instability. STP creates a logical tree structure that spans all of the switches in an extended network and blocks any redundant links that are not part of the tree from forwarding data packets3. will forward or discard traffic on these ports is as follows:

STP will elect a root bridge among the two switches based on their bridge IDs, which are composed of a priority value and a MAC address. The switch with the lower bridge ID will become the root bridge and will forward traffic on all its ports.

STP will assign a role and a state to each port on both switches based on their port IDs, which are composed of a priority value and a port number. The port with the lower port ID will become the designated port and will forward traffic, while the port with the higher port ID will become the alternate port and will discard traffic.

In this scenario, since both switches have two cables connected between ports 1/1/1 and 1/1/2, there will be two possible paths between them, creating a loop. To prevent this loop, STP will block one of these paths by discarding traffic on one of the ports on each switch.

Assuming that both switches have the same priority value (default is 32768), the switch with the lower MAC address will have the lower bridge ID and will become the root bridge. The root bridge will forward traffic on both ports 1/1/1 and 1/1/2.

Assuming that both ports have the same priority value (default is 128), port 1/1/1 will have a lower port ID than port 1/1/2 on both switches because it has a lower port number. Port 1/1/1 will become the designated port and will forward traffic, while port 1/1/2 will become the alternate port and will discard traffic.

Therefore, the switch with the lower MAC address will discard traffic on one port (port 1/1/2), while the switch with the higher MAC address will also discard traffic on one port (port 1/1/2).

References: 3 https://en.wikipedia.org/wiki/Spanning_Tree_Protocol

The correct command to add a static route to a class-c-network 10.2.10.0 via a gateway of 172.16.1.1 is ip-route 10.2.10.0/24 172.16.1.1 . This command specifies the destination network address (10.2.10.0) and prefix length (/24) and the next-hop address (172.16.1 .1) for reaching that network from the switch. The other commands are either incorrect syntax or incorrect parameters for adding a static route.References:https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/static-routes.htm

To add a static route in network devices, including Aruba switches, the correct command format generally includes the destination network, subnet mask (or CIDR notation for the mask), and the next-hop IP address. The command "ip route 10.2.10.0/24 172.16.1.1" correctly specifies the destination network "10.2.10.0" with a class C subnet mask indicated by "/24", and "172.16.1.1" as the next-hop IP address. This command is succinct and follows the standard syntax for adding a static route in many network operating systems, including ArubaOS-CX. The other options either have incorrect syntax or include additional unnecessary parameters that are not typically part of the standard command to add a static route.

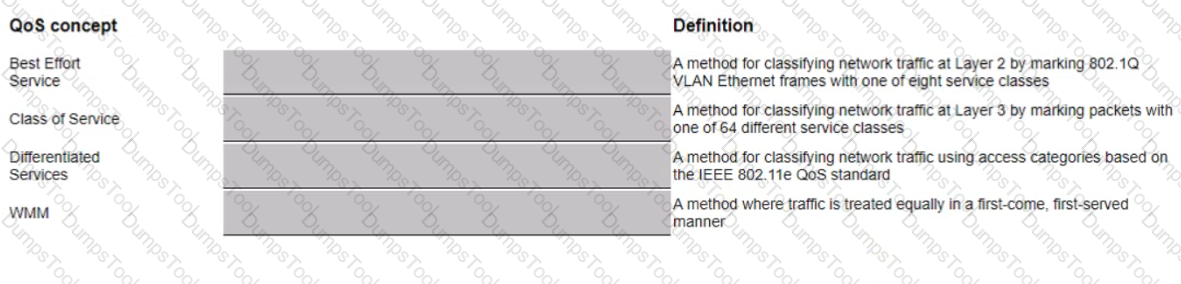

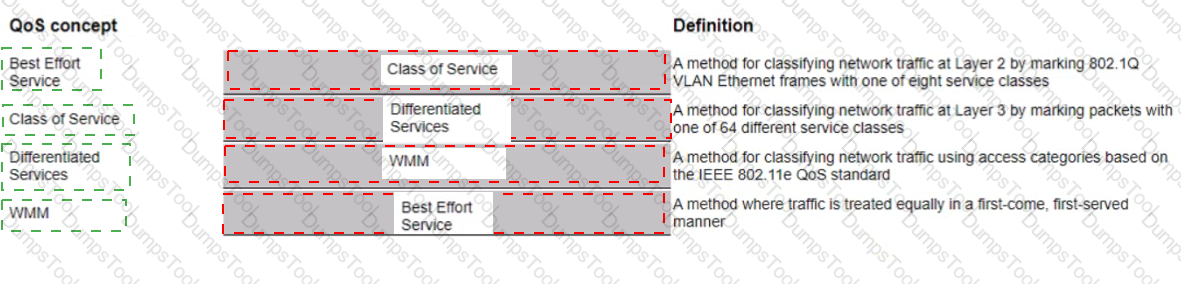

In a 2.4GHz WLAN environment, channels 1, 6, and 11 are recommended for use simultaneously to avoid co-channel interference because these channels do not overlap with each other. Each of these channels is separated by enough frequency space to ensure that the signals do not interfere, which is not the case with other channel combinations.
