FCP_FMG_AD-7.4 Dumps with Practice Exam Questions Answers

FortiManager backups include:

A. All devices— This includes all device configurations managed by FortiManager, such as firewall policies, objects, and other settings.

D. Flash configuration— This consists of local FortiManager configurations stored in flash memory, such as system settings, scripts, and other locally-stored configurations.

Options B and C are incorrect because:

B (Firmware images)are not typically included in a FortiManager backup. Firmware images are usually stored separately and managed through a different process.

C (FortiGuard database)is incorrect as the FortiGuard database, which contains threat intelligence and security signatures, is not part of the standard FortiManager backup.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Backup and Restore Processes.

When adding a FortiGate device to FortiManager that is operating behind a NAT device, and the FortiManager NATed IP address is configured under the system administration settings, FortiManager will set the FortiManager NATed IP address on the FortiGate device during the discovery process. This ensures that the FortiGate knows how to reach the FortiManager through the NAT device.

Options A, B, and C are incorrect because:

Ais incorrect because the discovery process also requires knowing the NATed IP to establish a connection, not just the serial number.

Bis incorrect because FortiManager does not set the NAT device's IP address on the FortiGate.

Cis incorrect because it implies that the NAT device IP is set on FortiGate, which is not the expected outcome.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Device Discovery and Management with NAT.

Option B: To save the current state of all policy packages and objects for an ADOMis the correct answer. ADOM (Administrative Domain) revisions in FortiManager are used to create a snapshot of the current state of all policy packages and objects associated with an ADOM. This allows administrators to save a specific configuration state and revert to it if necessary. It helps in managing changes and recovering from configuration errors or unintended changes.

Explanation of Incorrect Options:

Option A: To save the current state of the whole ADOMis incorrect because ADOM revisions specifically save only the policy packages and object configurations, not the entire state of the ADOM, which may include logs, reports, and other non-policy data.

Option C: To revert individual policy packages and device-level settings for a managed FortiGateis incorrect as ADOM revisions are not meant for reverting individual policy packages or device settings; they are designed to handle the entire set of policy packages and objects within an ADOM.

Option D: To save the FortiManager configuration in the System Checkpointsis incorrect because ADOM revisions do not function as system checkpoints for FortiManager itself; they are specific to ADOM policy packages and objects.

FortiManager References:

Refer to the FortiManager 7.4 Administration Guide, "ADOM Management" section, which describes the purpose and usage of ADOM revisions for configuration management and restoration.

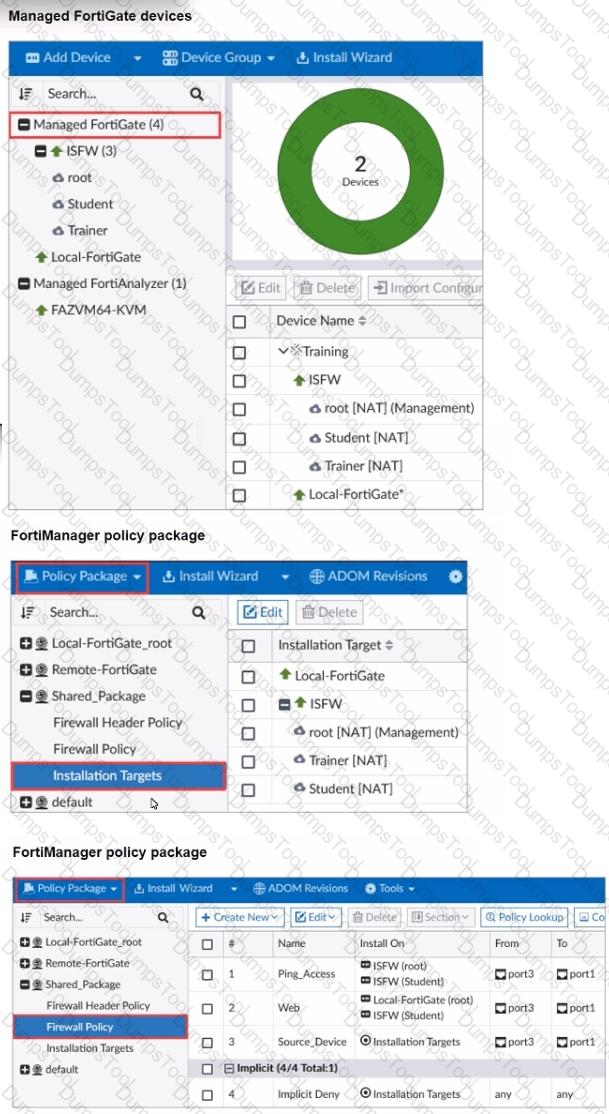

The provided screenshot from FortiManager shows several key elements that help answer the question:

Thepadlock iconnext to the "Remote-FortiGate" policy package indicates that this policy package islocked, which means it is currently being edited or has been checked out by an administrator. This is typical behavior when the ADOM (Administrative Domain) workspace is inuse, and a session is active where an administrator is working on a policy package.

Theabsence of a lock iconnext to "Local-FortiGate_root" and "default" indicates that these policy packages are not locked and are available for editing.

Statement B(FortiManager is in workflow mode): This istrue. The fact that one of the policy packages is locked suggests that FortiManager is operating inADOM workflow modeor at least in a state where it enforces locking for editing, typically seen in Normal ADOM modes. Inworkflow mode, an administrator needs to lock a workspace before making changes.

Statement C(The FortiManager ADOM is locked by the administrator): This istrue. The presence of the padlock on "Remote-FortiGate" signifies that the ADOM, or more specifically, this policy package within the ADOM, has been locked by the administrator.

Statement A(An administrator can also lock the Local-FortiGate_root policy package): This isnotnecessarily true. The administrator can lock the "Local-FortiGate_root" policy package, but as shown in the exhibit, it iscurrently not locked, so this option is not a certainty in this state.

Statement D(The FortiManager ADOM workspace mode is set to Normal): This istrue, but not the best option compared to B and C, as it can be inferred that the mode is set to Normal due to the locking behavior, but the more direct information is about the ADOM being locked by an administrator.

To create and install a policy on a FortiGate device in an ADOM (Administrative Domain) that is in backup mode, the administrator must use a FortiManager script. This is because backup mode restricts direct configuration changes, and scripts can be used to push specific configuration changes without altering the ADOM mode.

Options A, C, and D are incorrect because:

A requires the ADOM to be in normal or advanced mode to create policies directly in the Policy & Objects section.

C suggests disabling offline mode, which is irrelevant to the backup mode configuration.

D implies changing the ADOM mode, which is unnecessary if using a script to perform the task.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Working with ADOMs and Using Scripts for managing policies in backup mode.
