D-XTR-OE-A-24 Questions and Answers

To create an iSCSI portal using the XtremIO X2 XMS WebUI, an administrator should navigate to Cluster Settings.

Within Cluster Settings, the configuration options for creating and managing iSCSI portals are available.

This is the starting point for setting up network configurations and ensuring the proper operation of iSCSI connections.

References:

Dell XtremIO X2 Configuration Guide

XtremIO XMS WebUI Documentation

When dealing with misaligned partitions on XtremIO volumes after upgrading from Windows Server 2003 to Windows Server 2008, the following steps should be taken to realign the data:

Backup the Data: The first and most crucial step is to ensure that all data on the existing partitions is backed up. This is to prevent any data loss during the alignment process.

Run Diskpart: After backing up, use the Diskpart utility, which is a command-line disk partitioning tool that allows you to manage your disk’s partitions.

Recreate the Partition: With Diskpart, delete the existing misaligned partition and then create a new partition.When creating the new partition, ensure that it is aligned correctly, typically to a 1MB boundary, which is the default alignment for Windows Server 2008 and newer versions1.

Restore the Data: Once the new partition is created and aligned properly, restore the data from the backup to the newly aligned partition.

This process ensures that the partitions are aligned optimally for the XtremIO storage system, which can help improve performance and efficiency. It’s important to note that while tools like Disk Management and Mbralign can be used for managing partitions, they may not provide thenecessary functionality to realign existing partitions on Windows Server 2008.Therefore, using Diskpart is the recommended approach1.

cURL is an application that can be used to interact with an XtremIO cluster via the REST API.

It allows for the execution of various HTTP commands to manage and retrieve information from the storage array.

cURL is widely used for its simplicity and capability to handle RESTful web services, making it suitable for managing XtremIO clusters.

References:

Dell XtremIO RESTful API Guide

XtremIO API Documentation

Misalignment of data, particularly to the 4k boundaries, can significantly impact write operations on a Linux server connected to an XtremIO storage system. Here’s why:

Block Size Alignment: Modern storage systems, including SSDs used in XtremIO arrays, typically use a 4k (4096 bytes) block size for data storage1. This is the smallest unit of data that can be read or written to the storage.

Misalignment Issues: When data is misaligned, it means that the file system’s blocks do not line up with the storage device’s blocks.This misalignment can cause additional read-modify-write cycles, which can degrade performance and increase latency for write operations1.

Effect on Write Operations: If data is not aligned to the 4k boundaries, the storage system may need to perform extra work to handle the writes, as each write operation could span multiple physical blocks.This results in inefficient use of the storage array’s resources and can lead to reduced throughput and increased wear on the SSDs1.

Linux Server Configuration: On a Linux server, ensuring proper alignment is crucial for optimal performance. This can involve configuring the file system and partition alignment during the setup and using tools that can check and correct alignment issues.

In conclusion, misaligned data to the 4k boundaries (OA) is a non-optimal configuration that can have a significant effect on write operations on a Linux server connected to XtremIO.Proper alignment to the storage system’s block size is essential for maintaining high performance and longevity of the storage media1.

When an XtremIO snapshot is taken of a production volume, it creates two snapshot entities.

These snapshots are identified as S1 and S2.

The creation of S1 and S2 ensures that the data consistency and integrity are maintained while providing a point-in-time copy of the production volume.

These snapshots can be used for various purposes such as backup, testing, or disaster recovery without impacting the performance of the production volume.

References:

Dell XtremIO Snapshots Guide

XtremIO Best Practices for Snapshot Management

XtremIO implements Data at Rest Encryption (DARE) to secure data on its SSDs.

This encryption method is designed to prevent unauthorized access to data if the physical media is stolen or lost.

The encryption process involves using a Data Encryption Key (DEK) for each drive, ensuring that data cannot be read without proper authentication.

This feature is crucial for maintaining data integrity and security, especially in scenarios involving sensitive or critical information.

References:

Dell XtremIO Security Guide

Data Encryption at Rest Technical Overview

This ensures that the XMS can effectively communicate with and manage each cluster, regardless of their individual configurations or the specific features they are using.

Compatibility is crucial for the XMS to perform its functions across all clusters, which includes tasks such as monitoring, reporting, and executing management operations.If the XMS code version is not compatible with a particular cluster, it may not be able to manage it properly, leading to potential issues with performance, reliability, and data integrity1.

Therefore, before adding a new XtremIO cluster to an existing XMS setup, the systems administrator must verify that the XMS code version is compatible with the firmware version running on the new cluster, as well as the versions on all other clusters currently being managed.This step is a fundamental requirement to ensure seamless management and operation of the XtremIO storage environment1.

The Compression ratio in the XtremIO X1 web interface dashboard is calculated by dividing theLogical Space in Useby thePhysical Space Used. This ratio provides an indication of the data reduction achieved through compression by comparing the amount of logical data (the size of data before compression) to the actual physical space it occupies after compression.

Logical Space in Use: This represents the total size of the data as it would appear without any compression. It’s the amount of space the data would consume if it were stored uncompressed.

Physical Space Used: This is the actual amount of storage space used on the SSDs after the data has been compressed. It reflects the efficiency of the compression algorithm in reducing the size of the data.

Compression Ratio Calculation: The compression ratio is obtained by dividing the Logical Space in Use by the Physical Space Used. A higher ratio indicates more effective compression, meaning that the data occupies significantly less physical space compared to its original size.

The compression ratio is a critical metric in storage systems as it directly impacts the total effective capacity of the array.In the context of XtremIO, which is known for its data reduction technologies, monitoring the compression ratio helps in understanding the efficiency of storage utilization and planning for capacity1.

Please note that while I can provide general information on how compression ratios are typically calculated in storage systems, for the verified answer as per the Official Dell XtremIO Operate Achievement documents, you would need to consult the document directly or seek information from a Dell-certified professional who has access to the latest materials and training.

For optimal performance when integrating new VMware hosts with an XtremIO storage array, it is recommended to adjust the LUN queue depth value of the Host Bus Adapters (HBAs). Here’s a detailed explanation:

LUN Queue Depth: This setting determines the number of I/O operations that can be queued to a logical unit number (LUN) on the storage system at one time.Properly configuring the queue depth can help optimize performance by allowing enough I/O operations to be processed concurrently without overwhelming the storage system1.

Emulex or QLogic HBAs: These are common types of HBAs used in VMware environments.Adjusting the LUN queue depth on these HBAs ensures that they are tuned to handle the I/O characteristics of the XtremIO storage array1.

Optimal Setting: The optimal LUN queue depth value can vary based on the specific environment and workload.However, Dell Technologies provides guidance on recommended settings for various configurations, which can be found in their official documentation or support resources1.

Impact on Performance: By adjusting the LUN queue depth, the storage I/O operations from the VMware hosts can be more efficiently managed, leading to better overall performance and reduced latency for applications accessing the XtremIO storage1.

Creating a snapshot of a multi-volume database requires careful coordination to ensure data consistency across all volumes. The best practice in this scenario involves using a Consistency Group in conjunction with a Scheduler:

Consistency Group: This is a collection of volumes that are treated as a single entity for snapshot purposes. When a snapshot is taken of a Consistency Group, it captures a point-in-time image of all volumes in the group simultaneously.This ensures that the snapshot reflects a consistent state across all volumes, which is crucial for databases that span multiple volumes1.

Scheduler: The Scheduler is used to automate the snapshot process. By setting up a schedule, the systems administrator can ensure that the snapshot is taken at exactly 1:00 AM without manual intervention.The Scheduler will trigger the snapshot process at the specified time, using the settings defined for the Consistency Group1.

Presenting to a Backup Server: Once the snapshot is created, it can be presented to a backup server.This server will see the snapshot as if it were the actual data, allowing for backup operations to be performed without impacting the production environment1.

Snapshot Restore and Snapshot Set (OA): While these are components of snapshot operations, they do not provide the same level of coordination and automation as a Consistency Group with a Scheduler.

Snapshot Set and the Scheduler (OB): A Snapshot Set is a collection of snapshots, but without the use of a Consistency Group, there is no guarantee that the snapshots will be consistent across all volumes.

Consistency Group and Snapshot Refresh (OD): Snapshot Refresh is a process of updating a snapshot with changes from the source volumes. While useful in certain scenarios, it is not the initial step for creating and presenting snapshots to a backup server.

In the context of XtremIO storage systems, creating reports typically requires administrative privileges. The role of an Administrator is usually necessary to access and manage the full range of system functionalities, including the generation of new reports. Here’s why:

Configuration Role (OA): While this role may allow for some system configurations, it might not have the necessary permissions to create new reports, which often involve accessing and manipulating system-wide data.

Read-Only Role (B): This role is typically limited to viewing configurations and reports that already exist within the system. It does not permit the creation of new reports or modification of existing ones.

Administrator Role (OC): An Administrator role usually has the highest level of access within a system, including the ability to create, modify, and delete reports. This role can access all areas of the system and make changes as required.

Technician Role (OD): The Technician role may have permissions for certain operational tasks and troubleshooting but is not typically empowered to create system reports.

Therefore, the minimum account role required to create a new XtremIO report would be the Administrator role (OC), as it provides the necessary access and permissions to perform such tasks within the storage system.

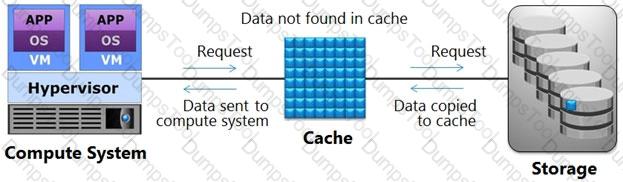

If the requested data is not found in cache, it is called a cache miss and the data must be read from the storage. The back end accesses the appropriate storage device and retrieves the requested data. Data is then placed in cache and finally sent to the compute system through the front end. Cache misses increase the I/O response time.

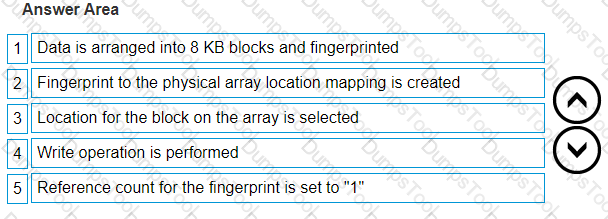

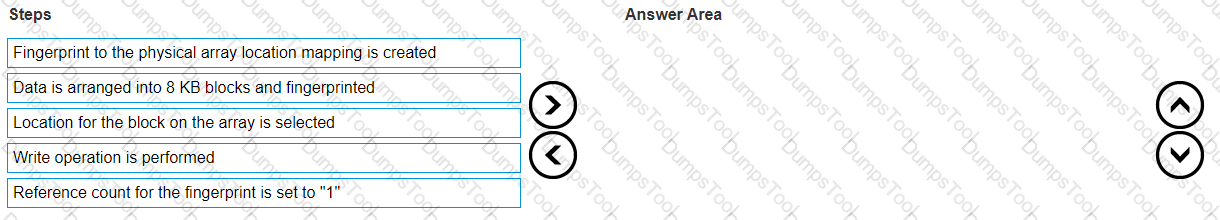

The correct sequence of operations when a host writes a unique data block to an XtremIO X1 array is as follows:

Data is arranged into 8 KB blocks and fingerprinted.

Fingerprint to the physical array location mapping is created.

Location for the block on the array is selected.

Write operation is performed.

Reference count for the fingerprint is set to “1”.

Data Arrangement and Fingerprinting: Initially, the data received from the host is organized into 8 KB blocks.Each block is then fingerprinted, which involves creating a unique identifier for the data block that can be used to detect duplicates and manage data more efficiently1.

Mapping Creation: After fingerprinting, a mapping between the fingerprint and its physical location on the XtremIO array is established.This step is crucial for the array to know where each data block is stored and to retrieve it quickly when needed1.

Location Selection: The XtremIO system then selects the most appropriate location for the data block on the array.This decision is based on various factors, including space availability and optimization algorithms1.

Write Operation: Once the location is determined, the actual write operation takes place.The data block is written to the selected spot on the SSD within the array1.

Reference Count Setting: Finally, a reference count for the data block’s fingerprint is set to “1”. This indicates that there is currently one instance of this data block stored on the array.The reference count is used to manage data deduplication and ensure efficient storage utilization1.
