D-XTR-MN-A-24 Questions and Answers

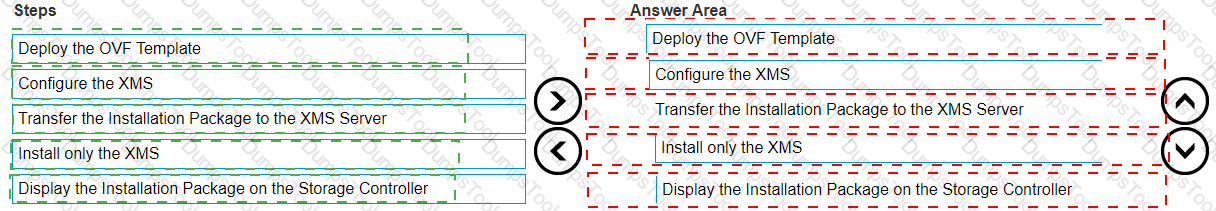

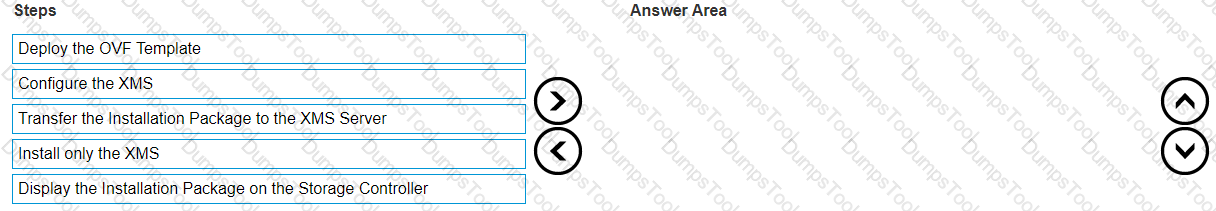

The correct sequence of steps to install a virtual XMS prior to creating the cluster on an XtremIO X2 is:

Deploy the OVF Template

Configure the XMS

Transfer the Installation Package to the XMS Server

Install only the XMS

Display the Installation Package on the Storage Controller

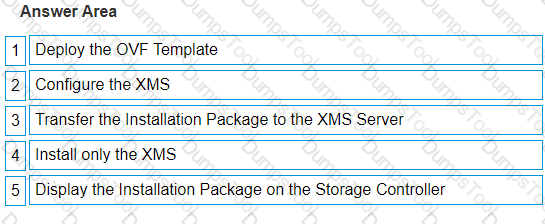

Deploy the OVF Template: Begin by deploying the Open Virtualization Format (OVF) template which is a pre-configured virtual machine that contains all necessary installation files.

Configure the XMS: After deployment, configure XtremIO Management Server (XMS) which involves setting up network configurations and other system settings.

Transfer the Installation Package to the XMS Server: The next step is transferring all necessary installation files for XtremIO to your newly configured XMS server.

Install only the XMS: Proceed with installing only XtremIO Management Server software on your server.

Display the Installation Package on Storage Controller: Finally, ensure that your storage controller can access and display all relevant installation packages for further processes.

These steps are outlined in the Dell XtremIO Maintenance Achievement document and provide a systematic approach to installing a virtual XMS, which is essential for managing and creating an XtremIO X2 cluster.

XtremIO upgrade packages can be found on the support.emc.com website. This is the official support site for Dell EMC products, where customers can download software updates, including XtremIO upgrade packages.The site provides access to various resources, including documentation, knowledge articles, and software downloads for Dell EMC products12.

To find and download XtremIO upgrade packages, follow these steps:

Go to support.emc.com.

Log in with your Dell EMC support account credentials.

Navigate to the ‘Downloads’ section.

Search for XtremIO in the product list.

Select your specific XtremIO model and version.

Locate the upgrade package you need and download it.

It’s important to ensure that you have a valid support contract and the necessary permissions to access and download software updates from support.emc.com1.

=========================

In a multi X-brick cluster, each X-brick consists of multiple Disk Array Enclosures (DAEs) that work together to provide storage and data redundancy.

If both DAE controllers in a single X-Brick fail, the impact is localized to the LUNs (Logical Unit Numbers) that store data on that particular DAE.

The entire cluster does not shut down; rather, only the data on the affected DAE becomes unavailable.

This design ensures that the rest of the cluster continues to operate normally, albeit with potential performance degradation depending on the data distribution and workload.

When comparing XtremIO X1 to XtremIO X2, the amount of memory installed in a Storage Controller with a DAE attached with 400 GB SSDs differs. For the X1, it is 256 GB, while for the X2, it is 512 GB. This increase in memory in the X2 model supports higher performance and improved handling of data operations.

For uploading the XtremApp to the XtremIO Management Server (XMS), the recommended tool isWinSCP.WinSCP is a popular SFTP client and FTP client for Microsoft Windows that allows for secure file transfer between a local and a remote computer1. It is particularly useful for uploading files like XtremApp due to its graphical user interface, which simplifies the process of transferring files.

The steps for uploading the XtremApp to the XMS using WinSCP are as follows:

Download and install WinSCP on your local machine.

Open WinSCP and enter the XMS’s hostname or IP address, as well as the username and password.

Navigate to the XtremApp file on your local machine within the WinSCP interface.

Drag and drop the XtremApp file to the desired directory on the XMS.

Verify that the upload was successful by checking the file size and timestamp on the XMS.

This method is recommended in the Official Dell XtremIO Maintenance Achievement document as it provides a secure and reliable way to manage files on the XMS1.

=========================

When the NVRAM status LED on an XtremIO X2 is flashing red at one-second intervals, it indicates an uncorrectable error. This is a critical status that typically signifies a hardware malfunction or failure within the NVRAM module, which requires immediate attention.NVRAM, or Non-Volatile Random Access Memory, is crucial for retaining data integrity during power losses or system crashes1.

The steps to address this issue usually involve:

Investigating the system logs to identify the specific nature of the error.

Contacting Dell EMC support for guidance on diagnosing and resolving the issue.

Following the recommended procedures for troubleshooting or replacing the affected NVRAM module, as per the support team’s instructions.

It is important to resolve such errors promptly to prevent potential data loss and to maintain the overall health and performance of the storage system1.

=========================

The field replaceable units (FRUs) on an XtremIO X1 Storage Controller include the entire component and the Power Supply Unit (PSU).This information is verified as per the Official Dell XtremIO Maintenance Achievement document, which outlines the FRU replacement procedures for XtremIO products1.

When creating a cluster, in addition to the cluster name, the following parameters are required: the expected number of X-Bricks, the IP address of X1-SC1 (the first Storage Controller), and the package name. These parameters are essential for setting up the cluster configuration and ensuring proper communication between components.

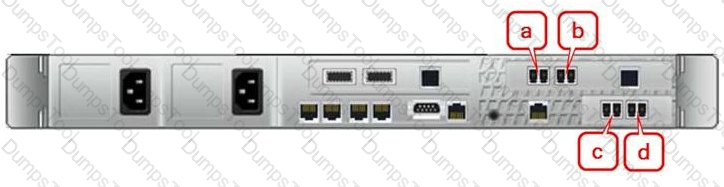

Based on the provided exhibit, ports "b" and "d" are used for FC2 (Fibre Channel 2) and iSCSI1 connections on an XtremIO X1. These ports are designated for specific connection types to ensure optimal performance and correct configuration of the storage network.

XtremIO X2 clusters are designed for efficient space utilization in data center racks.

A four X-Brick XtremIO X2 cluster requires specific rack space allocation.

Each X-Brick occupies 5U of rack space. Therefore, four X-Bricks would require 20U.

Additionally, the physical XtremIO Management Server (XMS) occupies 1U of rack space.

In total, the four X-Brick XtremIO X2 cluster with a physical XMS requires 21U of rack space.

To expand a Starter X-Brick cluster (which typically begins with one X-Brick) to an eight X-Brick cluster, a total of three expansions are required. Each expansion step in XtremIO can typically double the number of X-Bricks, thus:

First expansion: From 1 X-Brick to 2 X-Bricks.

Second expansion: From 2 X-Bricks to 4 X-Bricks.

Third expansion: From 4 X-Bricks to 8 X-Bricks.

This sequence ensures that the storage array scales properly, maintaining performance and redundancy.
