D-XTR-DY-A-24 Questions and Answers

The delay in the quick formatting process of a 2 TB LUN from an XtremIO storage array when installing a new Microsoft Windows 2012 host is likely caused by the UNMAP feature being enabled. The UNMAP command is part of the SCSI thin provisioning set, which allows the host to inform the storage array which blocks are no longer in use and can be reclaimed. When UNMAP is enabled, the quick format process may take longer because the storage array needs to process these UNMAP commands and perform the necessary space reclamation tasks1.

It’s important to note that while UNMAP can improve storage efficiency, it can also introduce overhead during operations like formatting, which can lead to delays. For detailed procedures and best practices, it is recommended to consult the Official Dell XtremIO Deploy Achievement document or reach out to Dell support for the most accurate guidance.

Backup Policy and XtremIO Virtual Copy: The system administrator needs to ensure that the backup policy using XtremIO Virtual Copy (XVC) can store the required read-only copies without exceeding the storage limits.

Calculating Days of Storage:

500 production volumes are backed up 4 times a day.

Total copies created per day: 500 volumes * 4 backups/day = 2000 copies/day.

Assuming the array can store a specific number of copies before older ones are deleted, let's determine the duration:

Duration Calculation:

If the array can store copies for 5 days, it can handle: 2000 copies/day * 5 days = 10,000 copies.

Thus, the array can store the backup copies for 5 days before the original backups are deleted to make space for new ones.

References:

Dell XtremIO 6.x User Guide

XtremIO Virtual Copy and Protection Copies Features

Dell XtremIO Deployment Services

When configuring Linux hosts to support XtremIO storage, it is recommended to set the LUN queue depth to 64. This setting helps to optimize the performance of the host when communicating with the XtremIO storage system.

Access Host Configuration: Log into the Linux host that will be connected to the XtremIO storage.

Modify HBA Parameters: Locate the HBA (Host Bus Adapter) parameters within the host’s configuration files.

Set Queue Depth: Adjust the queue depth parameter for the HBA to 64. This can typically be done by editing the options.conf file or similar, depending on the HBA driver in use.

Apply Changes: Save the changes and reload the HBA driver or reboot the host to apply the new configuration.

Verify Configuration: Confirm that the new queue depth setting is active and functioning as expected.

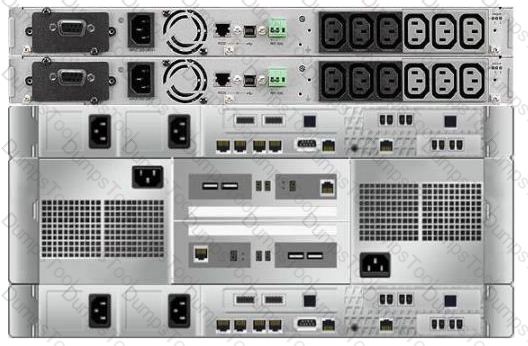

Identify the Components: According to the Dell XtremIO Deploy Achievement document, the XtremIO X1 system includes a Storage Controller (SC) and a Battery Backup Unit (BBU)1.

Understand the Configuration: For a single X-Brick cluster, the left power supply in Storage Controller 1 (X1-SC1-PSU-L) should be connected to the corresponding BBU to ensure proper power redundancy and failover capabilities1.

Determine the Correct Connection: The document specifies that each Storage Controller’s left power supply connects to Output1 of the BBU within the same X-Brick cluster1.

Verify the Answer: Based on the information provided, the correct power cable connection for the left power supply in Storage Controller 1 to the Battery Backup Unit in an XtremIO X1 single X-Brick cluster is to BBU1-Output1, which corresponds to option OB1.

Checking Connectivity: Before creating a cluster, it is crucial to ensure that all components such as DAE controllers, IB switches, IPMI, and BBU are correctly connected and operational.

Technician Advisor Tool: This tool is specifically designed to assist with installation and validation of hardware components in an XtremIO environment. It provides comprehensive checks and ensures all components are correctly connected and operational.

Other Options:

WebUI: Typically used for management and monitoring after cluster creation.

Easy-Install Menu: Helps in initial setup but may not provide detailed connectivity checks.

XMCLI: Can be used for various configurations and checks, but the Technician Advisor Tool is more specialized for this purpose.

References:

Dell XtremIO Installation and Setup Guide

Technician Advisor Tool Documentation

Dell XtremIO Deployment Services

In the event of a power failure, the XtremIO X2 system’s NVRAM (Non-Volatile Random Access Memory) card will initiate the discharging of the SuperCapacitor (SuperCap). The SuperCap is designed to provide enough power to the NVRAM card to allow it to write any data in transit to a non-volatile storage medium, ensuring data integrity and preventing loss1. This process is a critical part of the XtremIO X2’s data protection mechanism during unexpected power interruptions.

Data Protection Group (DPG) in XtremIO X2: The DPG is designed to tolerate multiple disk drive failures while continuing to provide data services.

Failure Tolerance: In a fully-populated DPG with sufficient capacity, it would require 7 disk drives to fail sequentially to stop the data services, as XtremIO is designed with high fault tolerance and redundancy.

References:

Dell XtremIO X2 Data Protection Guide

XtremIO Architecture and Fault Tolerance Documentation

Dell XtremIO Deployment Services

In an Oracle environment integrated with XtremIO, it is a best practice to increase the queue depth and execution throttle to the maximum values supported by the HBA (Host Bus Adapter) drivers. This configuration helps to optimize the performance by allowing more I/O operations to be processed simultaneously, which is crucial for handling the demanding workloads typically associated with Oracle databases. References := Dell Deployment Services

RecoverPoint offers data protection and disaster recovery for heterogeneous storage environments. However, when it comes to XtremIO-to-XtremIO replication, RecoverPoint supports homogeneous replication, meaning it can replicate data between XtremIO arrays. This ensures that the advanced data services provided by XtremIO, such as deduplication and compression, are maintained during the replication process1.

Homogeneous Replication: RecoverPoint’s homogeneous replication capability allows for consistent replication between similar storage systems, which is essential for maintaining data efficiency features.

XtremIO Integration: When integrated with XtremIO, RecoverPoint utilizes the storage array’s native capabilities to ensure efficient replication.

Data Services Continuity: By supporting homogeneous replication, RecoverPoint ensures that XtremIO’s data services like deduplication and compression are preserved during replication, optimizing storage utilization and performance1.

Disaster Recovery: This integration allows for robust disaster recovery solutions, ensuring that data is protected and can be recovered in the event of a site failure.

Scalability: While RecoverPoint can scale up with additional RecoverPoint Appliances (RPAs) in other environments, the replication between XtremIO arrays is designed to work within the XtremIO ecosystem1.

During the installation of an XtremIO X1 system, the document that should be used to identify the ports for IPMI (Intelligent Platform Management Interface) cable connections is the XtremIO Storage Array Hardware Installation and Upgrade Guide. This guide typically contains detailed information about the hardware components, including diagrams and descriptions of the ports, which are essential for correctly connecting the IPMI cables.

The process of identifying the correct IPMI ports usually involves the following steps:

Locate the Guide: Access the XtremIO Storage Array Hardware Installation and Upgrade Guide. This document is designed to provide instructions specifically related to the physical components of the XtremIO system.

Identify the Ports: Use the diagrams and descriptions within the guide to locate the IPMI ports on the XtremIO hardware. These ports are typically labeled and may be color-coded to help distinguish them from other ports.

Connect the Cables: Once the IPMI ports have been identified, connect the IPMI cables to these ports as per the instructions provided in the guide. Ensure that the connections are secure and that the cables are not obstructing any other components.

Verify the Connections: After connecting the cables, verify that the connections match the diagrams and descriptions in the guide. This step is crucial to prevent any issues related to incorrect cabling.

Reference Documentation: For the most accurate and up-to-date information, always refer to the latest version of the XtremIO Storage Array Hardware Installation and Upgrade Guide1. This ensures that any changes or updates to the hardware are taken into account during the installation process.

By following these steps and referring to the correct documentation, you can ensure that the IPMI cable connections are made correctly, which is vital for the remote management and monitoring of the XtremIO X1 system.

show-clusters-info Command: This command is used to display the status and information of an XtremIO cluster.

Healthy State: For a healthy XtremIO cluster, the state displayed is "Active and enabled".

Verification: This state indicates that the cluster is operational and all services are functioning as expected.

References:

Dell XtremIO Command Reference Guide

Dell XtremIO Troubleshooting Guide

2.

Understanding X-Bricks: X-Bricks are the fundamental building blocks of an XtremIO storage array. Each X-Brick consists of a pair of storage controllers and a set of SSDs.

XtremIO X1 Cluster Configuration:

An XtremIO X1 cluster can scale by adding more X-Bricks.

The scalability and configuration limits depend on the hardware and software capabilities of the XtremIO X1 system.

Maximum Number of X-Bricks:

The XtremIO X1 cluster can be configured with up to 4 X-Bricks.

This means the maximum configuration for an XtremIO X1 cluster would include 4 X-Bricks.

References:

Dell XtremIO X1 System Overview and Specifications

Dell XtremIO Deployment Services

Official XtremIO Documentation for hardware and cluster configuration limits.

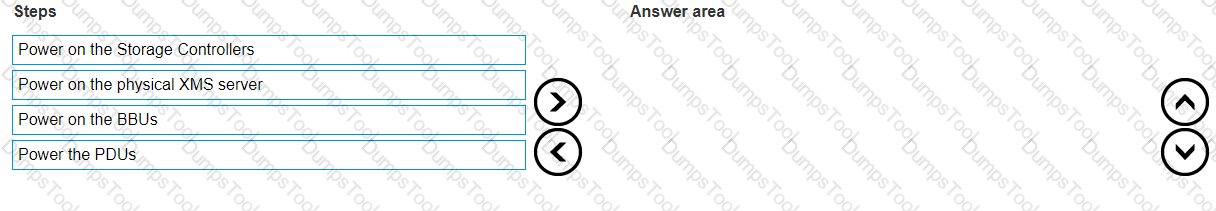

 Power the PDUs

 Power on the BBUs

 Power on the Storage Controllers

 Power on the physical XMS Server

Power the PDUs: The Power Distribution Units (PDUs) need to be powered first as they supply power to all the other components.

Power on the BBUs: The Battery Backup Units (BBUs) are powered on next to ensure that the system has emergency power in case of a power failure.

Power on the Storage Controllers: The storage controllers are responsible for managing the storage array, so they need to be powered on before the server.

Power on the physical XMS Server: Finally, the XMS server, which provides management and monitoring capabilities, is powered on.

References:

Dell XtremIO Deployment Services

Dell XtremIO Deployment Guide and official documentation for detailed step-by-step procedures.
