D-VXR-OE-23 Questions and Answers

To resolve the issue of health monitoring being disabled and enable the relevant service, follow these steps:

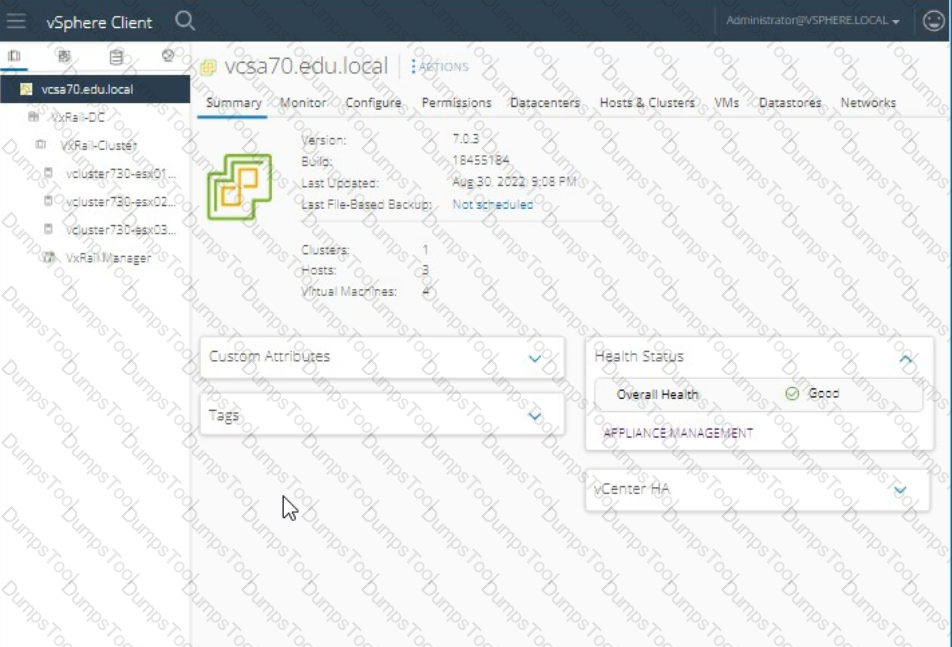

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to VxRail Manager:

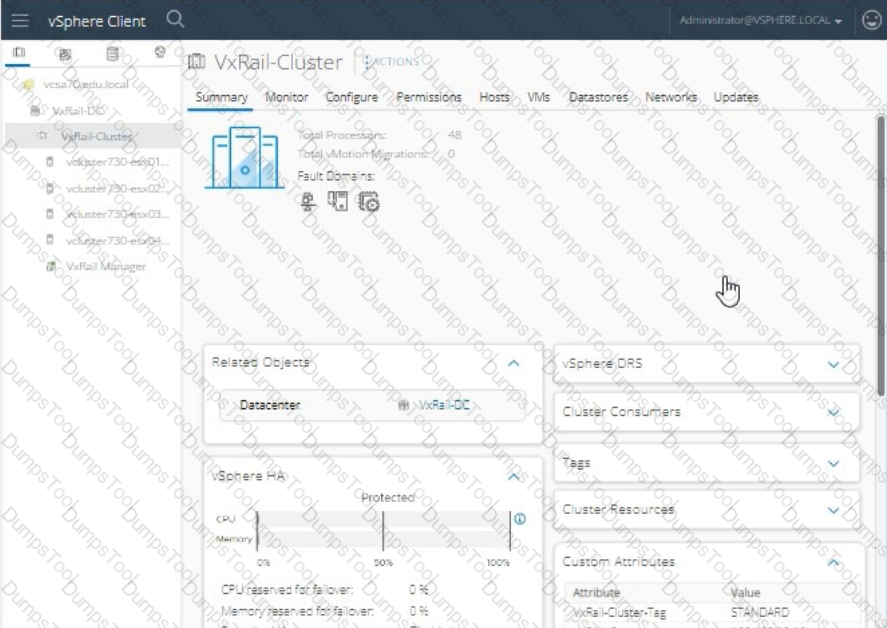

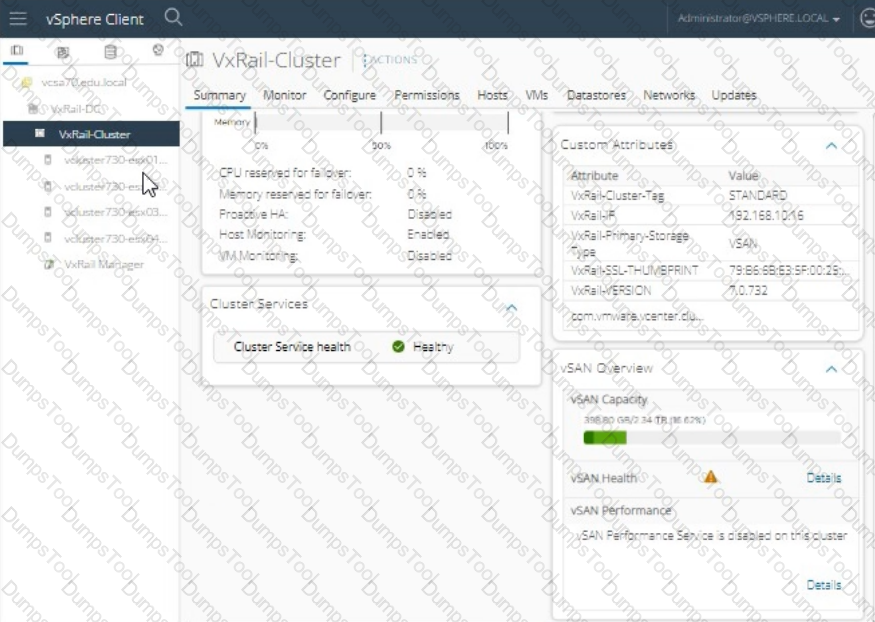

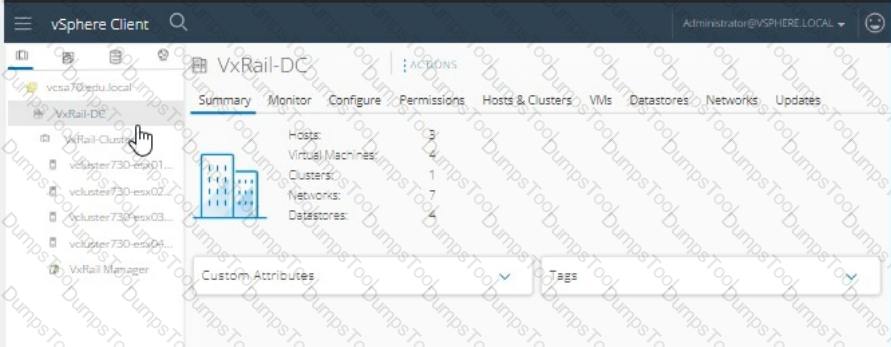

In the vSphere Client interface, expand VxRail-DC and then VxRail-Cluster.

Select VxRail Manager.

Access VxRail Health Monitoring Settings:

Click on the Configure tab.

Under VxRail, select Health.

Enable Health Monitoring:

Find the option for Health Monitoring.

If it is disabled, click Edit or the relevant button to enable it.

Ensure that Enable Health Monitoring is checked.

Click Apply or OK to save the changes.

Verify Health Monitoring Status:

Go back to the Summary tab or the appropriate section in VxRail Manager.

Verify that the health monitoring status is now enabled and shows as healthy.

Steps using the Simulator:

Login to vSphere Client:

Open the simulator and navigate to the vSphere Client interface.

Log in using the credentials:

Username: administrator@vsphere.local.

Password: VMw@r3!123.

Navigate to VxRail Manager:

In the vSphere Client interface, expand VxRail-DC and then VxRail-Cluster.

Select VxRail Manager.

Enable Health Monitoring:

Click on the Configure tab.

Under VxRail, select Health.

Click Edit to modify the health settings.

Check the box for Enable Health Monitoring.

Click Apply or OK to save the changes.

Verify:

Go back to the Summary tab in VxRail Manager.

Ensure that the warning message about health monitoring being disabled is no longer present and that health monitoring is active.

To upgrade a VxRail cluster to the latest recommended version at a dark site (an environment without internet access), follow these steps:

Log in to VxRail Manager:

Open a web browser and navigate to the VxRail Manager URL.

Log in using the credentials:

Username: root

Password: VMw@r3!123.

Check Current Version and Compatibility:

Once logged in, navigate to the Dashboard to view the current version of VxRail.

Verify compatibility with the target upgrade version by reviewing the VxRail Release Notes or Upgrade Guide for your specific version.

Download Upgrade Bundle:

Since the site is dark, download the necessary upgrade bundle from Dell EMC’s support site using another system with internet access.

Save the upgrade bundle to a portable storage device (USB drive, external HDD, etc.).

Upload the Upgrade Bundle to VxRail Manager:

Connect the portable storage device to a local machine within the dark site.

In VxRail Manager, navigate to the Internet Upgrade section.

Select Local Upgrade and browse to the location of the upgrade bundle on your local machine.

Upload the upgrade bundle.

Perform the Upgrade:

After the bundle is uploaded, follow the on-screen prompts to begin the upgrade process.

The upgrade wizard will guide you through pre-upgrade checks, including verifying compatibility and ensuring cluster health.

Monitor the Upgrade Progress:

The upgrade process will take some time. Monitor the progress via the VxRail Manager interface.

Ensure there are no errors or issues reported during the upgrade.

Post-Upgrade Verification:

Once the upgrade is complete, verify that the VxRail Manager and vCenter report the new version correctly.

Check the health and status of the cluster to ensure all components are operational.

Steps using the Simulator:

Login to VxRail Manager:

Open the simulator and navigate to the VxRail Manager interface.

Use the provided credentials to log in:

Username: root

Password: VMw@r3!123.

Navigate to Upgrade Section:

In the VxRail Manager interface, click on Internet Upgrade or Software Upgrade.

Upload the Upgrade Bundle:

Select Local Upgrade.

Click Browse and select the upgrade bundle from your local machine.

Click Upload to start the upload process.

Initiate the Upgrade:

Once the upload is complete, follow the prompts to start the upgrade.

Confirm the pre-upgrade checks and proceed.

Monitor Upgrade Process:

Monitor the upgrade status in the VxRail Manager interface.

Wait for the upgrade to complete and ensure there are no issues.

Verify Upgrade Completion:

After the upgrade, verify the new version in the VxRail Manager dashboard.

Check the health status of the cluster to ensure everything is running smoothly.

The error code 404 indicates that the requested resource could not be found on the server. In the context of the API call GET/v1/hosts/{sn}, the 404 error is returned because the serial number (sn) provided was not valid or does not exist in the database. This means the server could not find any host that matches the provided serial number.

The resource that enables an administrator to create a procedure for upgrading a VxRail cluster is SolVe Online. SolVe Online is a web-based tool provided by Dell Technologies that offers comprehensive procedures and best practices for various Dell EMC solutions, including VxRail. It provides detailed, step-by-step guidance for a variety of tasks, including upgrades, ensuring that administrators follow the correct procedures to maintain system integrity and minimize downtime.

In VxRail networks, the vSAN and vMotion networks support link aggregation. Link aggregation (also known as NIC teaming) allows multiple network interfaces to be combined into a single logical interface, providing redundancy and increased throughput. This is particularly beneficial for vSAN traffic, which requires high bandwidth and low latency, and vMotion traffic, which benefits from increased network performance during virtual machine migrations.

The three data protection options included with VxRail are:

vSphere Replication: Provides simple and cost-effective replication of virtual machines for data protection and disaster recovery. It allows users to replicate VMs between different vSphere environments.

vSAN Stretched Cluster: Offers high availability and disaster recovery by stretching a single vSAN cluster across two geographically separated sites. It ensures data redundancy and site-level failure protection.

RecoverPoint for VMs: Provides continuous data protection and disaster recovery for VMware virtual machines. It enables point-in-time recovery and ensures minimal data loss in the event of a failure.

When adding a node to an existing VxRail Cluster and the node is not discovered in the vSphere Client, the "loudmouth" log should be analyzed. The loudmouth log is crucial for node discovery as it records the communication and discovery processes between nodes in the VxRail cluster. Analyzing this log can help diagnose issues related to node visibility and network communication.

The recommended vSAN automatic rebalancing threshold by VMware is 20%. This threshold ensures that vSAN automatically initiates rebalancing operations when the storage utilization across the disks in the vSAN datastore becomes uneven beyond this threshold, maintaining optimal performance and storage efficiency.

When a VM is configured with hard disks totaling 100 GB and uses a RAID 5 vSAN Storage Policy, the total space consumed on the vSAN Datastore is approximately 133 GB. RAID 5 in vSAN requires additional space for parity, which is typically about 1.33 times the original data size. This means that for 100 GB of allocated space, the actual consumed space will be around 133 GB, accounting for the data and parity overhead.
